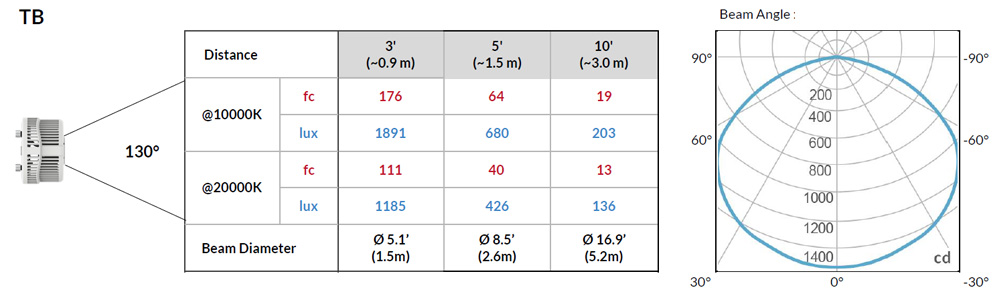

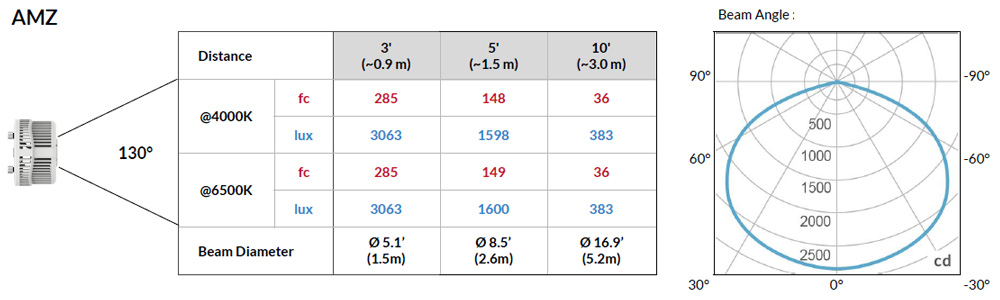

| Beam Angle | 130° |
| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| Power Draw | 175W max |
| AC Input Voltage | 100 - 240V AC, 60Hz 100 - 277V AC (only with CLP) |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.4lb / 0.6kg |
| Power Supply Weight | 1.6lb / 0.7kg |

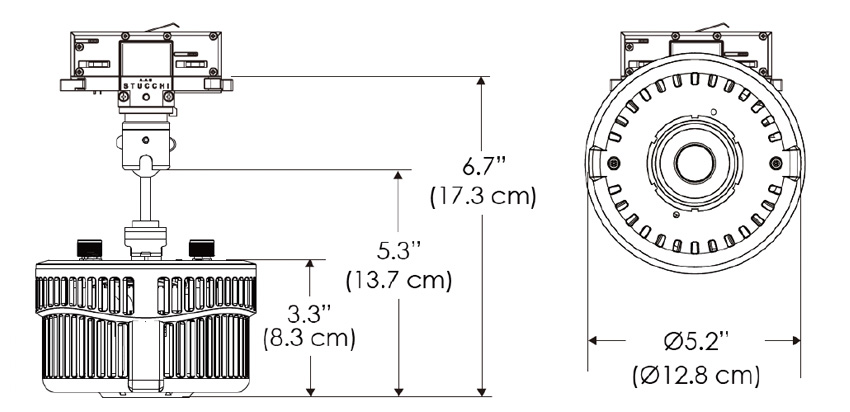

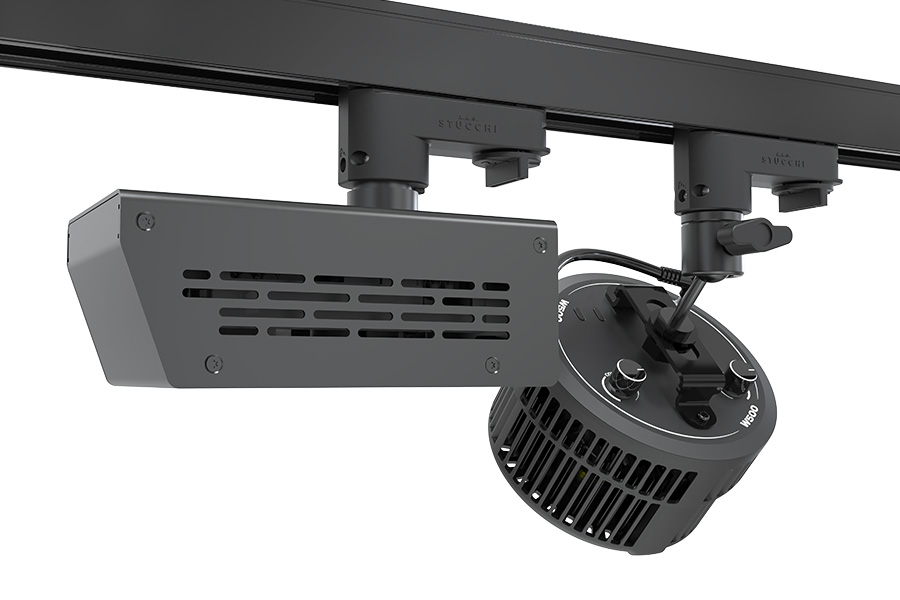

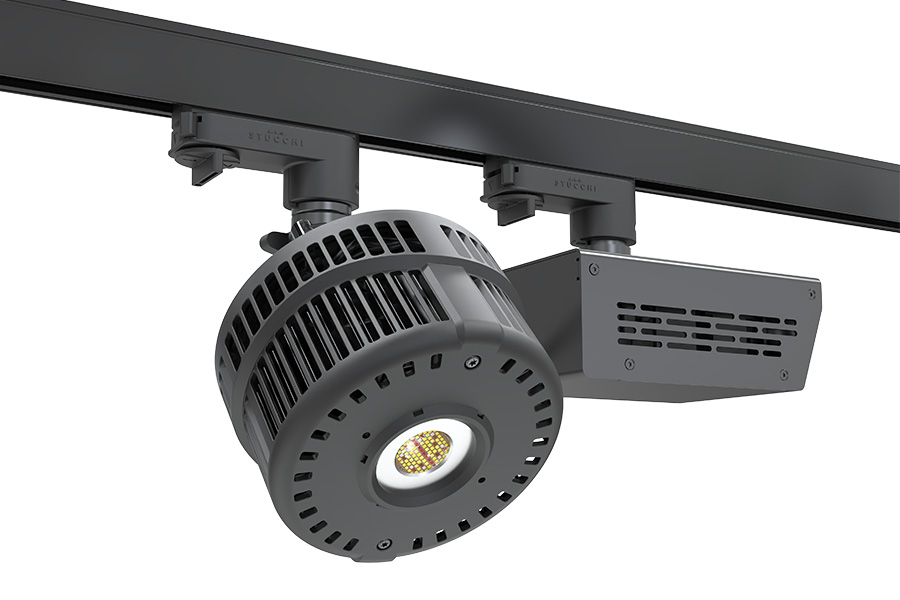

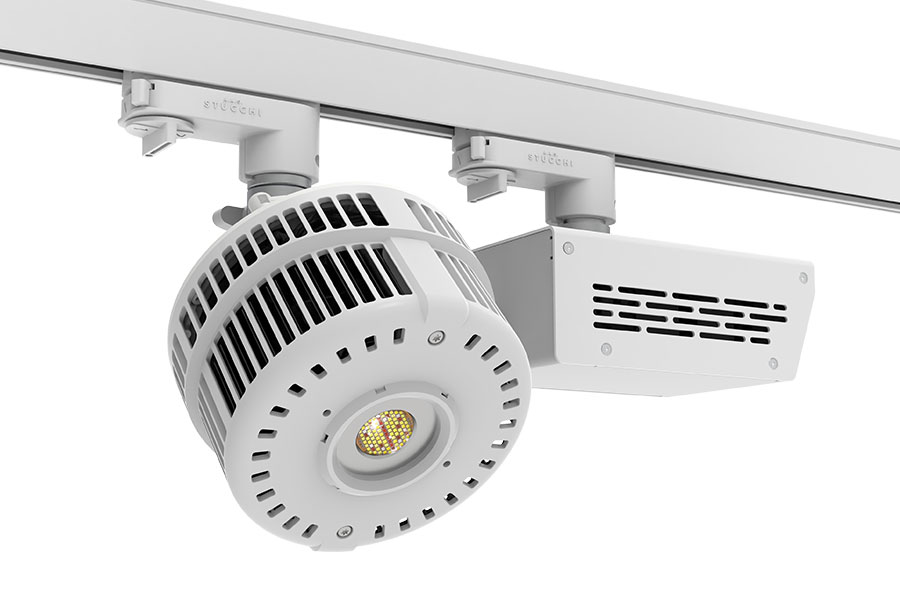

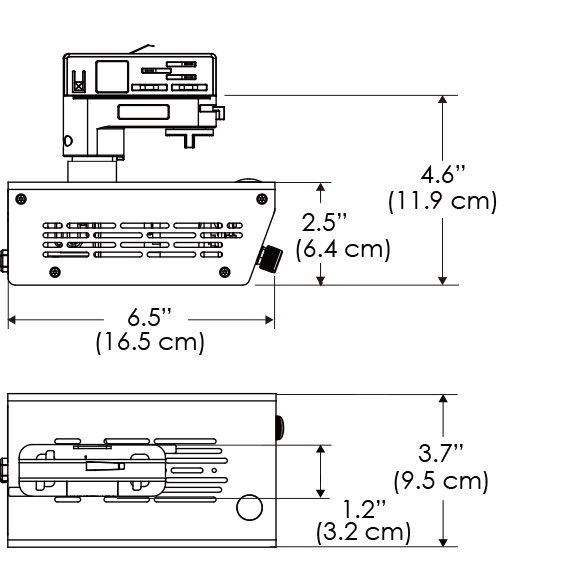

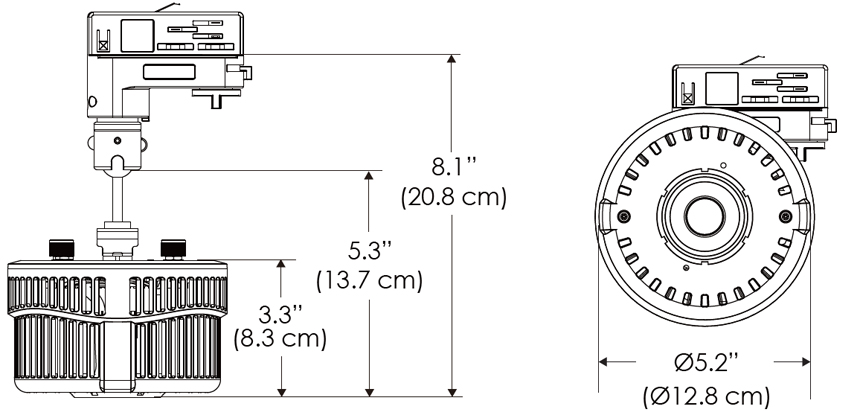

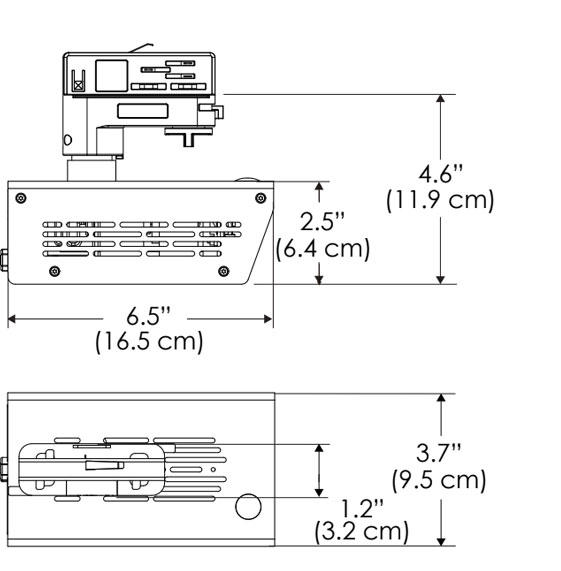

| W500X-TOX/TON | PS  | PSX |
 |
 |  |

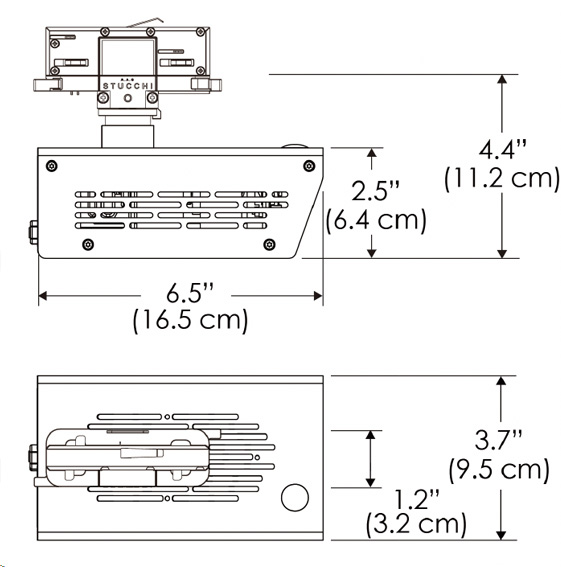

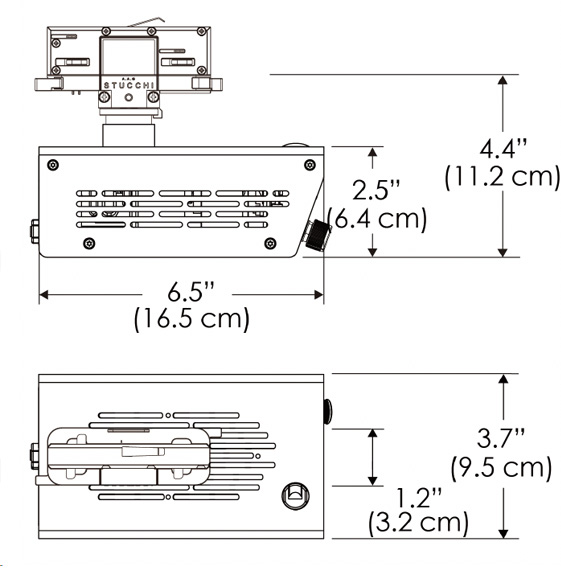

| W500X-TOX/TON | PS  | PSX |
 |
 |  |

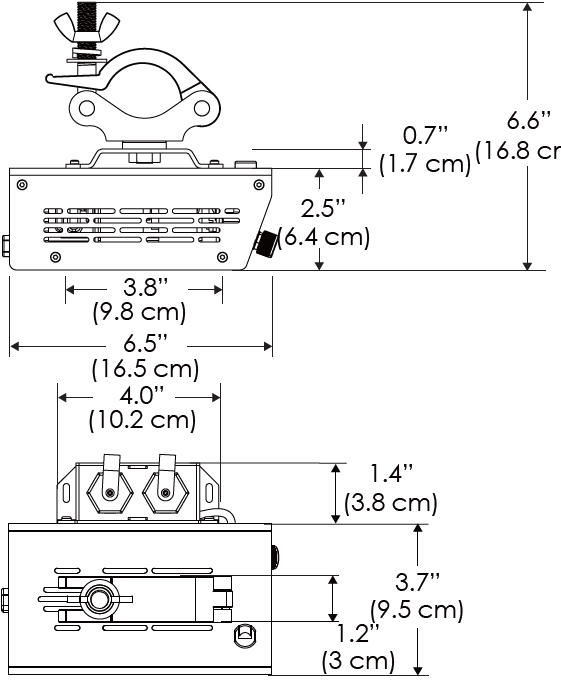

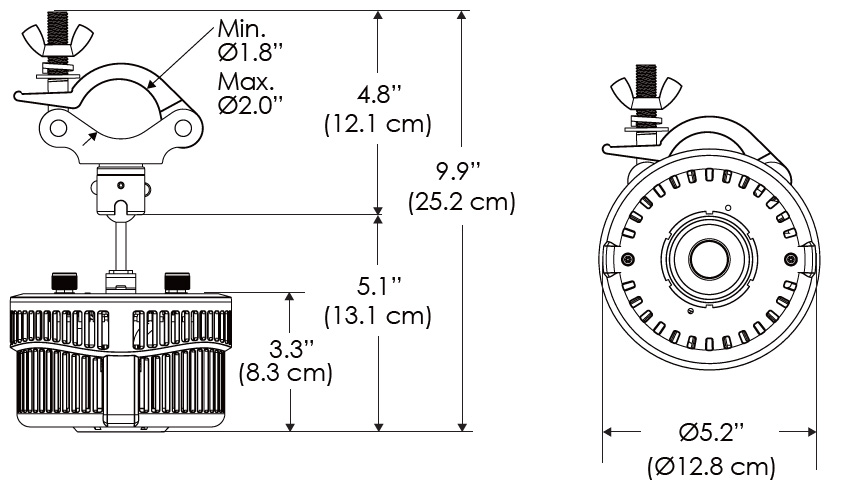

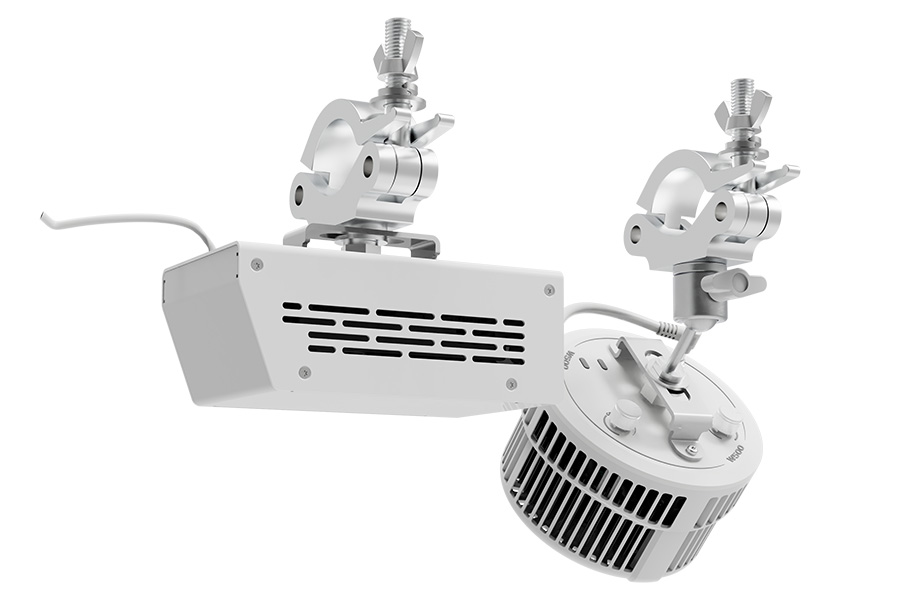

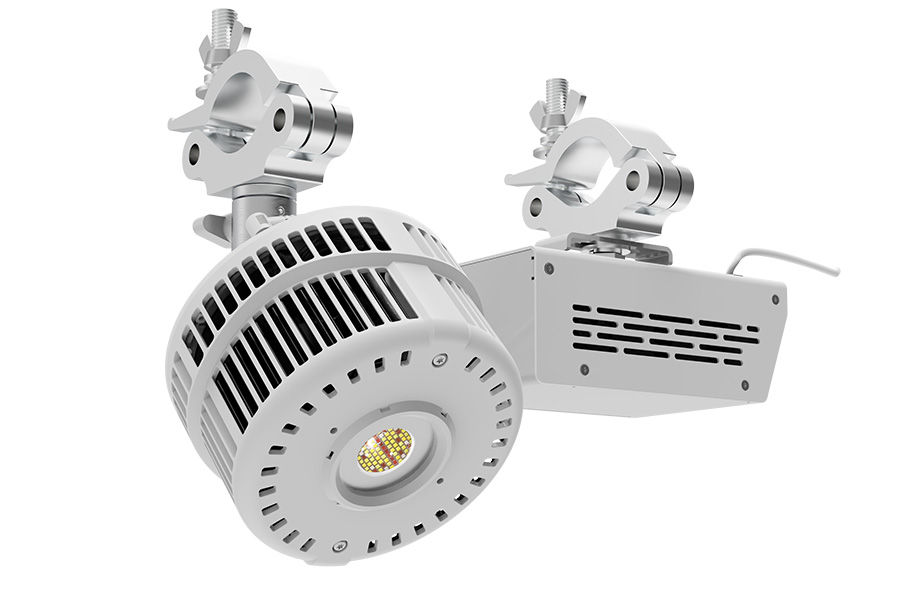

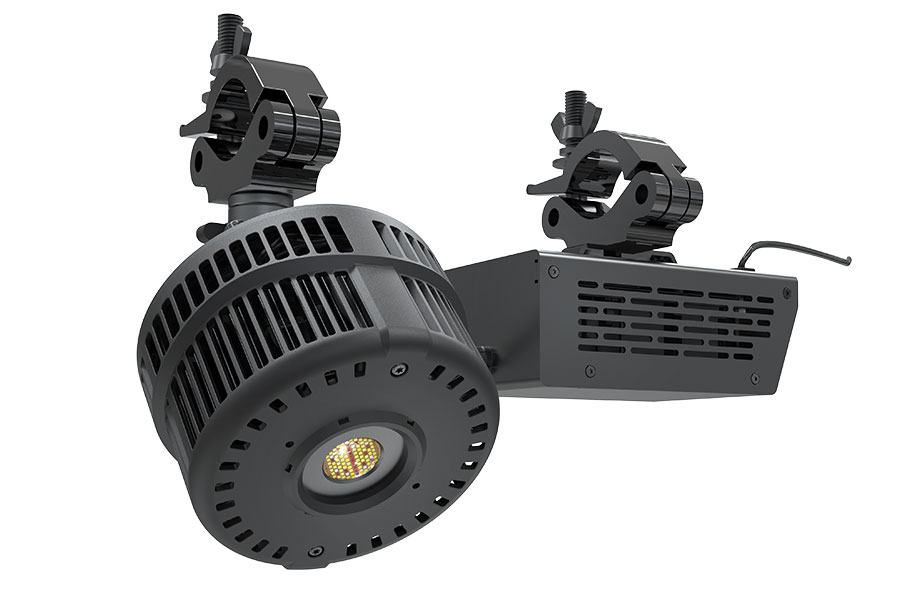

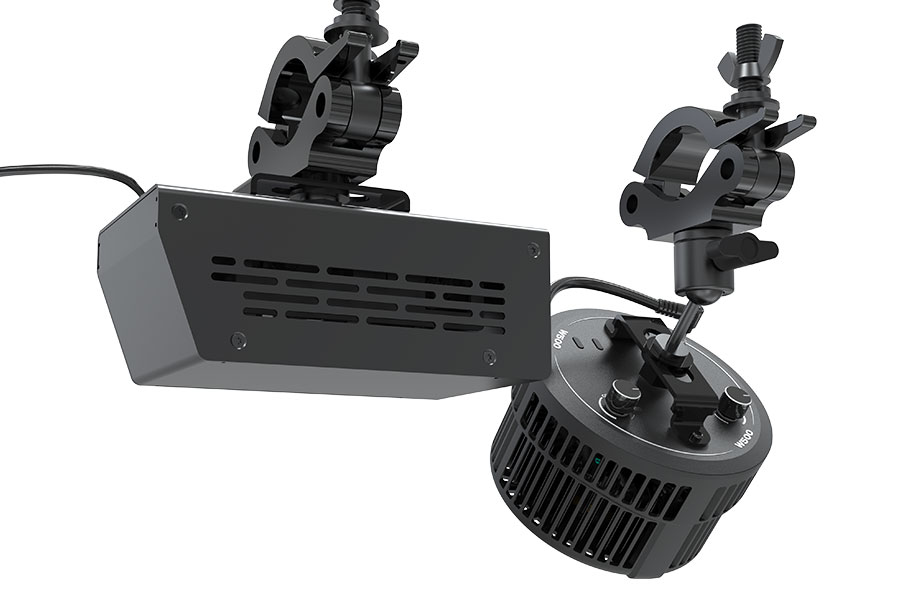

| W500X-CLP | PS | PSX  |
 |
 |  |

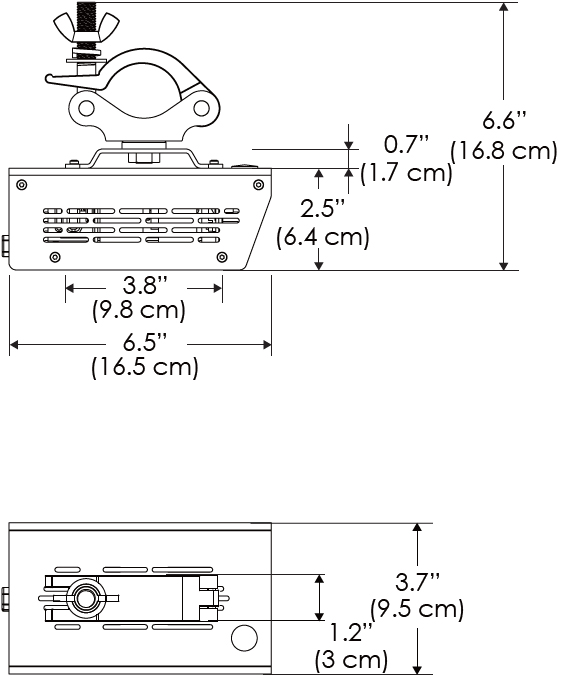

| Mounting Bracket Dimensions ALL-CLP *All -CLP configuration models come with standard DC cables of 6 inches and AC cables of 10 ft. |
 |
|

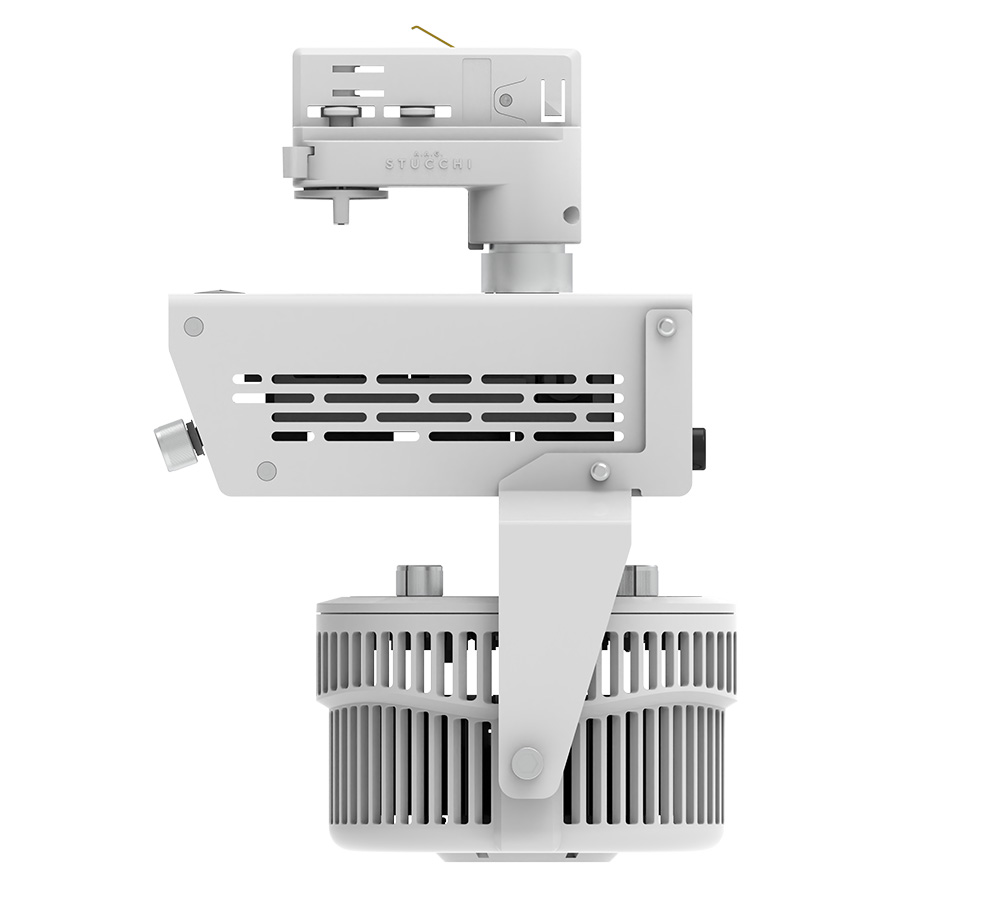

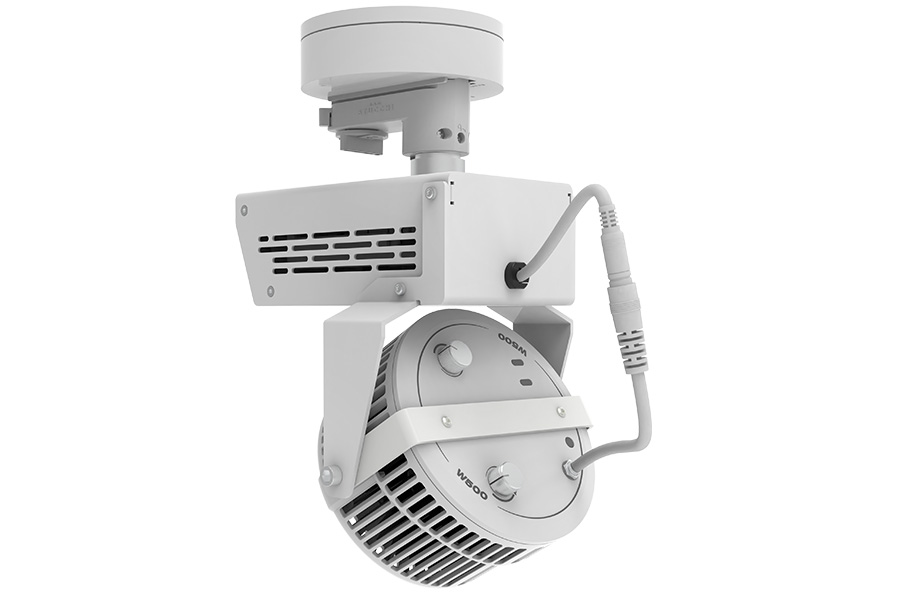

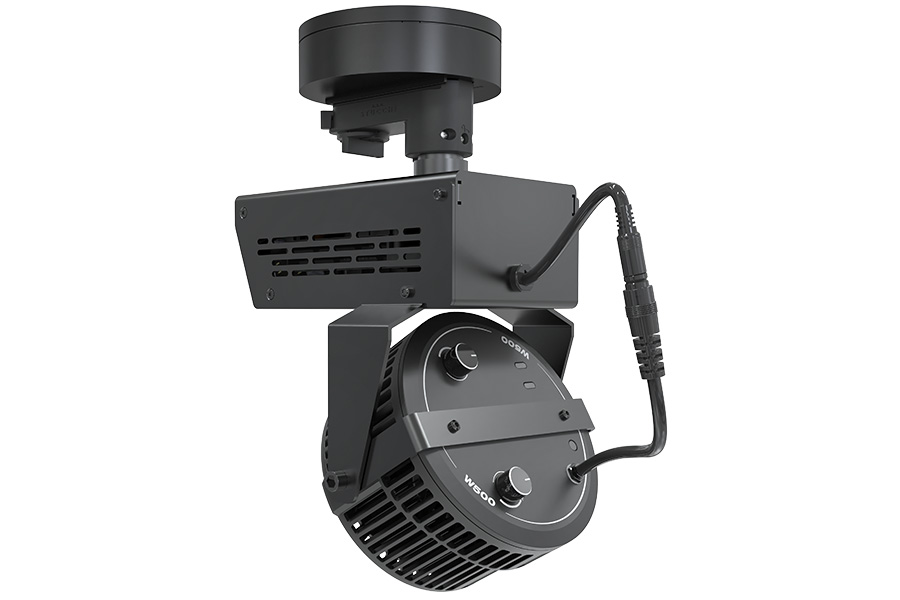

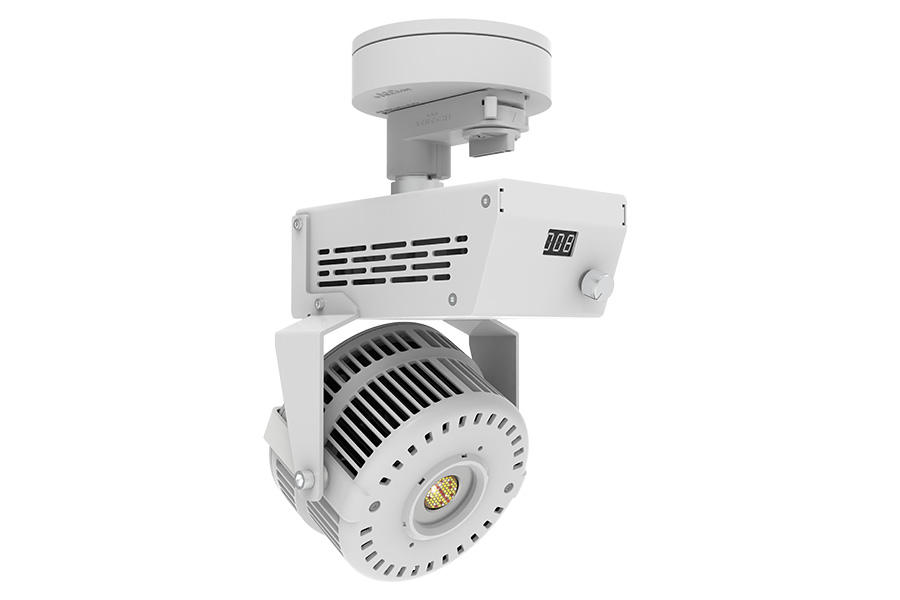

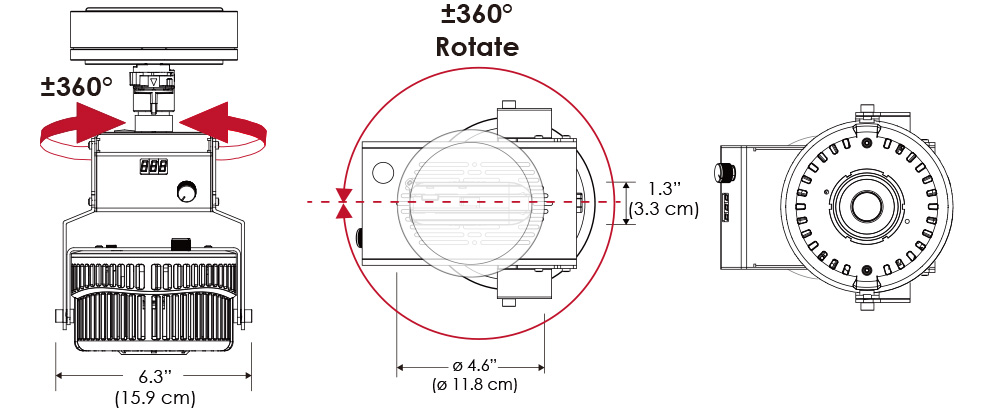

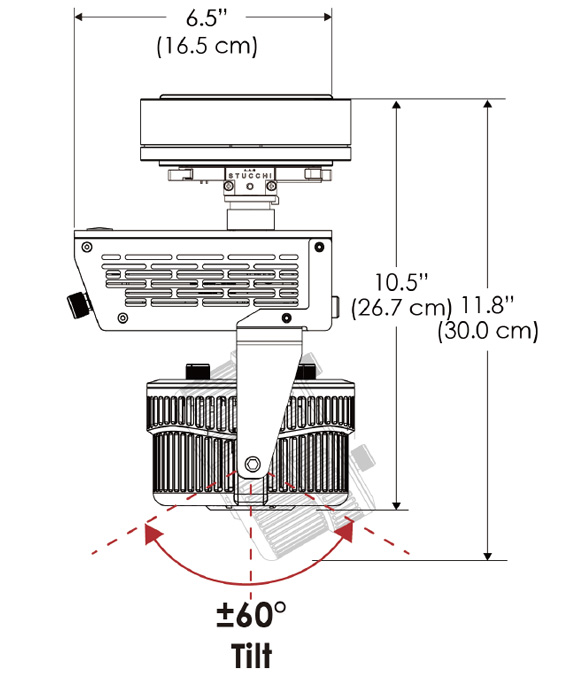

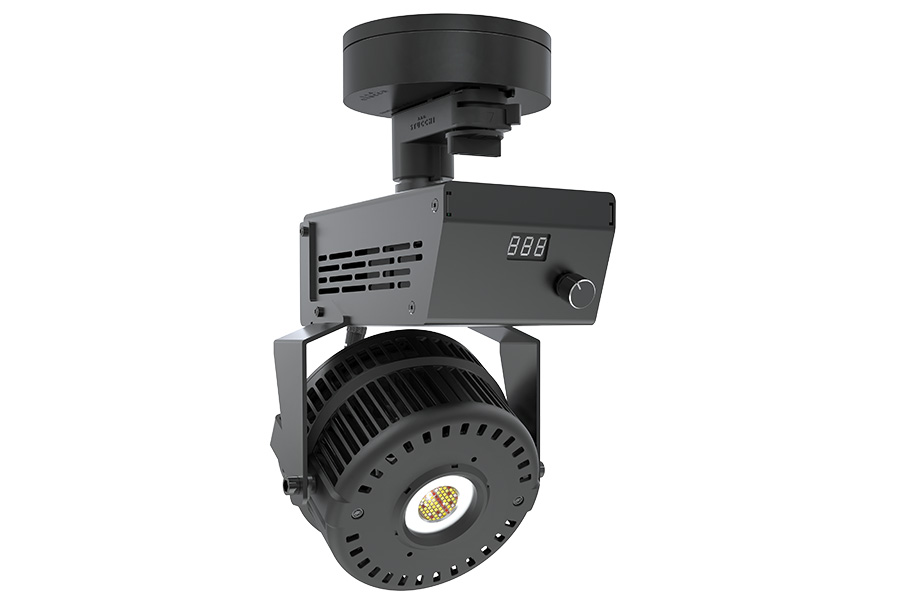

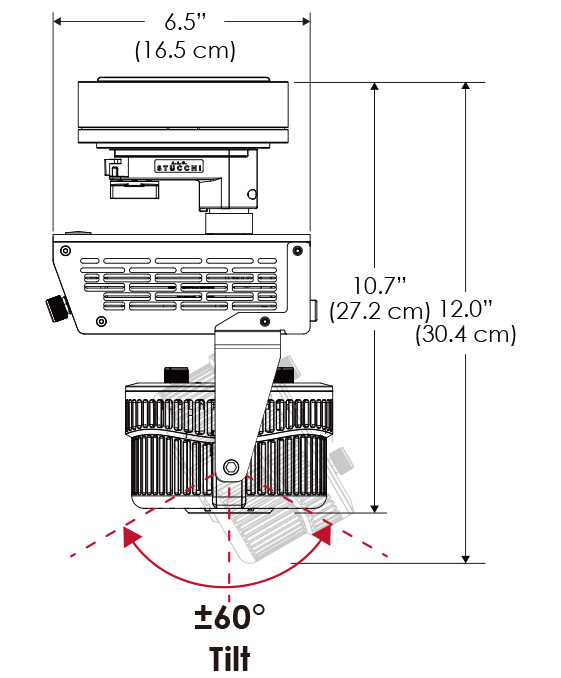

| W500X-MPT | PSX | PSX |
 |
 |  |

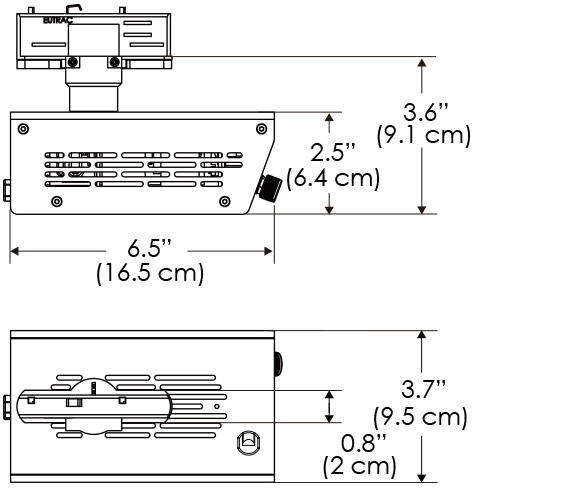

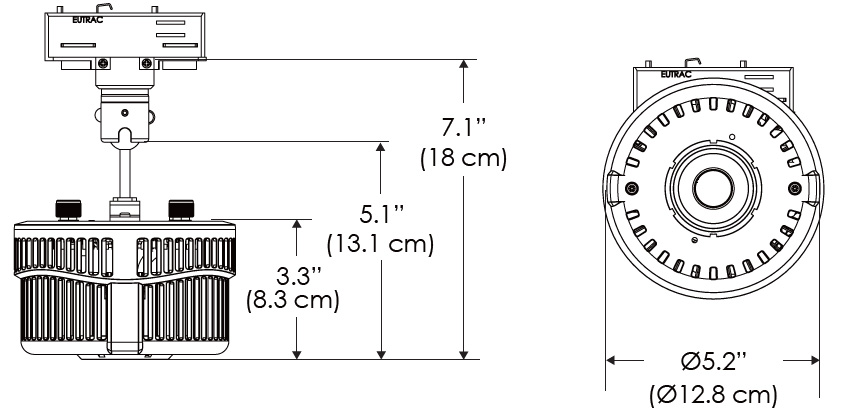

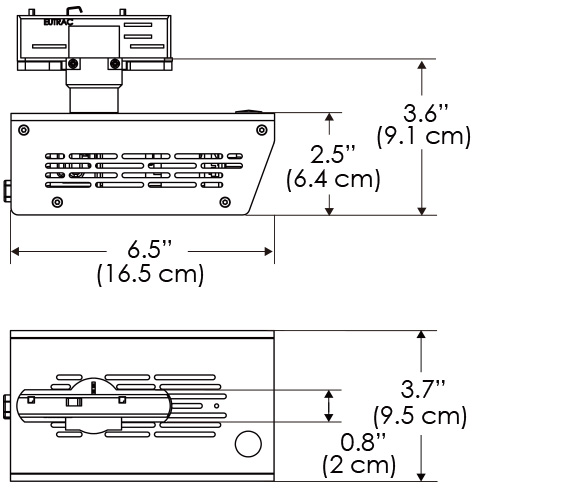

| W500X-TEX (legacy products) | PS | PSX |
 |
 |  |

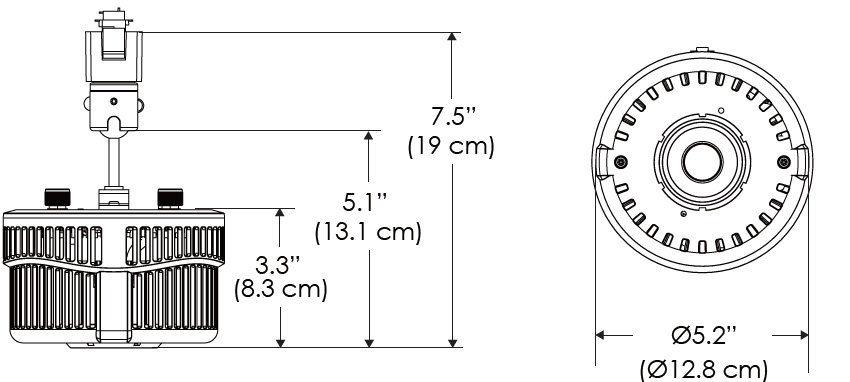

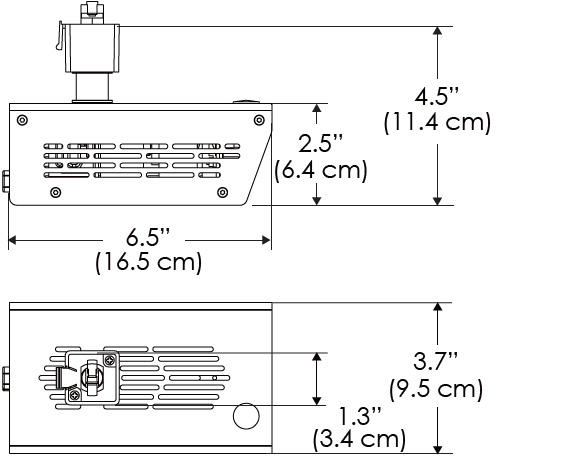

| W500X-TG (legacy products) | PS |
|
 |
 | |

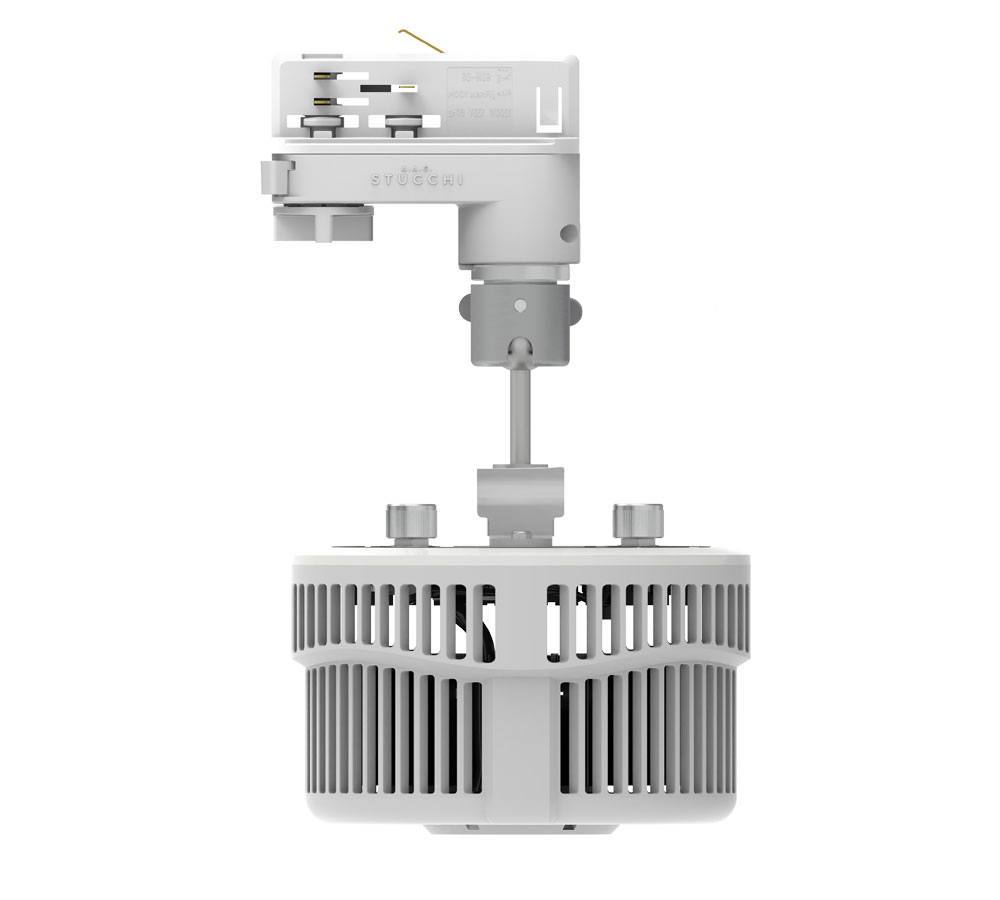

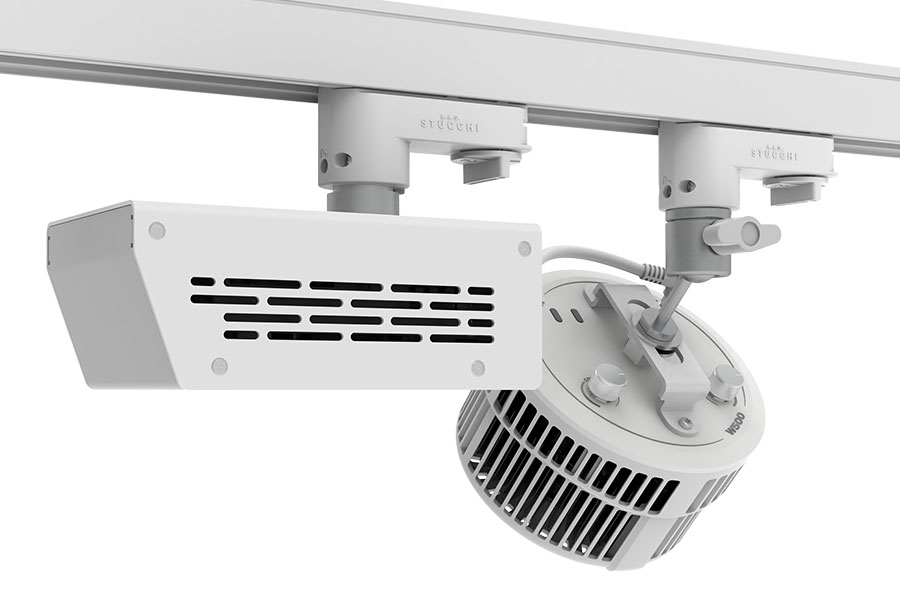

W500X fixture

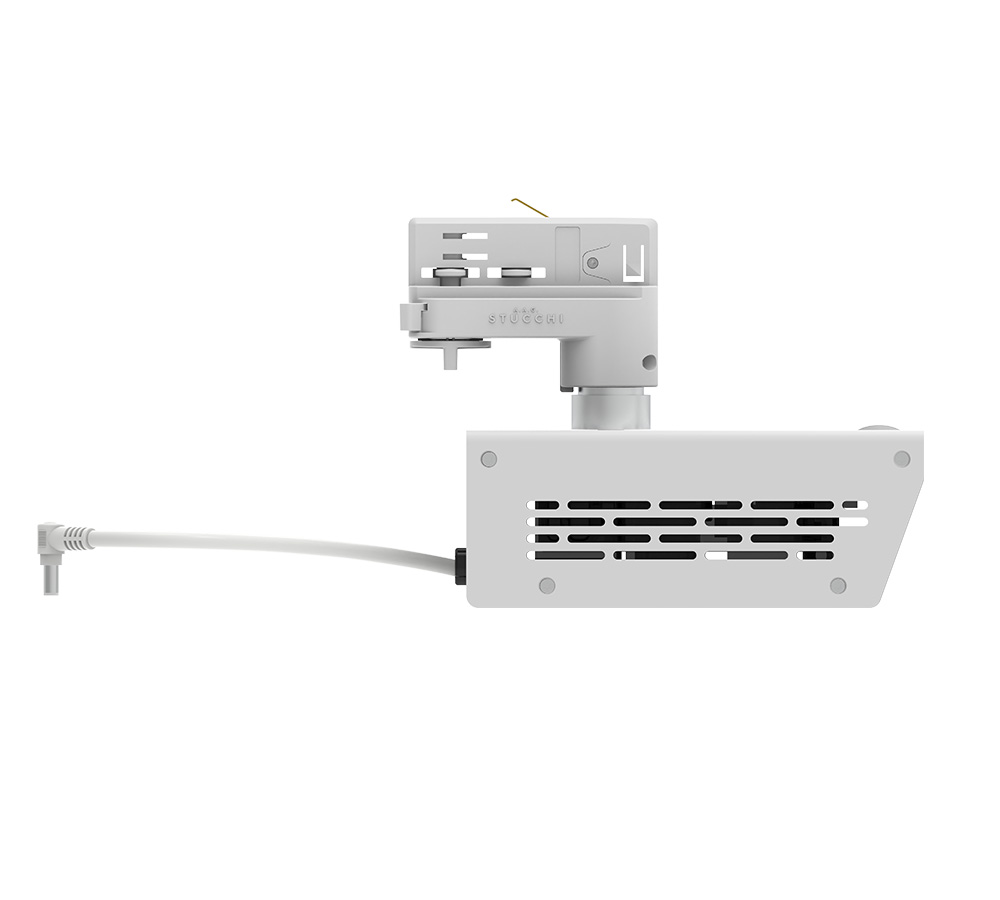

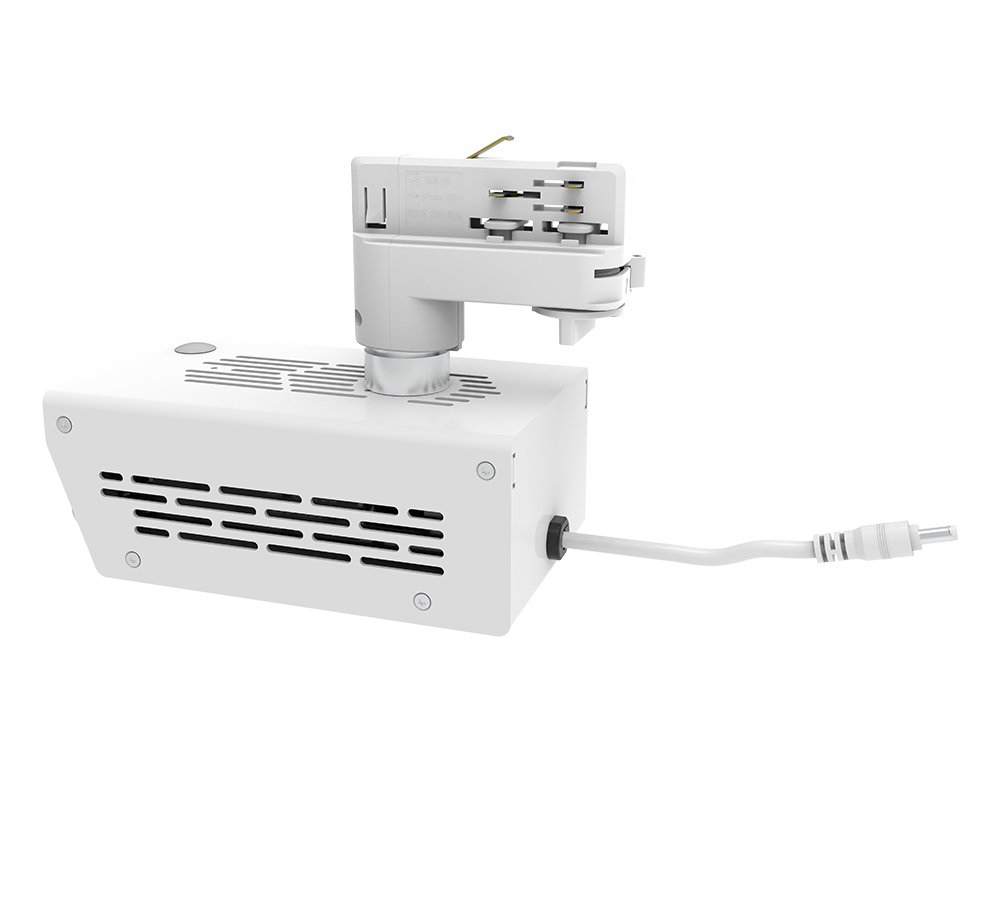

PSU

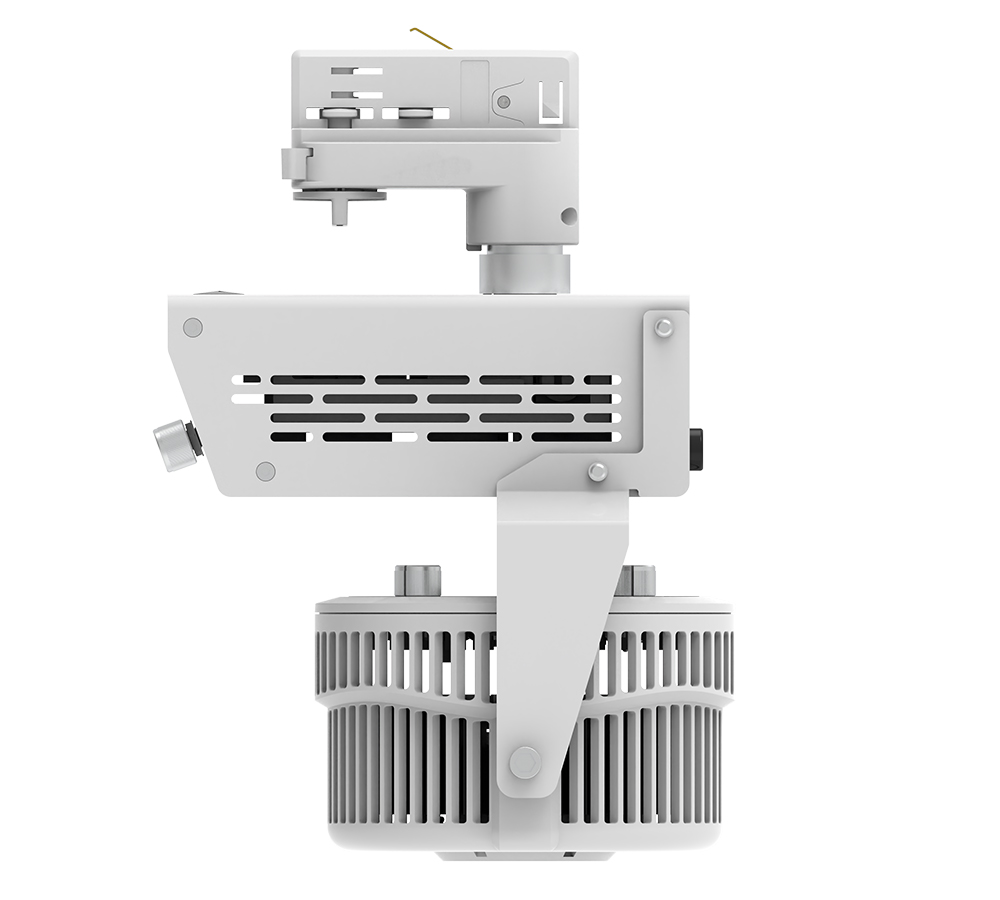

W500X fixture + PSU
Monopoint Adapter
O-Type Track
DMX
E-Type Track
DMX
(obsolete)
G-Type Track
Non - DMX
(obsolete)
Signal Converter
