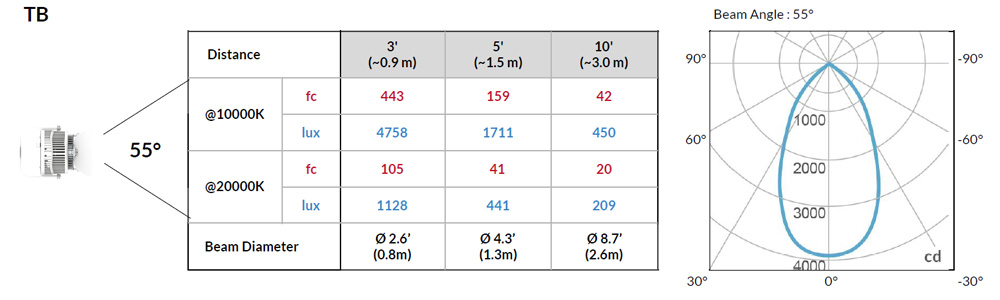

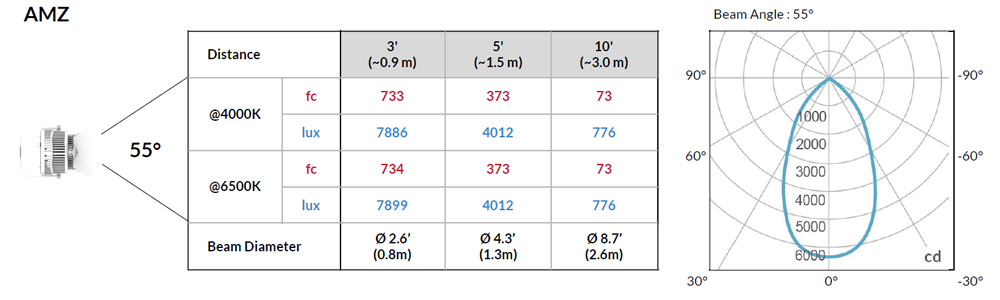

| Beam Angle | 55° |
| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| Power Draw | 175W maxW max |
| AC Input Voltage | 100 - 240V AC, 60Hz 277V AC (only with CLP + PSX) |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.9lb / 0.9kg |
| Power Supply Weight | 1.6lb / 0.7kg |
PS  | PSX |
|

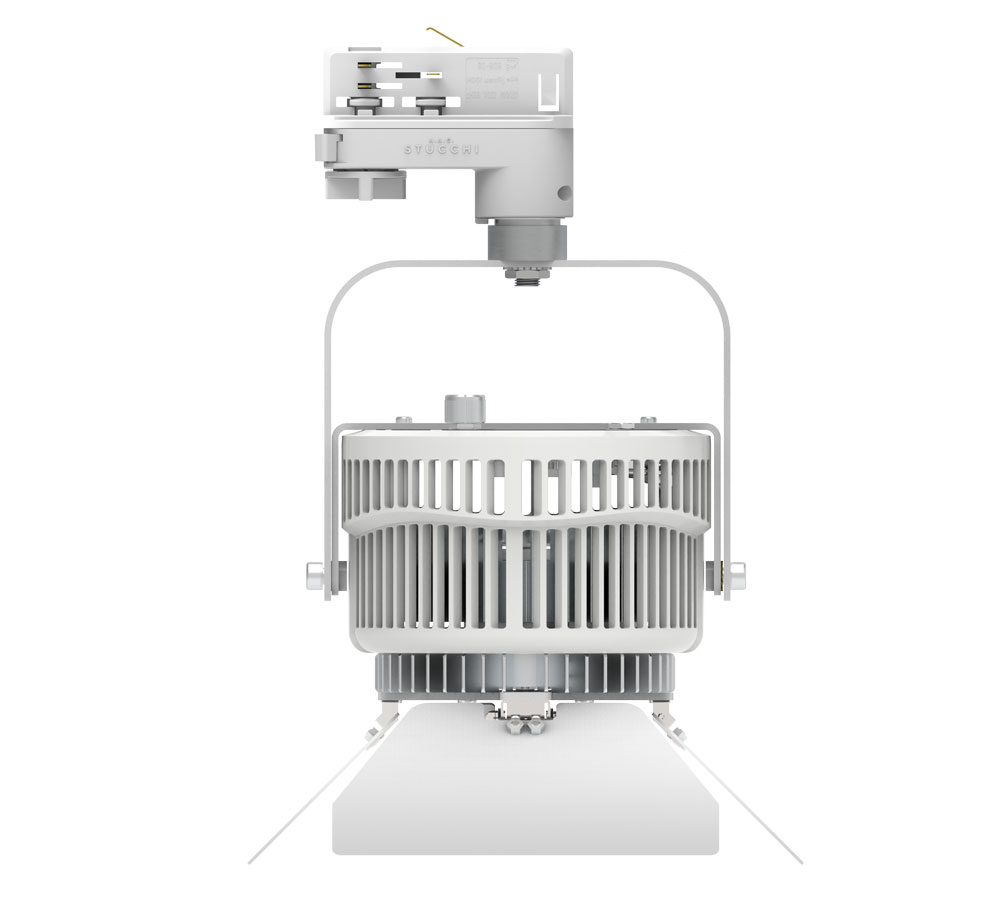

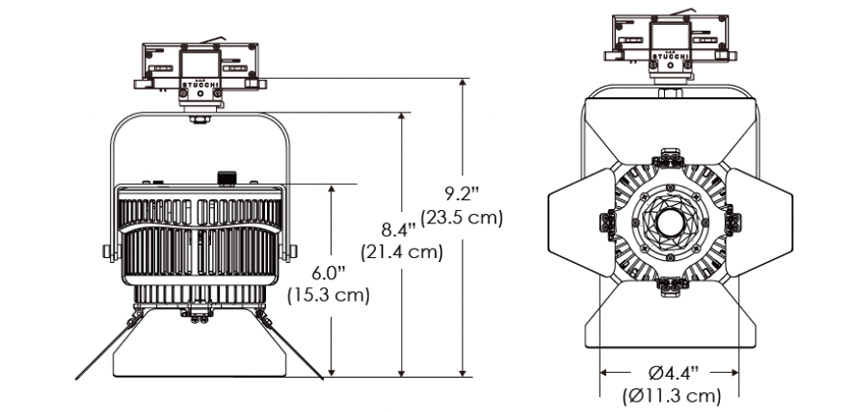

| W500BD-TOX/TON | ||
 |
 |  |

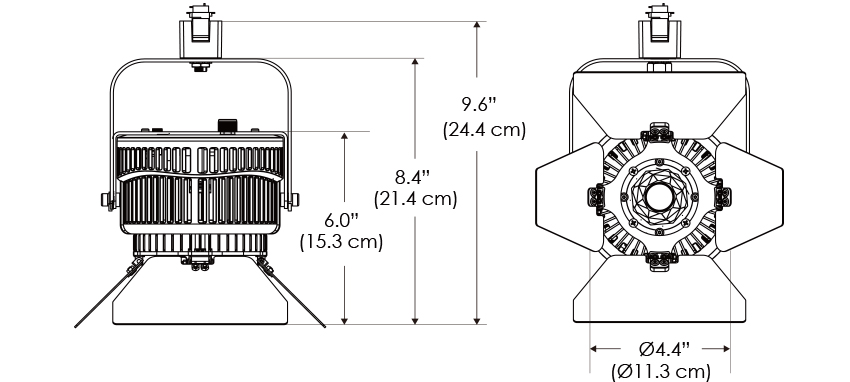

| W500BD-TG | ||
 |
 | |

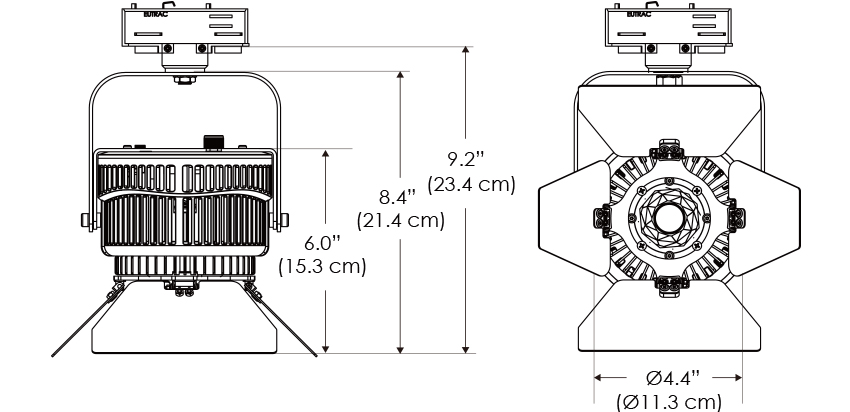

| W500BD-TEX | ||
 |
 |  |

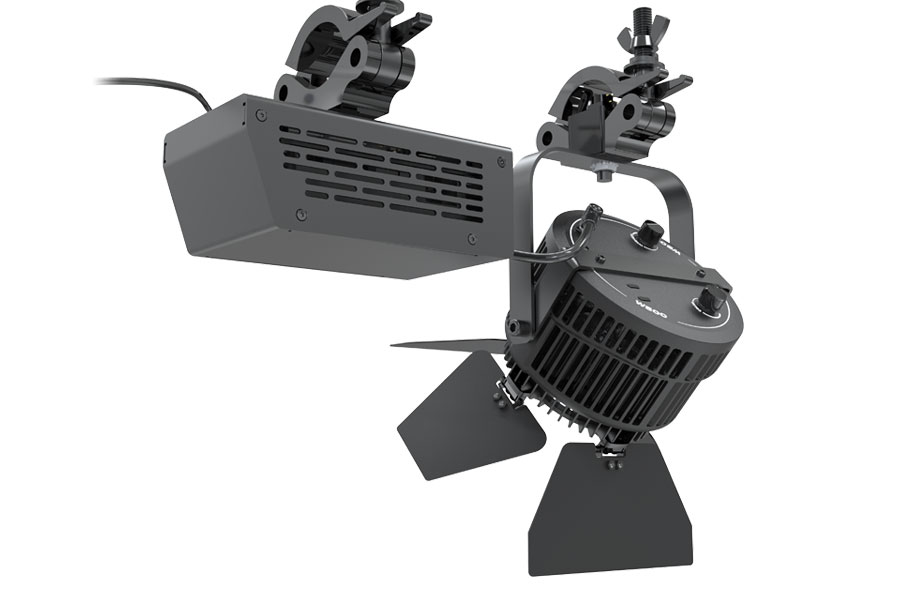

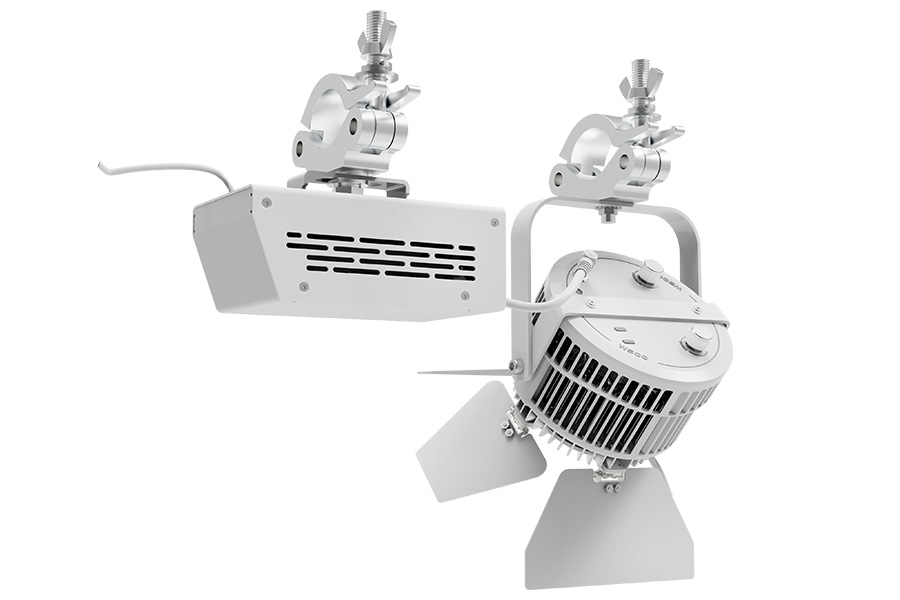

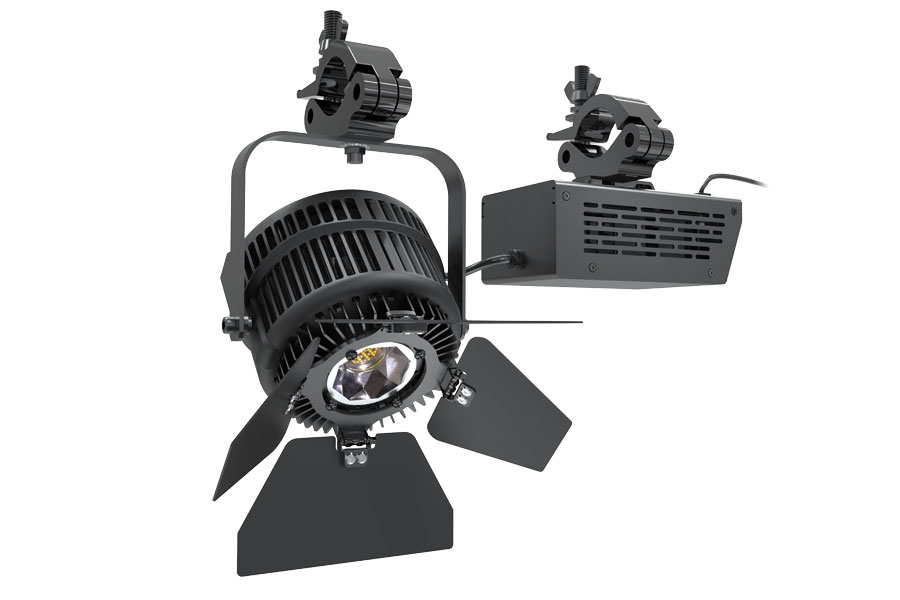

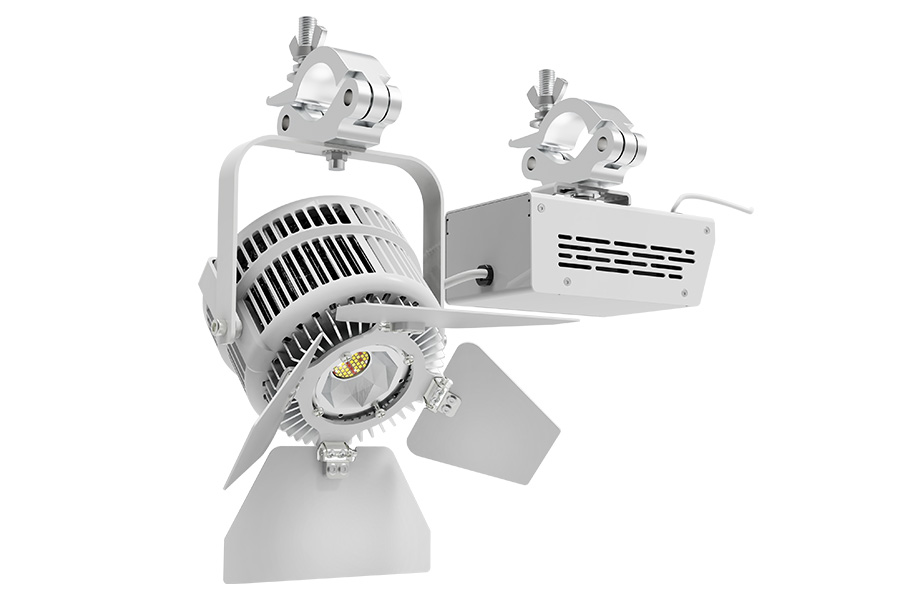

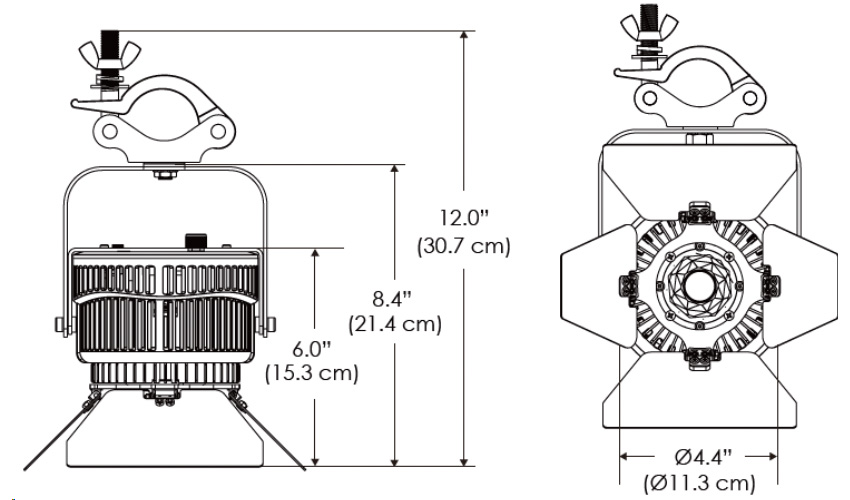

| W500BD-CLP | ||
 |
 |  |

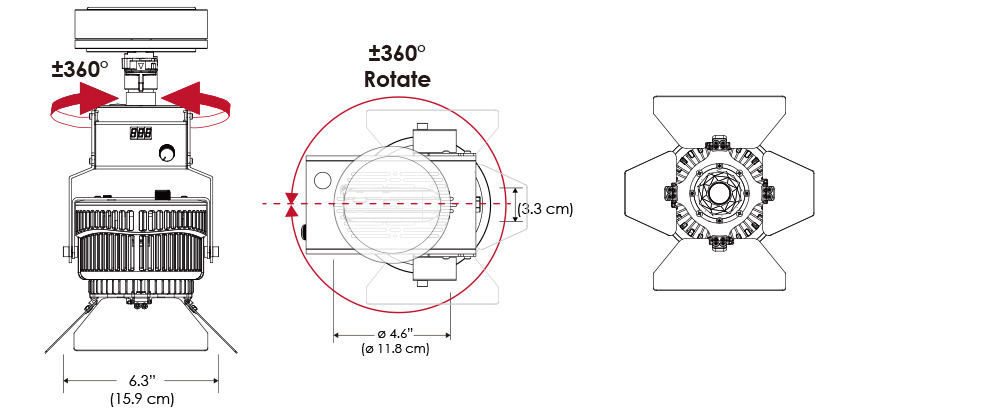

| Mounting Bracket Dimensions ALL-CLP |
 |

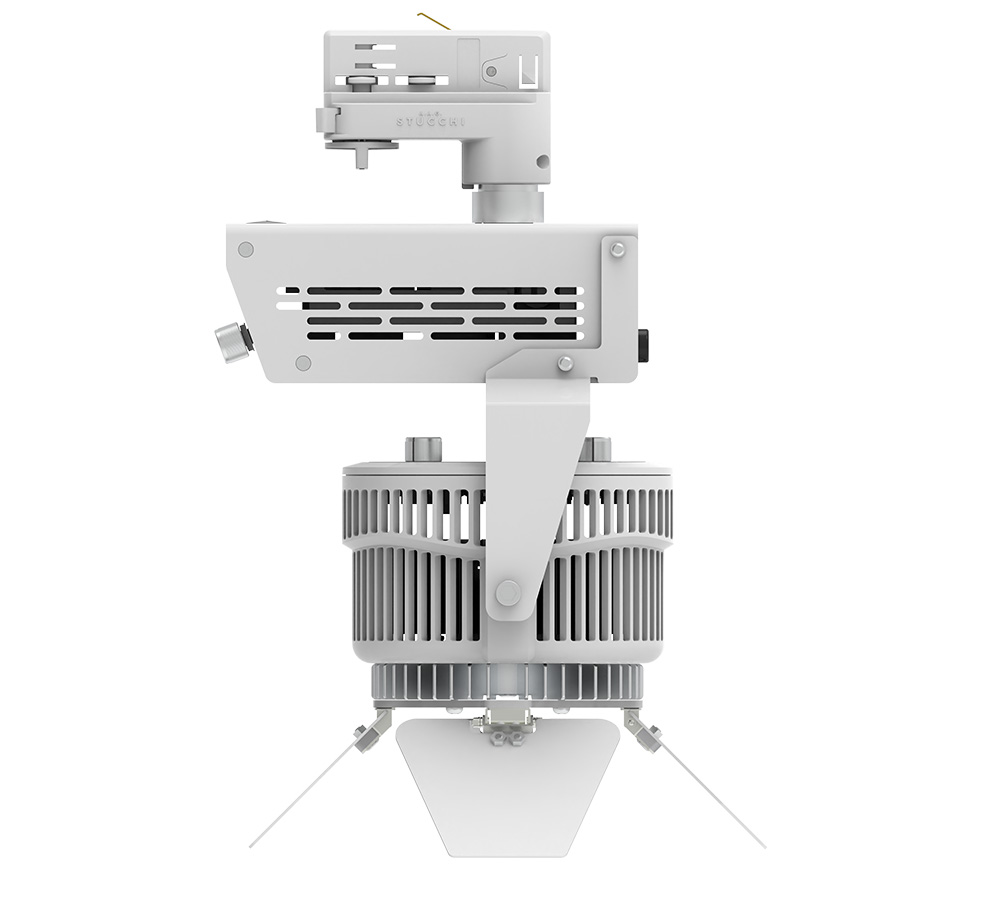

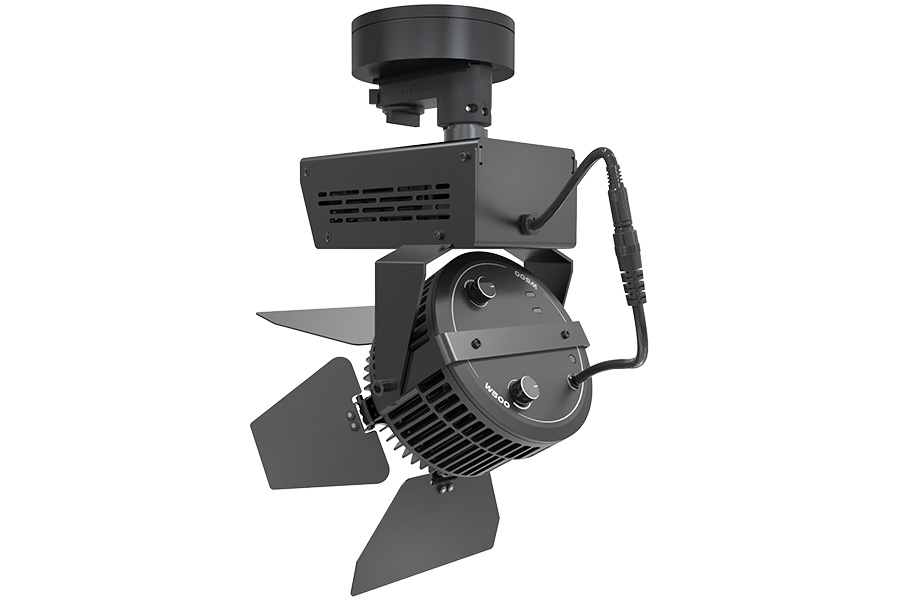

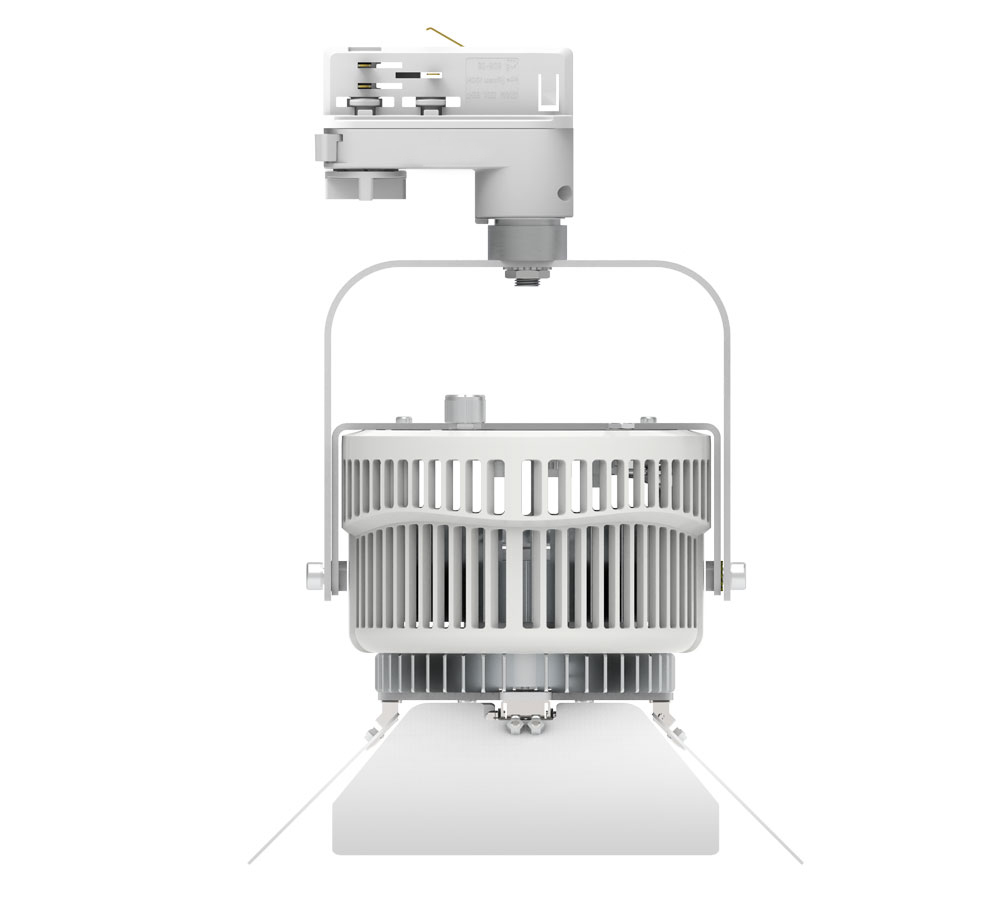

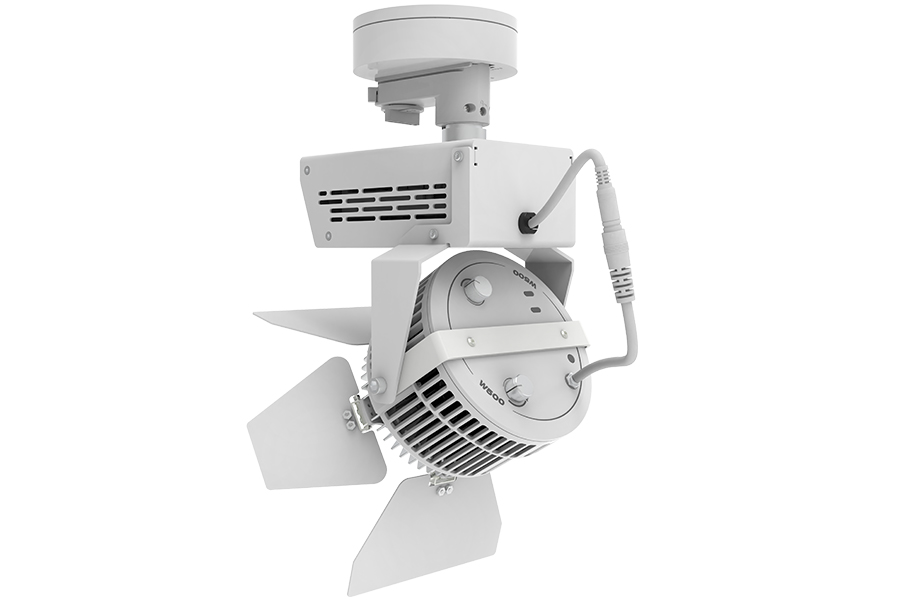

W500BD fixture

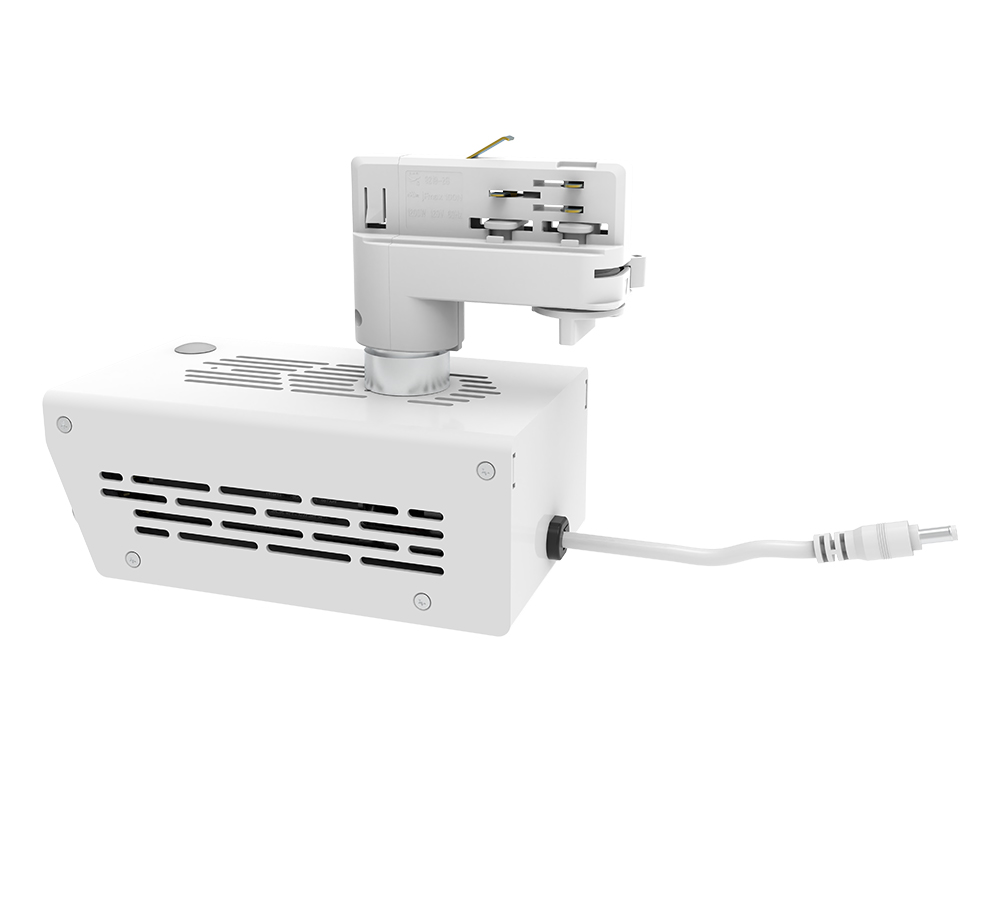

PSU

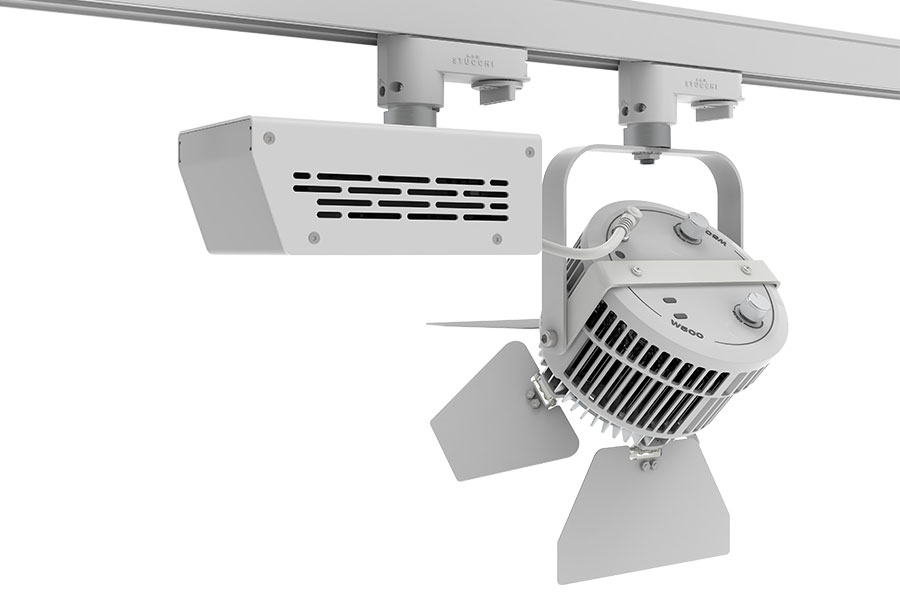

O-Type Track
DMX Track
G-Type Track
