G-Type Track

Single-Circuit Track (non-DMX)

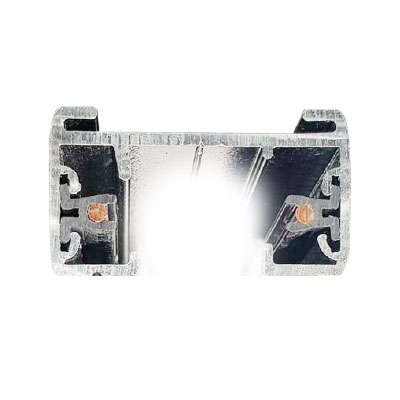

Cielux G-Type Track
Cielux G-Type Track
  • Cielux G-Type Track
  • Cielux G-Type Track

Specification


Track Type: Surface Mounted Track
Color Options: Black / White
Segment Length: 4ft / 8ft / 12ft
Conductors:
3 (2 for circuit, 1 for ground)
Circuits: 1
Max. Electrical Load: 20A per track

Separator

Features


Cielux G-Type Track

Custom Lengths

Track segments can be field cut to the desired length.

Cielux G-Type Track

Mounting Points

Pre-drilled mounting slots placed at the ends and center of each track segment for easy mounting.

Separator

Track Essentials

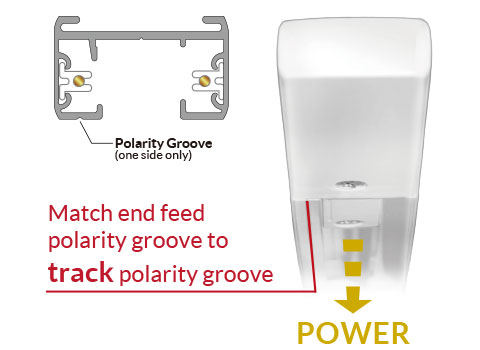

The polarity grove runs along one side of each track segment and component. When connecting track segments and components, it is essential to match the polarity groove of each part.


Cielux G-Type Track
Separator

Examples

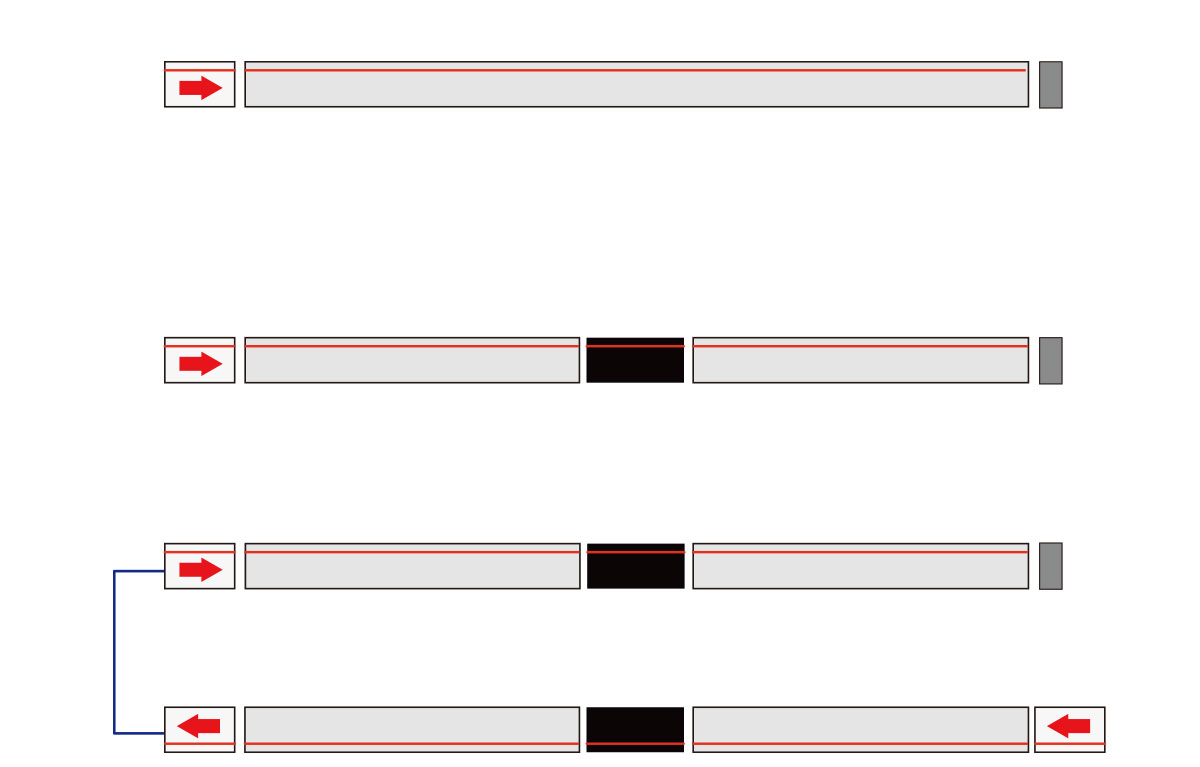

Basic

The most basic system consists of one: end feed, track run, and end cap.

To Add Pieces

For configurations with more than one track, a linear coupler must be used to connect the two tracks together.

Two-Track Configuration

For configurations with two separate tracks, wire the two live end feeds together.

Separator

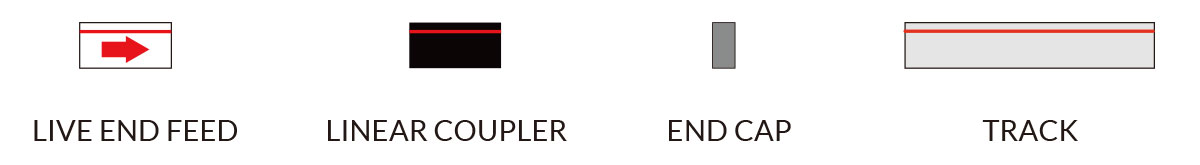

Legend

* Polarity groove is indicated by the red line

Separator

Components



Cielux G-Type Track

LIVE END FEED

BLACK: GES 11-2

WHITE: GES 11-3

Feeds power to the track. Includes end cap.

Cielux G-Type Track

LINEAR COUPLER

BLACK: GES 21-2

WHITE: GES 21-3

Connects two tracks together.

Cielux G-Type Track

END CAP

BLACK: GES 41-2

WHITE: GES 41-3

Included with Included with live end feed. Also sold separately.



*Polarity Groove is indicated by the red line.

Separator

Track Segments

120V, Single-Circuit (non-DMX)

4FT

BLACK: GES 204-2

WHITE: GES 204-3


8FT

BLACK: GES 208-2

WHITE: GES 208-3


12FT

BLACK: GES 212-2

WHITE: GES 212-3
