• Plant / Coral Focused Light Spectrum

• Flicker-free for animal welfare

• High-Intensity Point Source LED

• Low-Profile

• DMX Controllable

• Also Available with Other Optics

SPECIFICATIONS

Beam Angle	15°
Spectrum Type	AMZ: Plant Flourish & Growth TB: Coral Health & Growth
Control	Intensity (0%-100%) , CCT
LED Source	DiCon Dense Matrix LED
AC Power Draw	80W max
AC Input Voltage	100 - 240V AC, 60Hz
Cooling	Fan Cooled
Operating Temperature	32-104°F (0-40°C)
Fixture Weight	1.3lb / 0.6kg
Power Supply Weight	1.0lb / 0.4kg

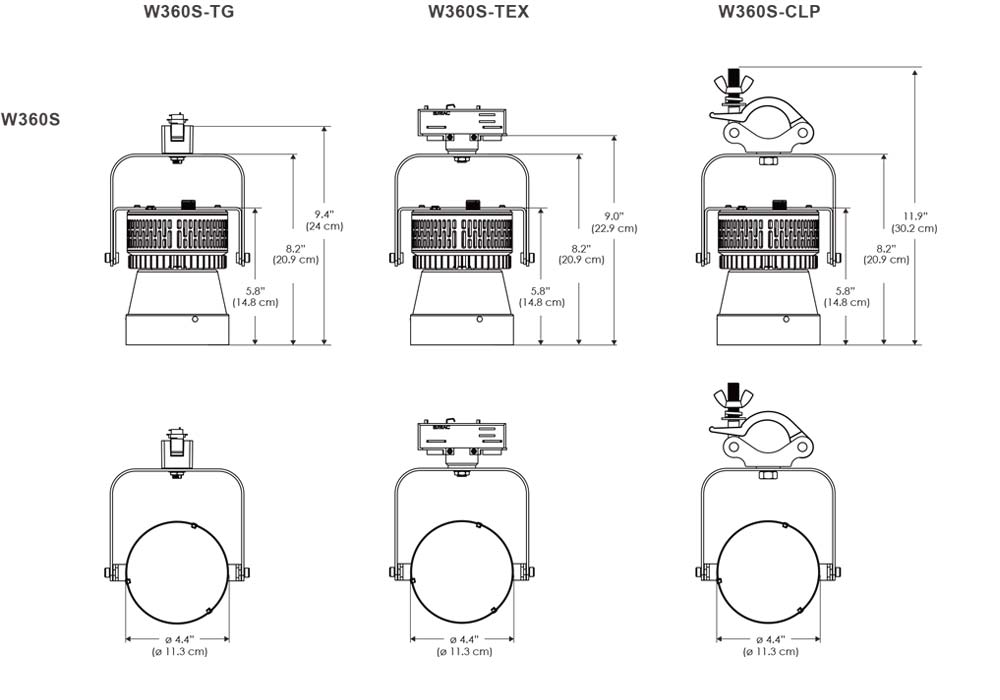

MECHANICAL FIGURES

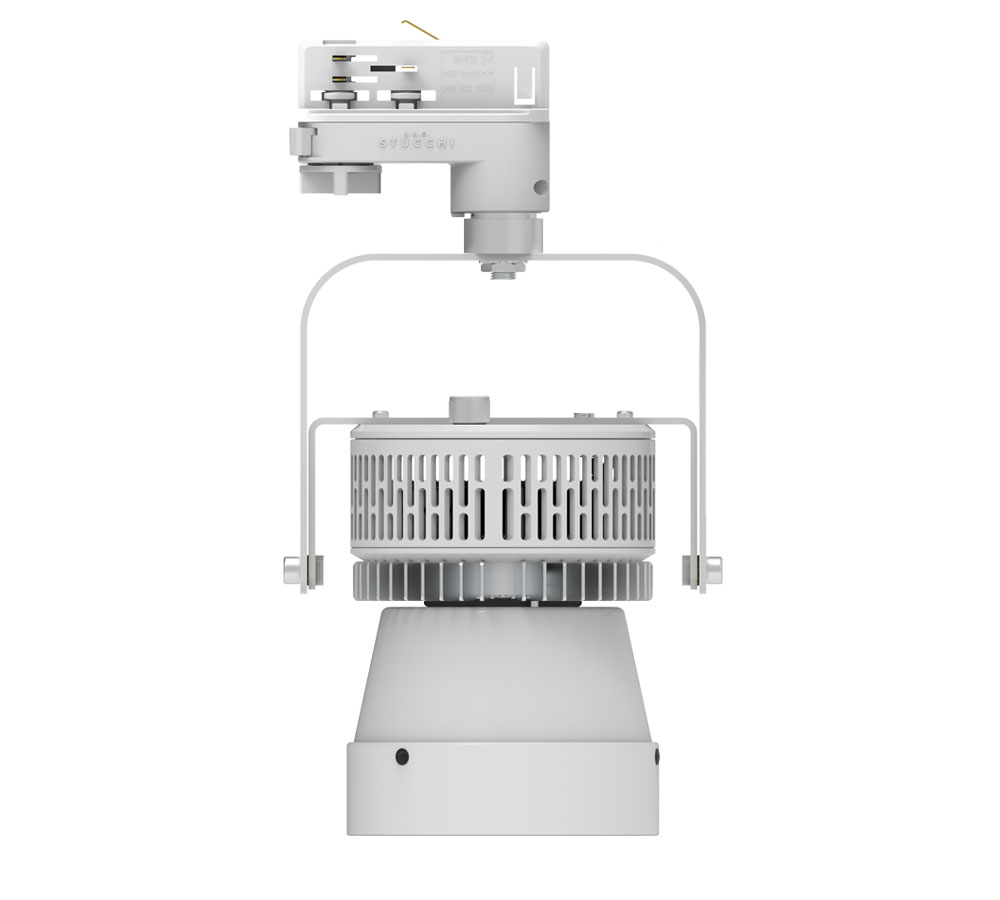

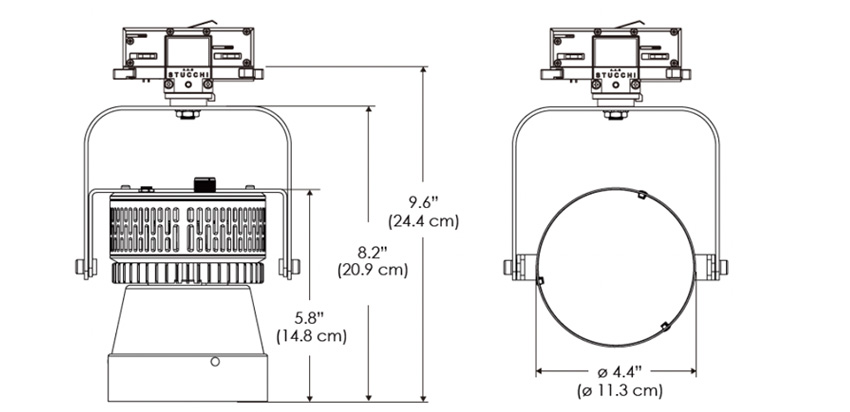

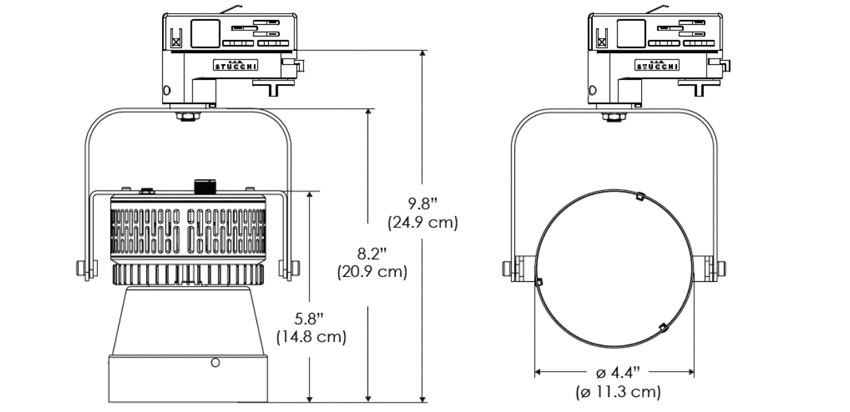

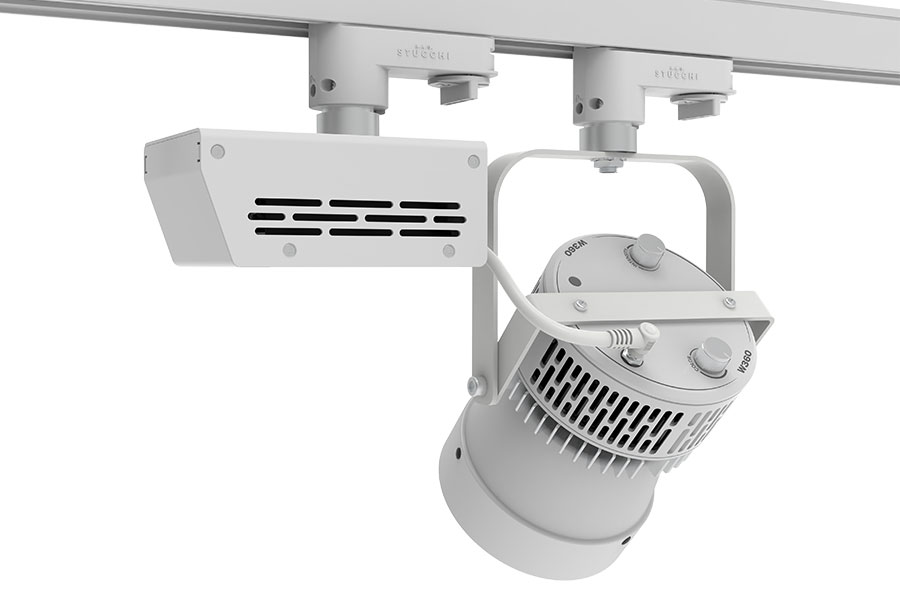

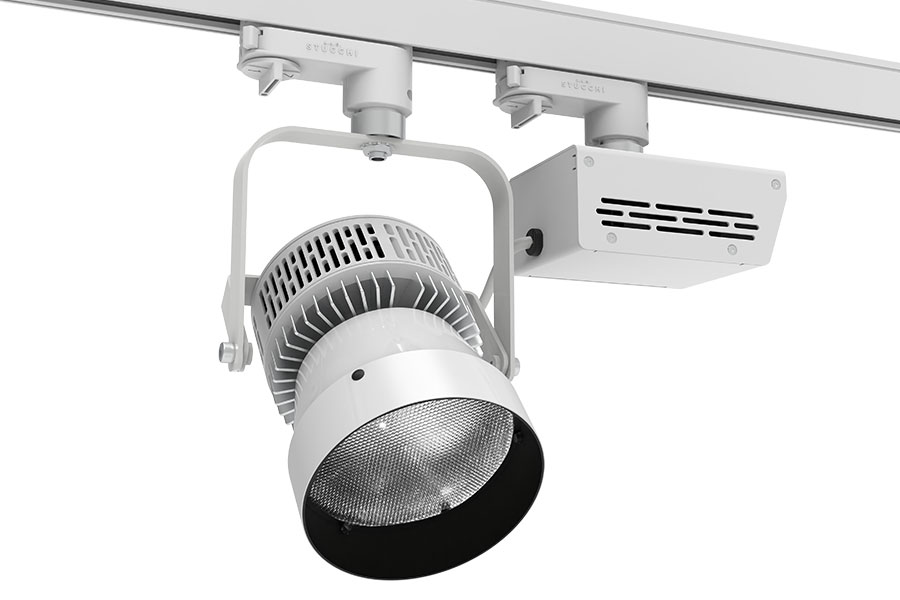

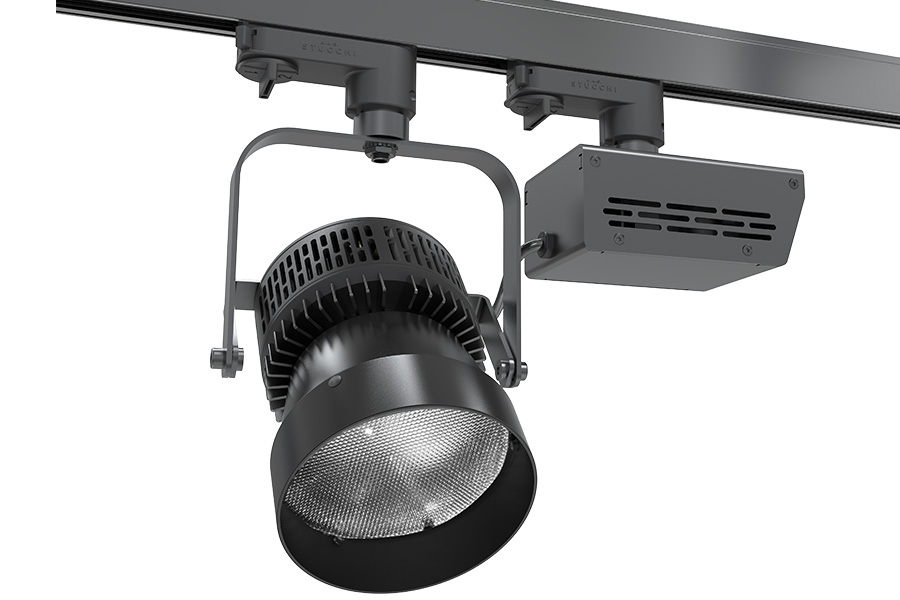

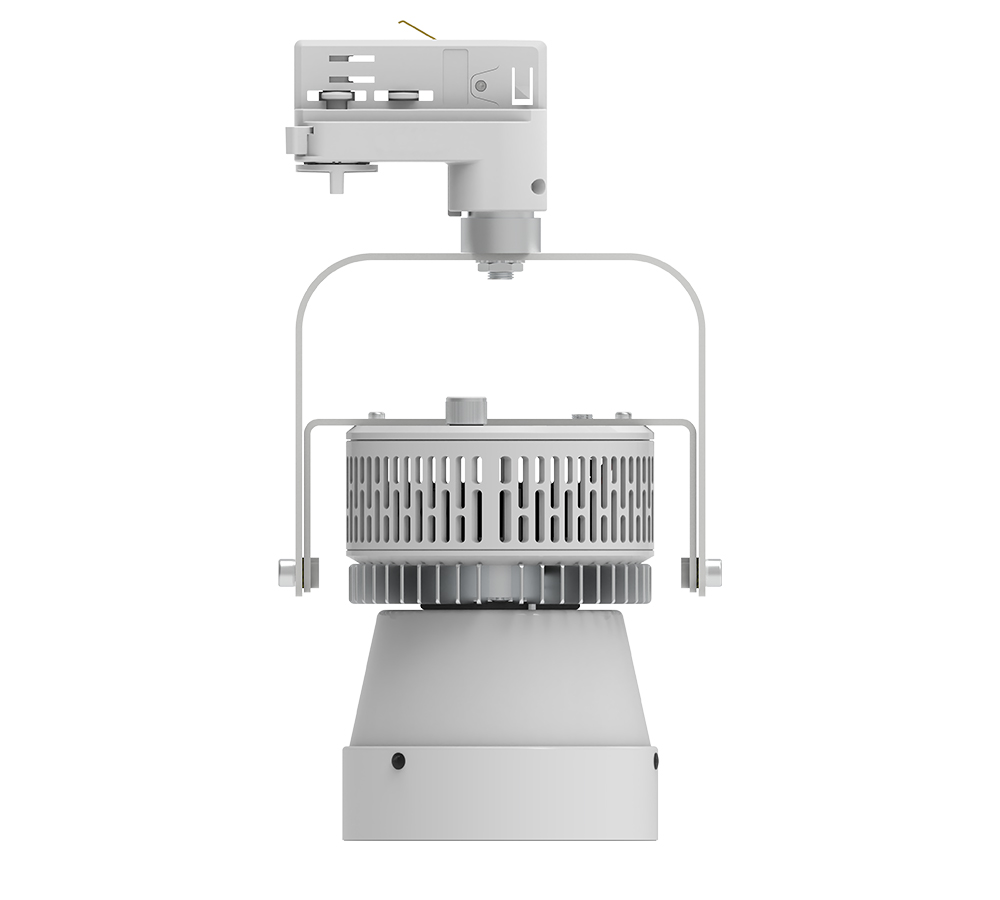

W360S-TOX/TON	PS	PSX
W360S-TOX/TON	PS	PSX

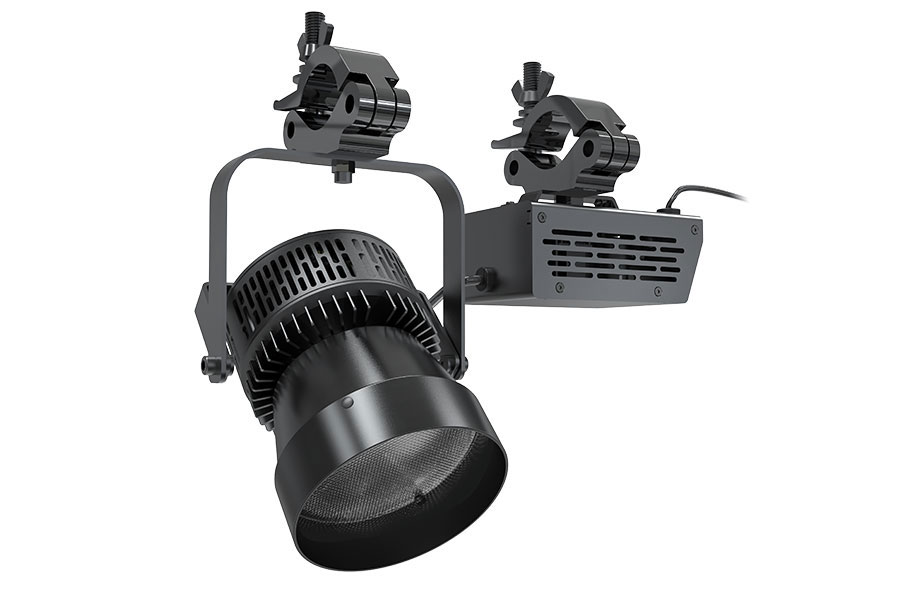

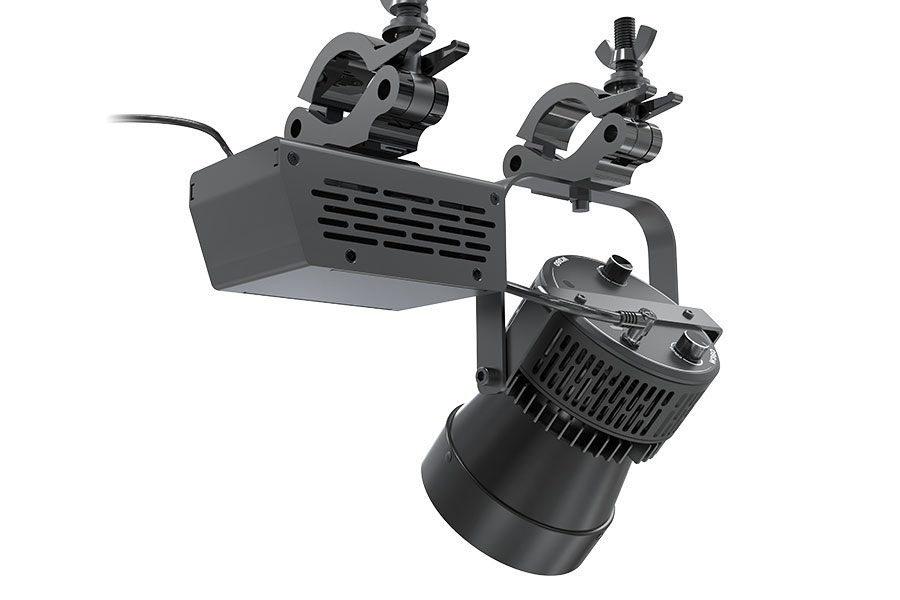

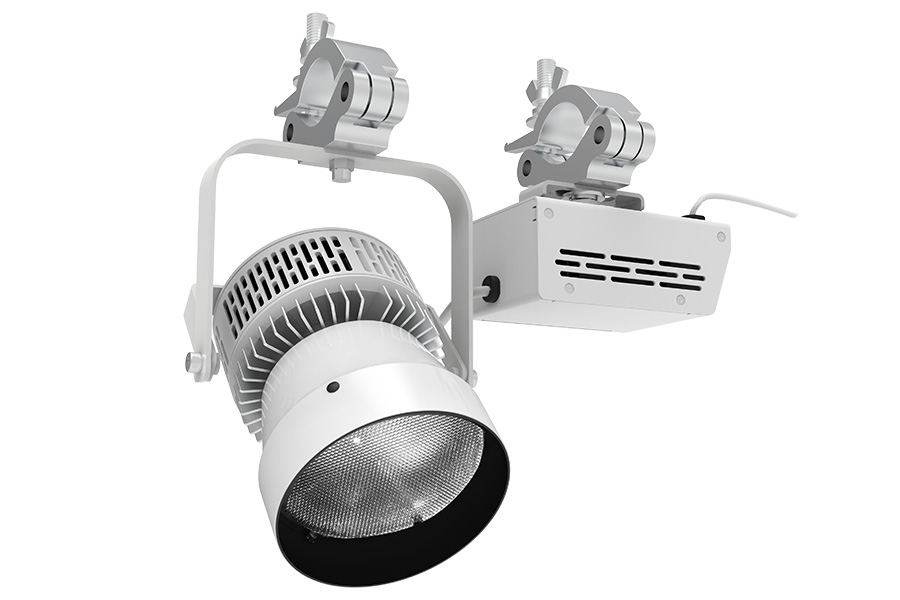

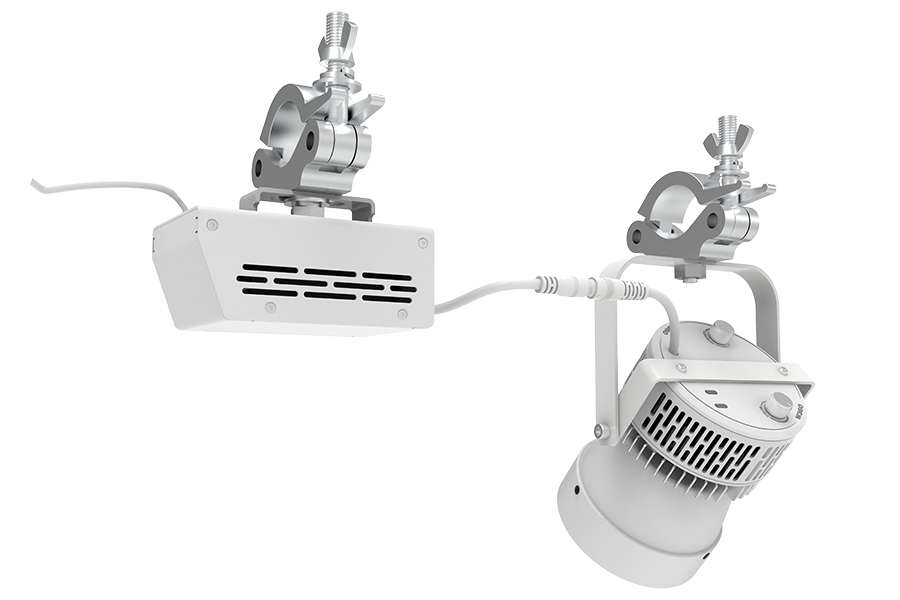

W360S-CLP	PS

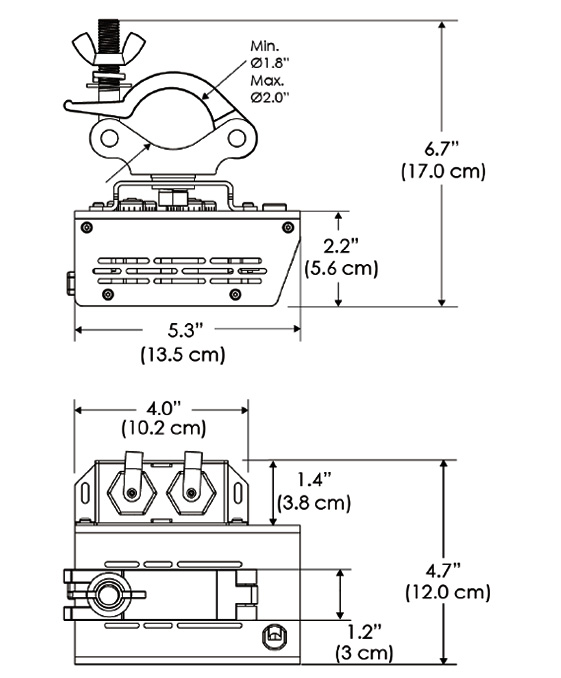

*All -CLP configuration models come with standard clamp pipe diameters that range from 1.8" to 2.0".
Mounting Bracket Dimensions ALL-CLP *All -CLP configuration models come with standard DC cables of 6 inches and AC cables of 10 ft.

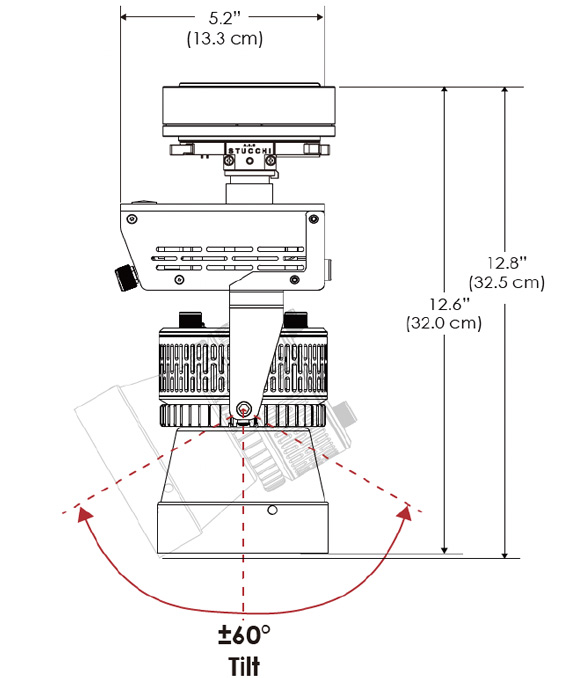

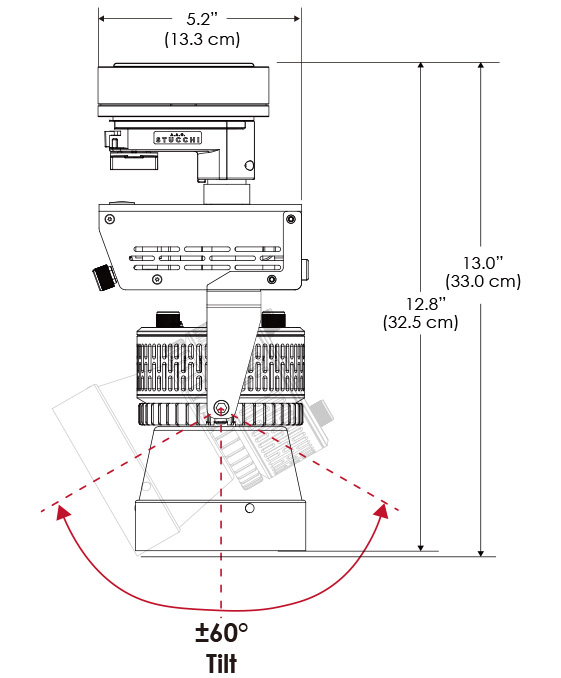

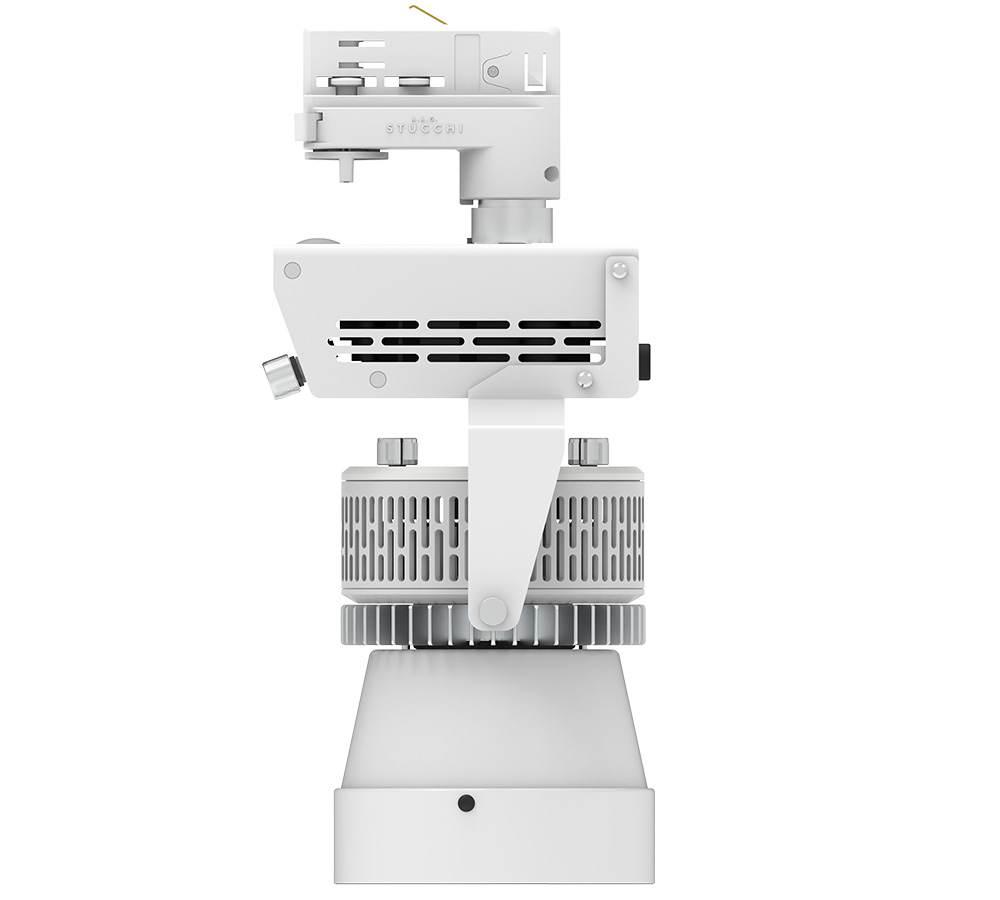

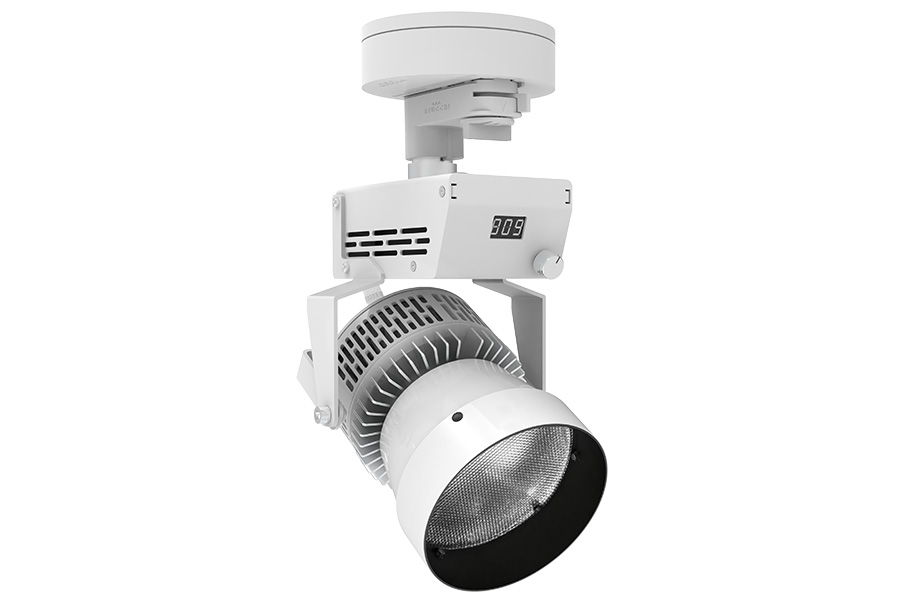

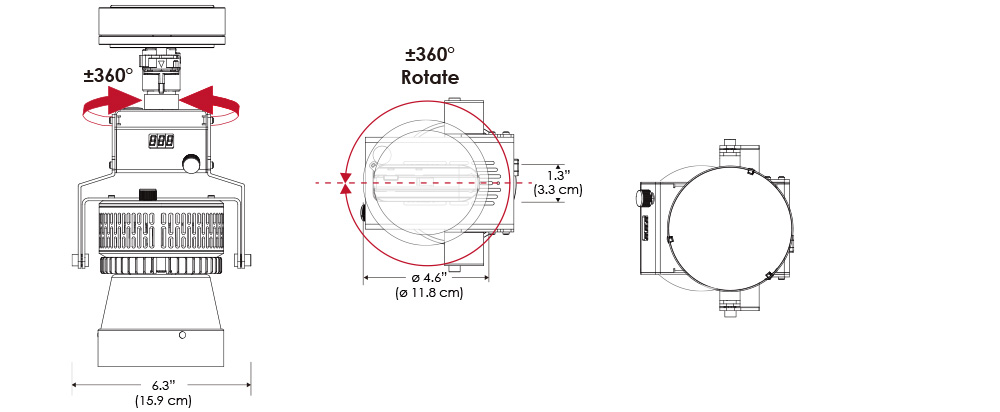

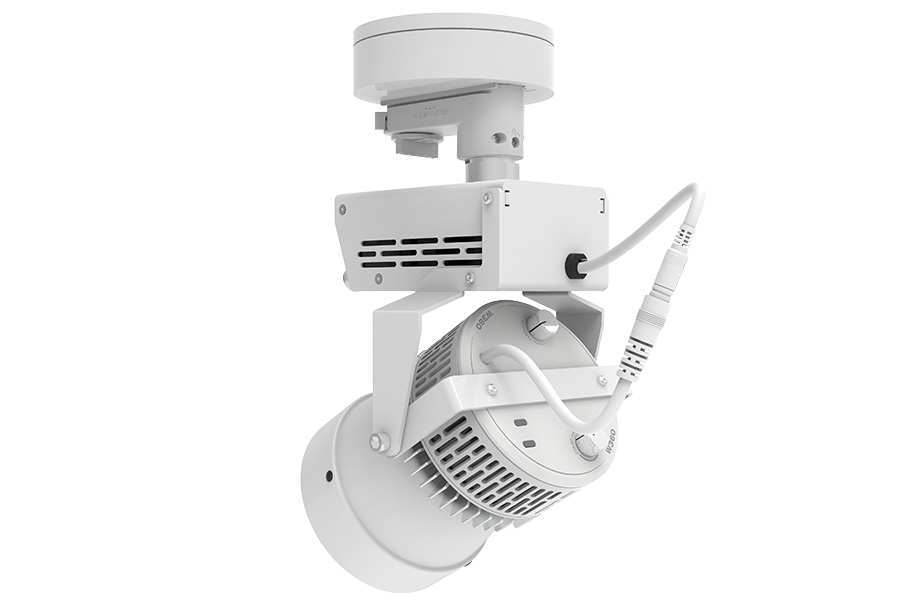

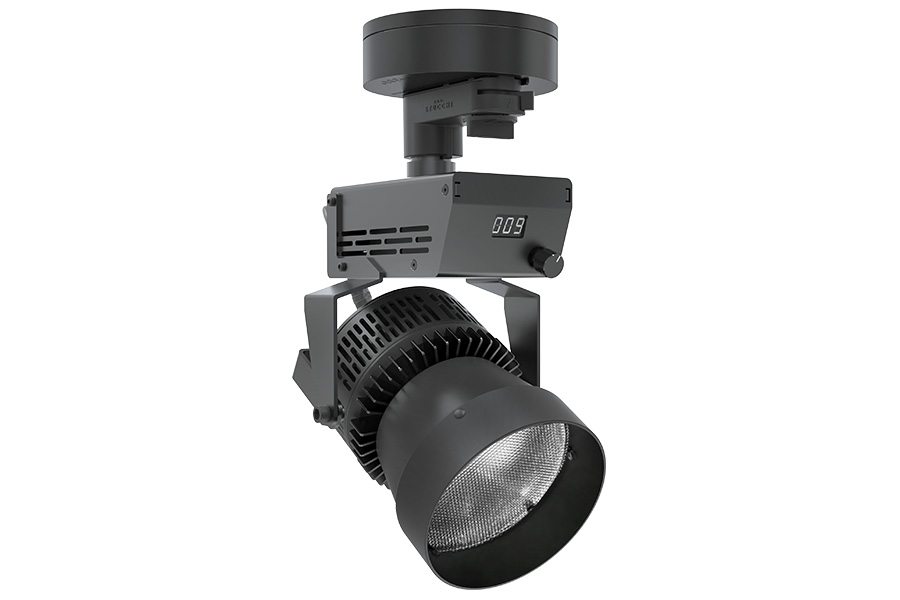

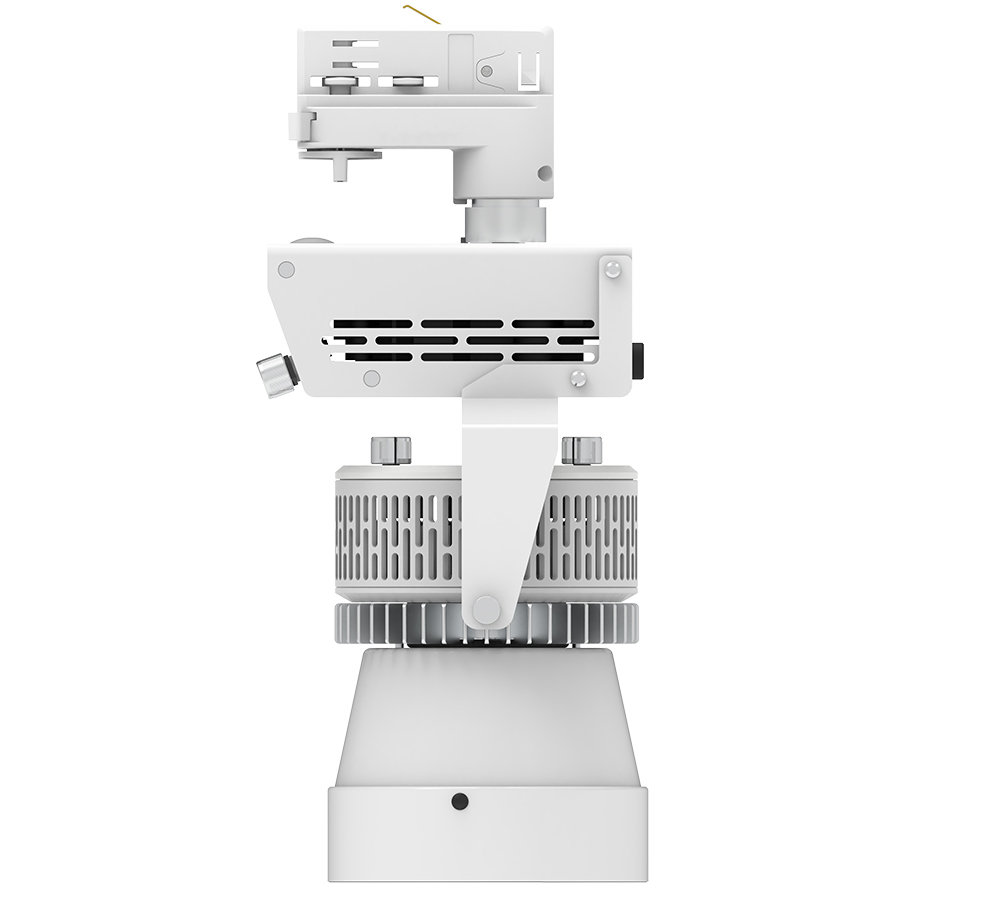

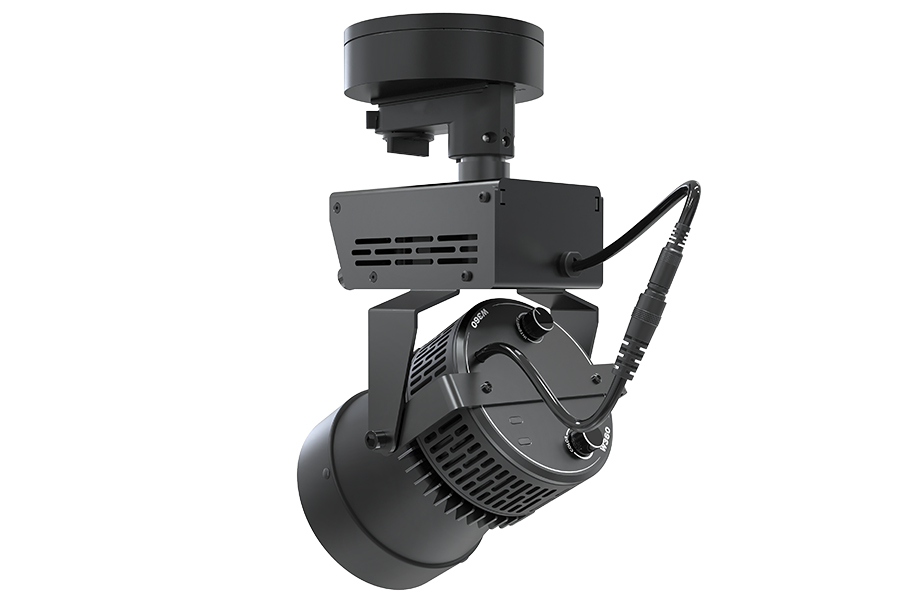

W360S-MPT	PSX	PSX

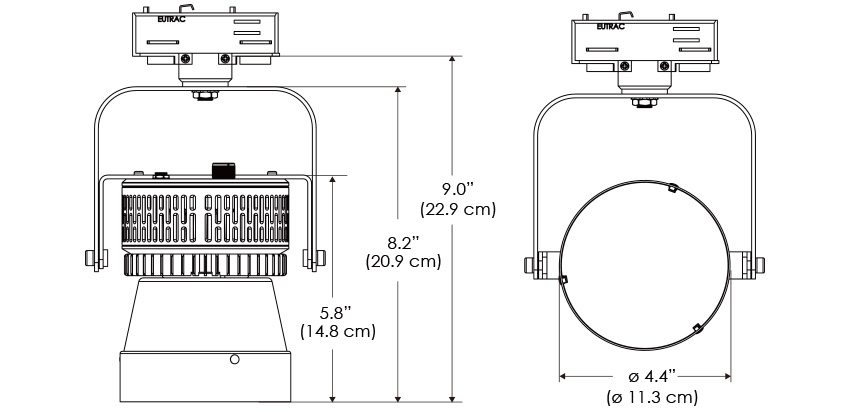

W360S-TEX (legacy products)	PS	PSX

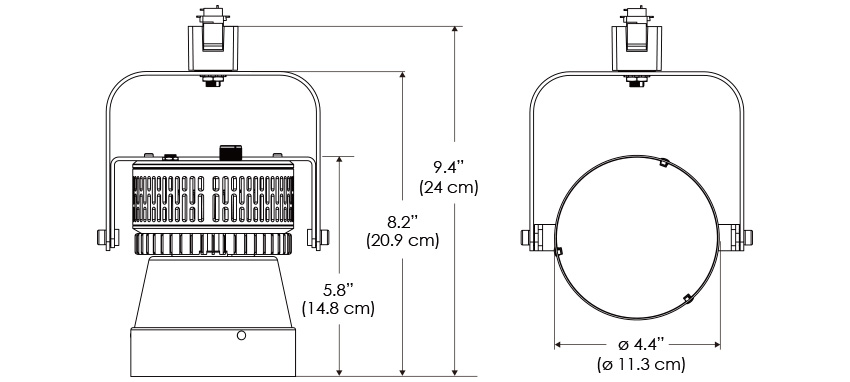

W360S-TG (legacy products)	PS

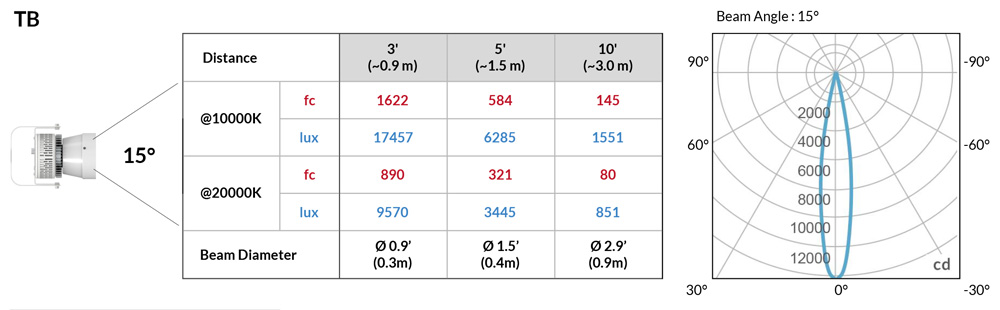

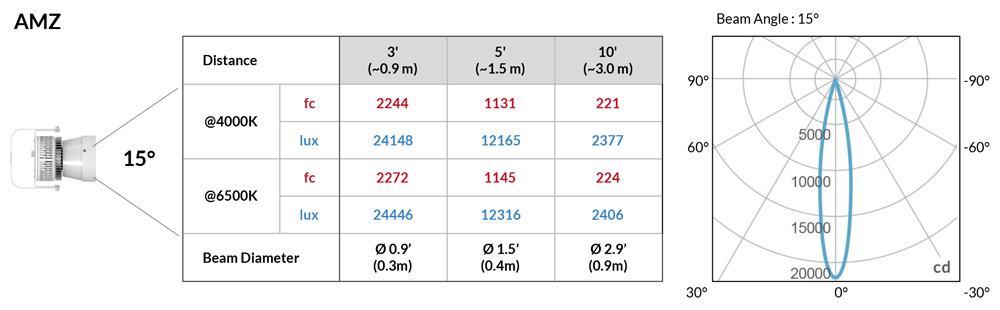

PHOTOMETRIC DATA

ITEMS INCLUDED

W360S-TOX / TON / CLP / TEX / TG Type

W360S-MPT Type

TRACK PARTS
