SPECIFICATIONS

Beam Angle	15°
Spectrum Type	AMZ: Plant Flourish & Growth TLB: Coral Health & Growth
Control	Intensity (0%-100%), CCT
LED Source	DiCon Dense Matrix LED
Power Draw	AMZ : 720W max TLB : 800W maxW max
AC Input Voltage	100- 277V AC, 60Hz
Cooling	Fan Cooled
Operating Temperature	32-104°F (0-40°C)
Fixture Weight	9.7lb / 4.4kg
Power Supply Weight	100- 240v: 7.5lb / 3.4kg 100- 277v: 14.1lb / 6.4kg

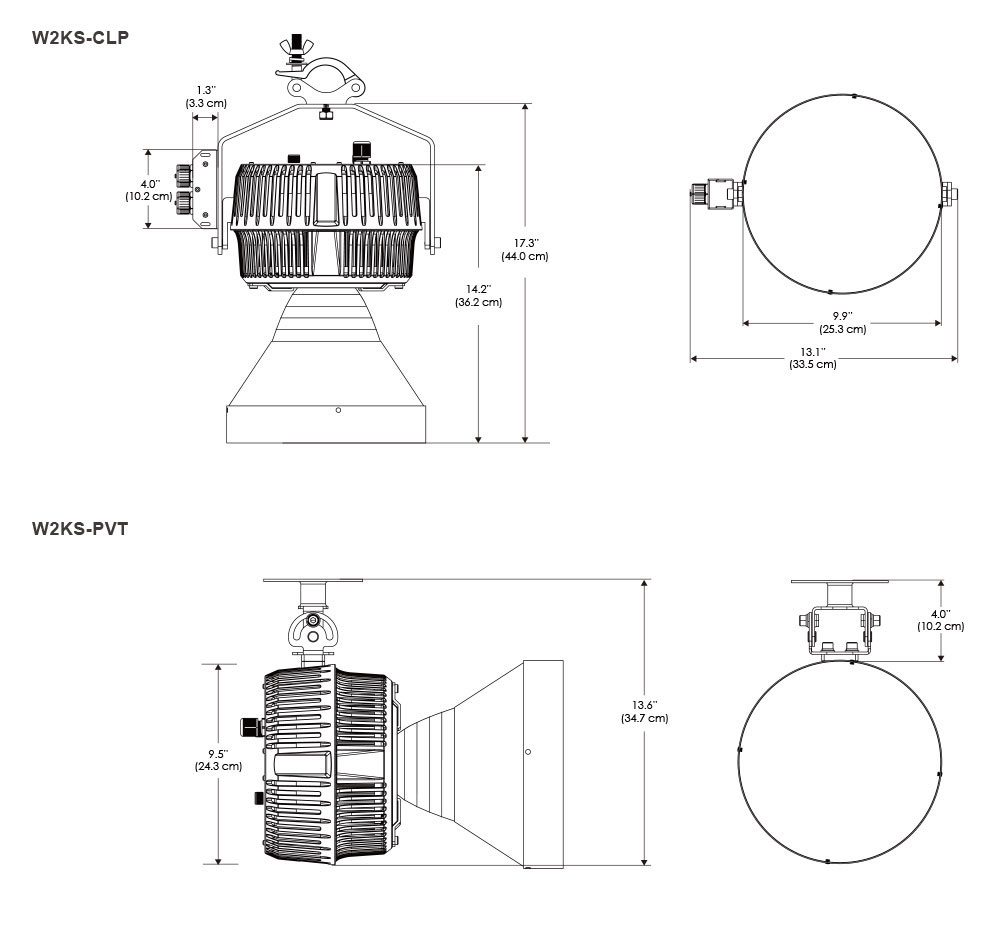

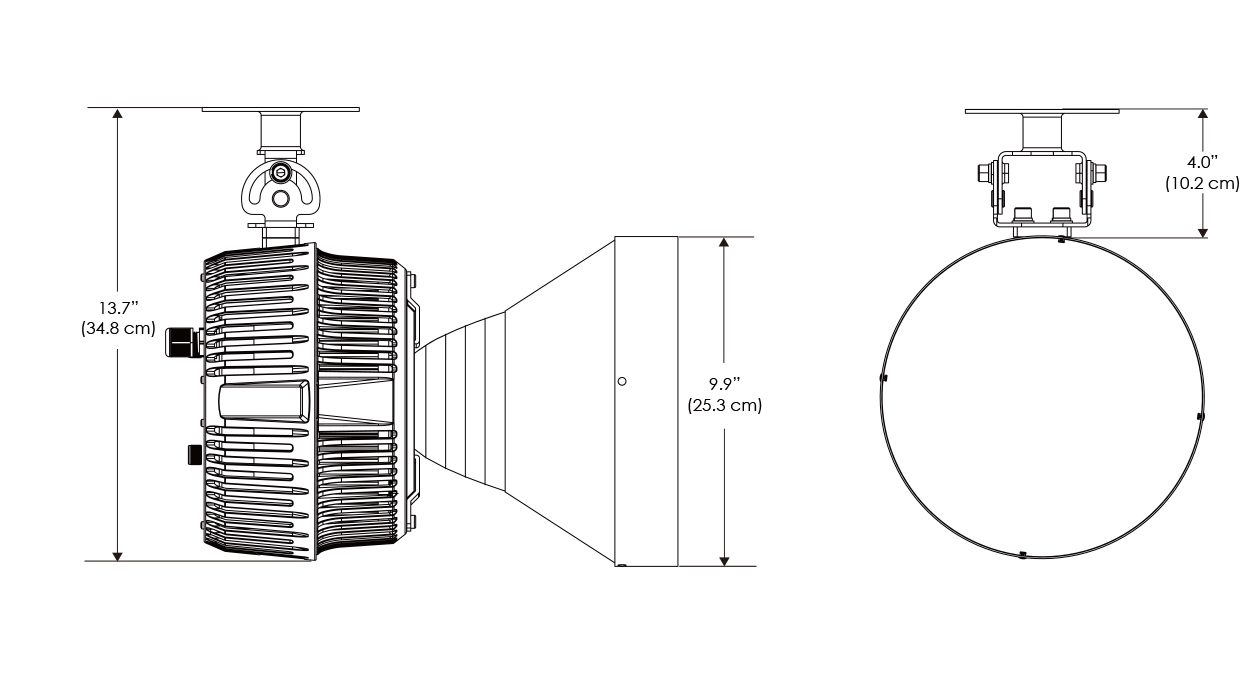

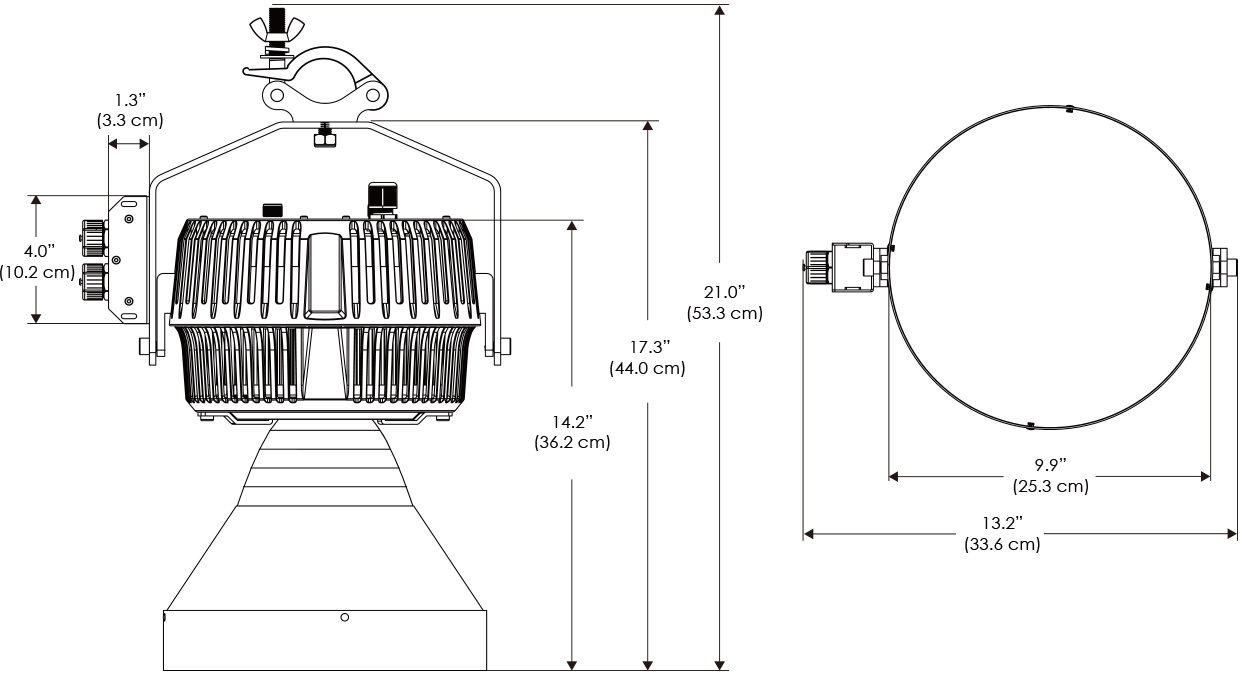

MECHANICAL FIGURES

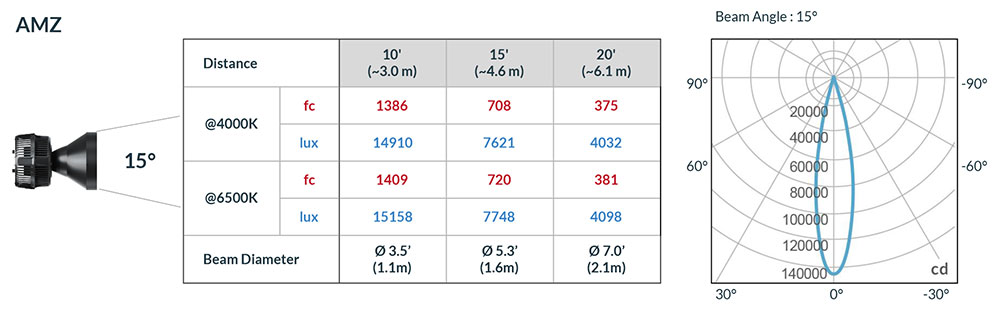

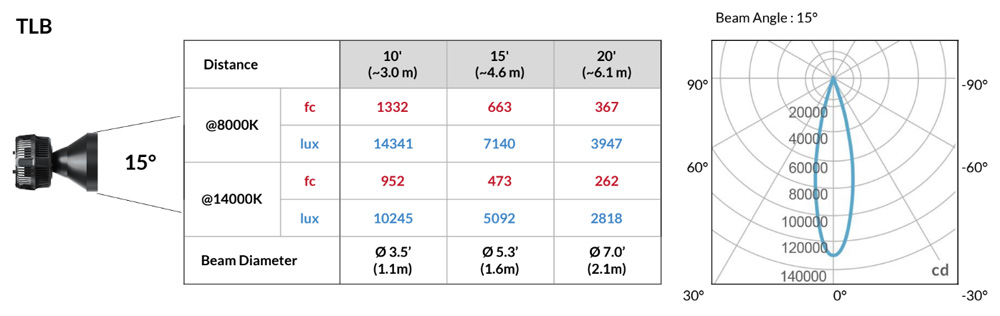

PHOTOMETRIC DATA

ITEMS INCLUDED
