Signal Converter

P/N: CXUSCB1

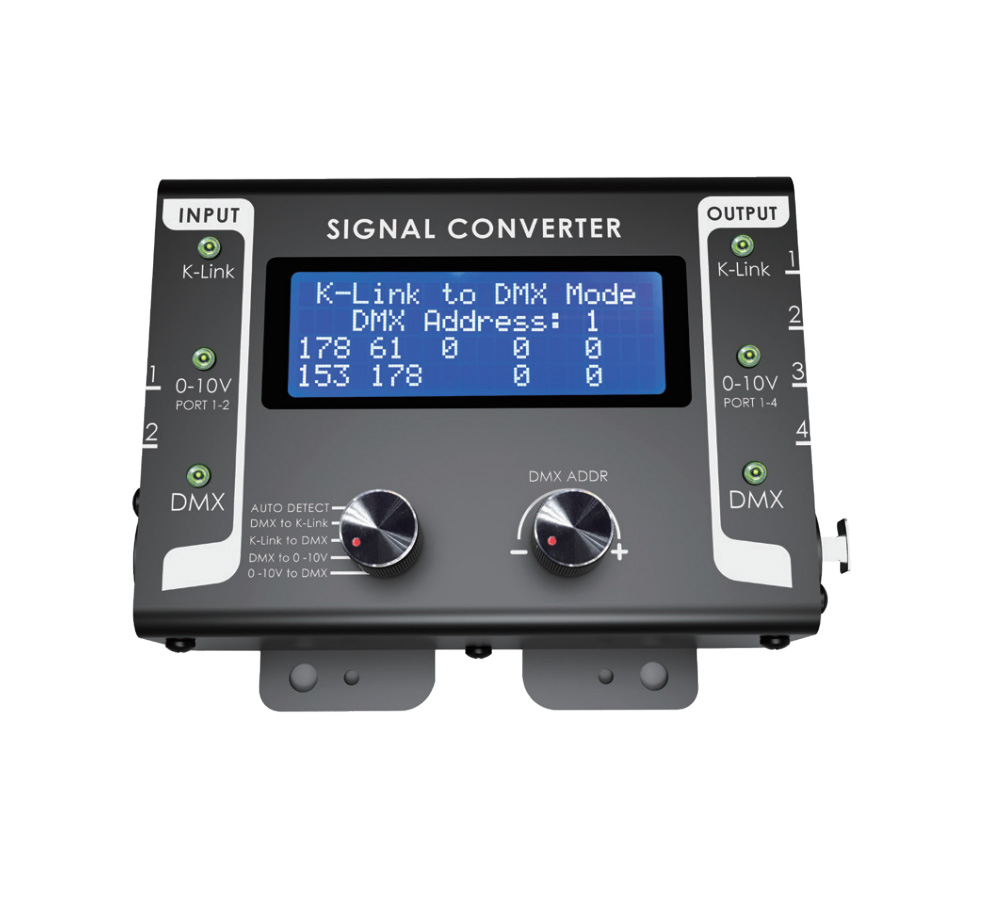

Cielux Signal Converter
Cielux Signal Converter
  • Cielux Signal Converter
  • Cielux Signal Converter

Specification


The Cielux Signal Converter box allows for various input signals to be converted into different output signals in order to allow for more flexibility and customization with control inputs and lamp outputs.


Four Modes: DMX to K-link / K-link to DMX / DMX to 0-10V / 0-10V to DMX
Power Input: 12V DC IN
Number of Input Ports: 4 Input (1 K-link, 2 0-10v, 1 DMX)
Number of Output Ports: 6 Output (1 K-link, 4 0-10v, 1 DMX)
Weight: 1.1lb (~0.50kg)
Dimensions: 5.2” x 4.9” x 2.6” / 13.3cm x 12.4cm x 6.6cm

Separator

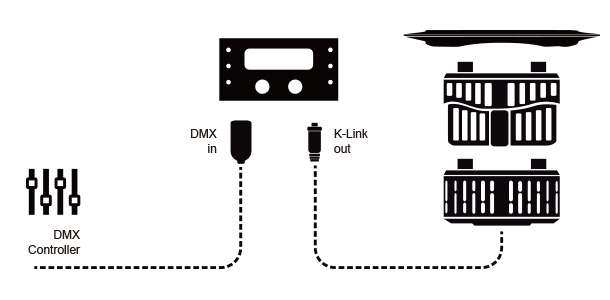

DMX to K-Link Mode

Use this mode when controlling K-Link enabled Cielux fixtures (A360X, A500X, AP9X) with an external DMX controller.

Separator

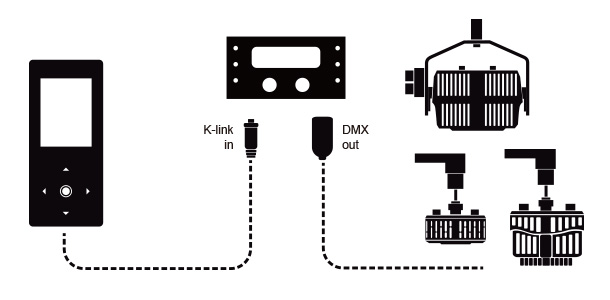

K-Link to DMX Mode

Used when controlling W-Series Cielux fixtures (W360, W500, W2K) through the Spectral X Controller or WiFi Dongle (USB-C).

Separator

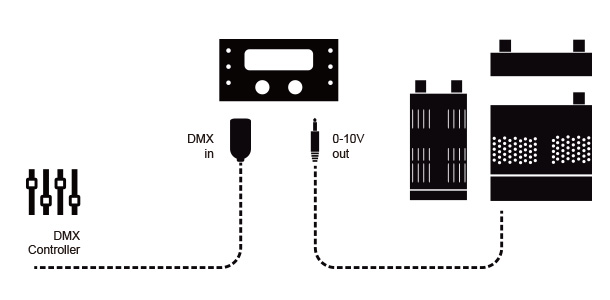

DMX to 0-10V Mode

Use this mode to control 0-10v A-Series Cielux fixtures (A80, A160WE, or A360WE) through an external DMX controller.

Separator

0-10V to DMX Mode

Use this mode when controlling W-Series Cielux fixtures (W360, W500, or W2K) with a 0-10V input.

Separator

Downloads

Signal Converter Data Sheet
