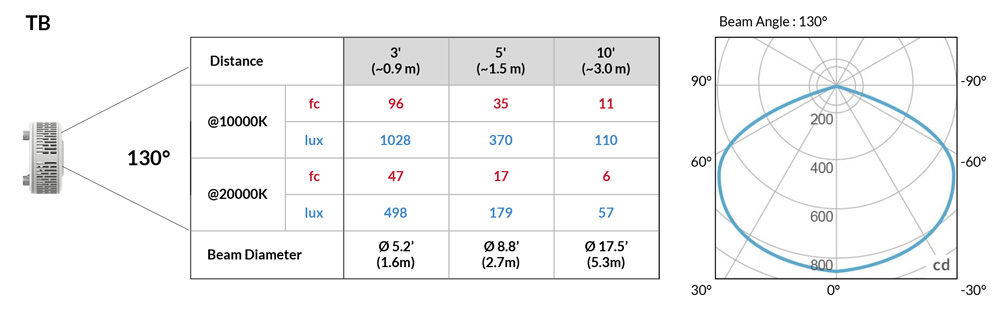

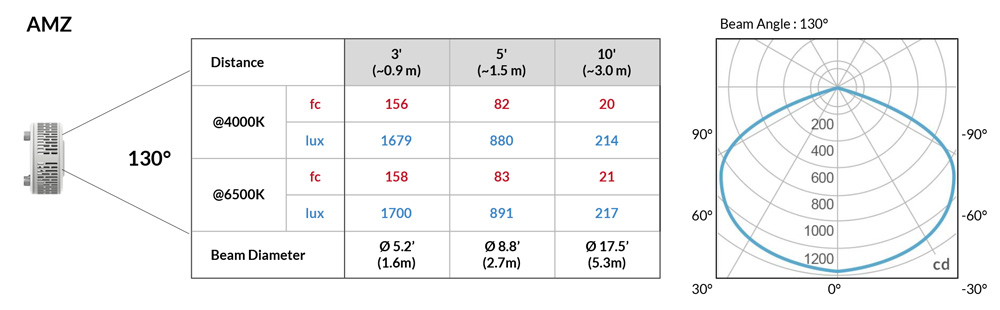

| Beam Angle | 130° |
| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| Power Draw | 80W max |
| AC Input Voltage | 100 - 240V AC, 60Hz |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 0.8lb / 0.3kg |
| Power Supply Weight | 1.0lb / 0.4kg |

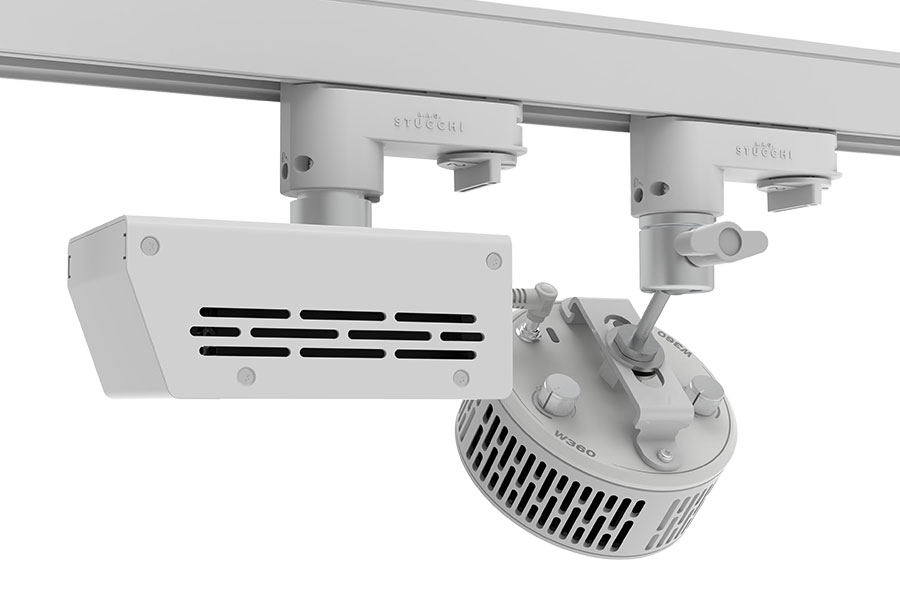

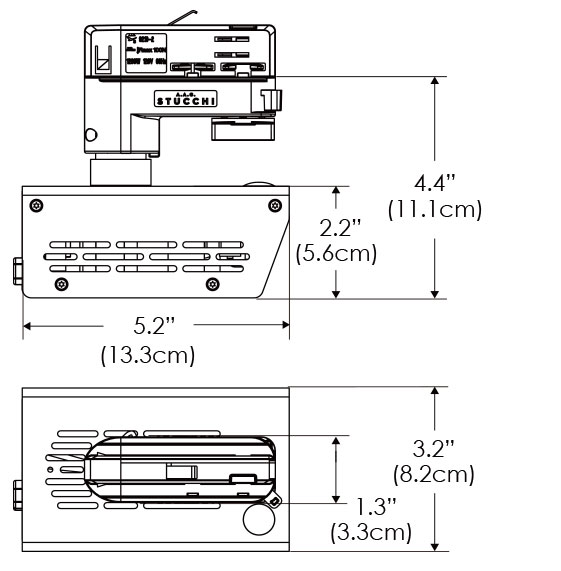

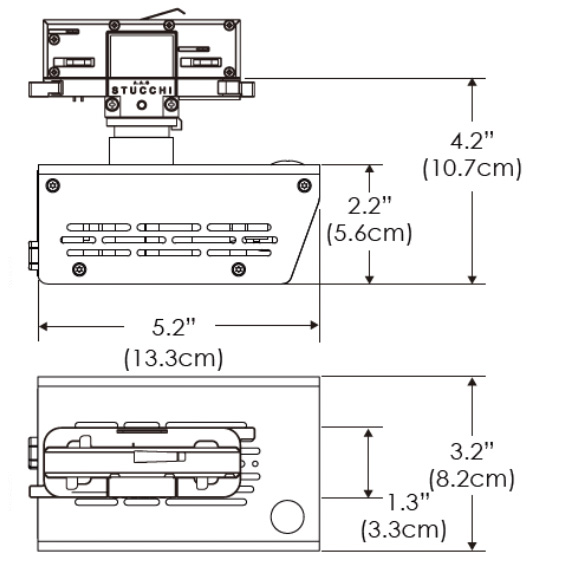

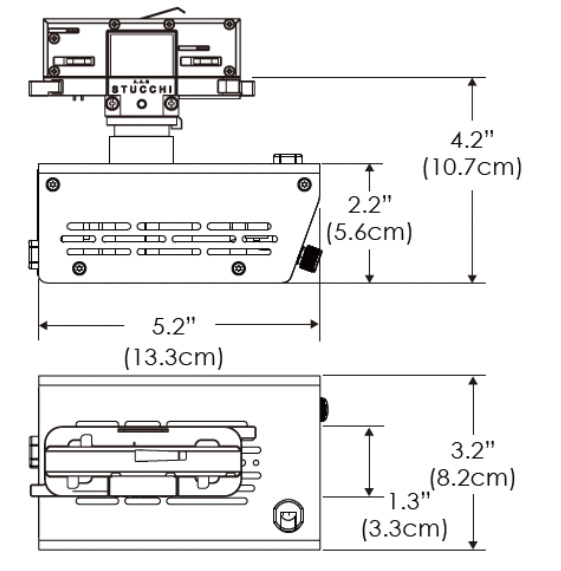

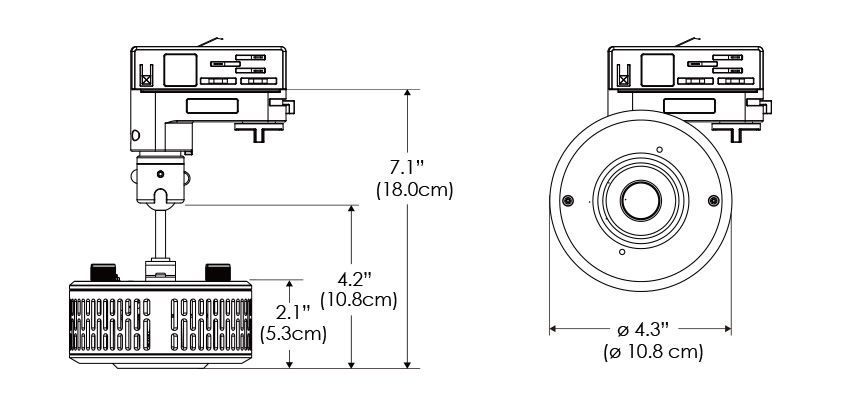

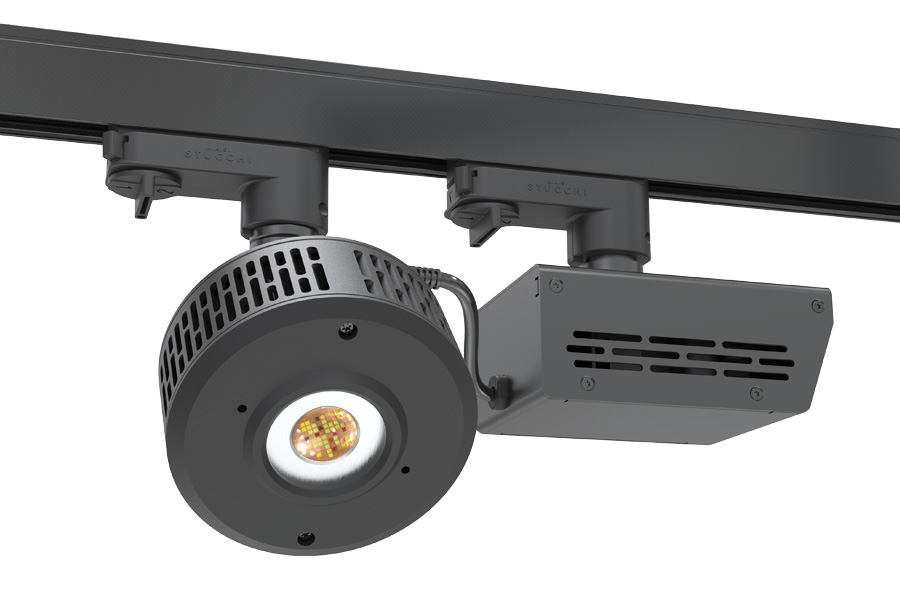

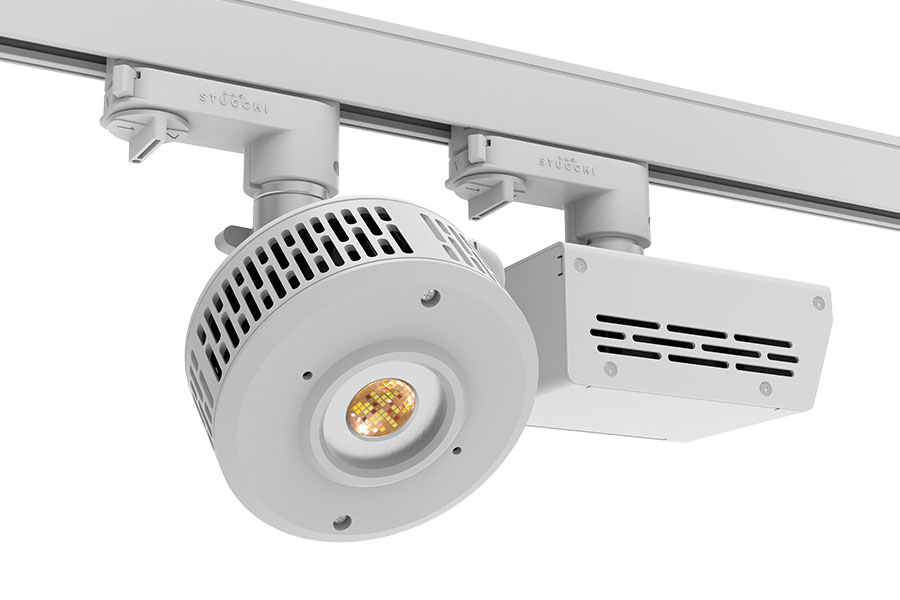

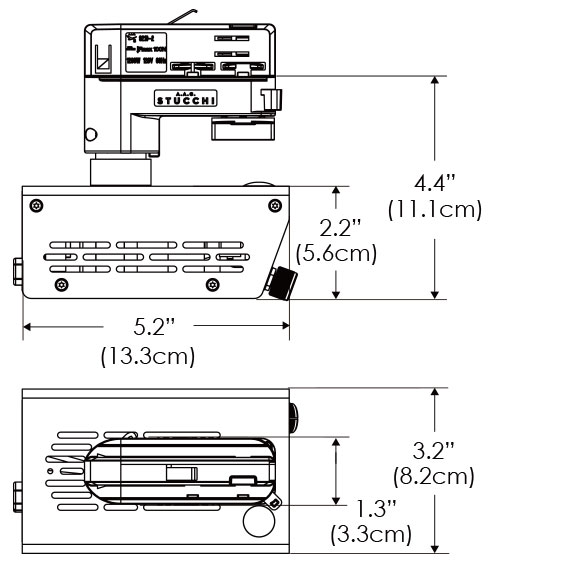

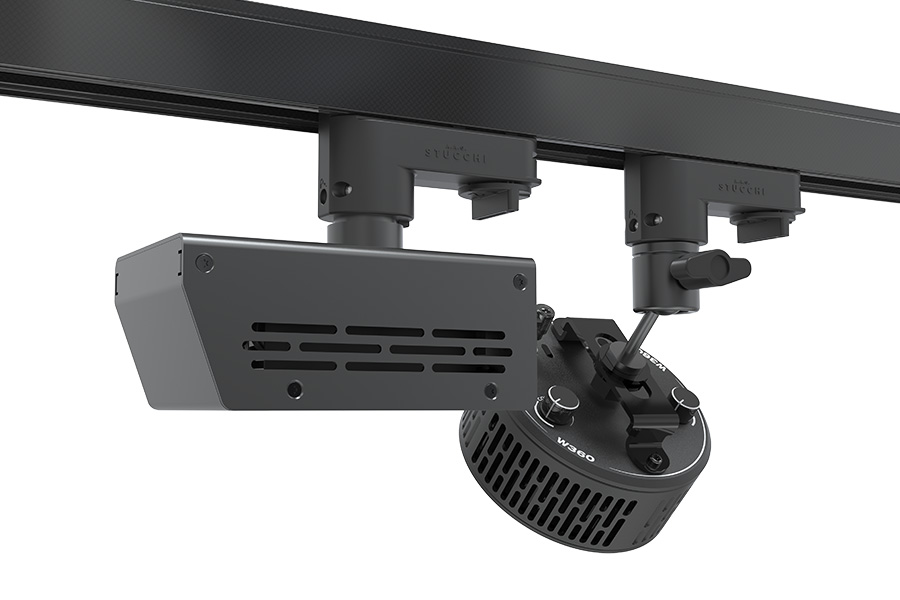

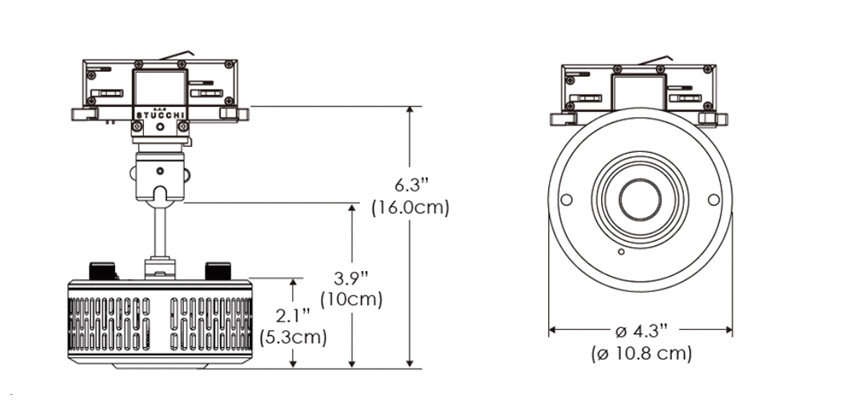

| W360X-TOX/TON | PS  | PSX |
 |
 |  |
| W360X-TOX/TON | PS  | PSX |
 |
 |  |

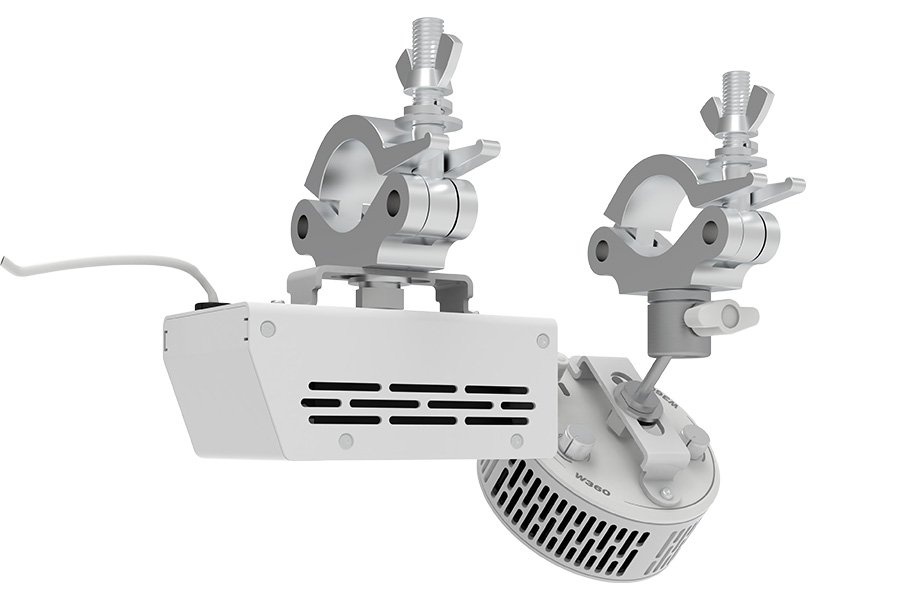

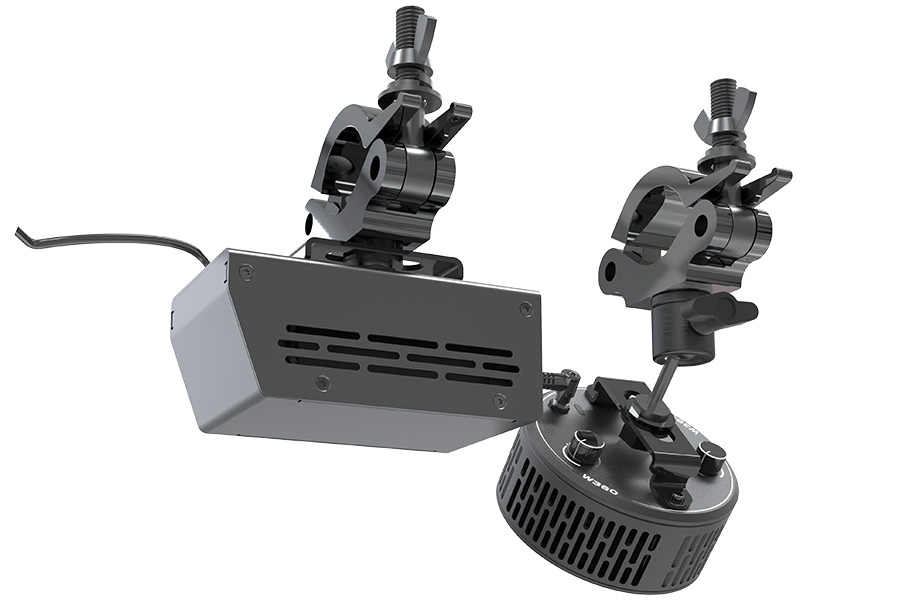

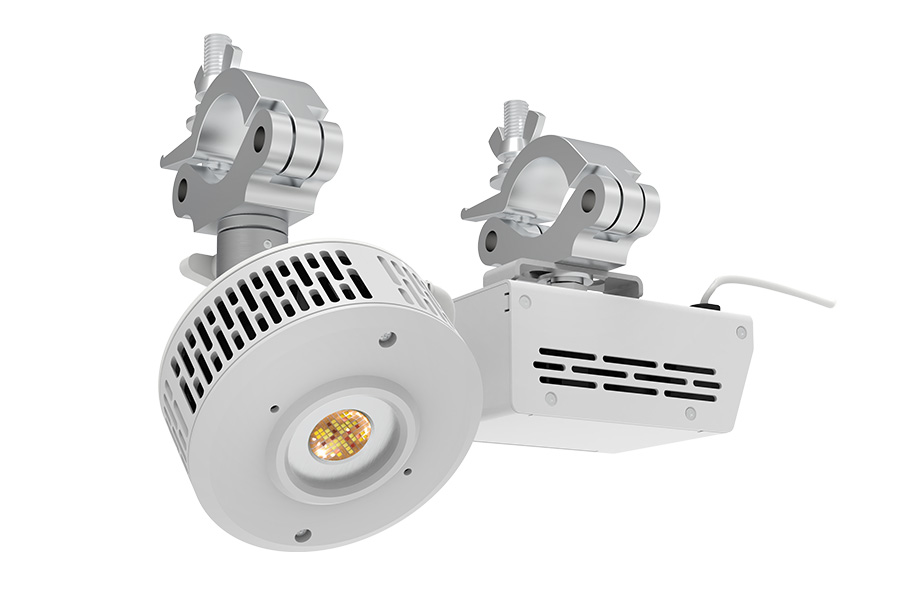

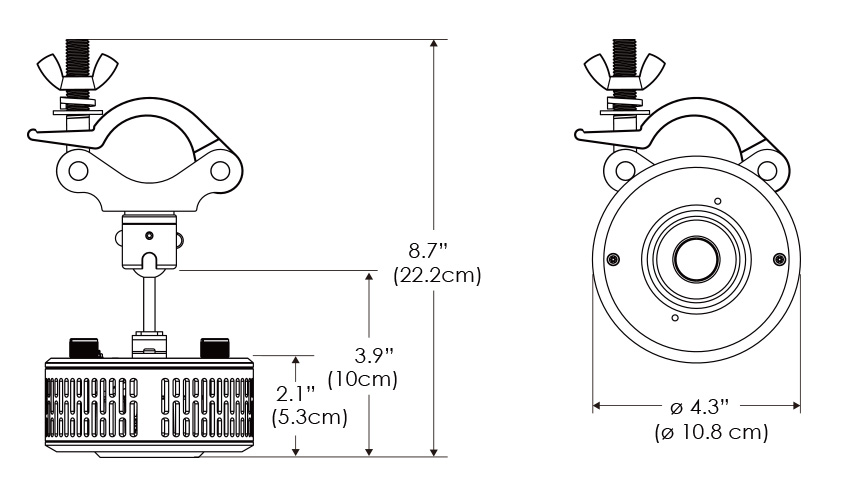

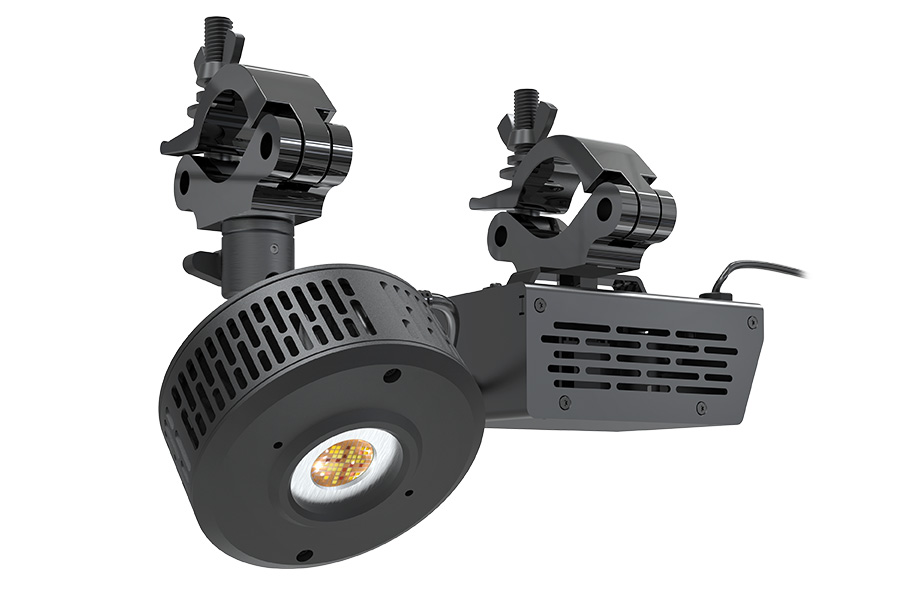

| W360X-CLP | PS |
|
 |
 | |

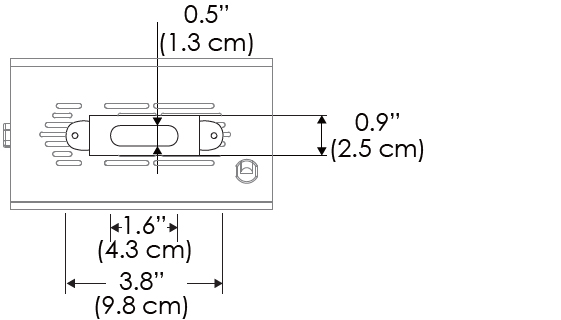

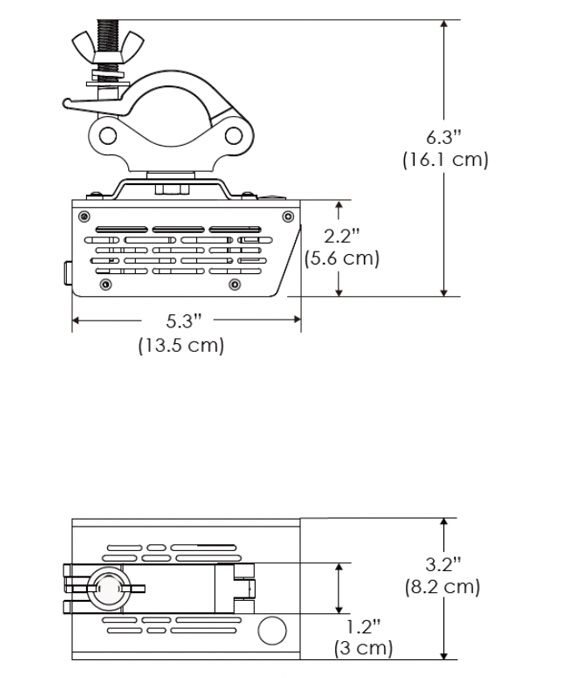

| Mounting Bracket Dimensions ALL-CLP *All -CLP configuration models come with standard DC cables of 6 inches and AC cables of 10 ft. |
 |
|

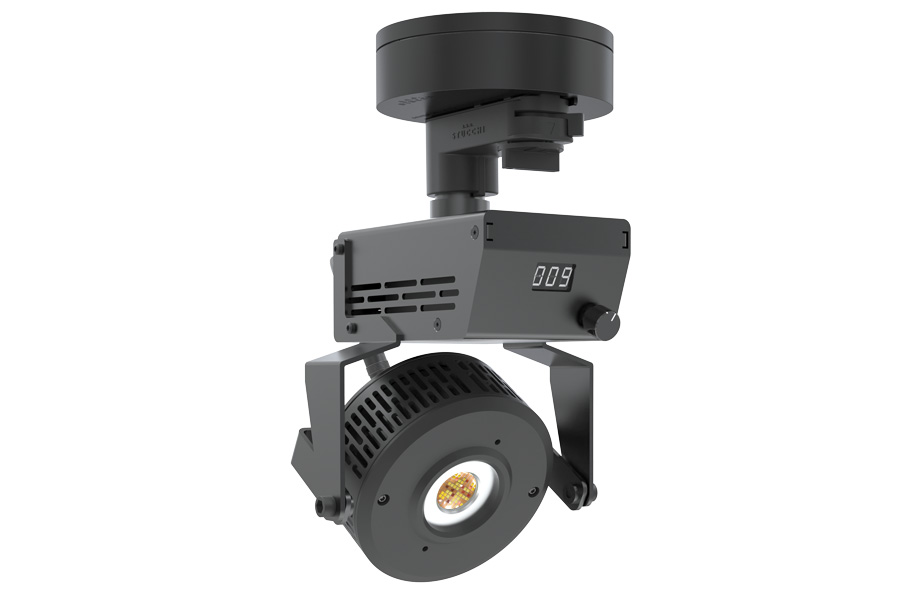

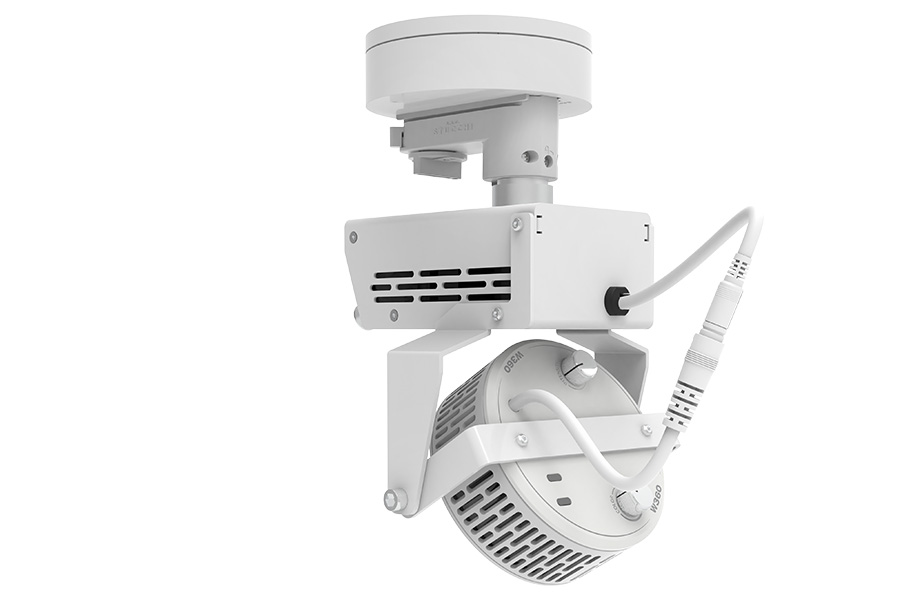

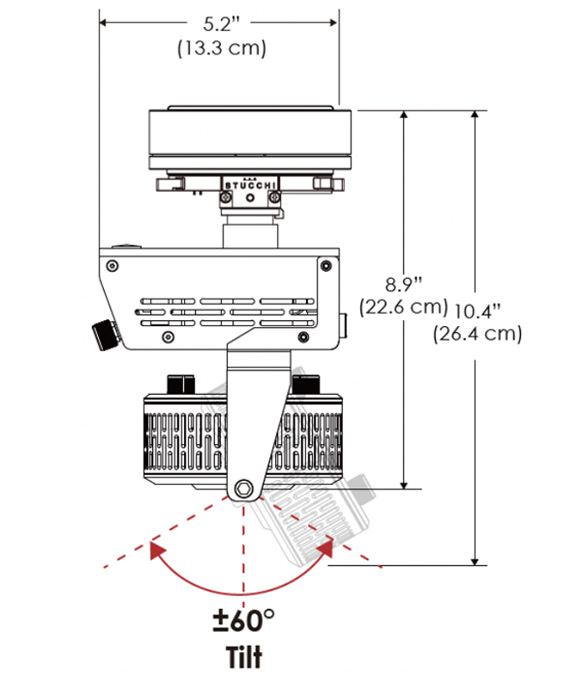

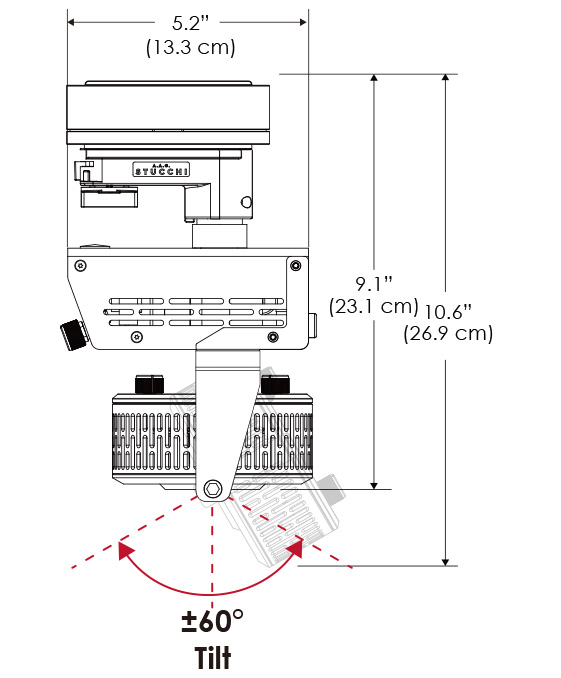

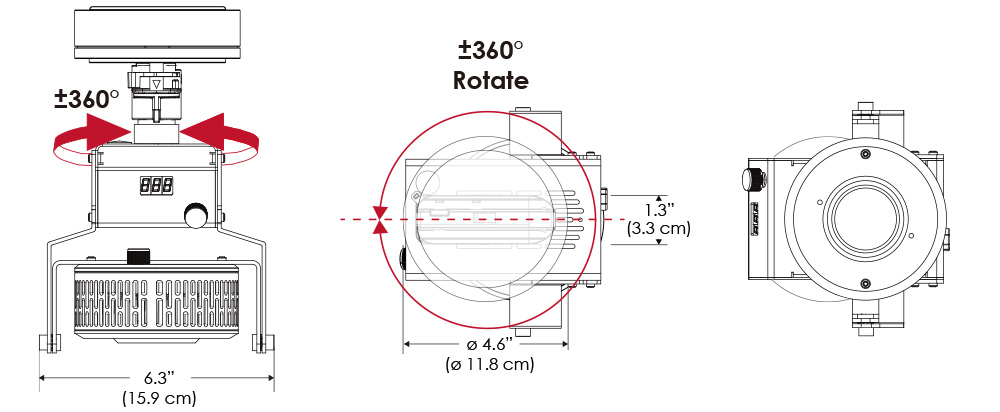

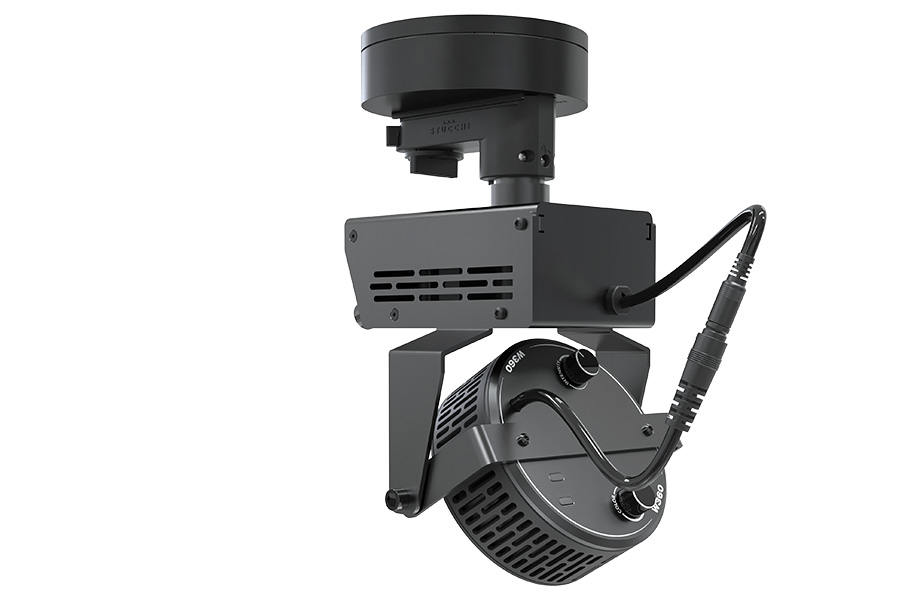

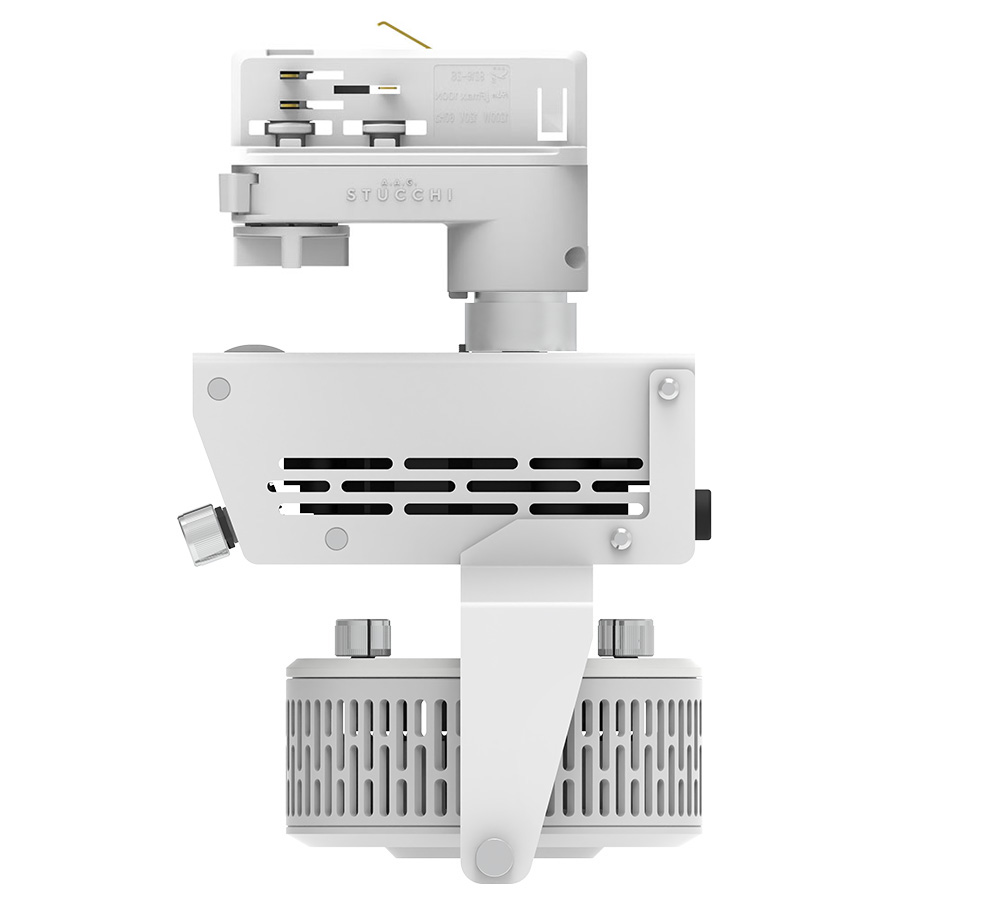

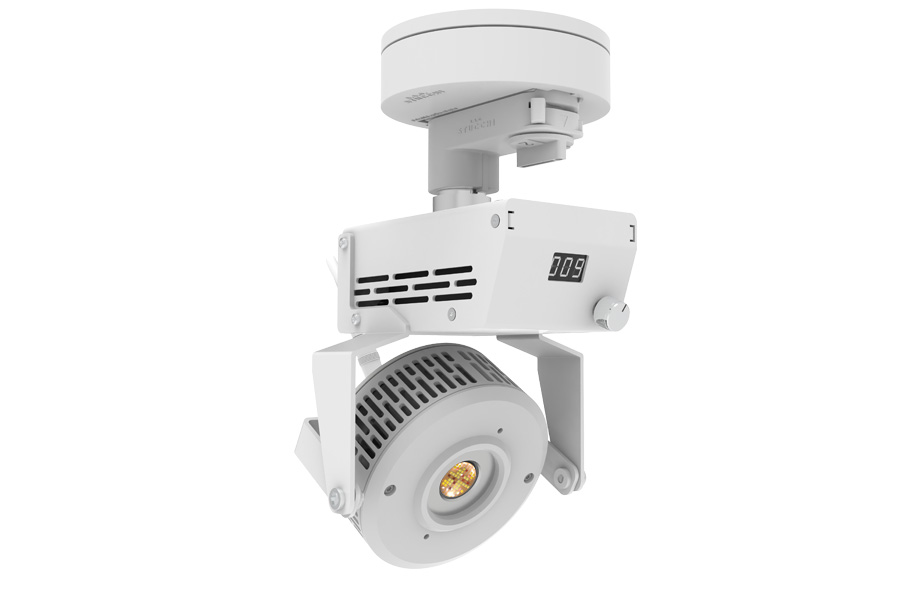

| W360X-MPT | PSX | PSX |
 |
 |  |

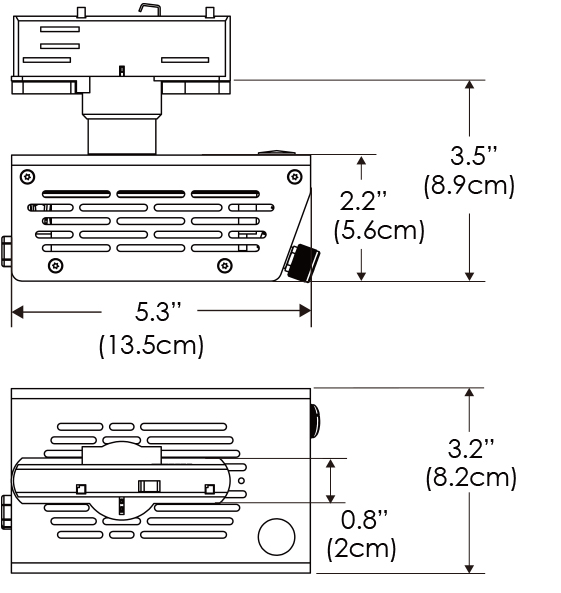

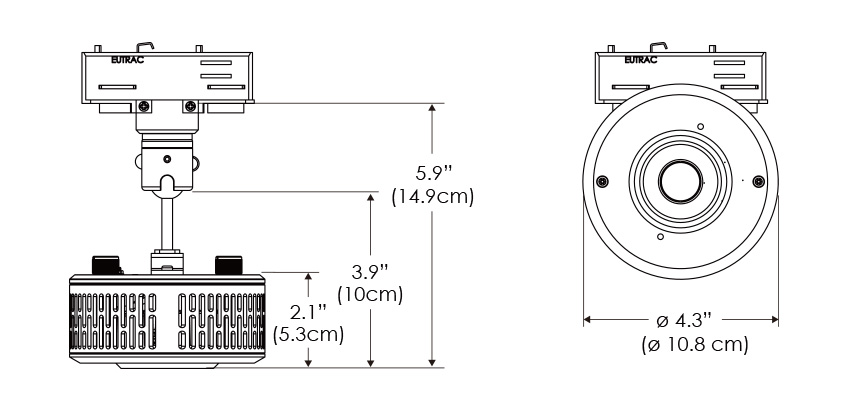

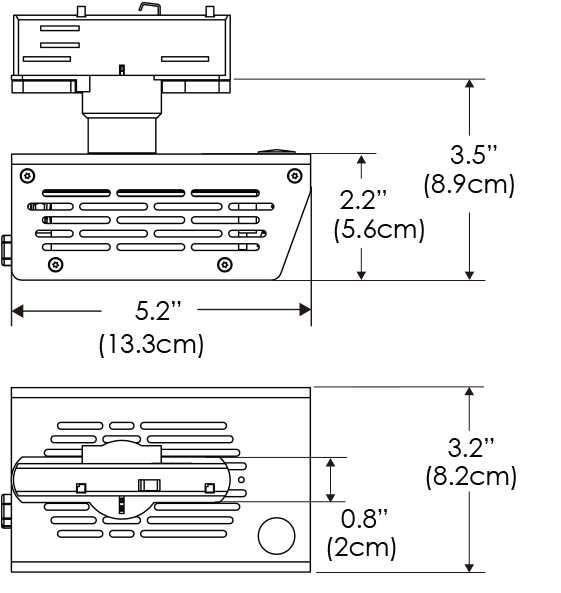

| W360X-TEX (legacy products) | PS | PSX |
 |
 |  |

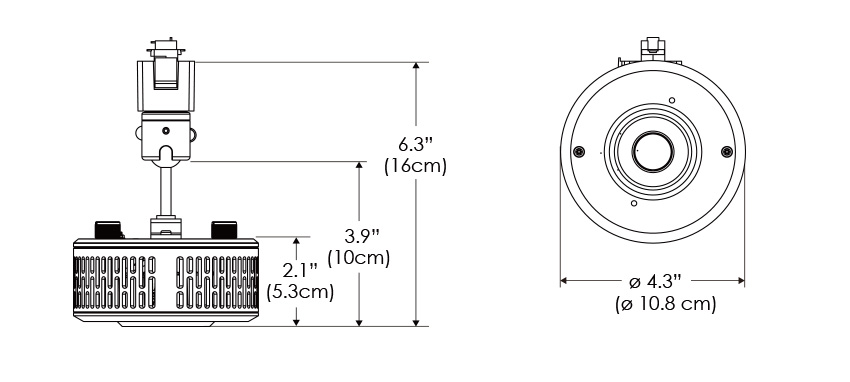

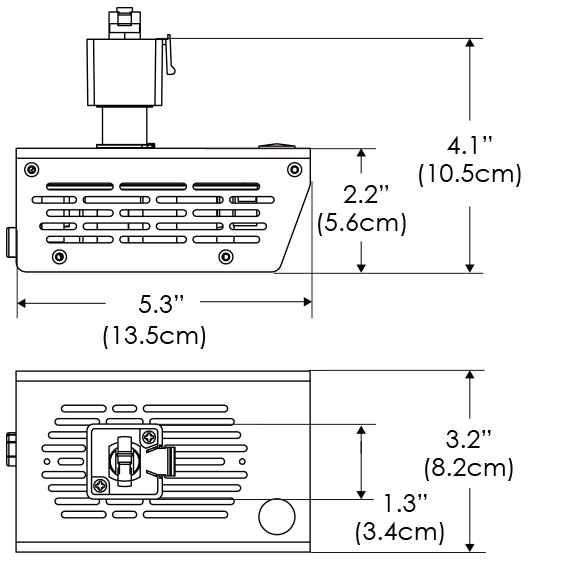

| W360X-TG (legacy products) | PS |
|
 |
 | |

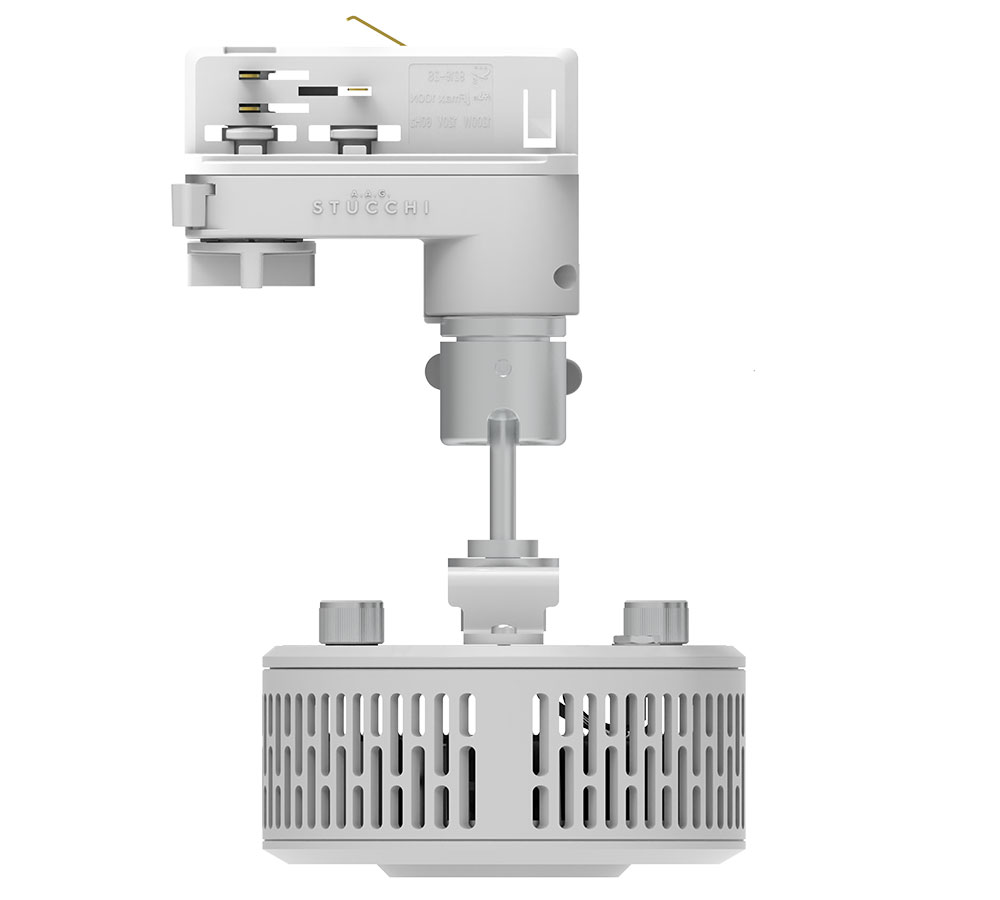

W360X fixture

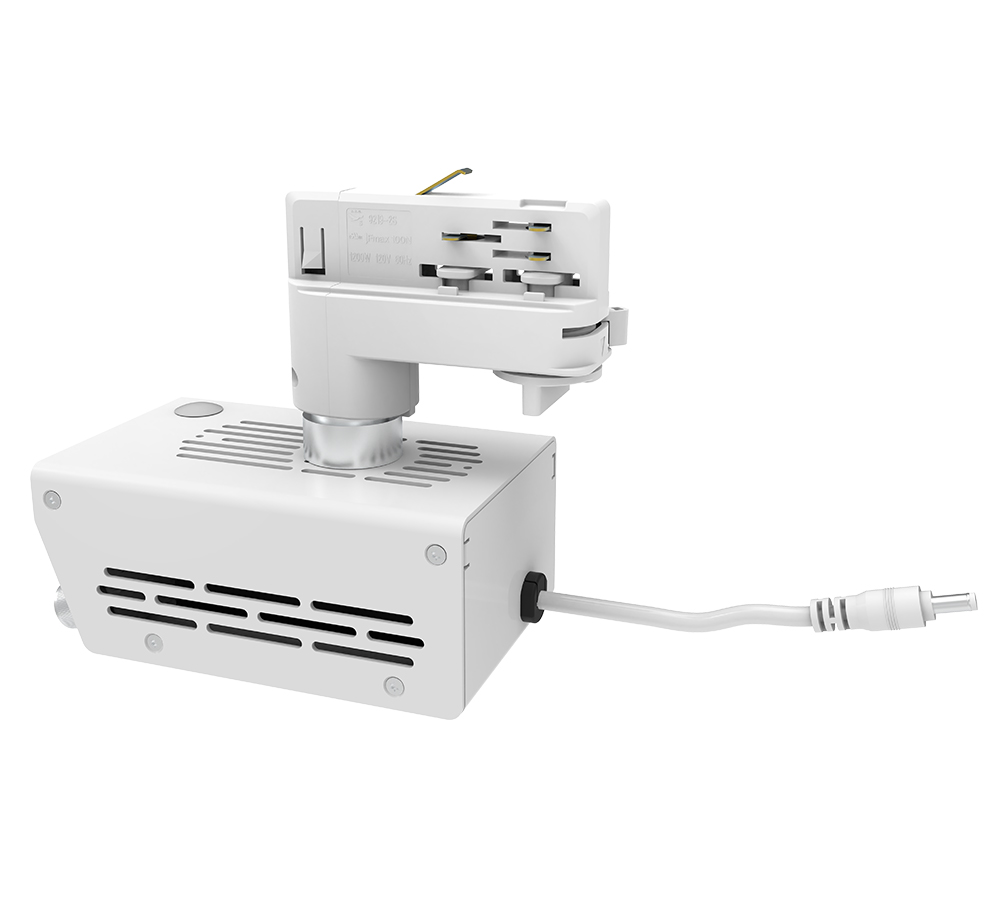

PSU
W360X fixture + PSU

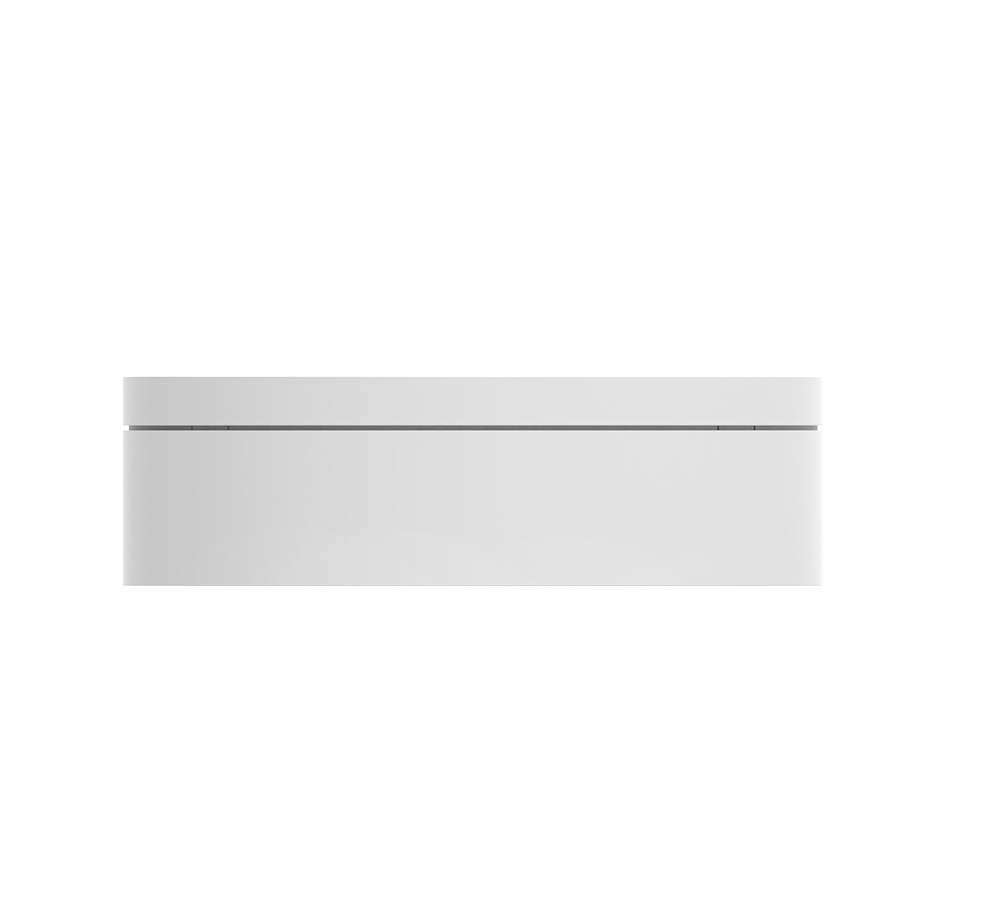

Monopoint Adapter
O-Type Track
DMX
E-Type Track
DMX
(obsolete)

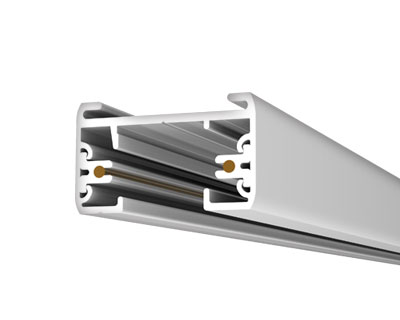

G-Type Track
Non - DMX
(obsolete)

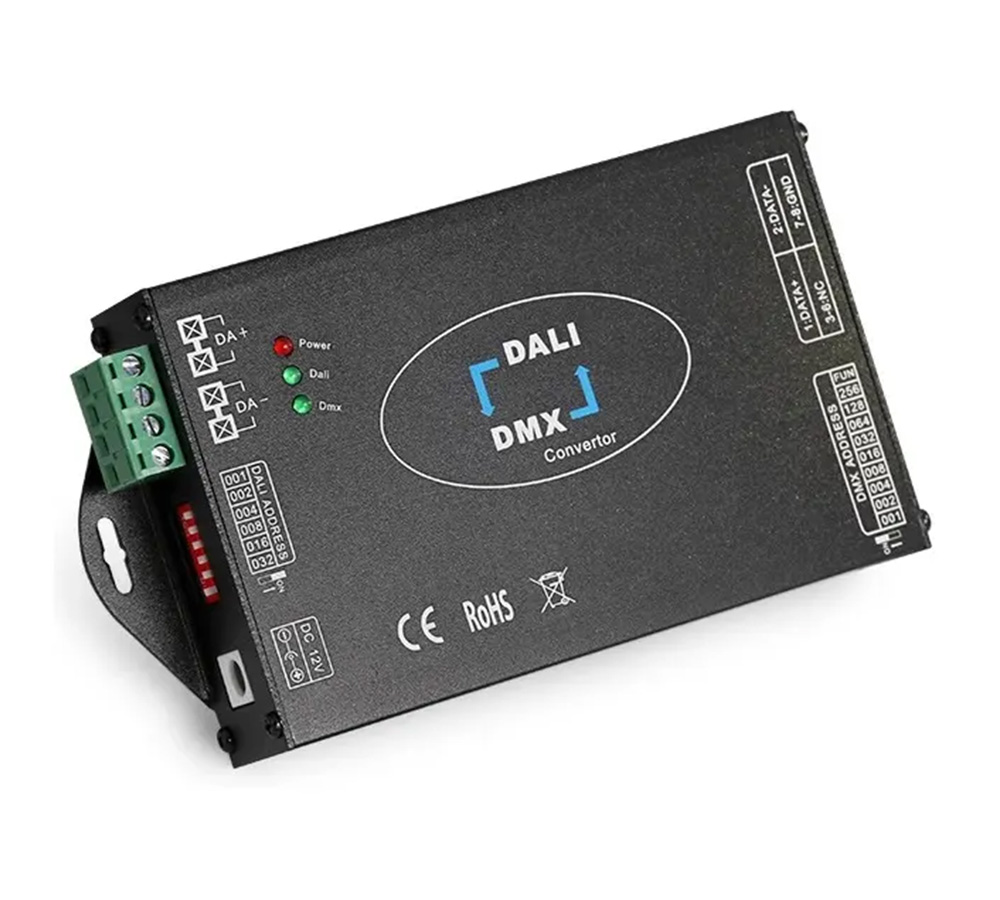

Signal Converter
