LAST UPDATED: SEP 13,2023
P5F Clamp Data SheetLAST UPDATED: SEP 13,2023

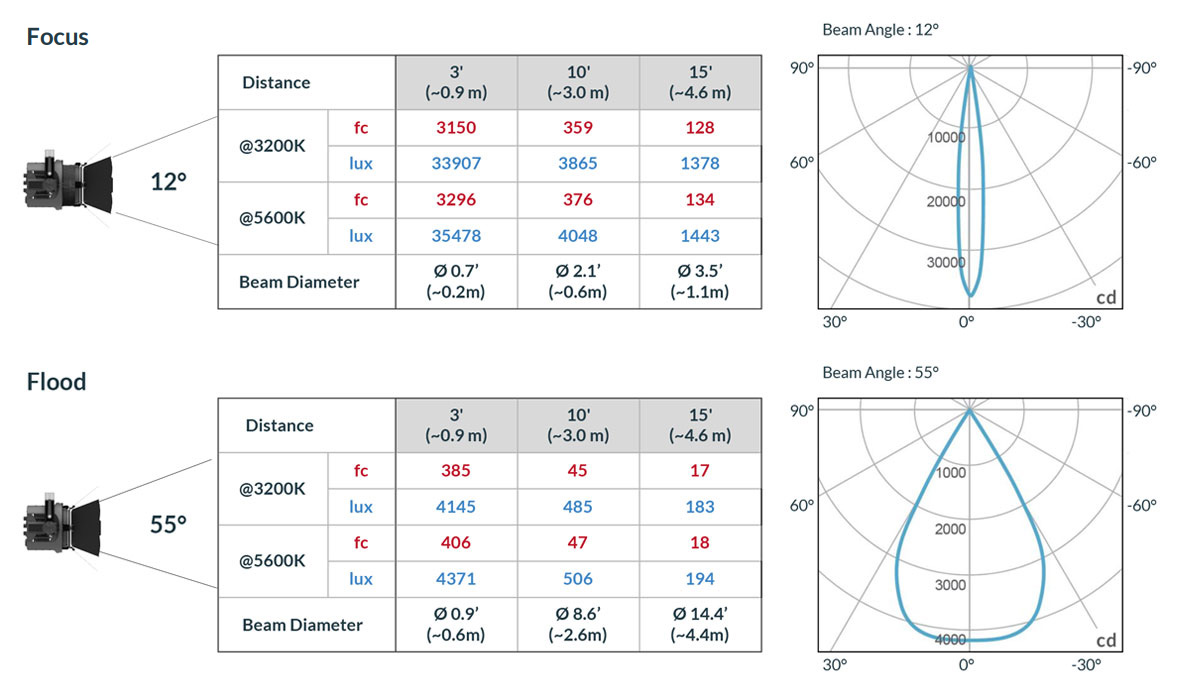

P5F IES Profiles| Beam Angle | 12°-55° |
| CRI | 95 typical (in CCT Mode) |
| TLCI | 90 typical (in CCT Mode) |
| Dimming | 100% - 0% flicker free |
| Power Draw | 175W max |
| AC Input | 100 - 240V AC, 50 - 60Hz |
| Remote Control | DMX 512 |
| Cooling | Fan Cooled |
| Operating Temp. | 32 - 104ºF (0 - 40ºC) |
| Fixture Weight | Track Type: 7.0lb (~3.2kg) / Clamp Type: 7.0lb (~3.2kg) |
| Power Supply Weight | Track Type: 1.9lb (~0.9kg) / Clamp Type: 2.6lb (~1.2kg) |

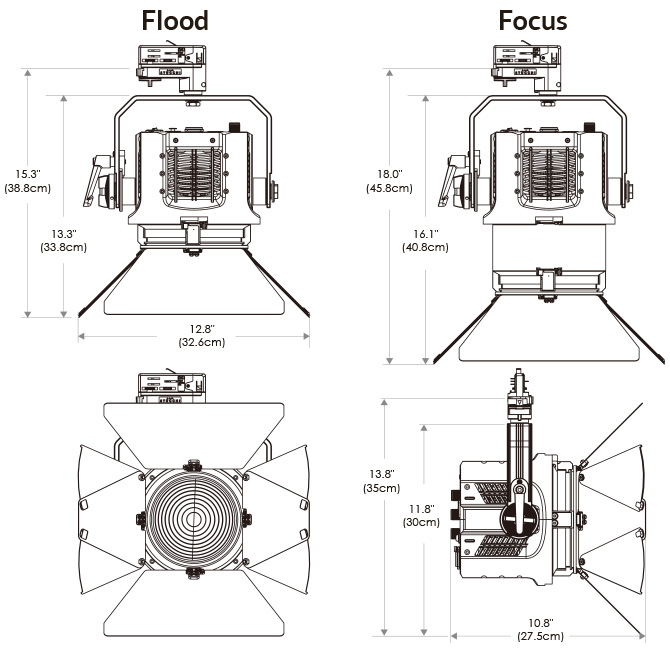

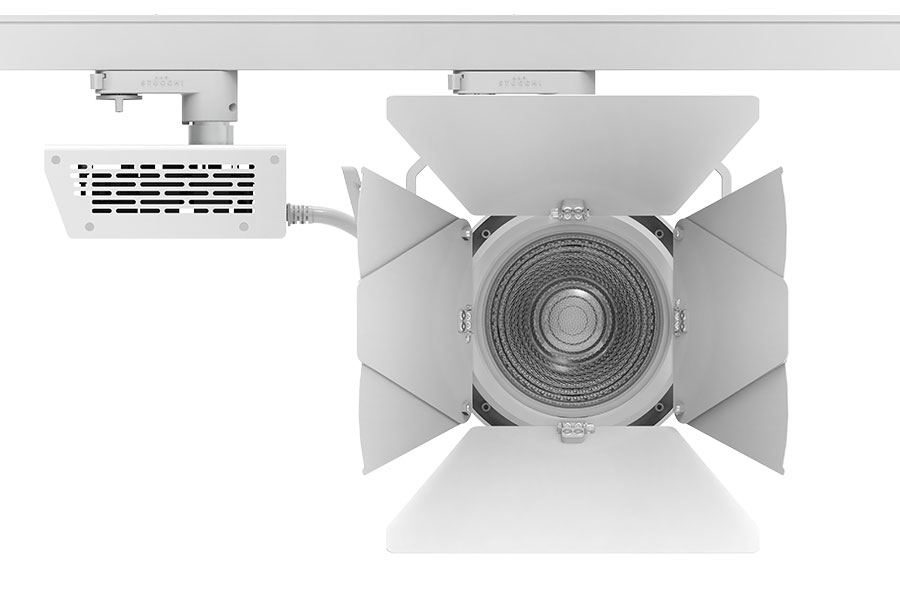

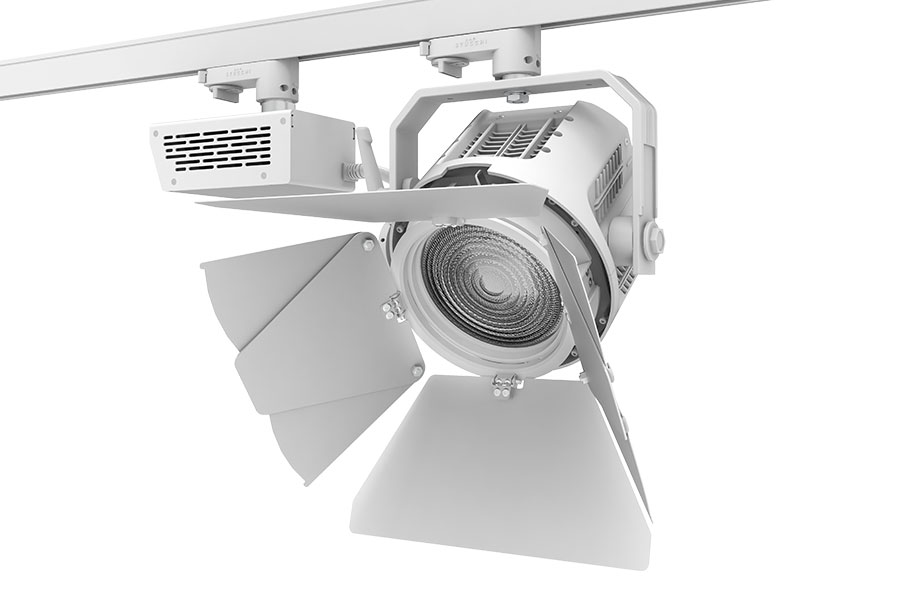

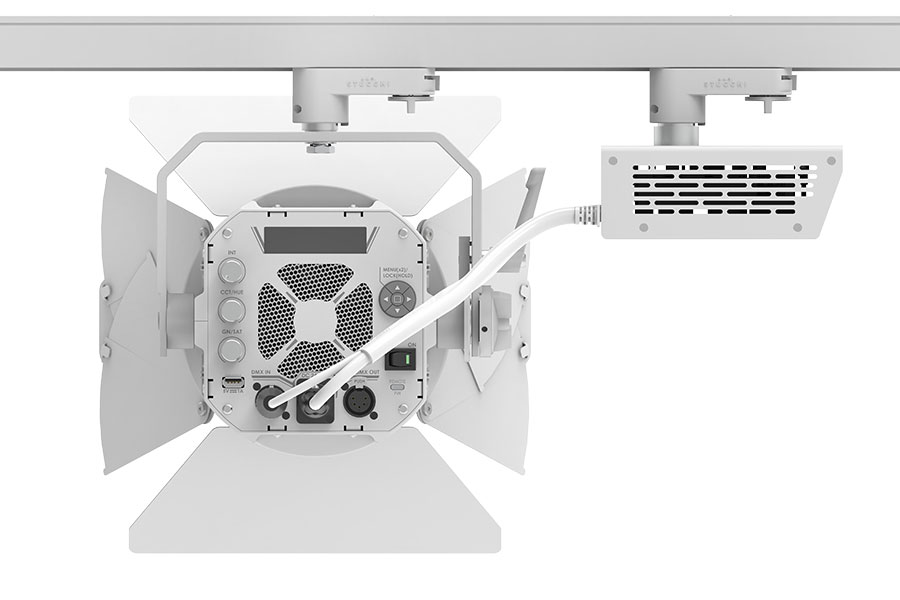

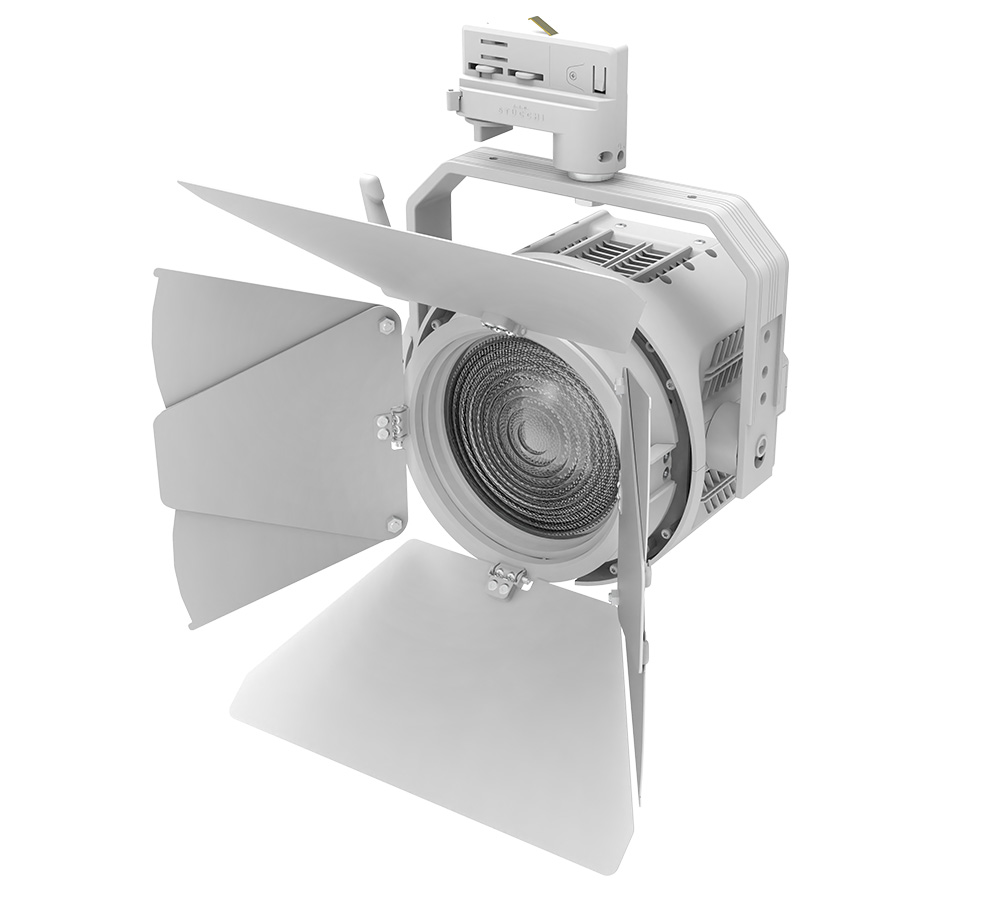

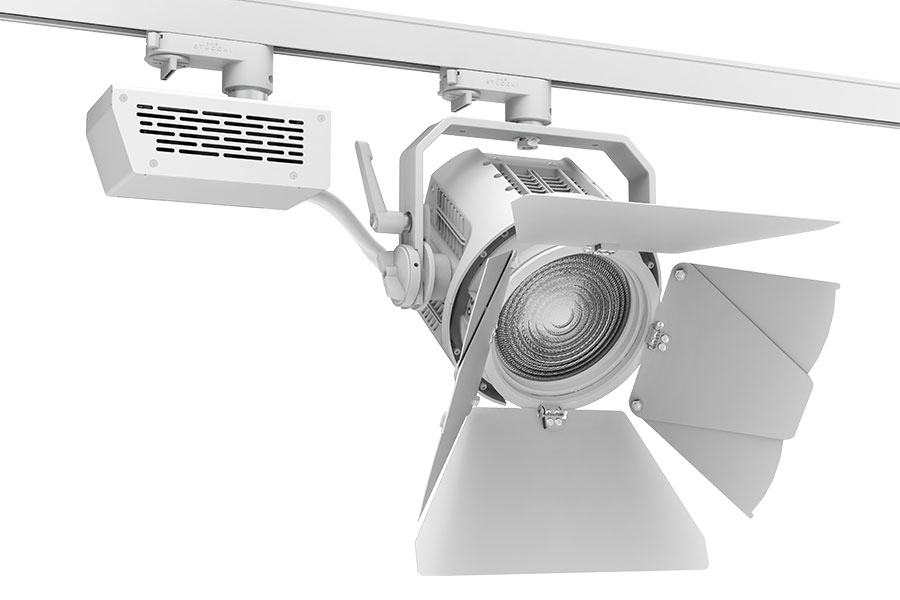

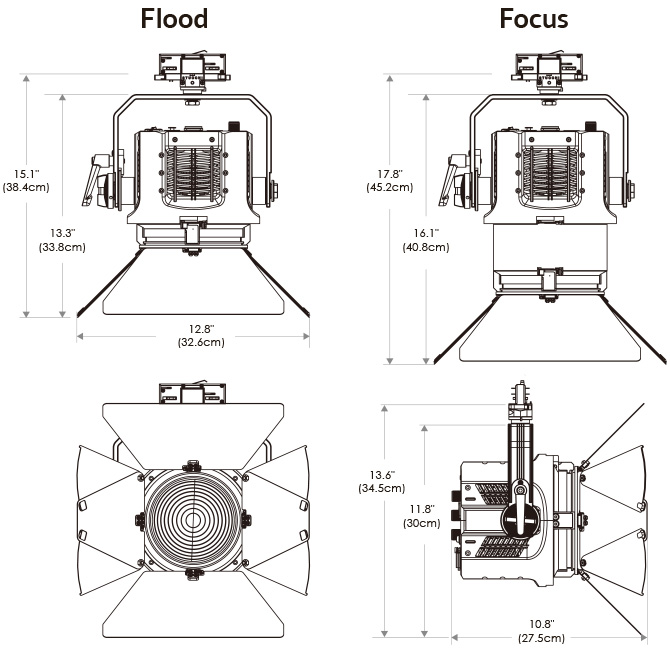

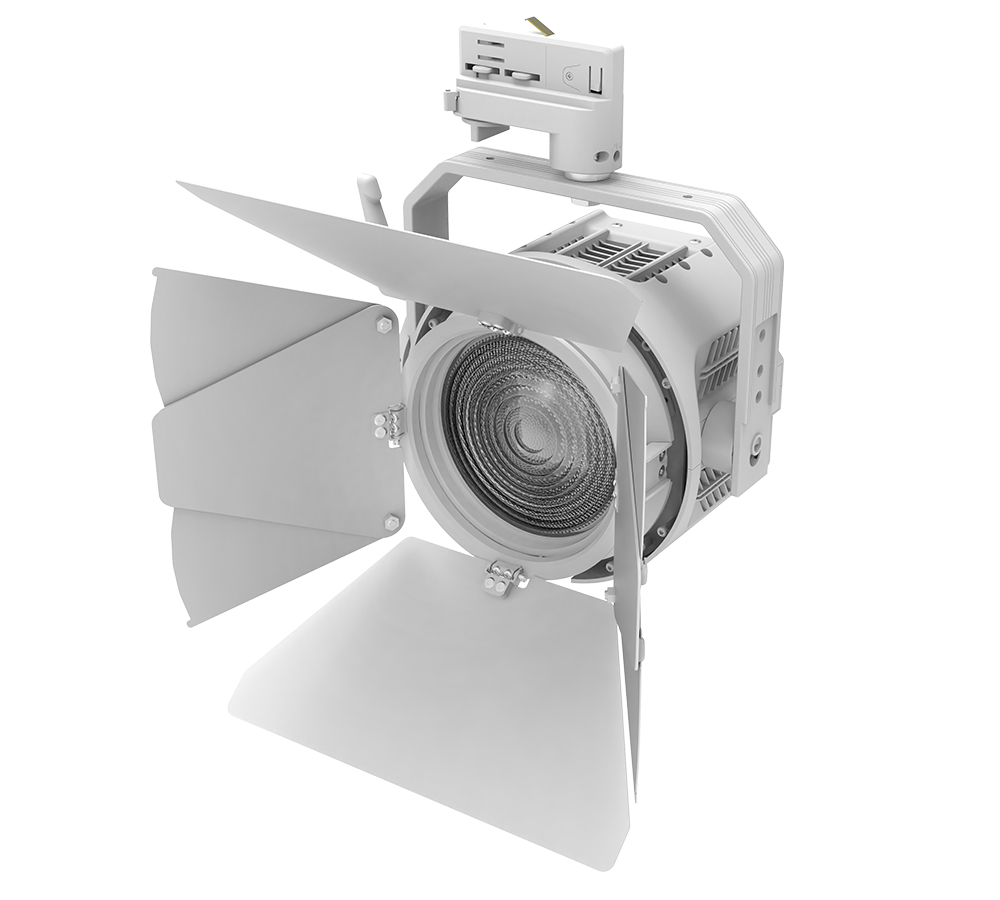

P5F (Track) fixture

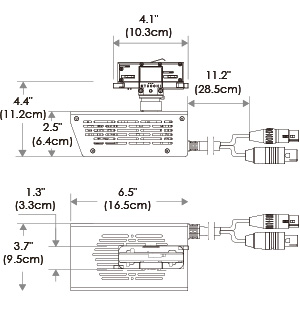

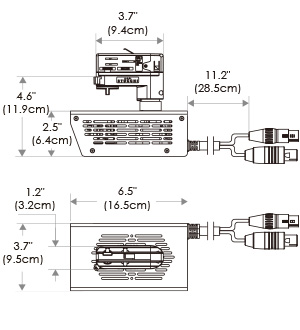

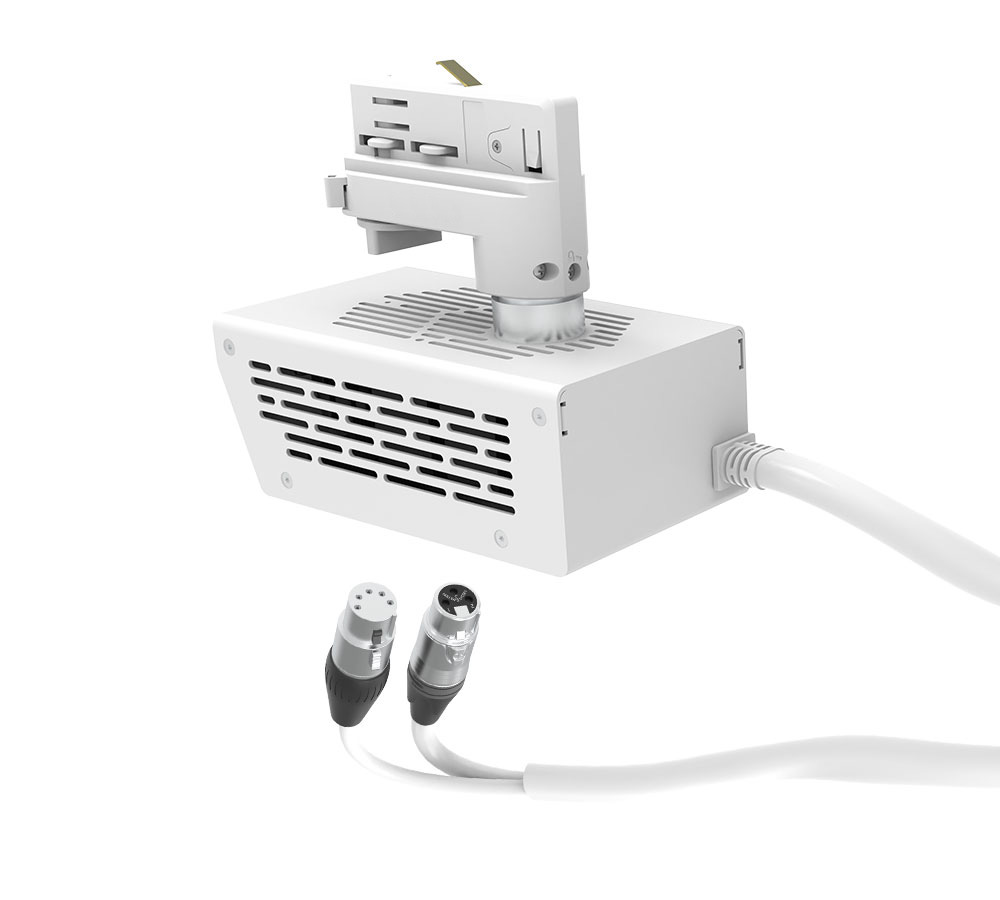

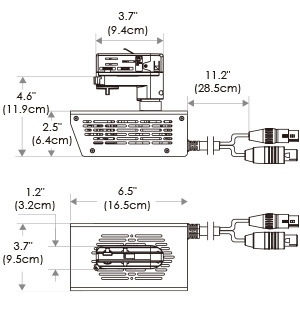

250W, 48V, TOX Track Mount PSU

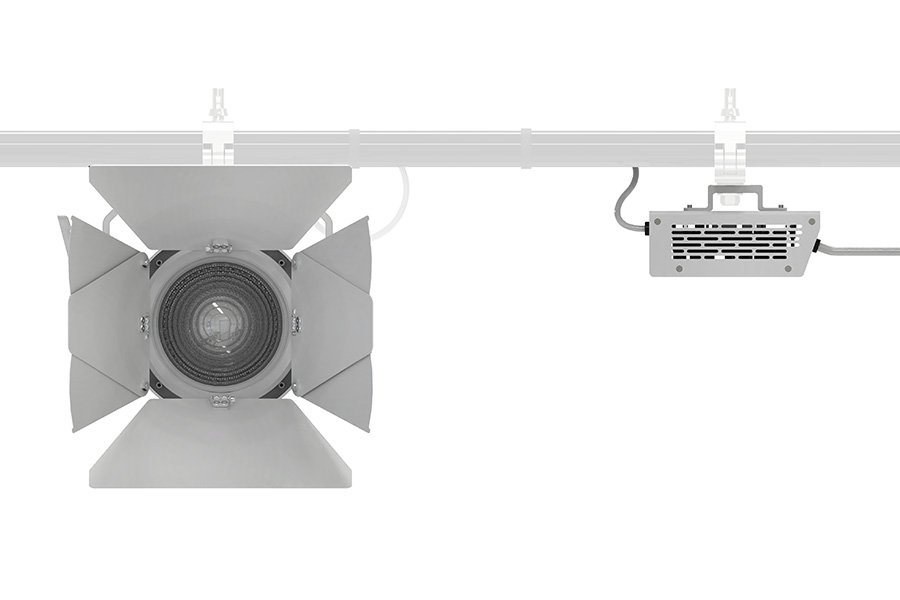

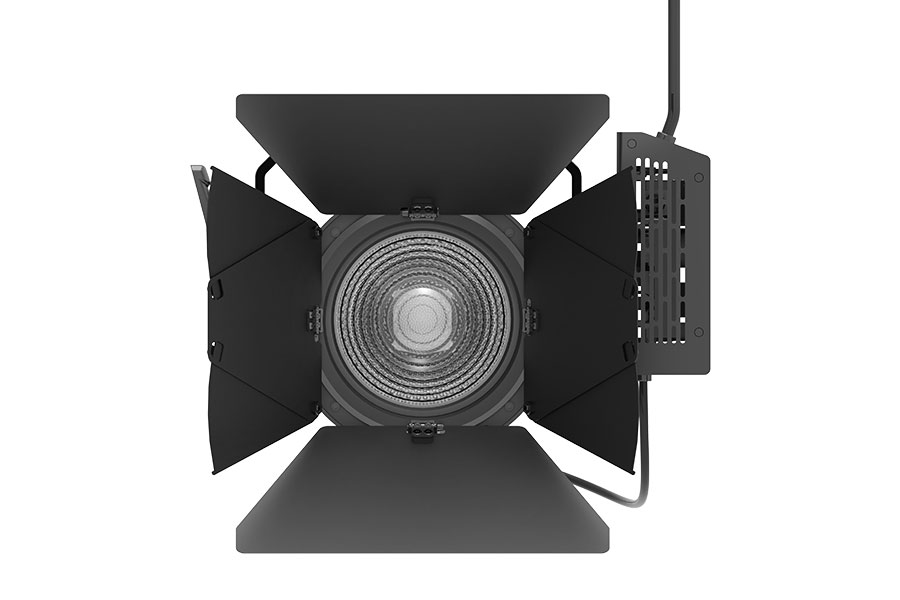

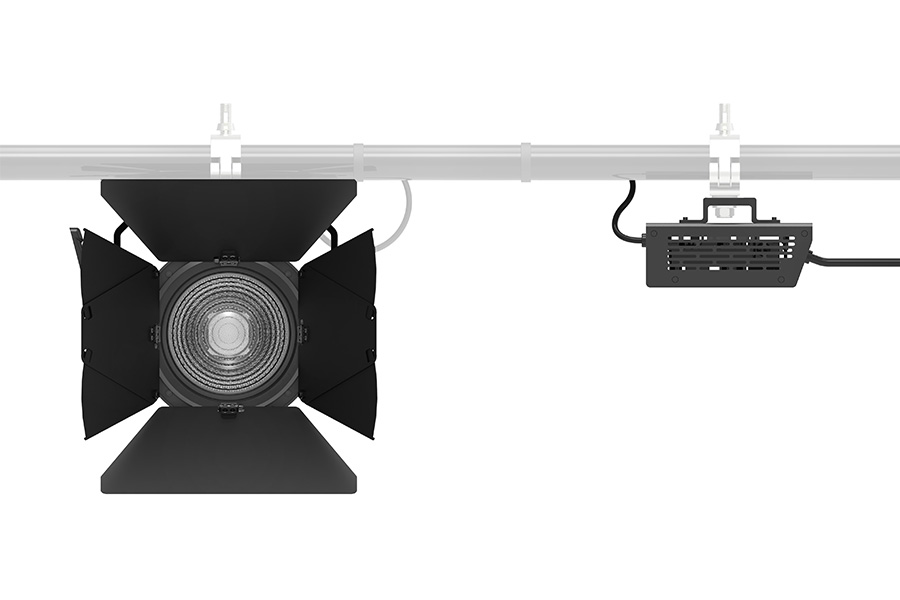

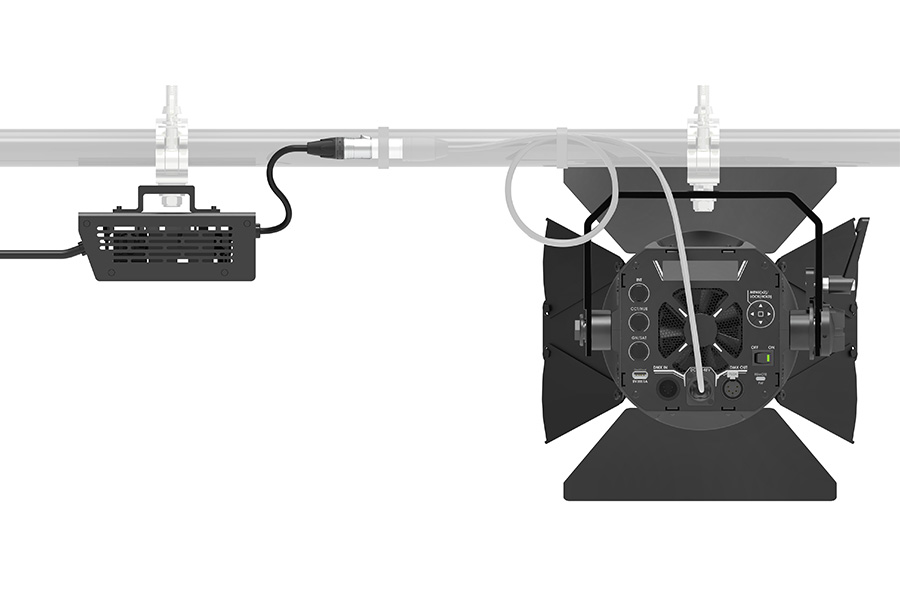

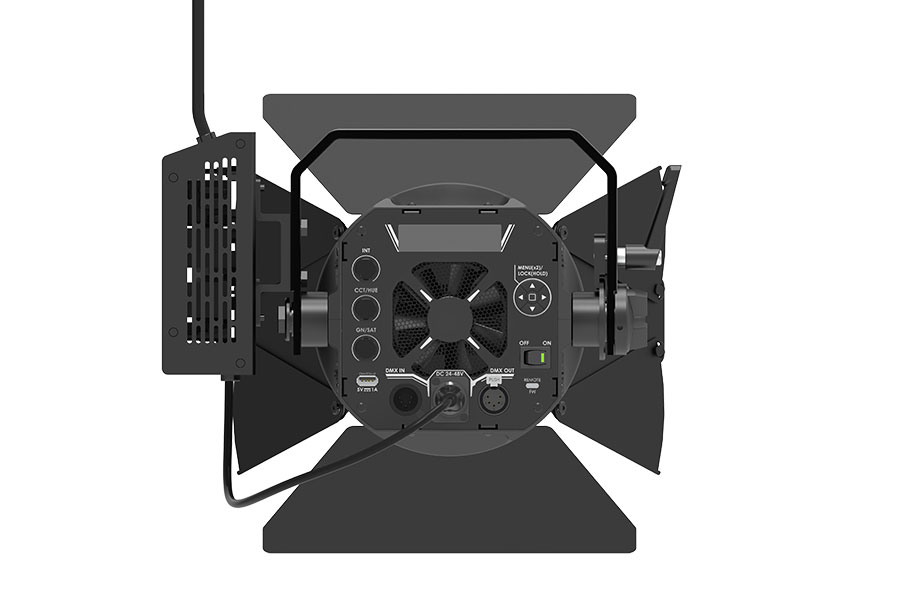

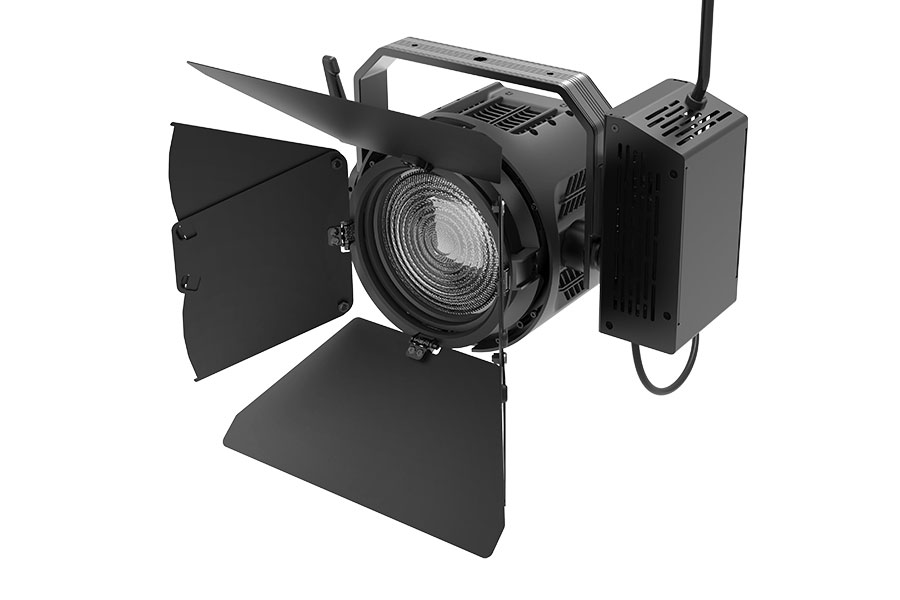

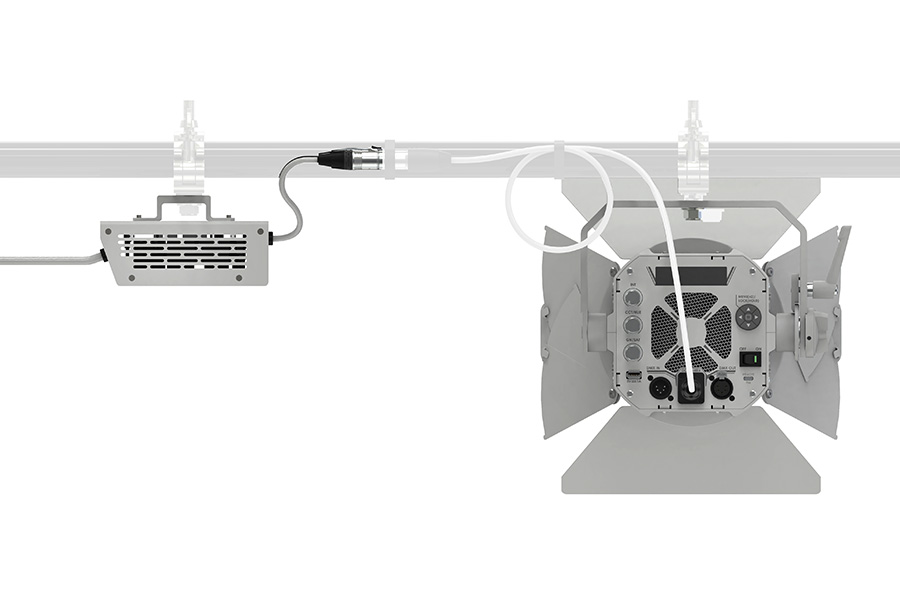

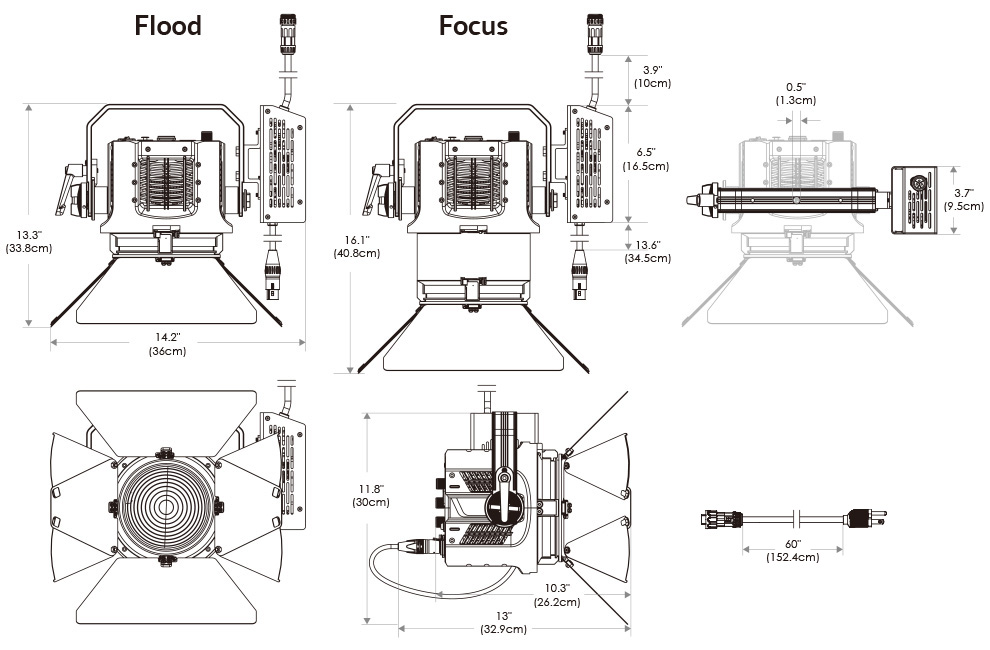

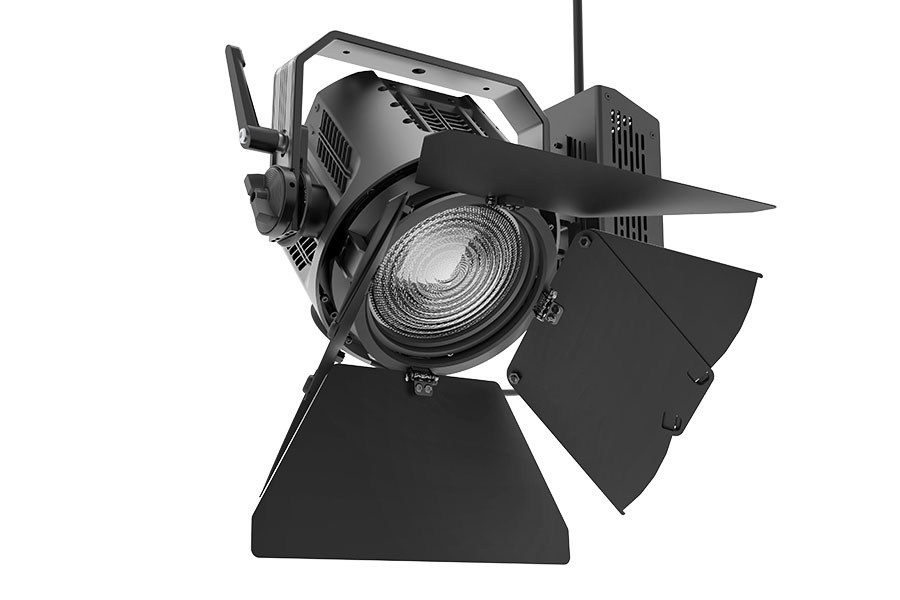

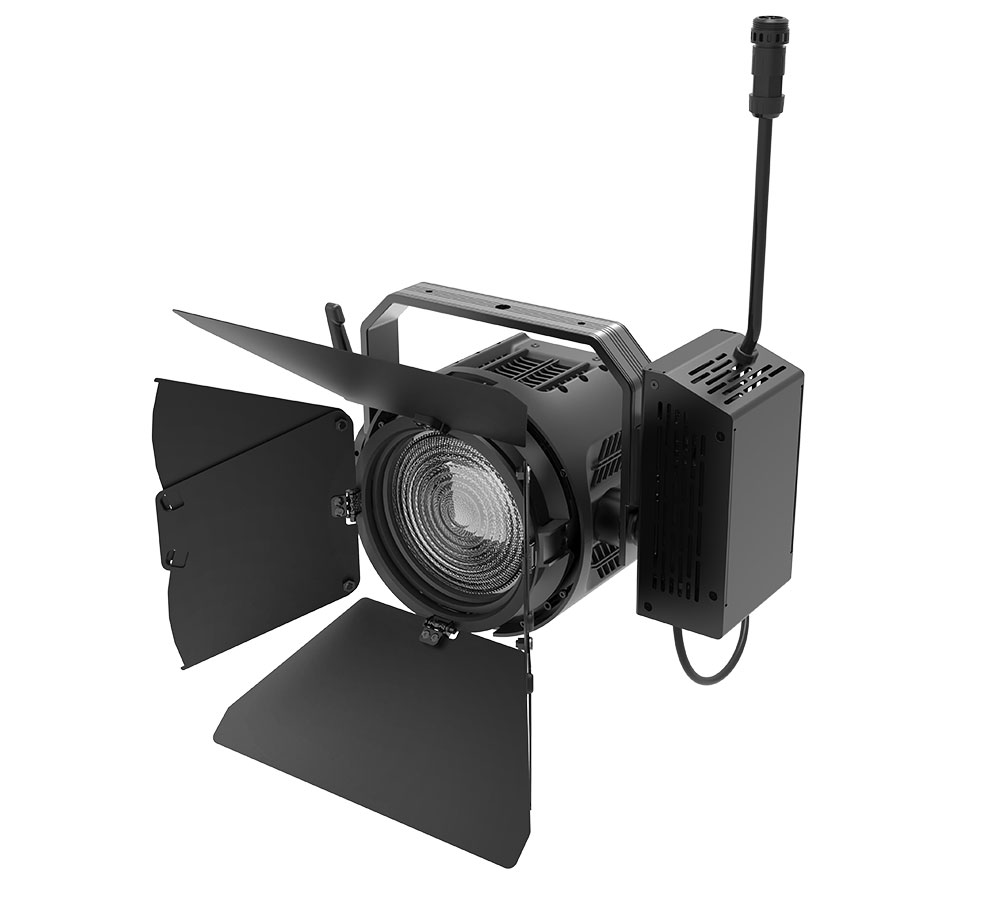

P5F (Clamp) fixture
185W V-Mount PSU
