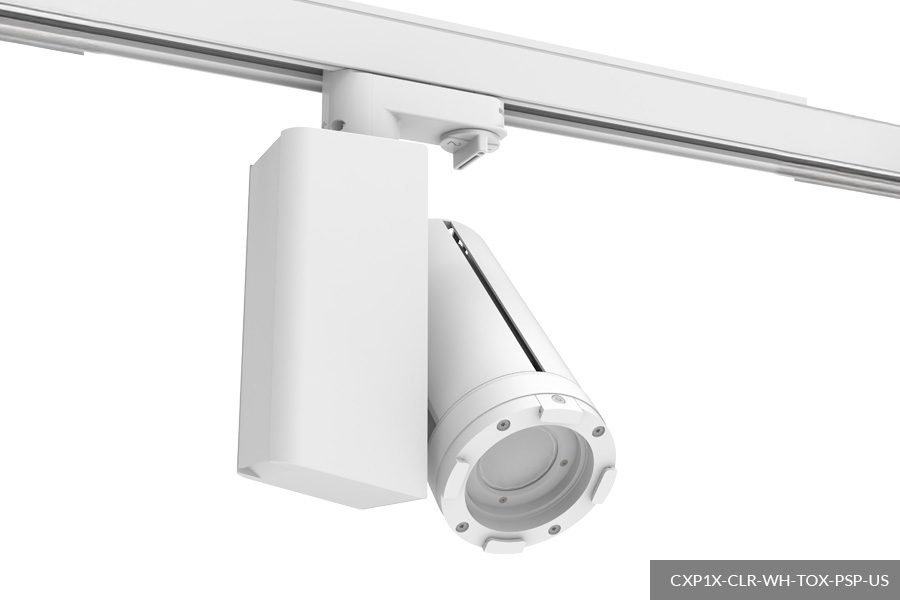

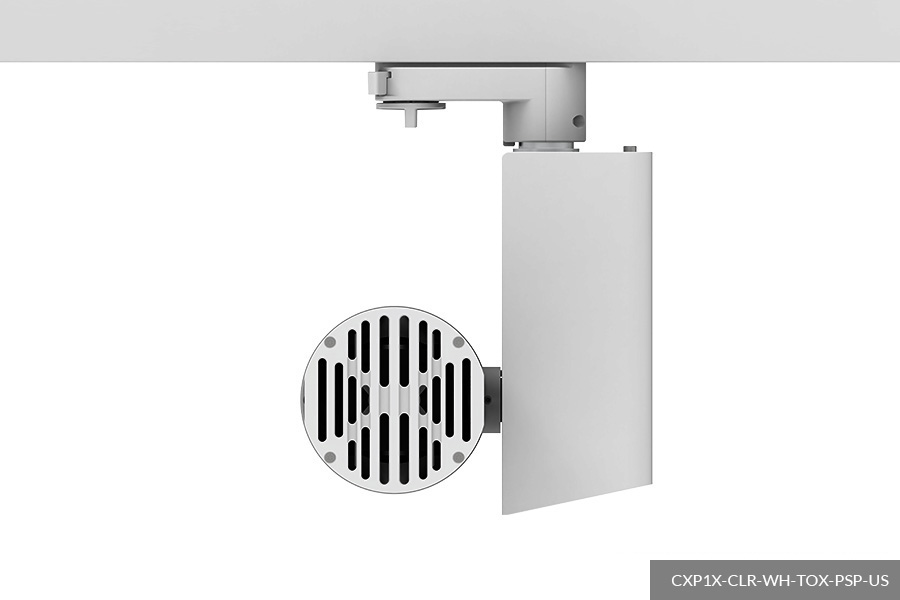

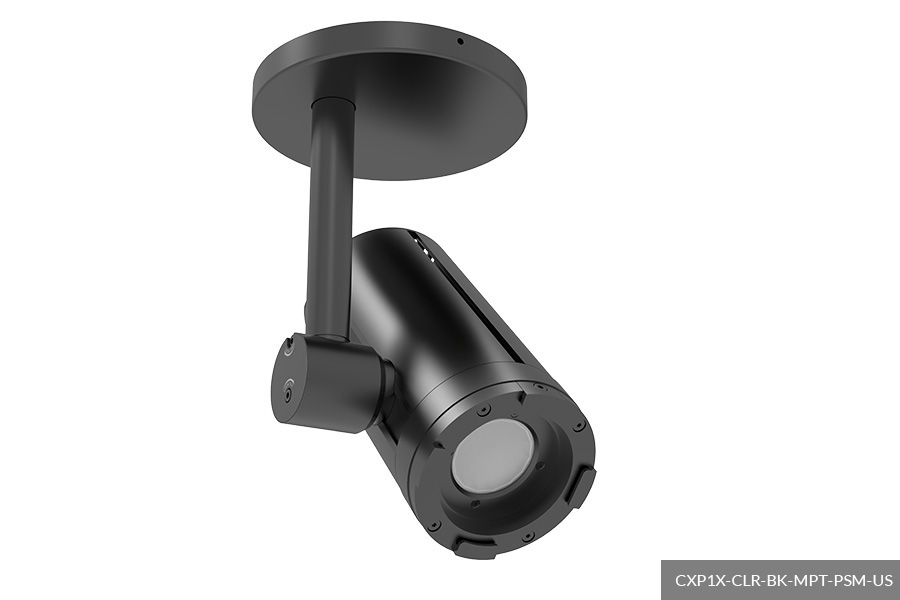

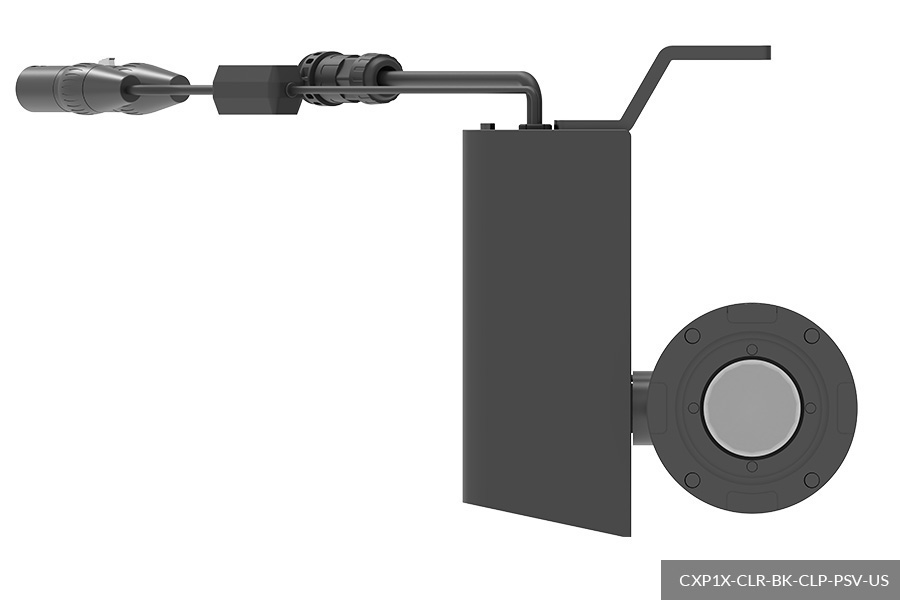

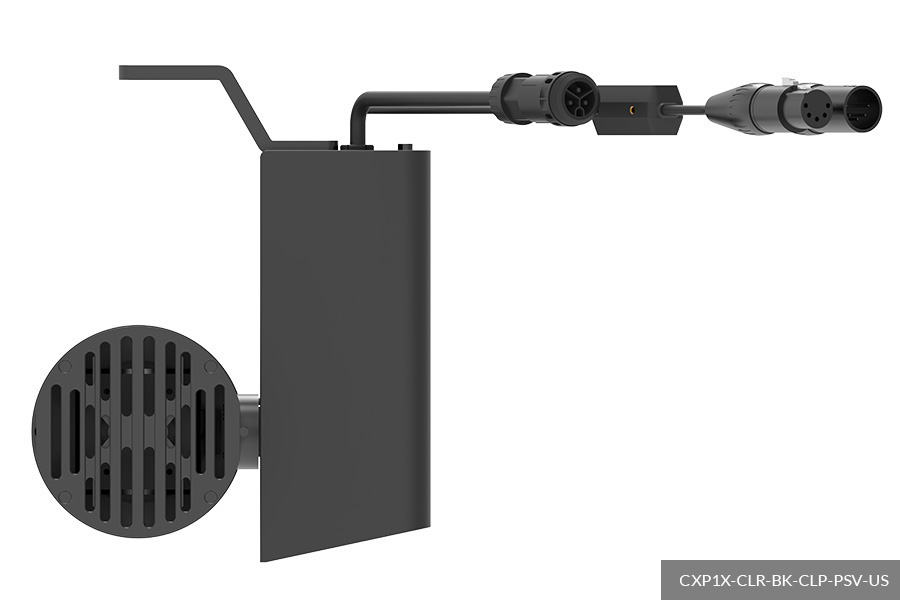

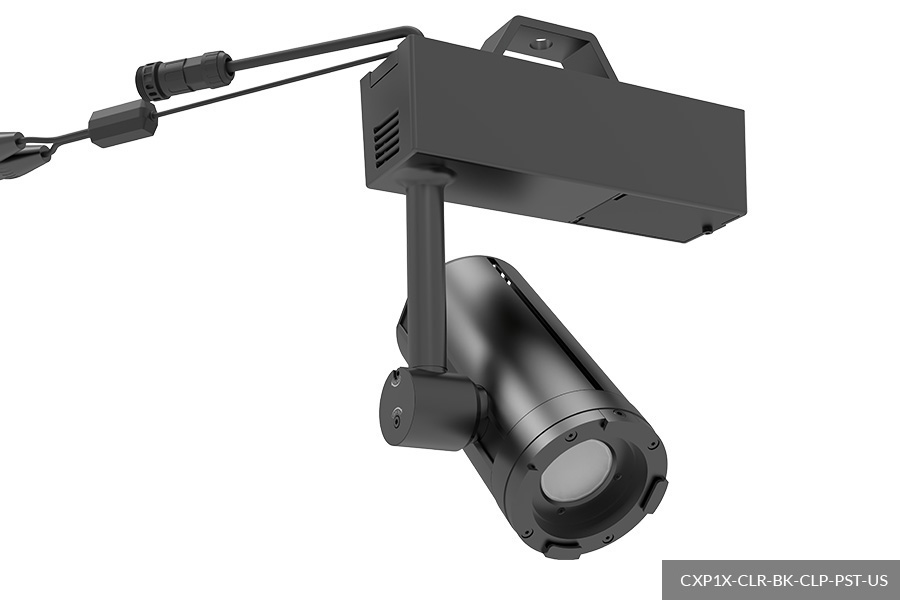

P1X Spot Light

40W LED / 60°

Model No: CXP1X-

  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
  • Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light
Cielux P1X Spot Light

DOWNLOADS

Separator

SPECIFICATIONS

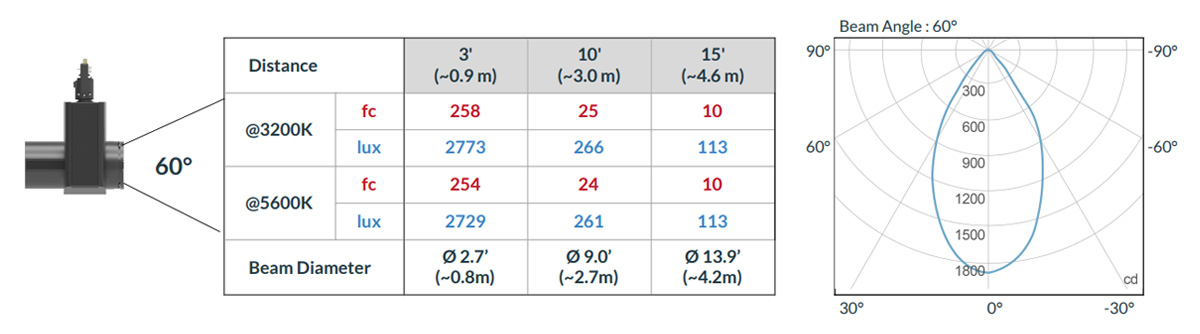

Beam Angle60°
CRI / TLCI 95/90 typical
Dimming 100% - 0% flicker free
AC Power Draw 40W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control Manual, DMX 512
Cooling Passive Cooling
Acoustic Noise 0 dBA (none)
Operating Temp. 32 - 104ºF (0 - 40ºC)
Weight
(Fixture + Power Supply)
4.4lb / 2.0kg (PSP / PSV Type), 4.0lb / 1.8kg (PST / PSM Type)
Clamp Type DMX InputXLR5 Male and Female via TRRS Adapter (Included)
Separator

MECHANICAL FIGURES

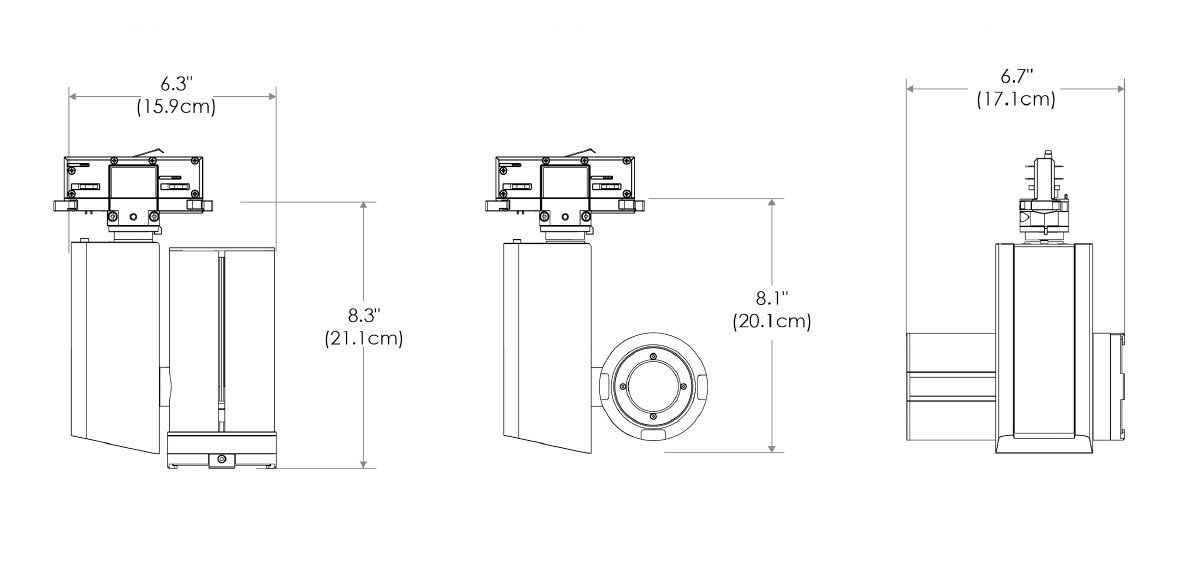

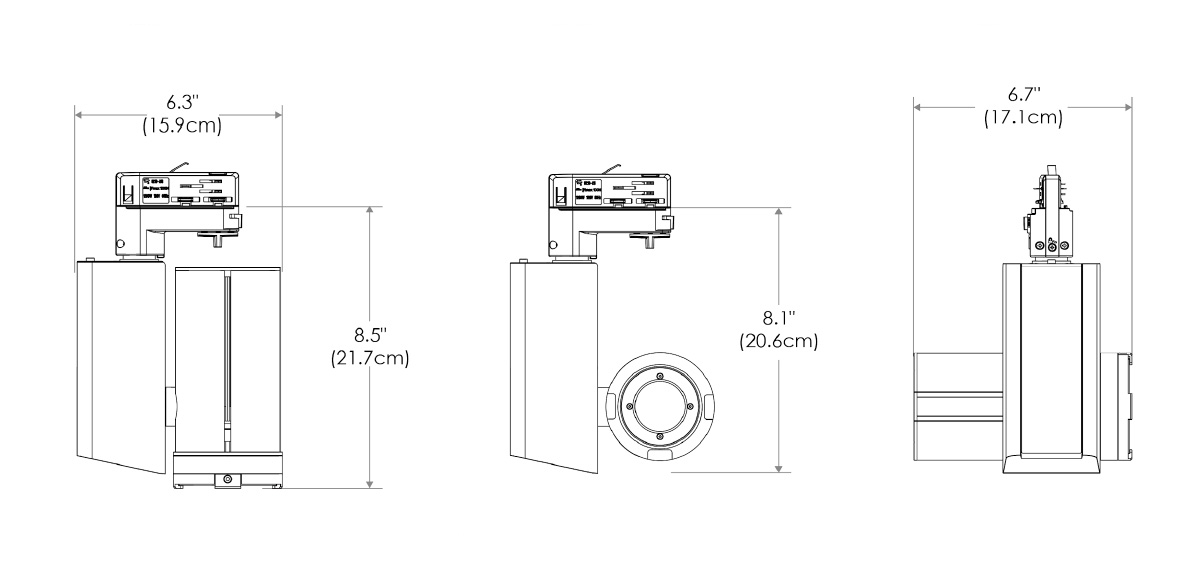

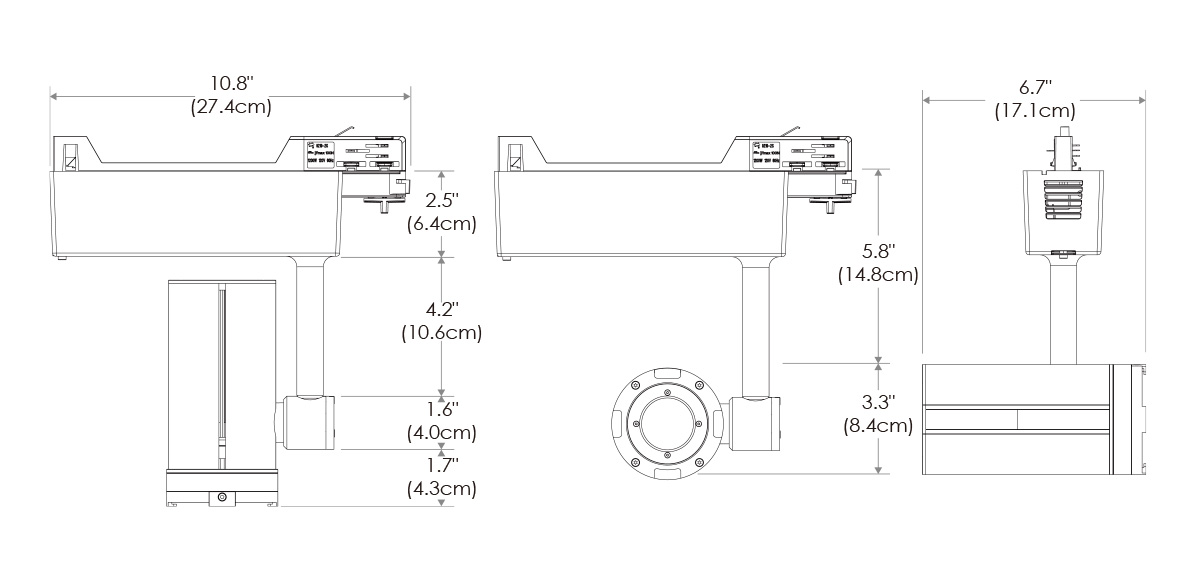

P1X (Track)

PSP US

Cielux P1X Spot Light

PSP US

Cielux P1X Spot Light

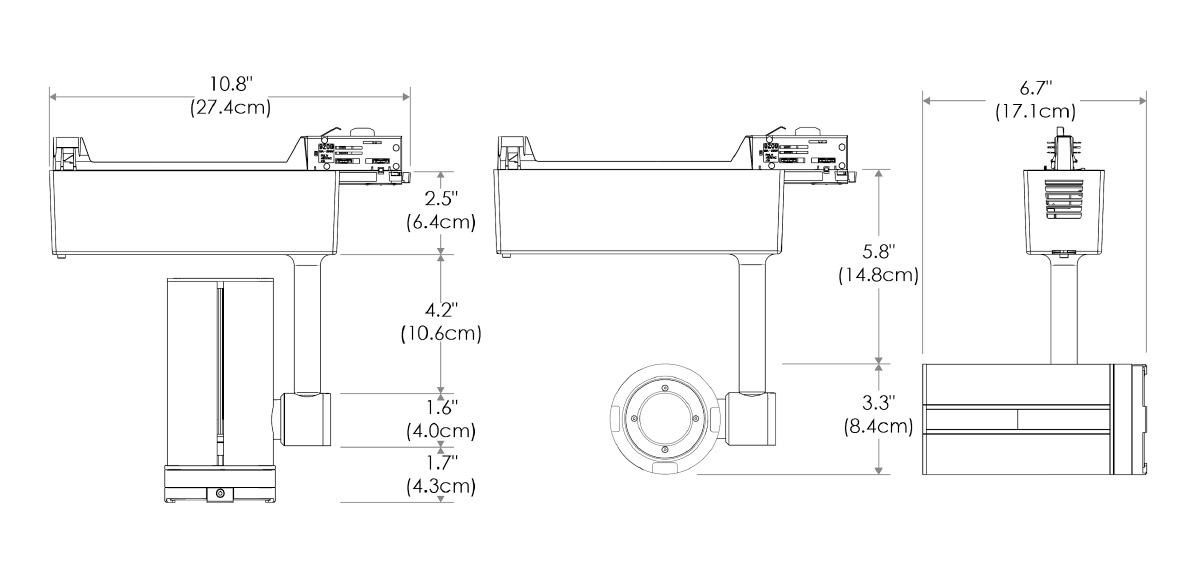

PST

Cielux P1X Spot Light

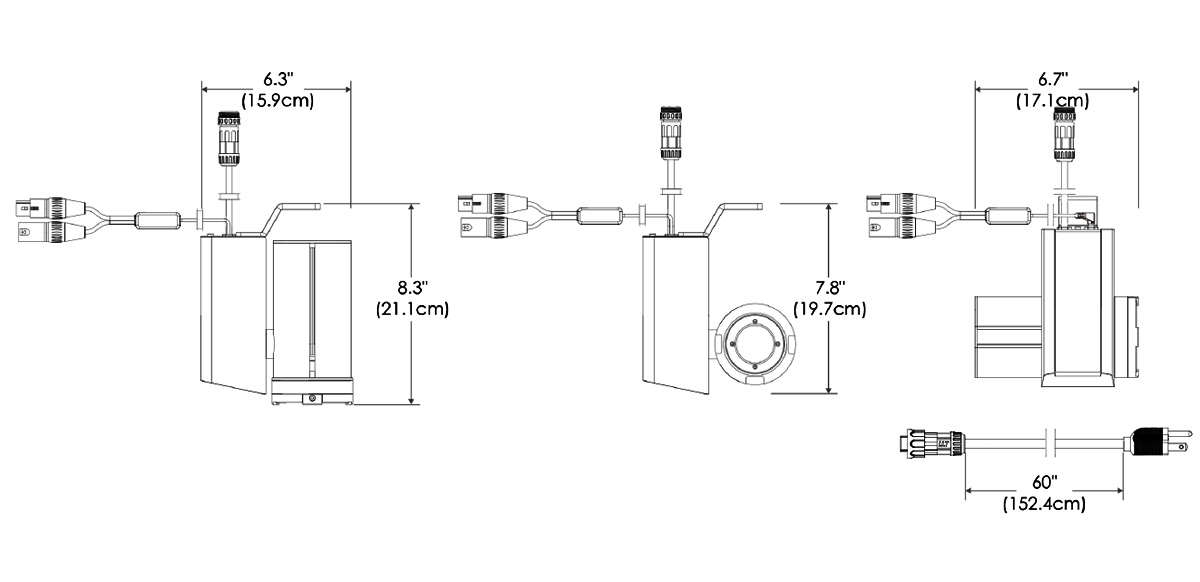

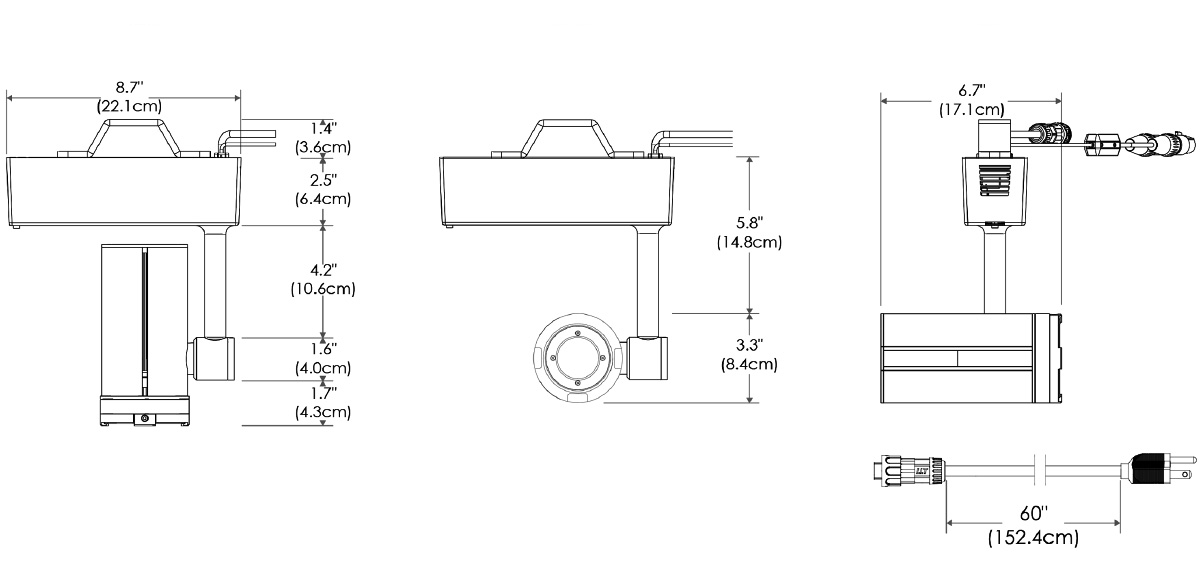

P1X (Clamp)

*All -CLP configuration models come with standard DC cables of 16 inch and AC cables of 5 ft.

PSV

Cielux P1X Spot Light

PST

Cielux P1X Spot Light

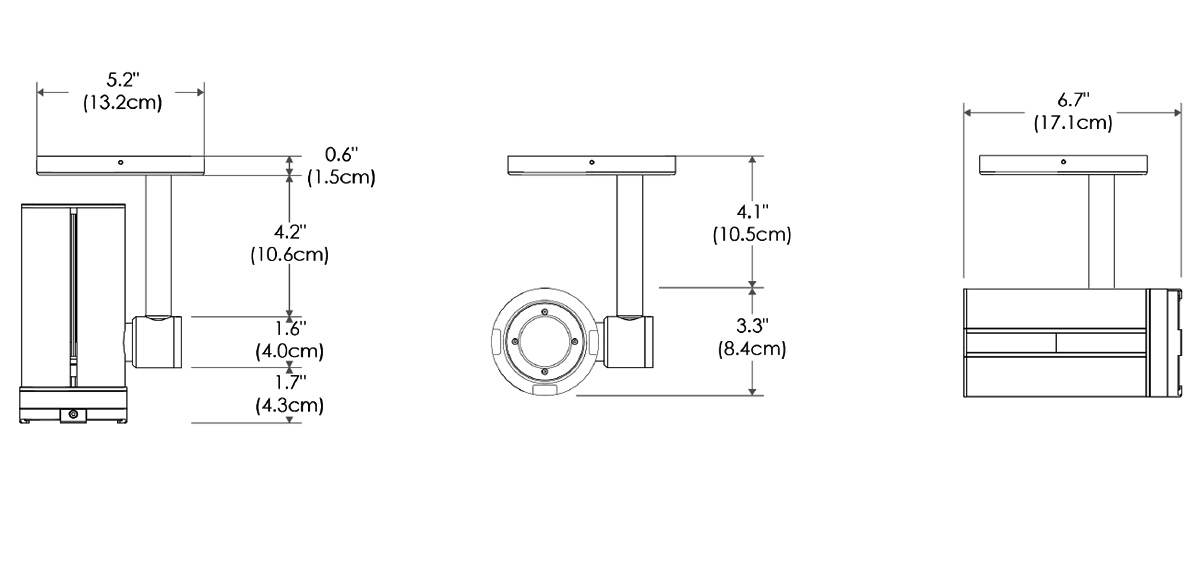

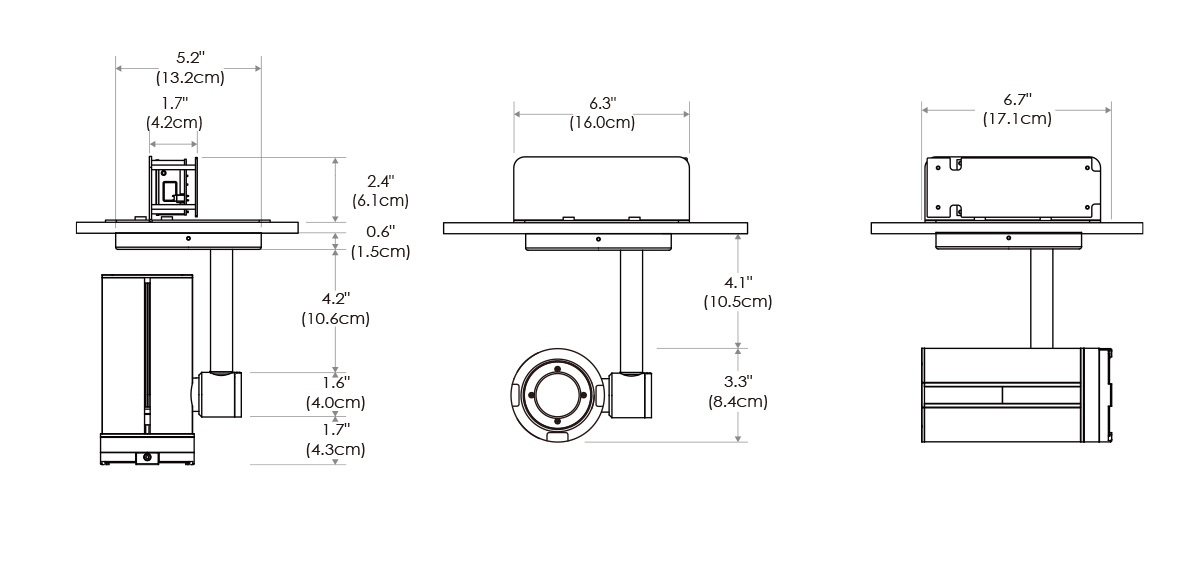

PSM

Cielux P1X Spot Light

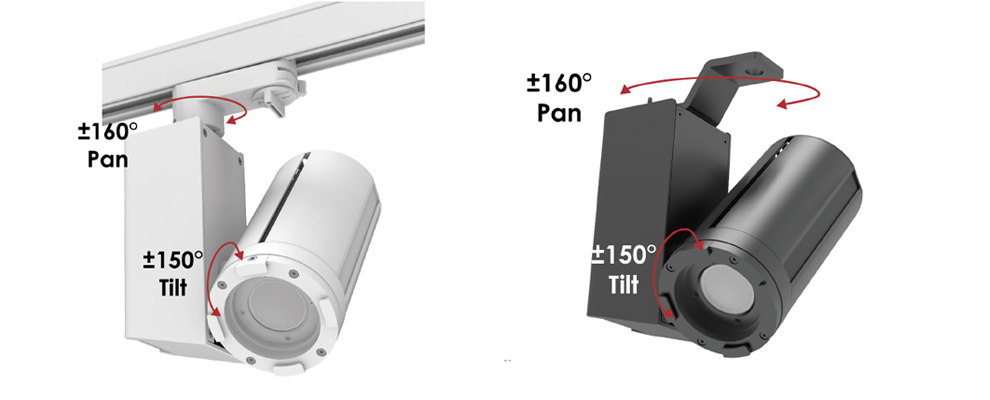

TILT/ROTATION

Tilt/rotation applies to all options

Cielux P1X Spot Light

Separator

ITEMS INCLUDED

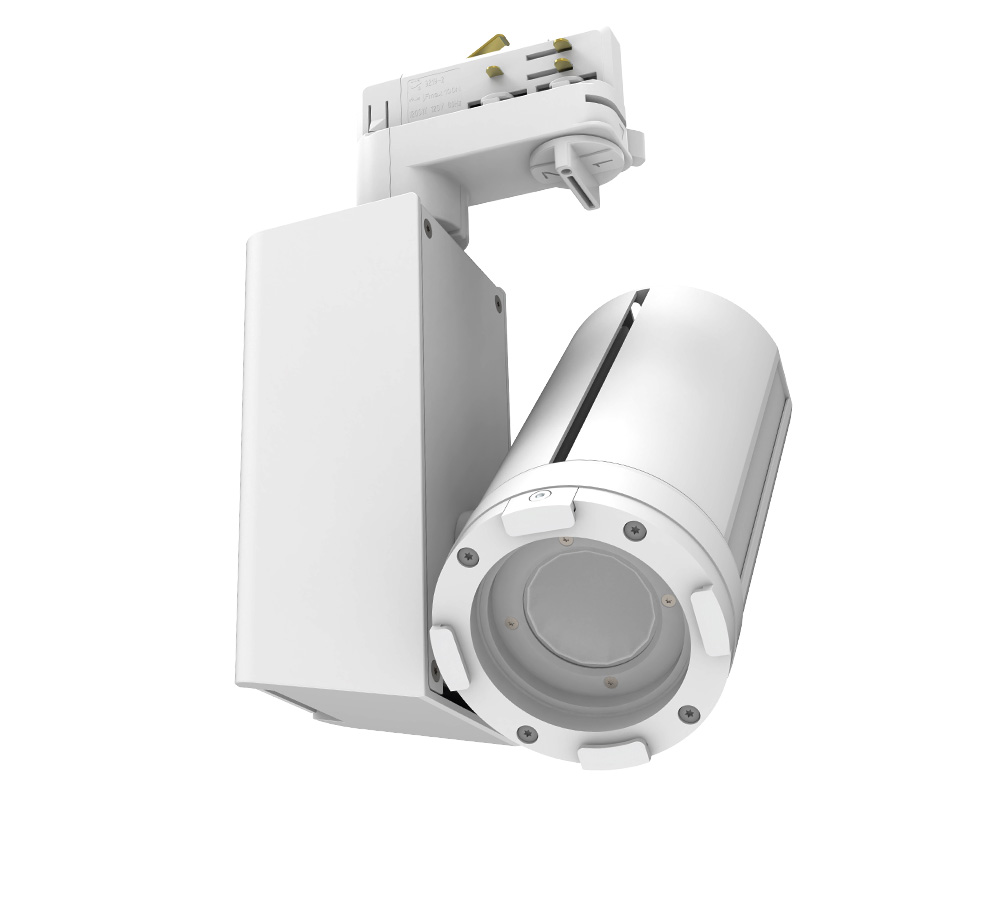

Track Type

Cielux P1X Spot Light
P1X (Track) fixture

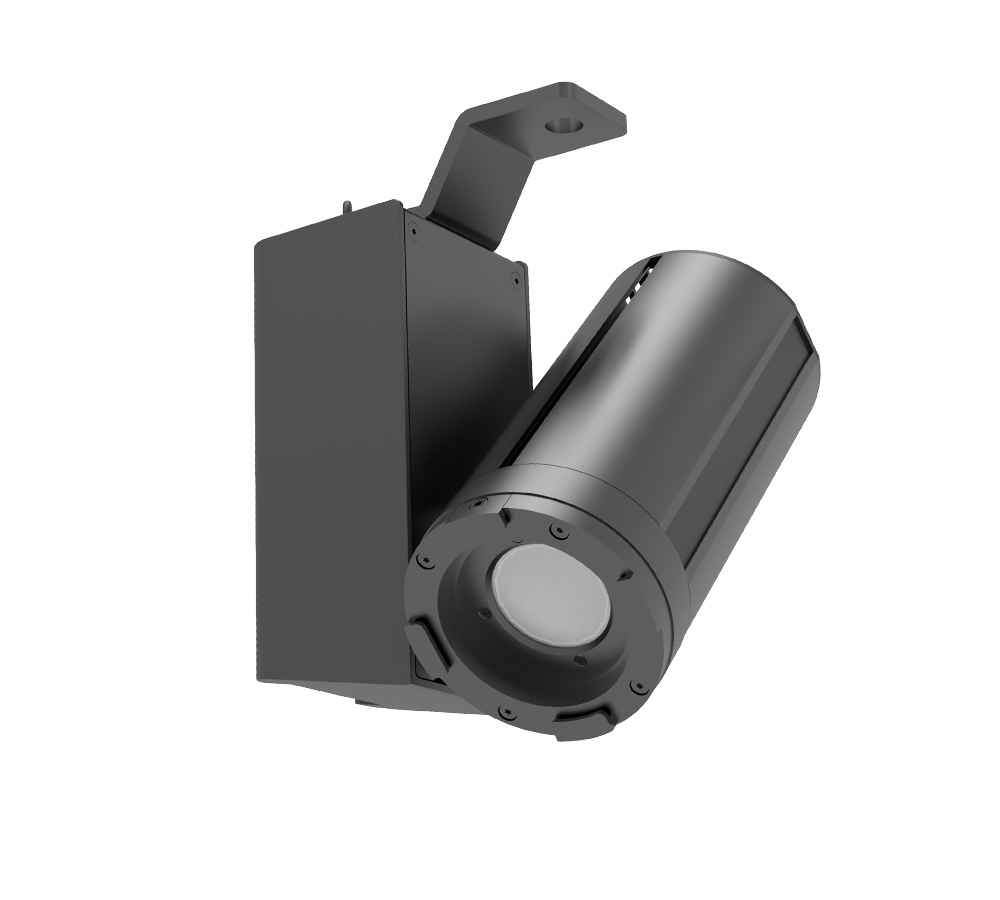

Clamp Type

Cielux P1X Spot Light
P1X (Clamp) fixture with PSU
Separator

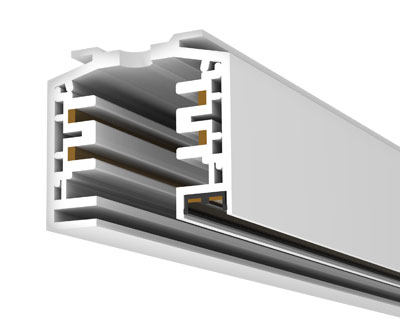

ACCESSORIES
