P3S Spot Light

90W LED / 20°

Model No: CXP3S-

  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
  • Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light
Cielux P3S Spot Light

DOWNLOADS

Separator

SPECIFICATIONS

Beam Angle 20°
CRI / TLCI 95/90 typical (in CCT Mode of 2800K-6500K)
Dimming 100% - 0% flicker free
Power Draw 90W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control DMX 512
Cooling Fan Cooled
Acoustic Noise23 dBA
Operating Temp. 32 - 104ºF (0 - 40ºC)
Weight
(Fixture + Power Supply)
3.4lb / 1.6kg (Track Type), 3.6lb / 1.7kg (Clamp Type)
Separator

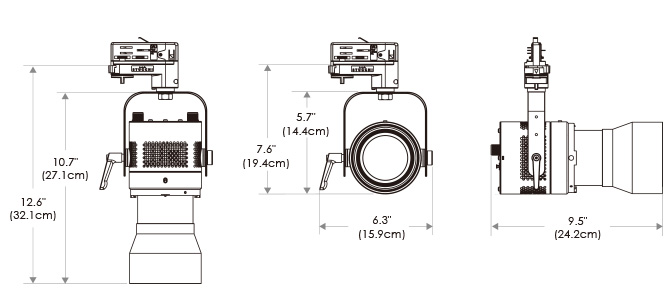

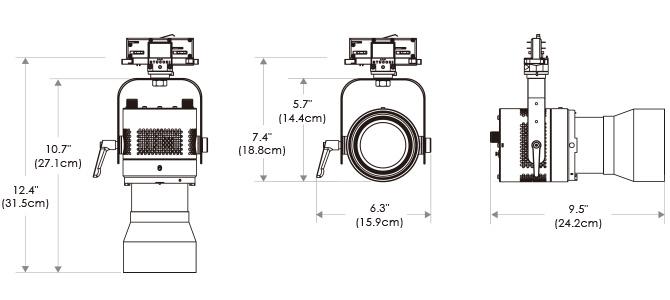

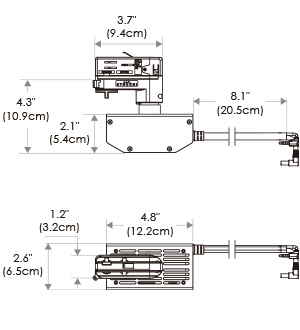

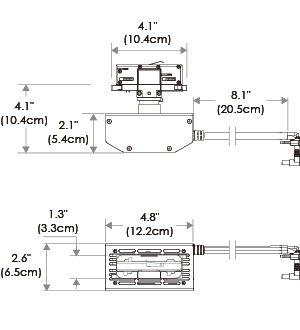

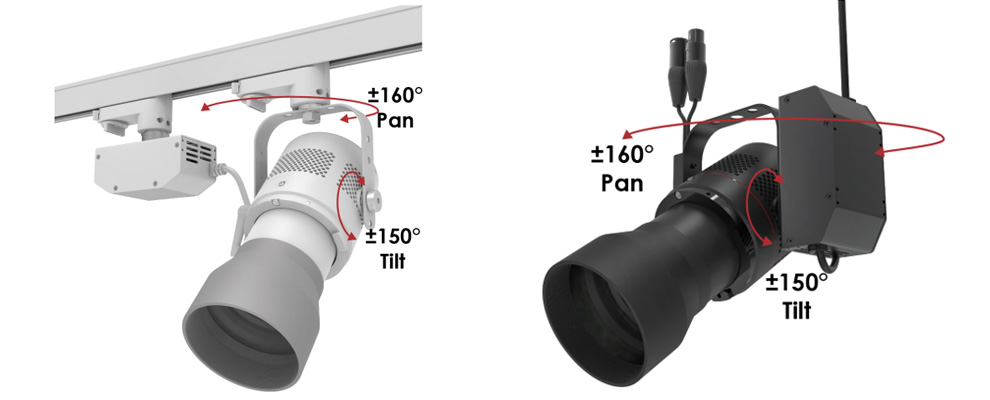

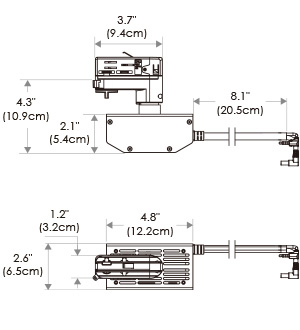

MECHANICAL FIGURES

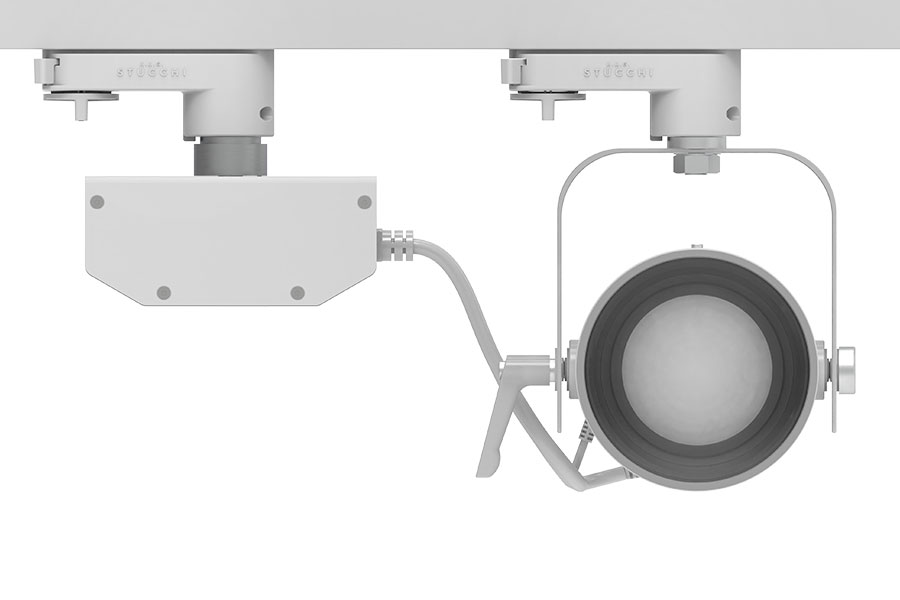

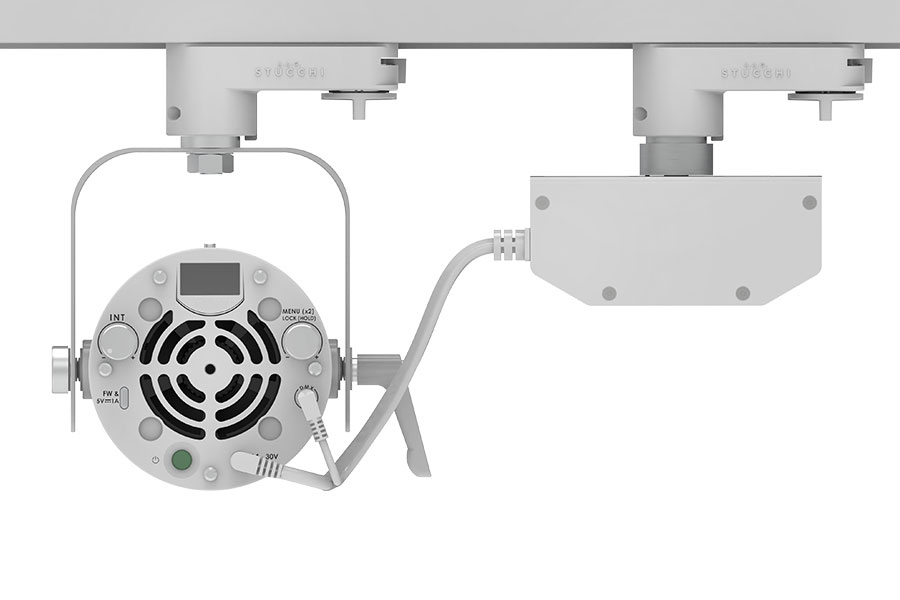

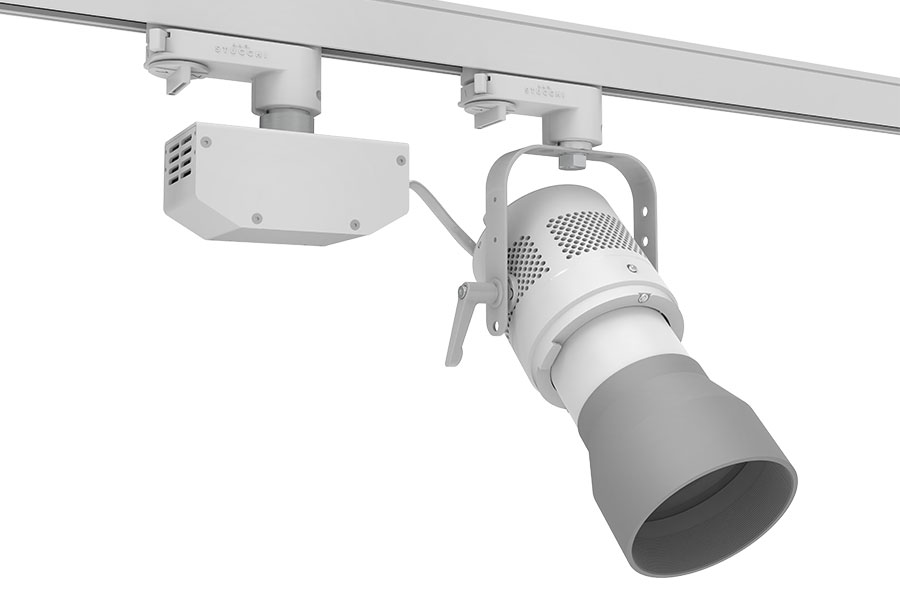

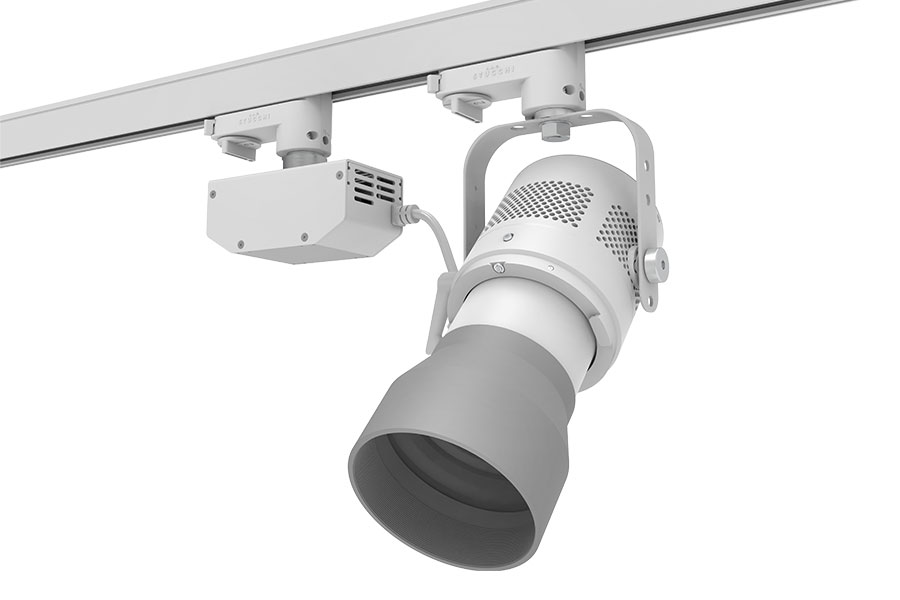

P3S (Track)

PSP

Cielux P3S Spot Light
Cielux P3S Spot Light

PSP

Cielux P3S Spot Light
Cielux P3S Spot Light

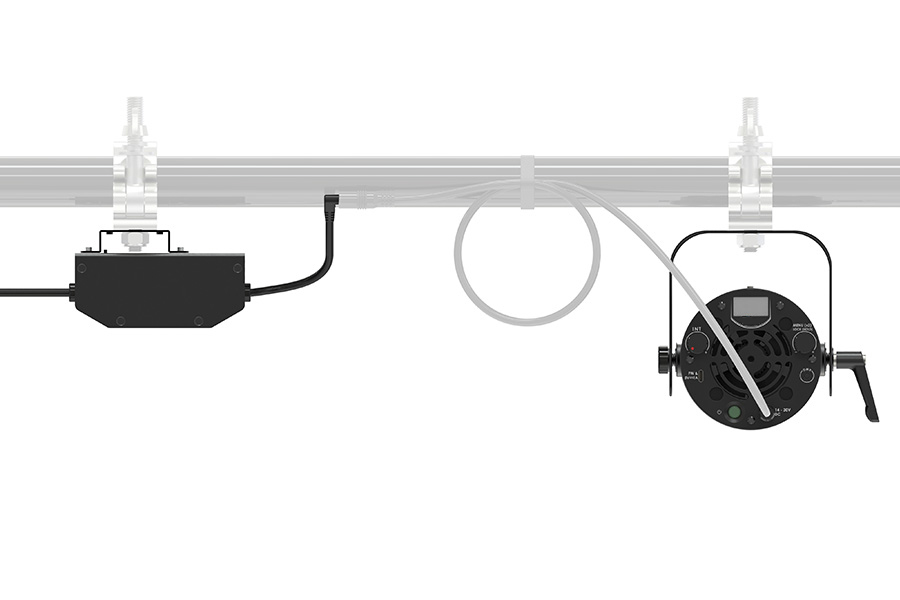

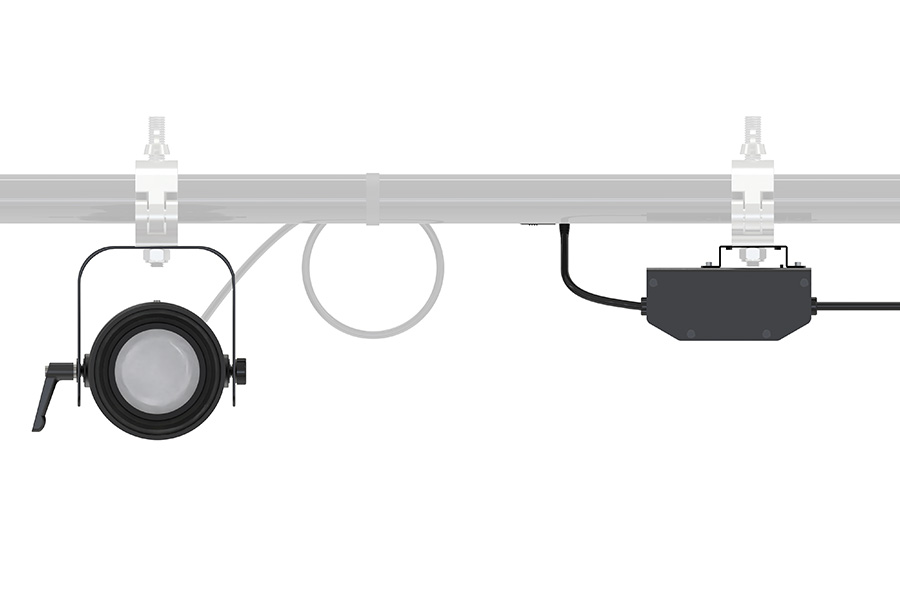

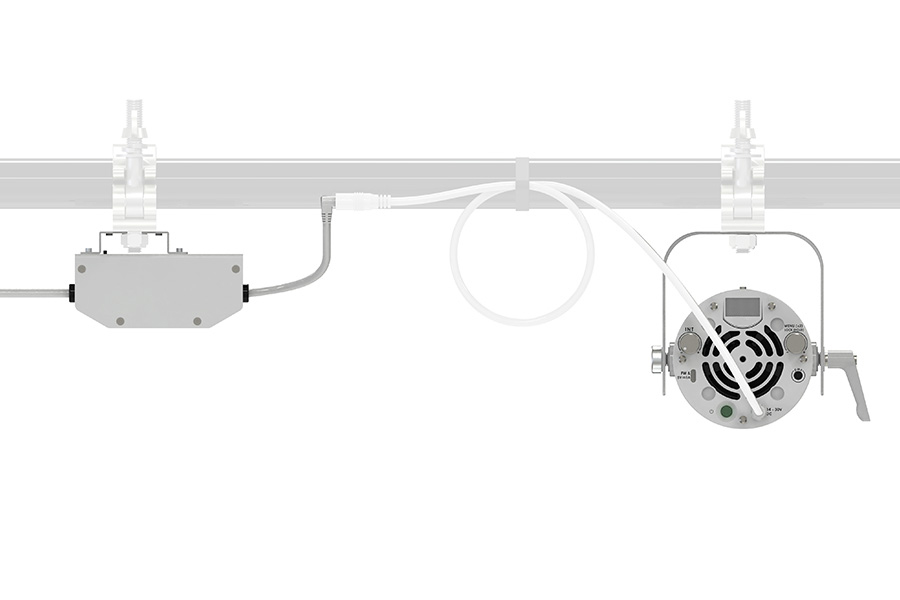

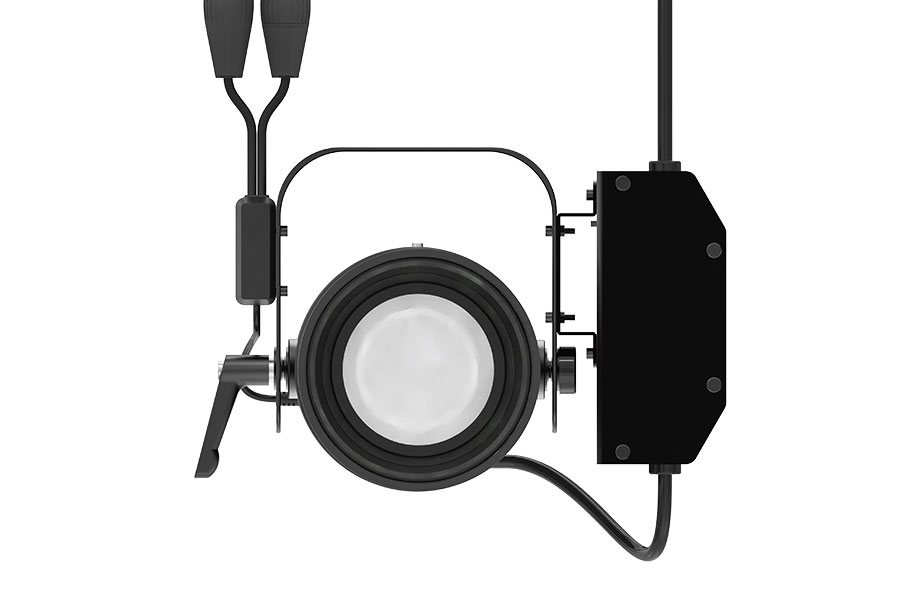

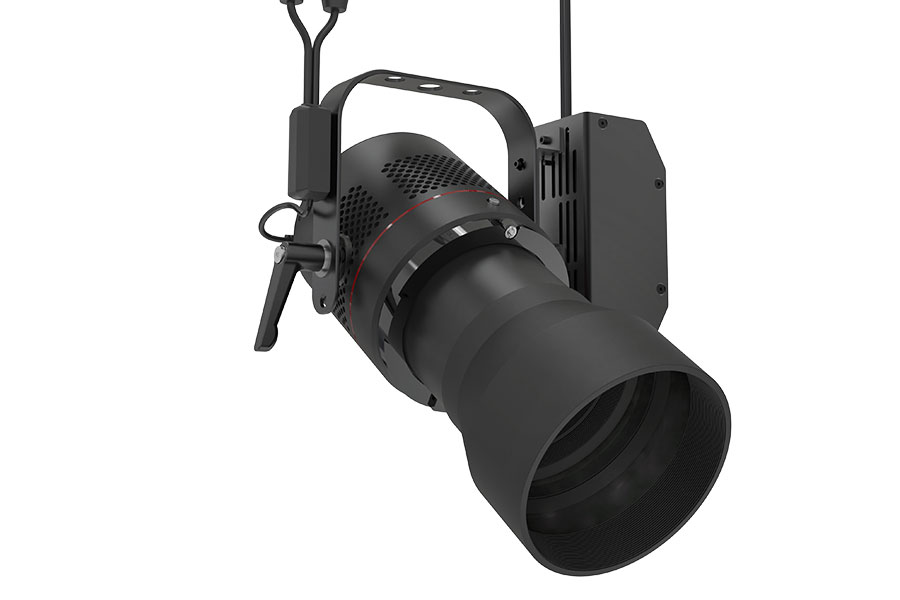

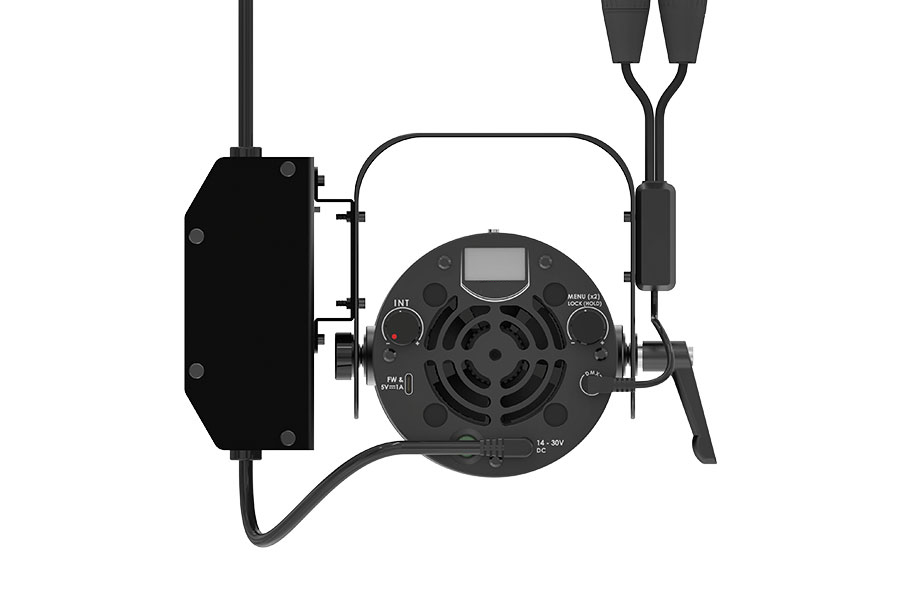

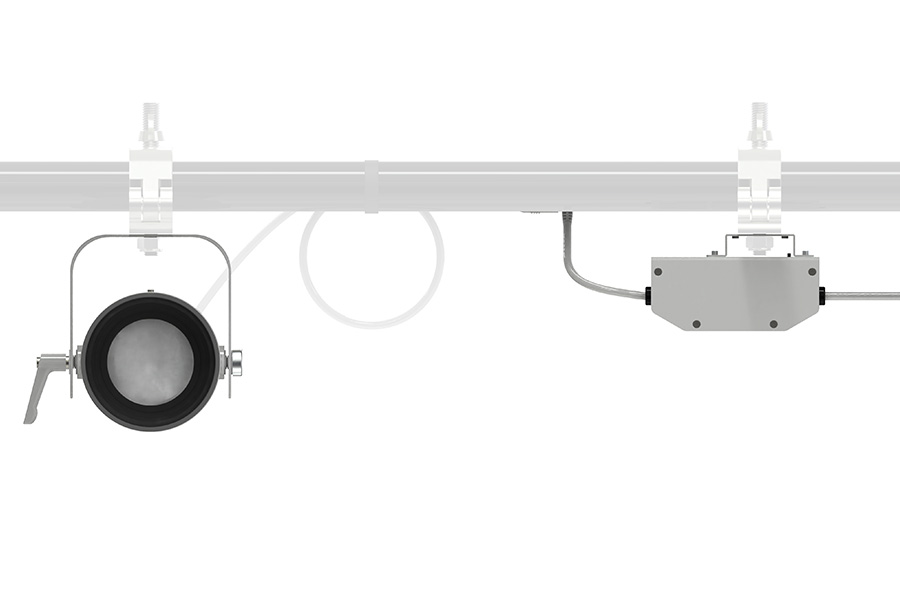

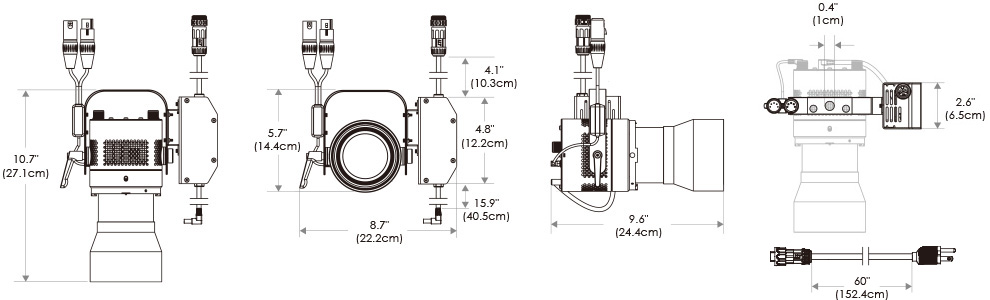

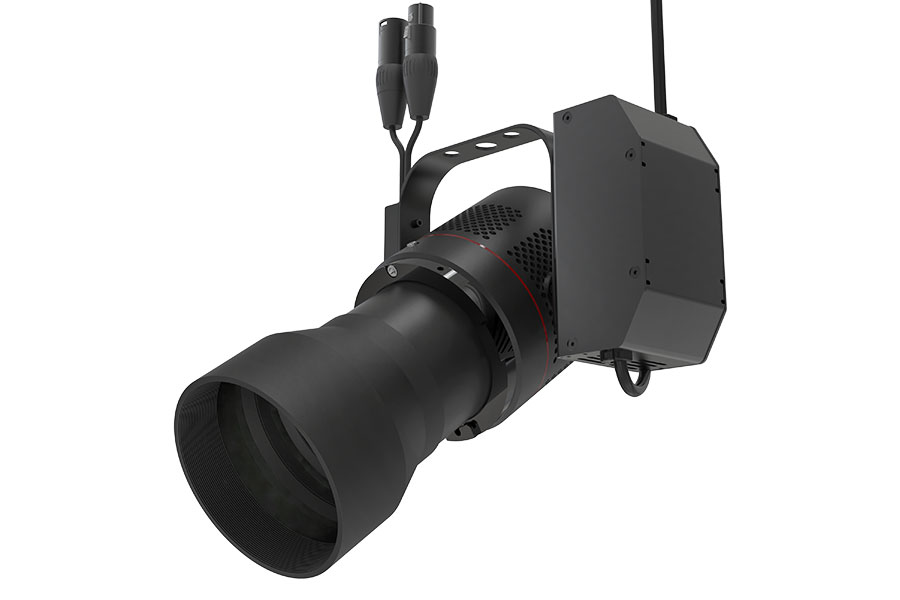

P3S (Clamp)

Cielux P3S Spot Light


Separator

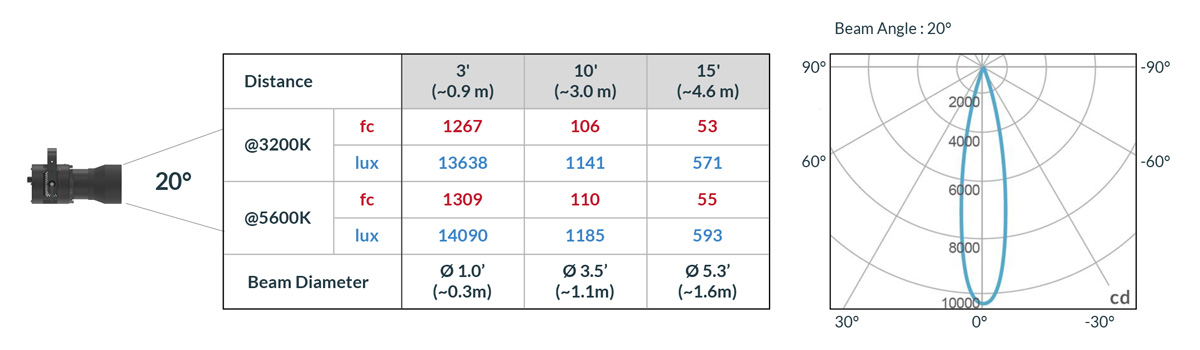

PHOTOMETRIC DATA

Cielux P3S Spot Light Photometric Data

Separator

ITEMS INCLUDED

Track Type

Cielux P3S Spot Light

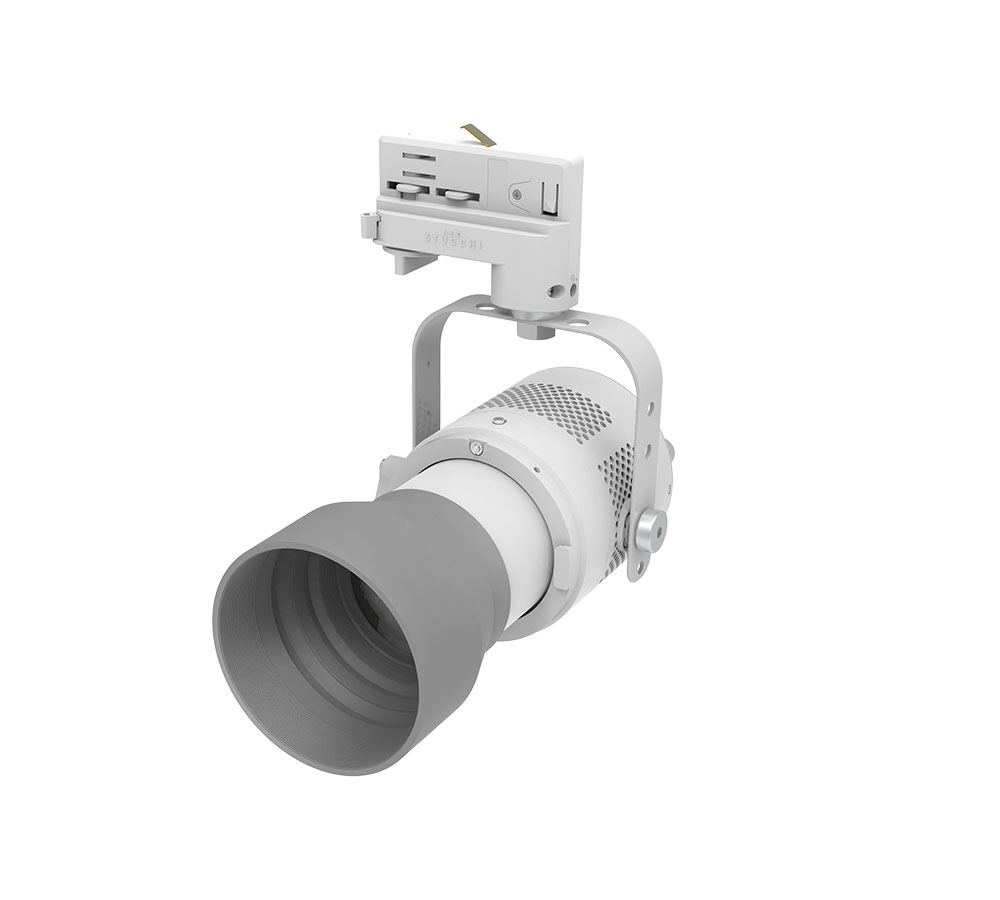

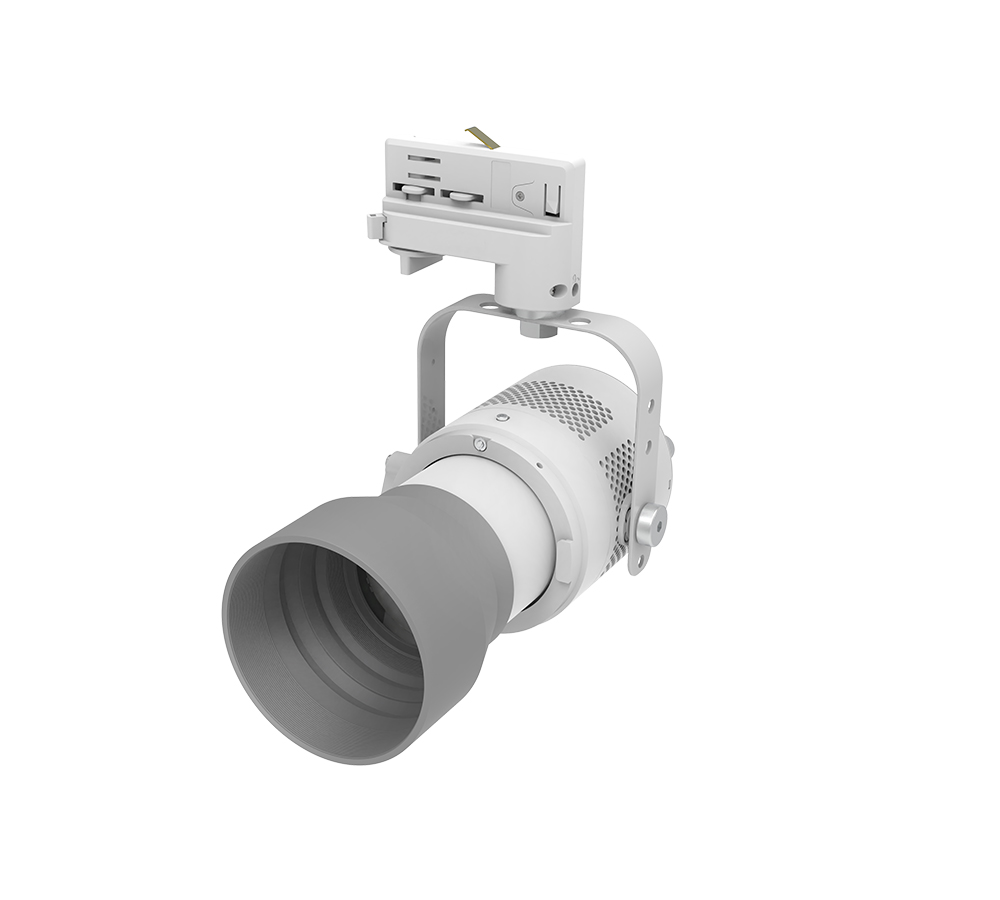

P3S (Track) fixture

Cielux P3S Spot Light

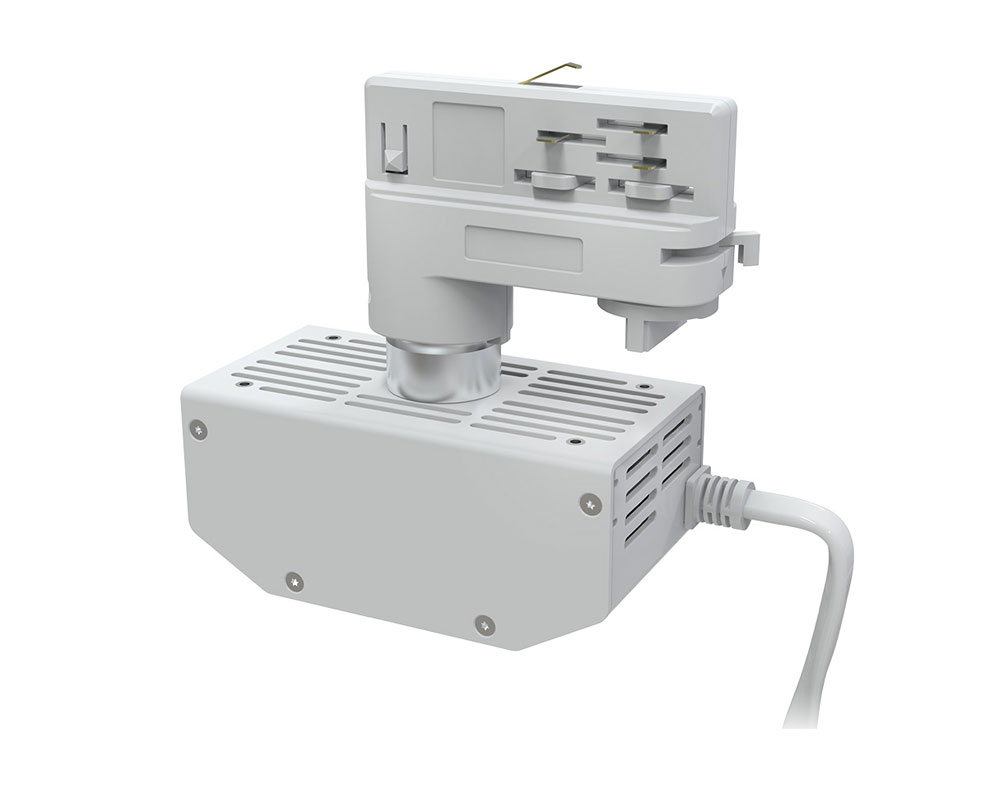

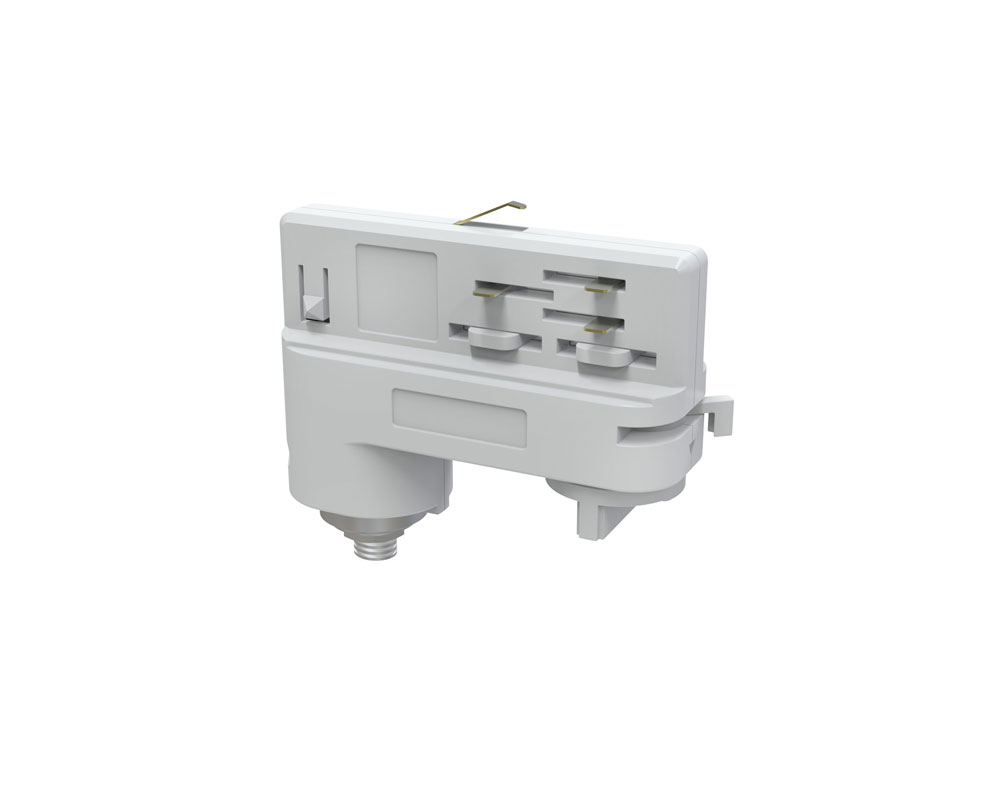

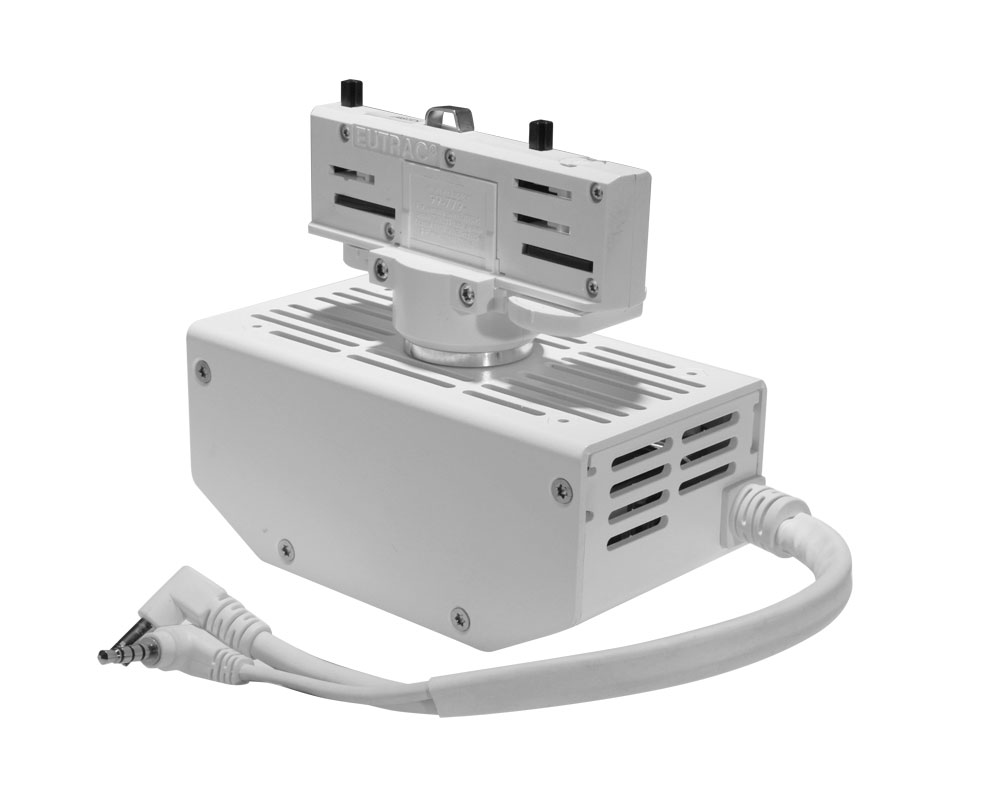

90W, 24V, TOX Track Mount PSU



Clamp Type

Cielux P3S Spot Light

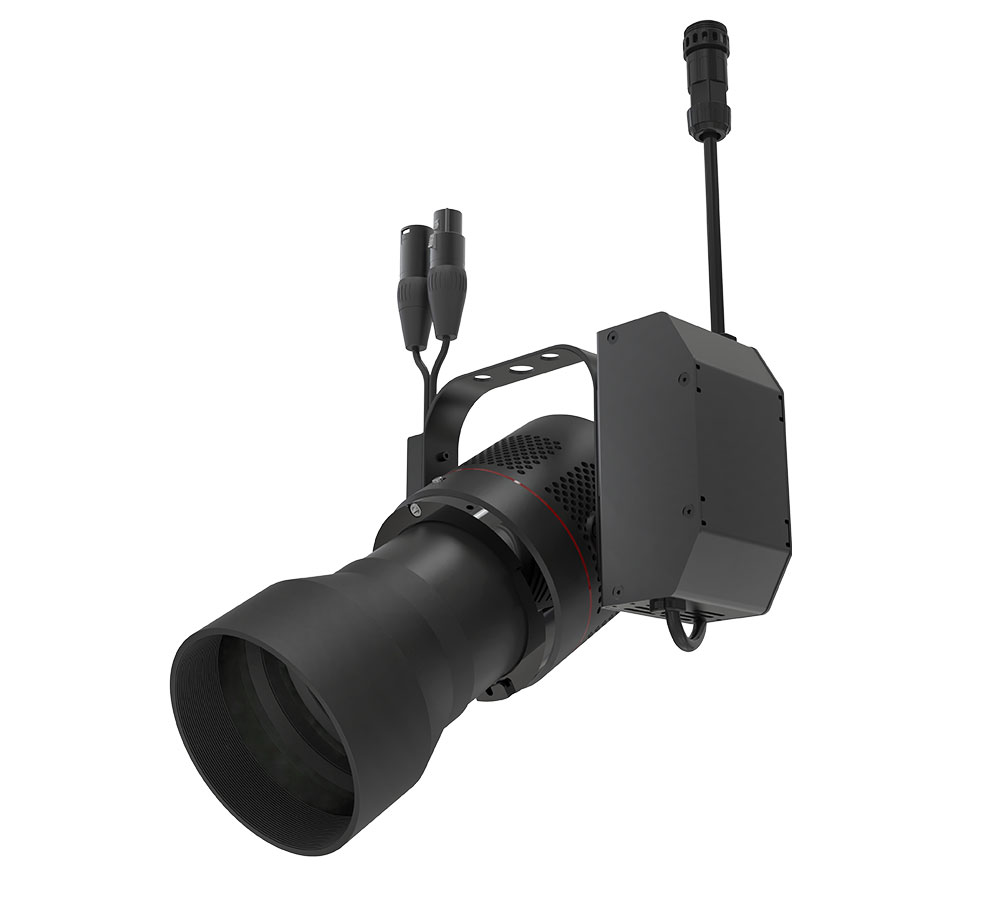

P3S (Clamp) fixture + PSU

Cielux P3S Spot Light

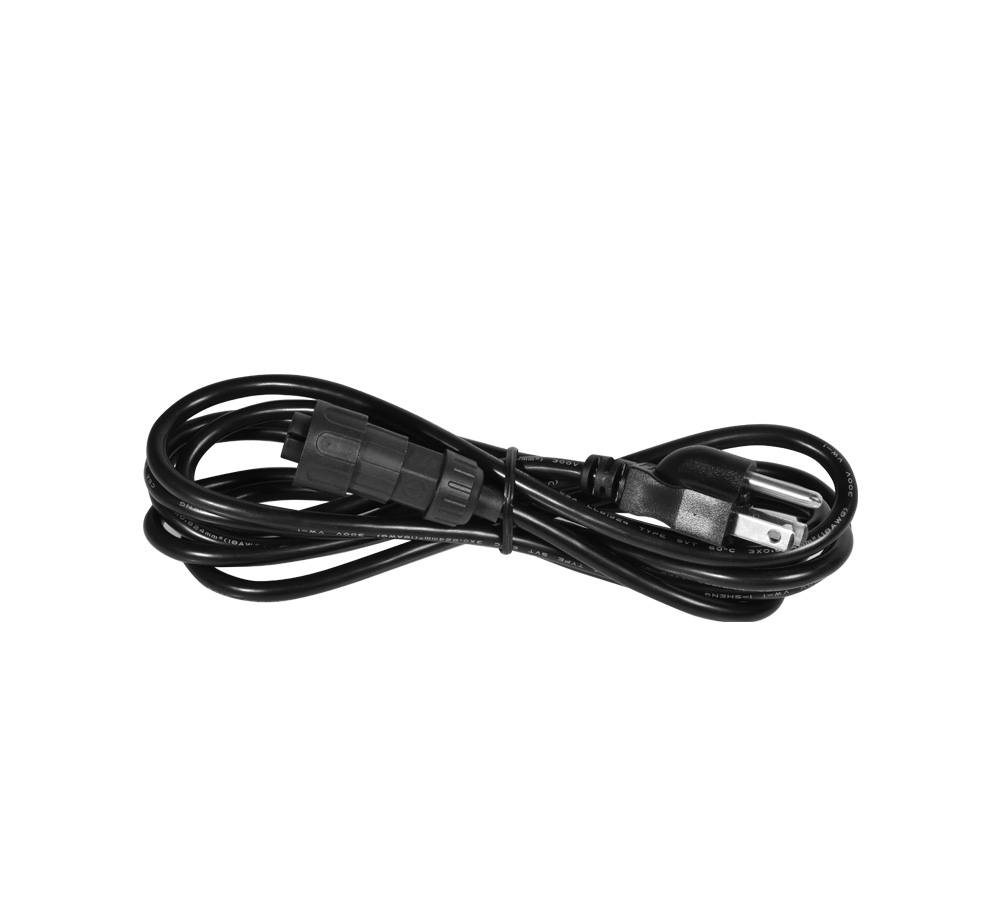

P3 PSU AC Jumper Cable 5ft

Separator

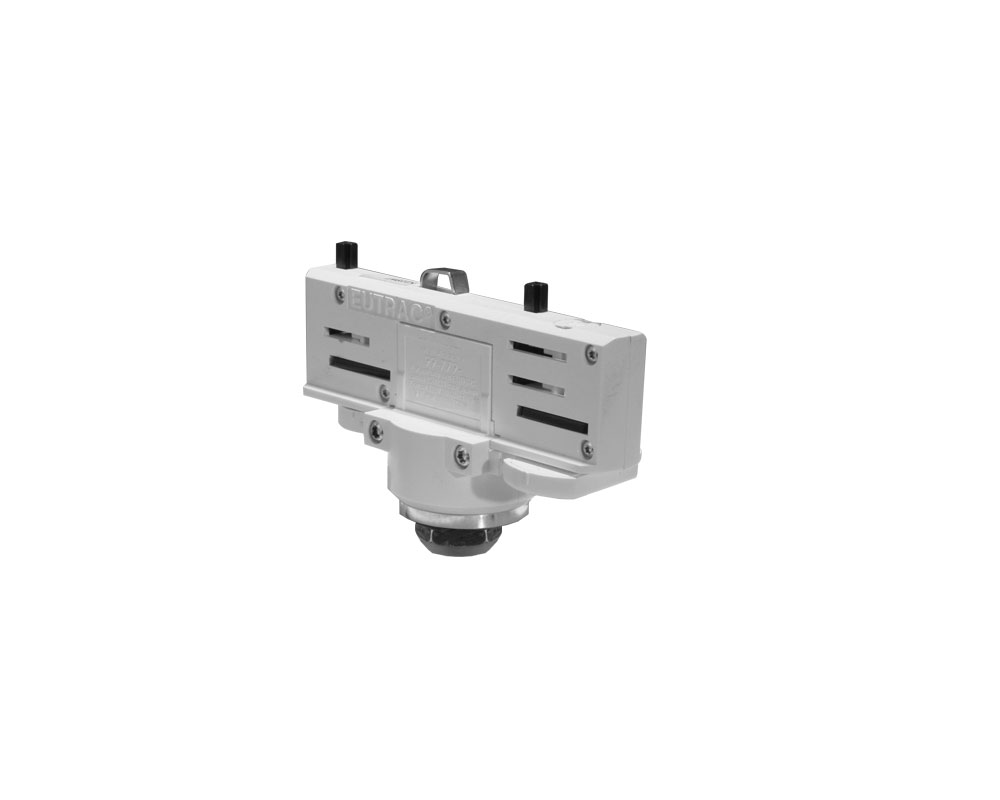

TRACK PARTS
