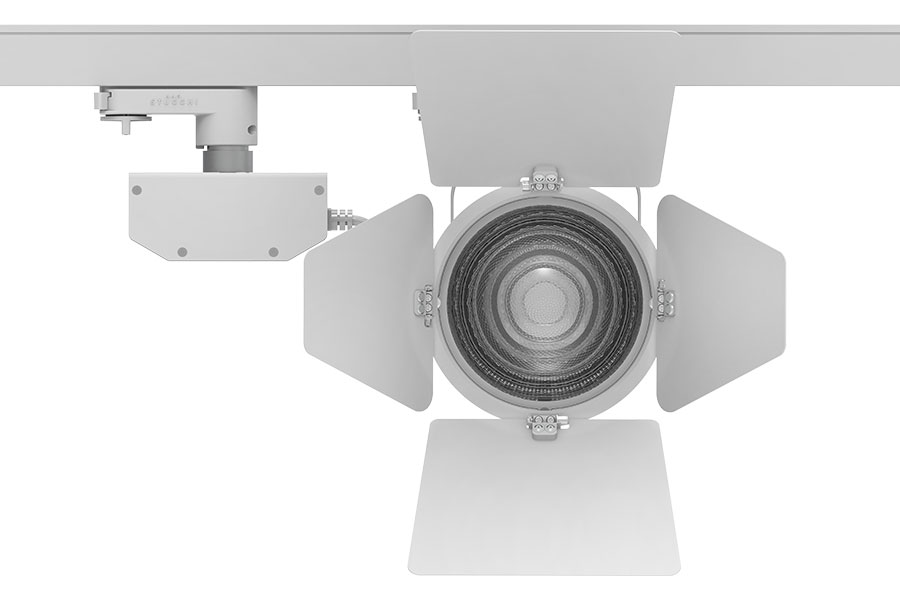

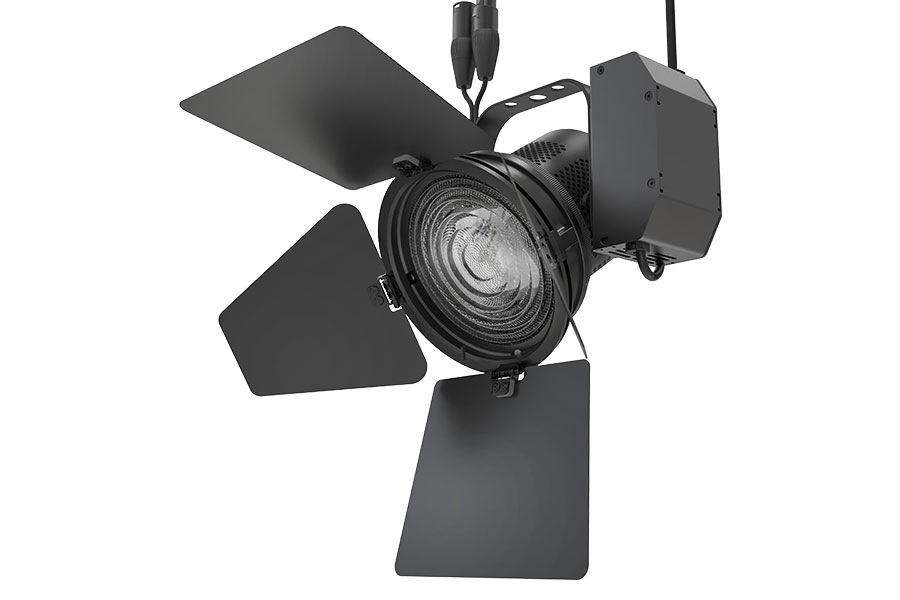

P3F Fresnel Light

90W LED / 15°-45°

Model No: CXP3F-

  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
  • Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light
Cielux P3F Fresnel Light

DOWNLOADS

Separator

SPECIFICATIONS

Beam Angle 15°-45°
CRI / TLCI 95/90 typical (in CCT Mode of 2800K-6500K)
Dimming 100% - 0% flicker free
Power Draw 90W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control DMX 512
Cooling Fan Cooled
Acoustic Noise23 dBA
Operating Temp. 32 - 104ºF (0 - 40ºC)
Weight
(Fixture + Power Supply)
4.5lb / 2.1kg (Track Type), 4.4lb / 2.0kg (Clamp Type)
Separator

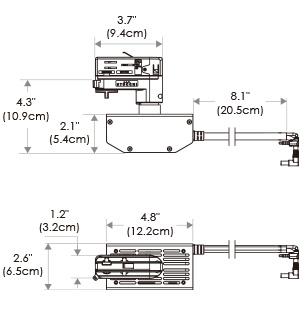

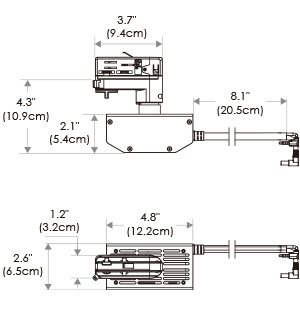

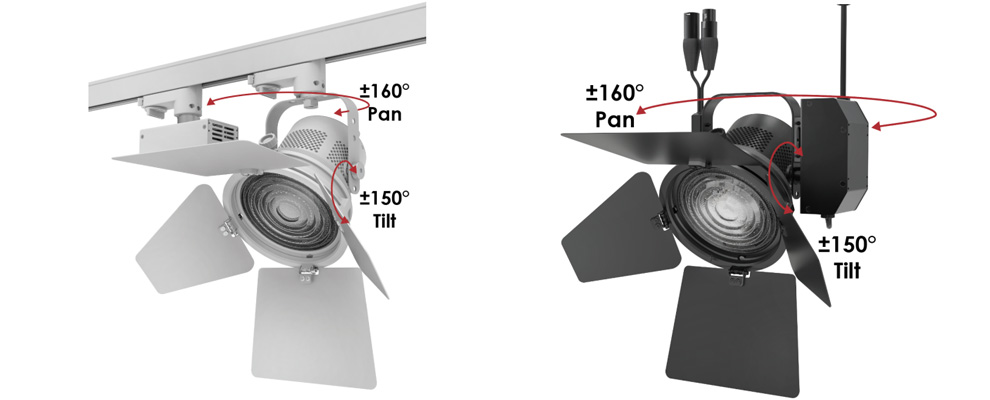

MECHANICAL FIGURES

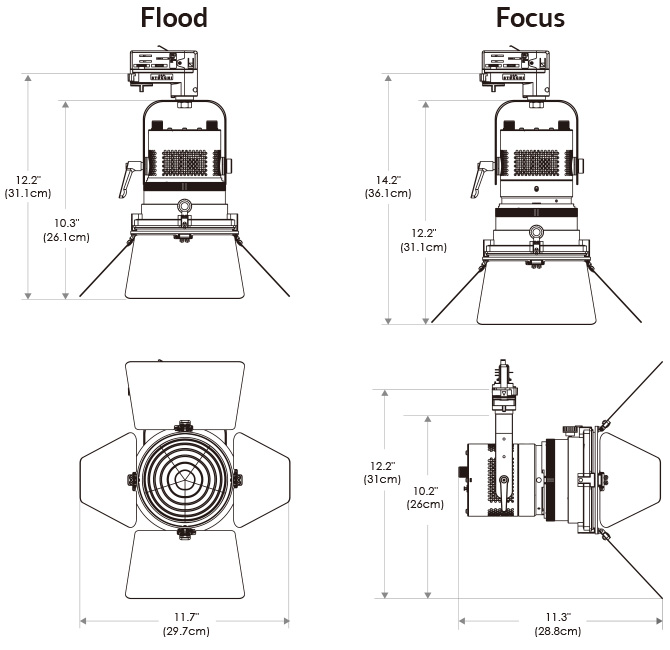

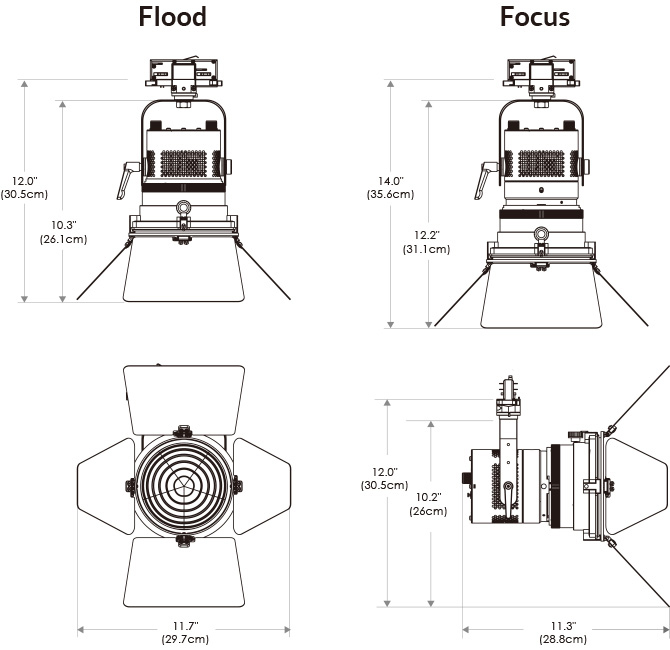

P3F (Track)

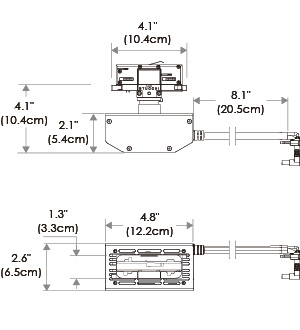

PSP

Cielux P3F Fresnel Light
Cielux P3F Fresnel Light

PSP

Cielux P3F Fresnel Light
Cielux P3F Fresnel Light

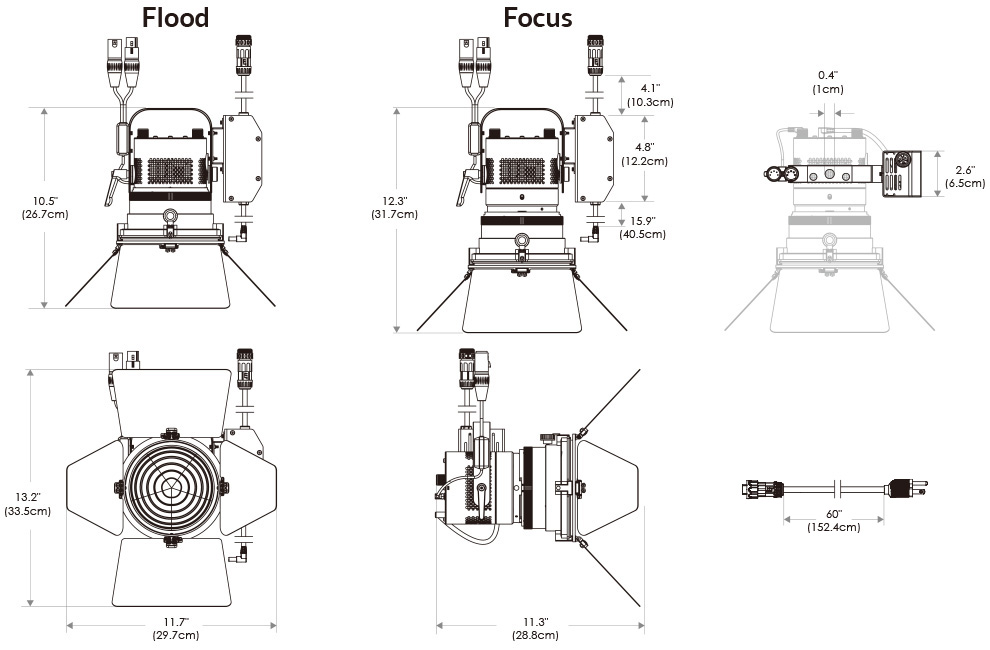

P3F (Clamp)

Cielux P3F Fresnel Light


Separator

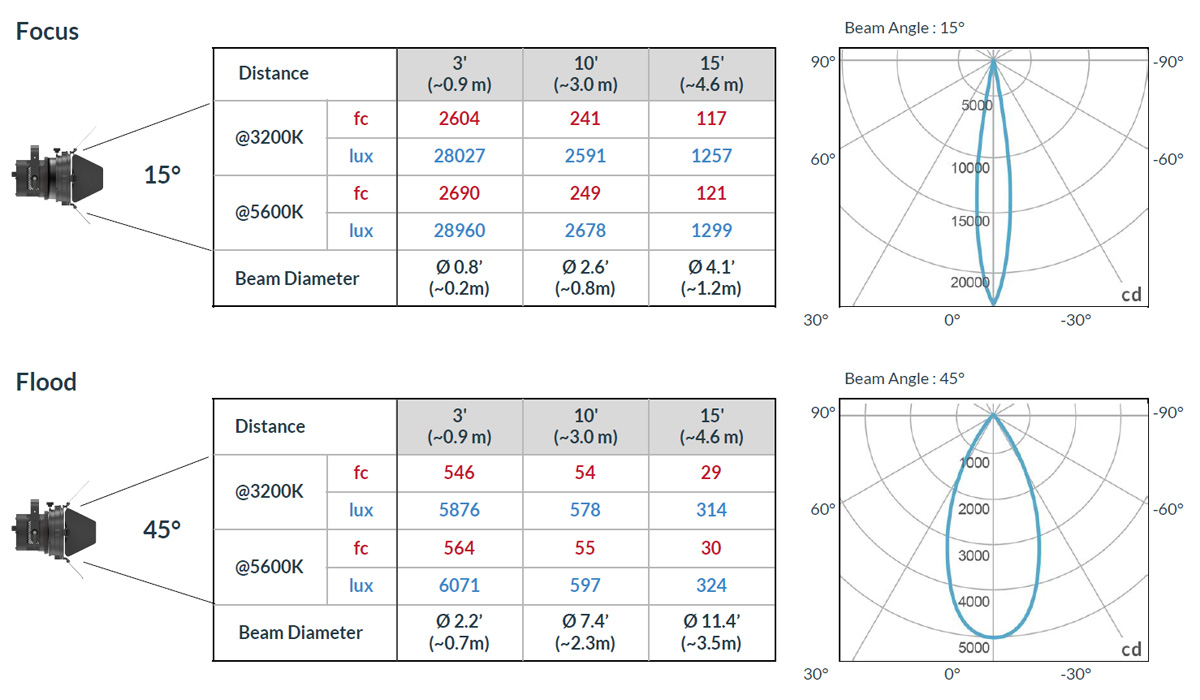

PHOTOMETRIC DATA

Cielux P3F Fresnel Light Photometric Data

Separator

ITEMS INCLUDED

Track Type

Cielux P3F Fresnel Light

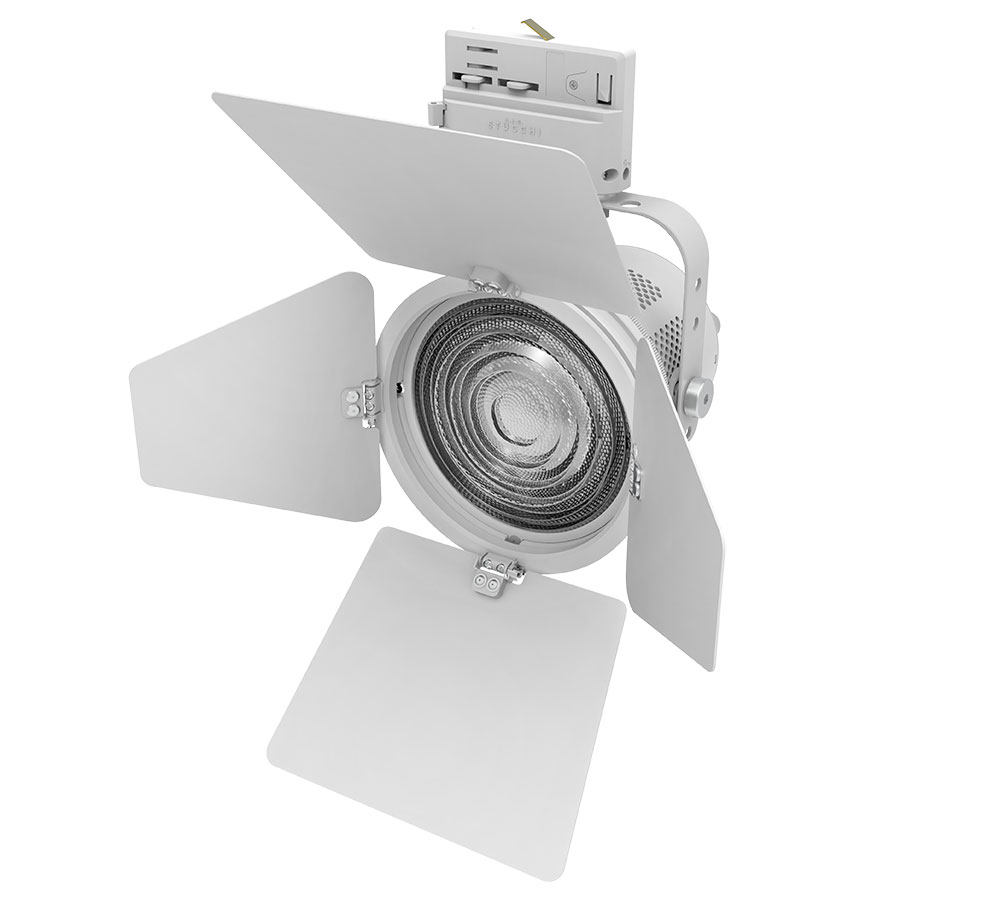

P3F (Track) fixture

Cielux P3F Fresnel Light

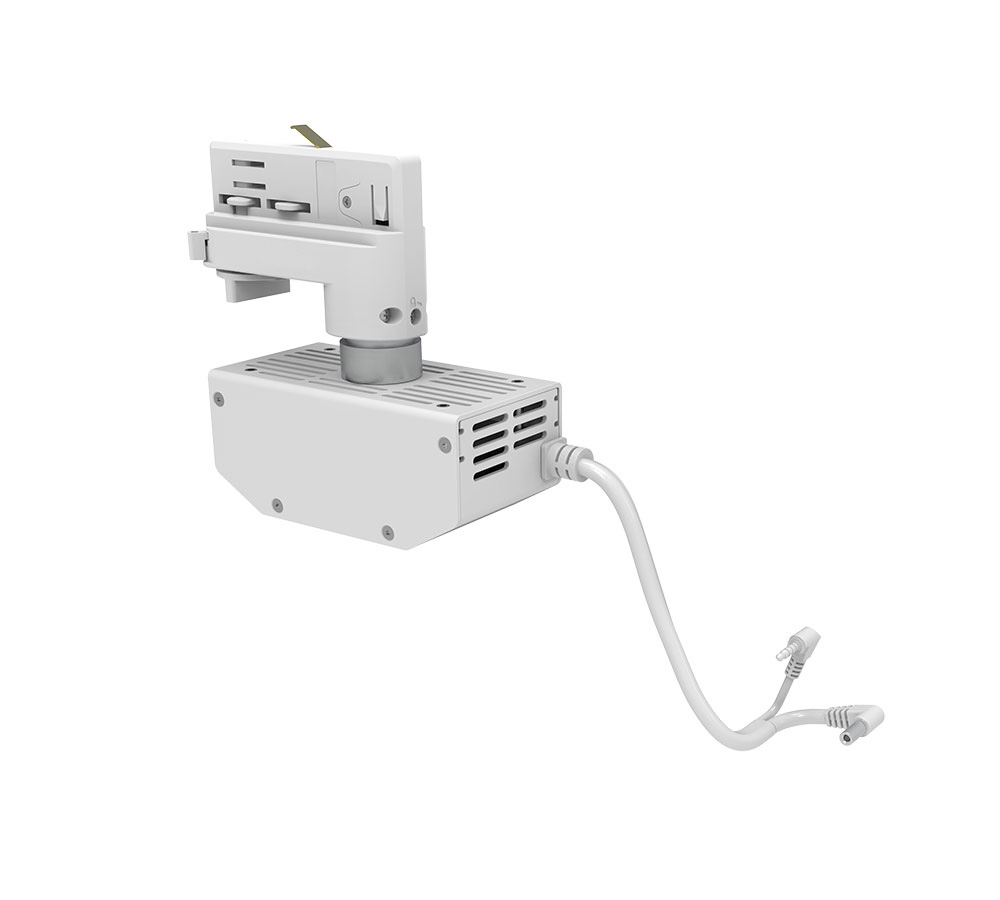

90W, 24V, TOX Track Mount PSU



Clamp Type

Cielux P3F Fresnel Light

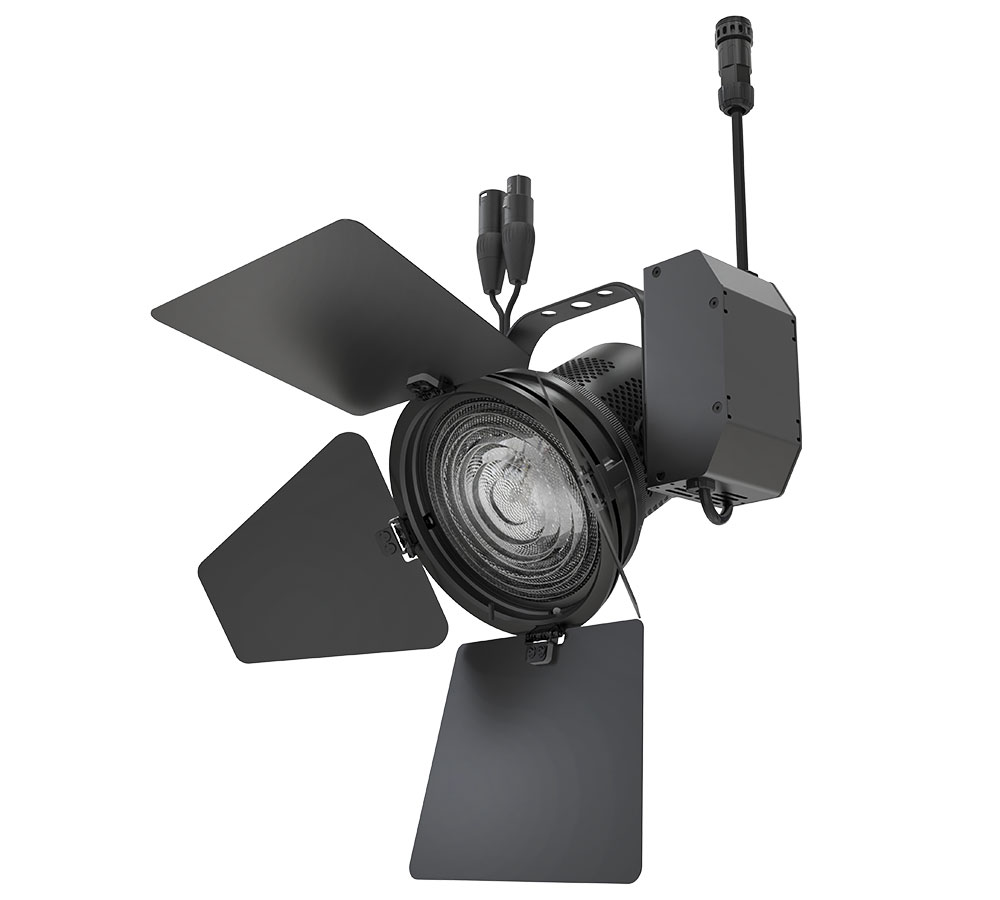

P3F (Clamp) fixture + PSU

Cielux P3F Fresnel Light

P3 PSU AC Jumper Cable 5ft
