P3X Spot Light

90W LED / 60°

Model No: CXP3X-

  • Cielux P3X Spot Light
  • Cielux P3X Spot Light
  • Cielux P3X Spot Light
  • Cielux P3X Spot Light
  • Cielux P3X Spot Light
  • Cielux P3X Spot Light
  • Cielux P3X Spot Light
  • Cielux P3X Spot Light
Cielux P3X Spot Light
Cielux P3X Spot Light
Cielux P3X Spot Light
Cielux P3X Spot Light
Cielux P3X Spot Light
Cielux P3X Spot Light
Cielux P3X Spot Light
Cielux P3X Spot Light

DOWNLOADS

Separator

SPECIFICATIONS

Beam Angle 60°
CRI 95 typical (in CCT Mode)
TLCI 90 typical (in CCT Mode)
Dimming 100% - 0% flicker free
Power Draw 90W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control DMX 512
Cooling Fan Cooled
Acoustic Noise23 dBA
Operating Temp. 32 - 104ºF (0 - 40ºC)
Fixture Weight Track Type: 2.3lb (~1.0kg) / Clamp Type: 2.4lb (~1.1kg)
Supply Weight Track Type: 1.0lb (~0.5kg) / Clamp Type: 1.1lb (~0.5kg)
Separator

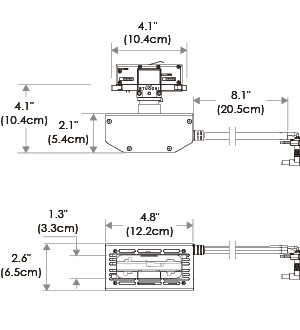

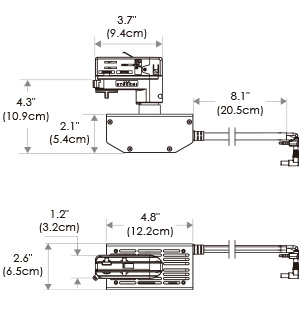

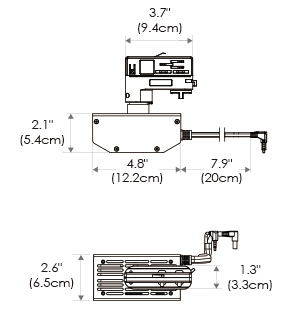

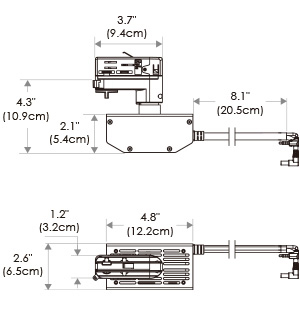

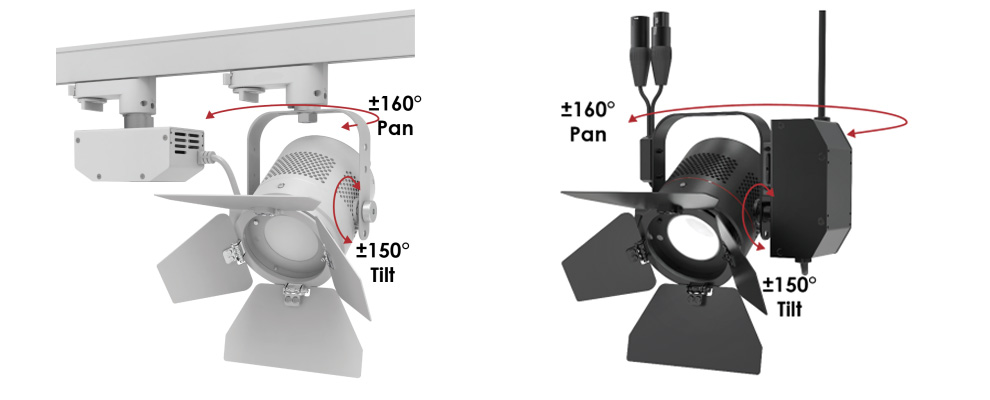

MECHANICAL FIGURES

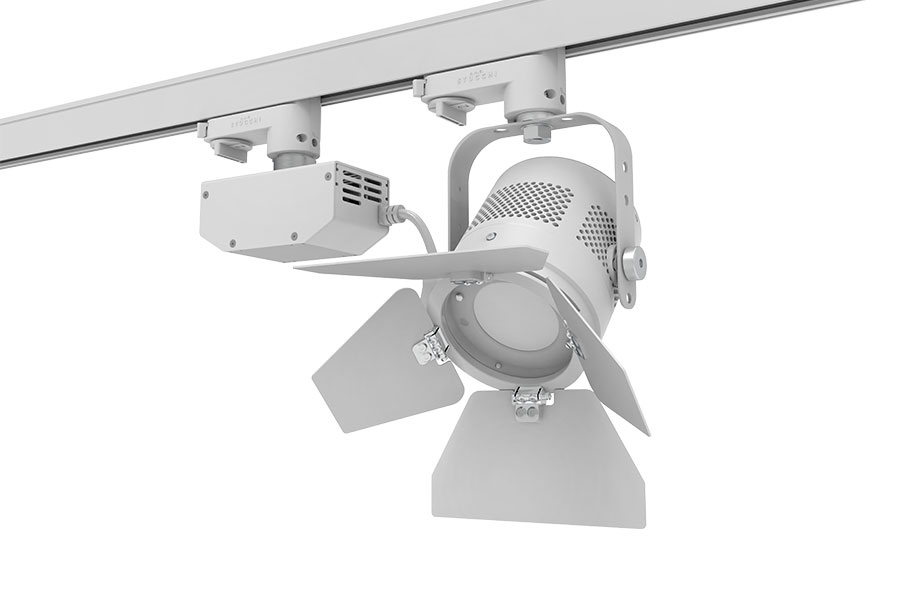

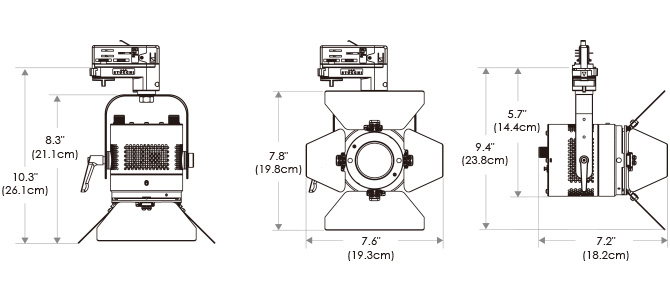

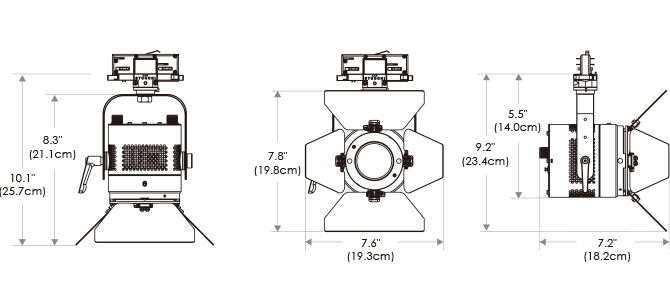

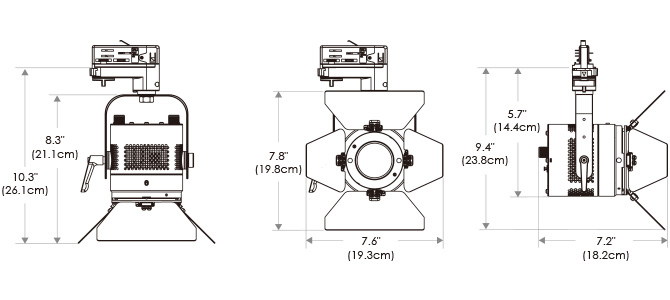

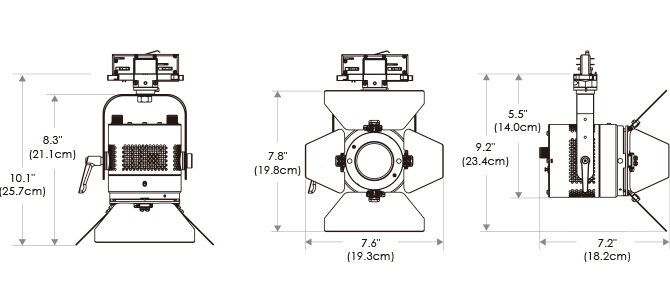

P3X (Track)

Cielux P3X Spot Light
Cielux P3X Spot Light

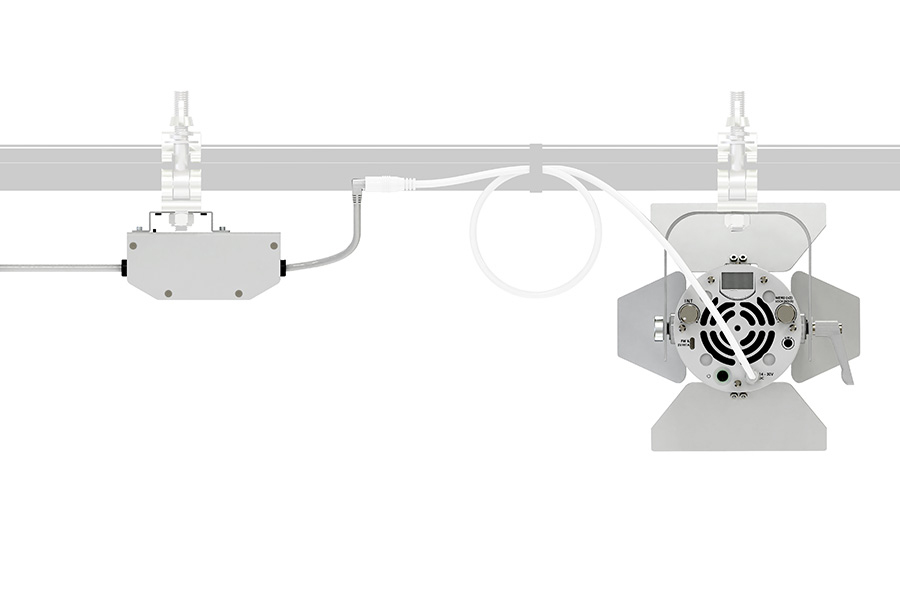

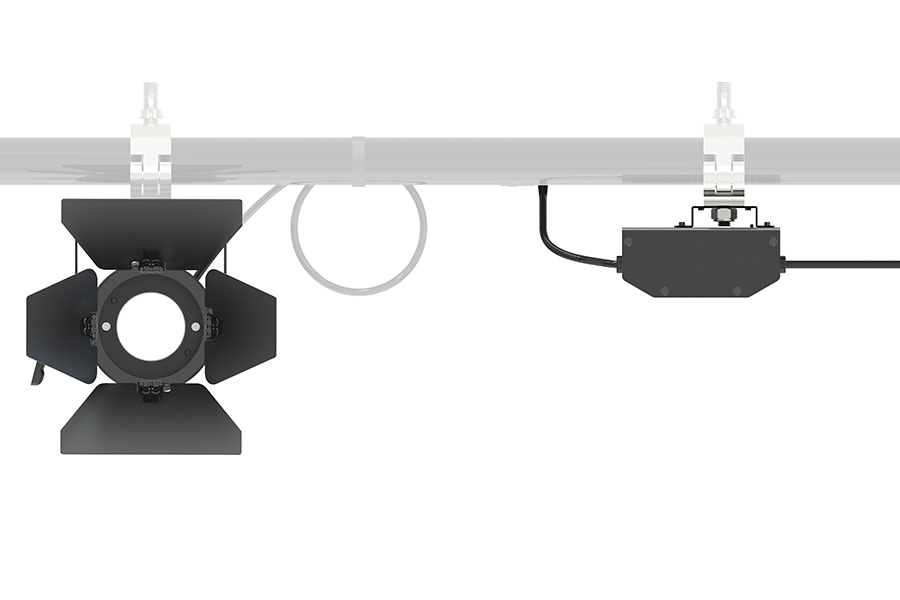

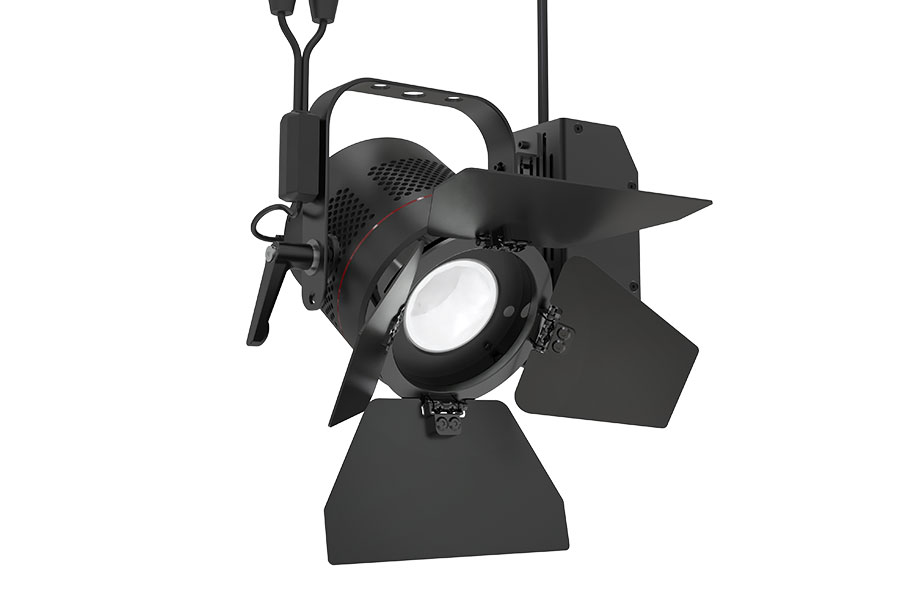

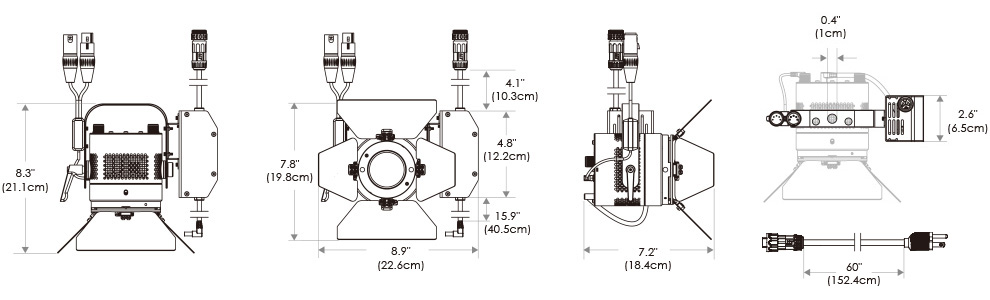

P3X (Clamp)

Cielux P3X Spot Light


Separator

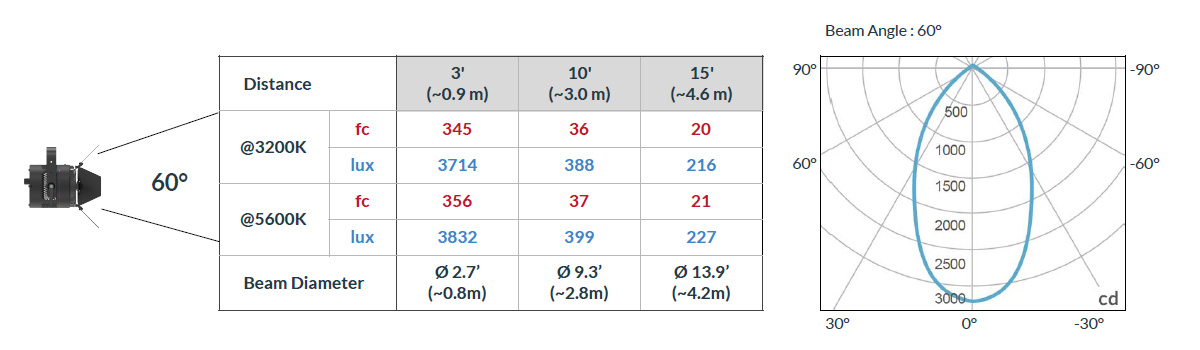

PHOTOMETRIC DATA

Cielux P3X Spot Light Photometric Data

Separator

ITEMS INCLUDED

Track Type

Cielux P3X Spot Light

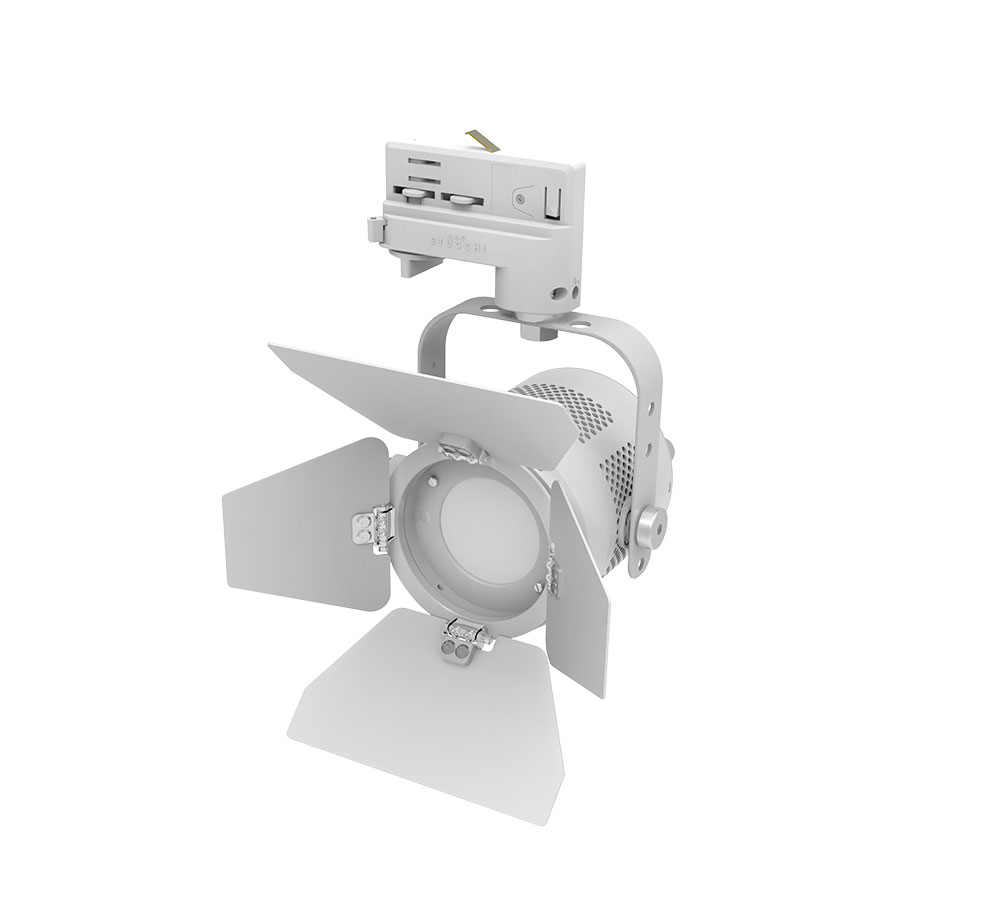

P3X (Track) fixture

Cielux P3X Spot Light

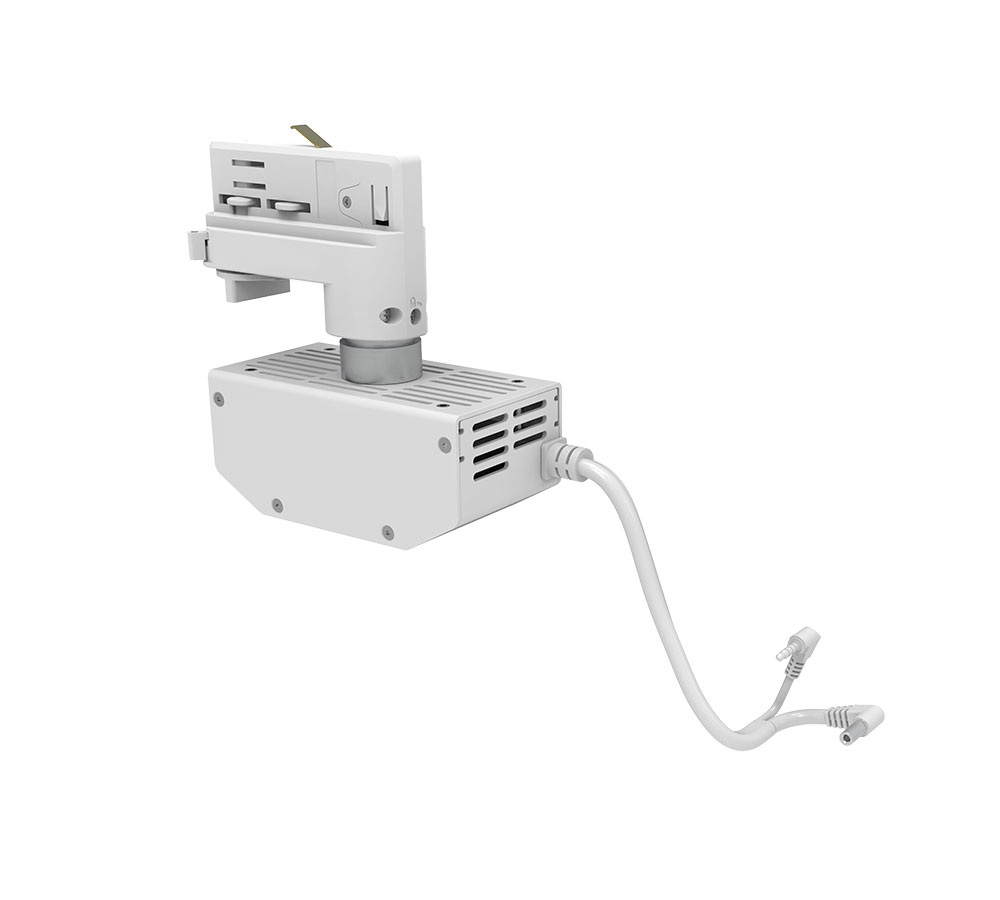

90W, 24V, TEX Track Mount PSU



Clamp Type

Cielux P3X Spot Light

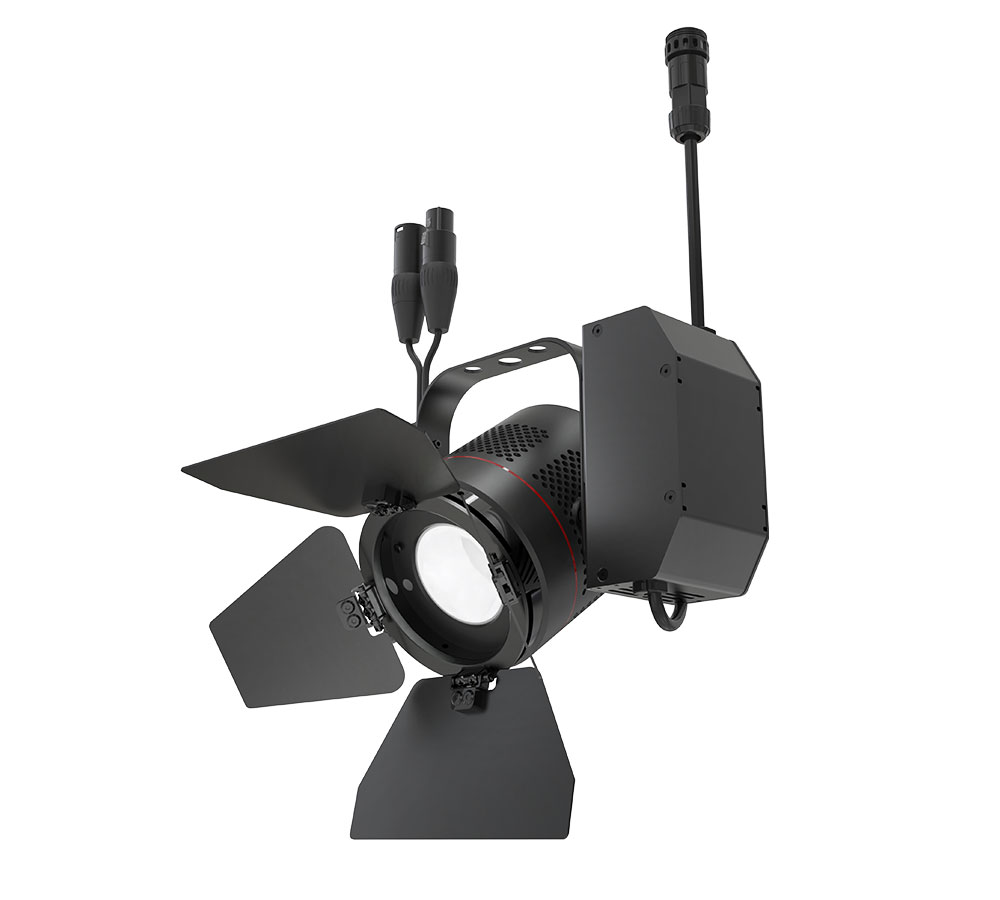

P3X (Clamp) fixture

Cielux P3X Spot Light

90W V-Mount PSU

Separator

TRACK PARTS
