SPECIFICATIONS

Beam Angle	19° / 36°
CRI	95 typical (in CCT Mode)
TLCI	90 typical (in CCT Mode)
Dimming	100% - 0% flicker free
Power Draw	90W max
AC Input	100 - 240V AC, 50 - 60Hz
Remote Control	DMX 512
Cooling	Fan Cooled
Acoustic Noise	17 dBA
Operating Temp.	32 - 104ºF (0 - 40ºC)
Fixture Weight	Track Type: 6.3lb (~2.8kg) / Clamp Type: 7.0lb (~3.2kg)
Supply Weight	Track Type: 1.0lb (~0.5kg) / Clamp Type: 1.1lb (~0.5kg)
Gobo Size	Dia. 78mm / Max. Image 55mm / Max. Thickness 1mm

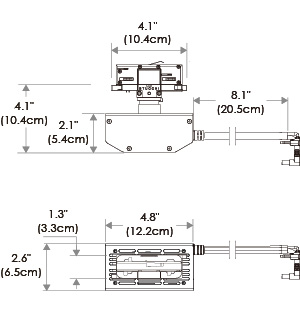

MECHANICAL FIGURES

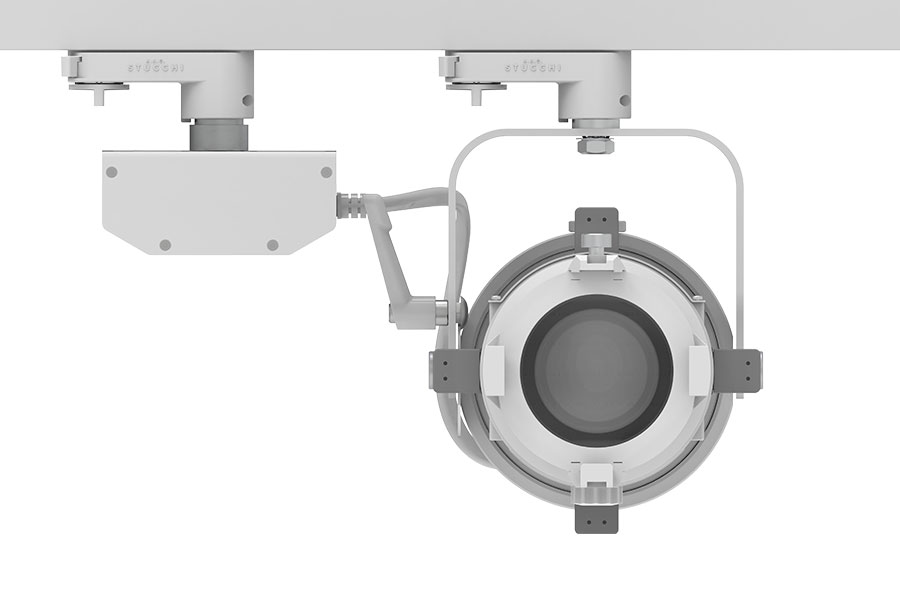

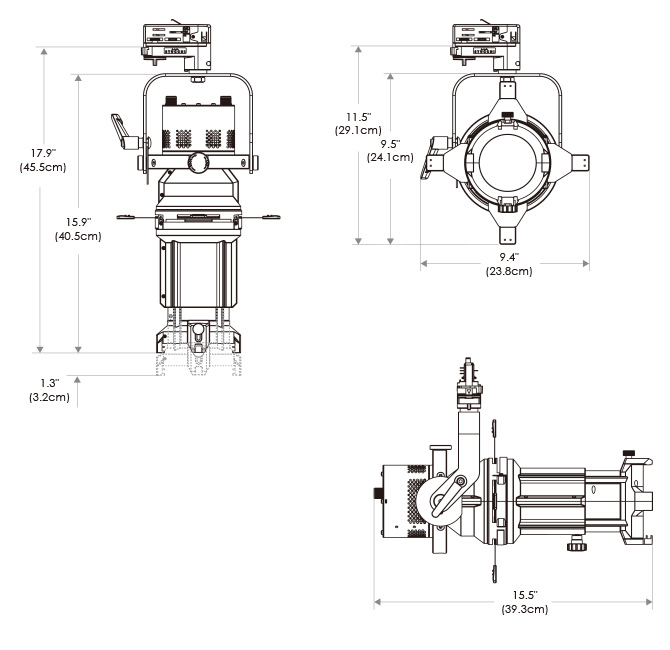

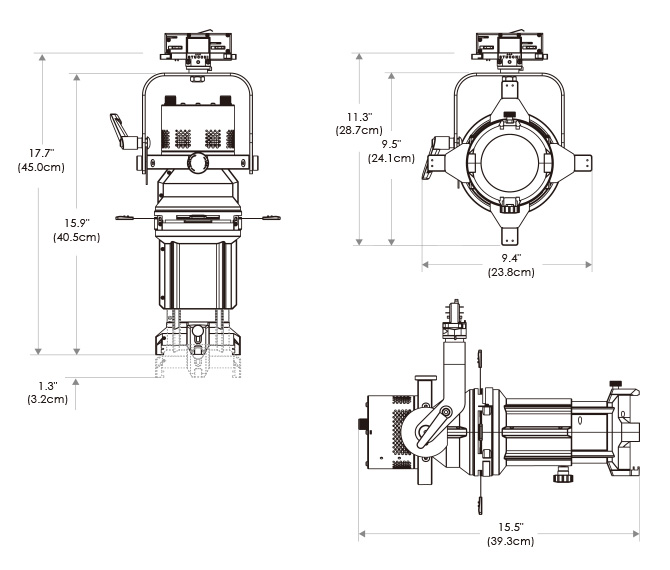

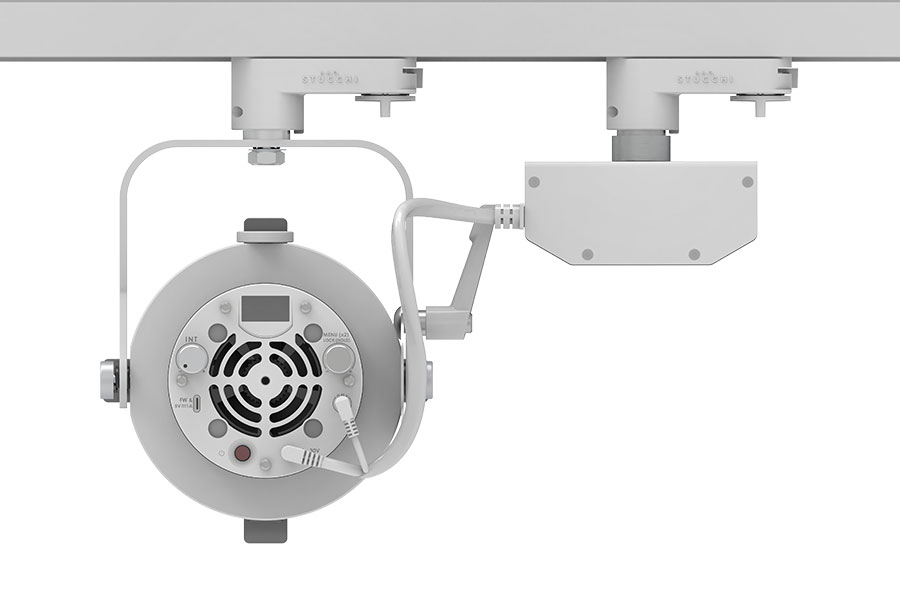

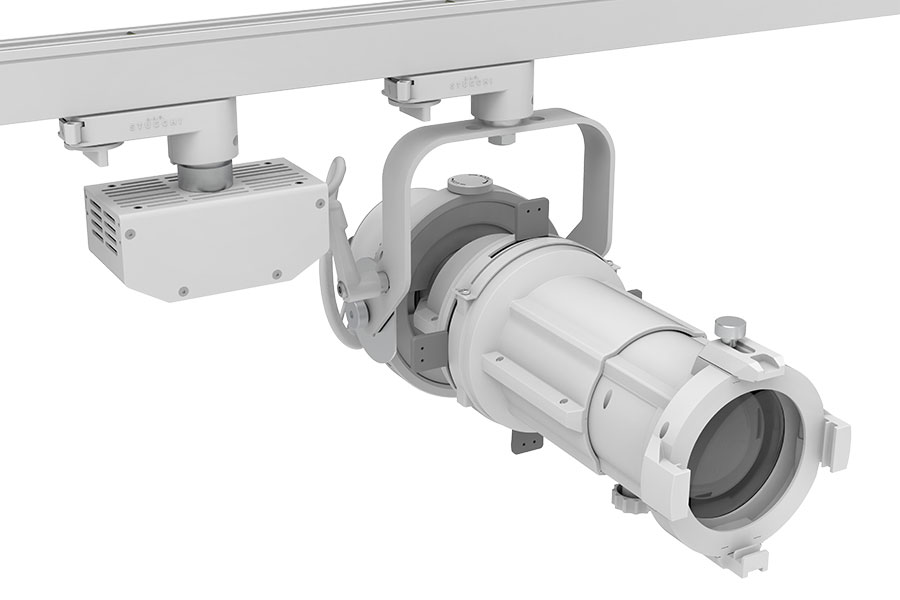

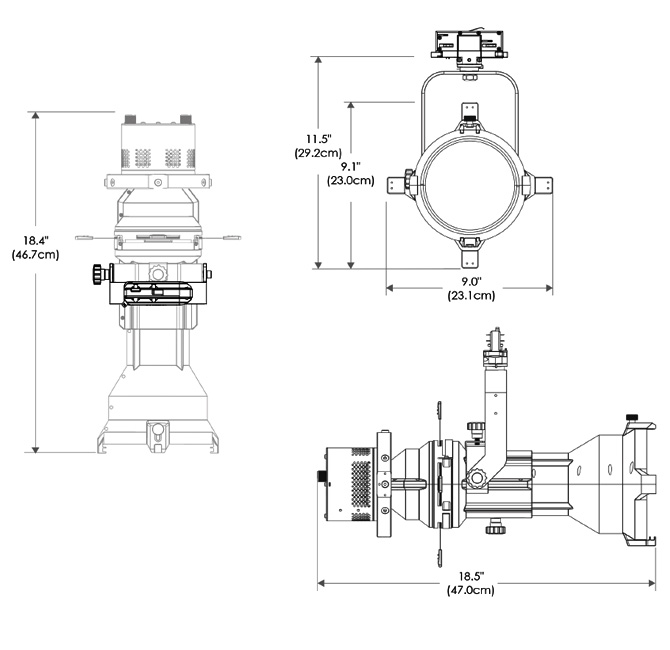

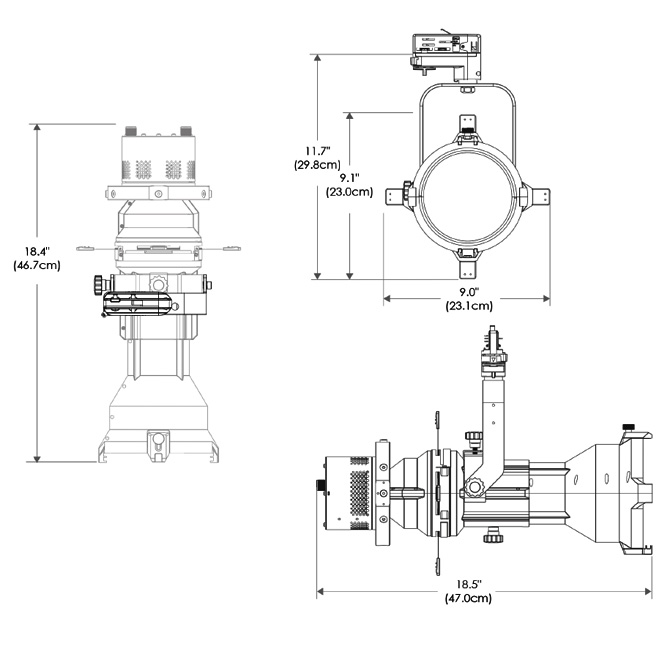

P3L (Track)

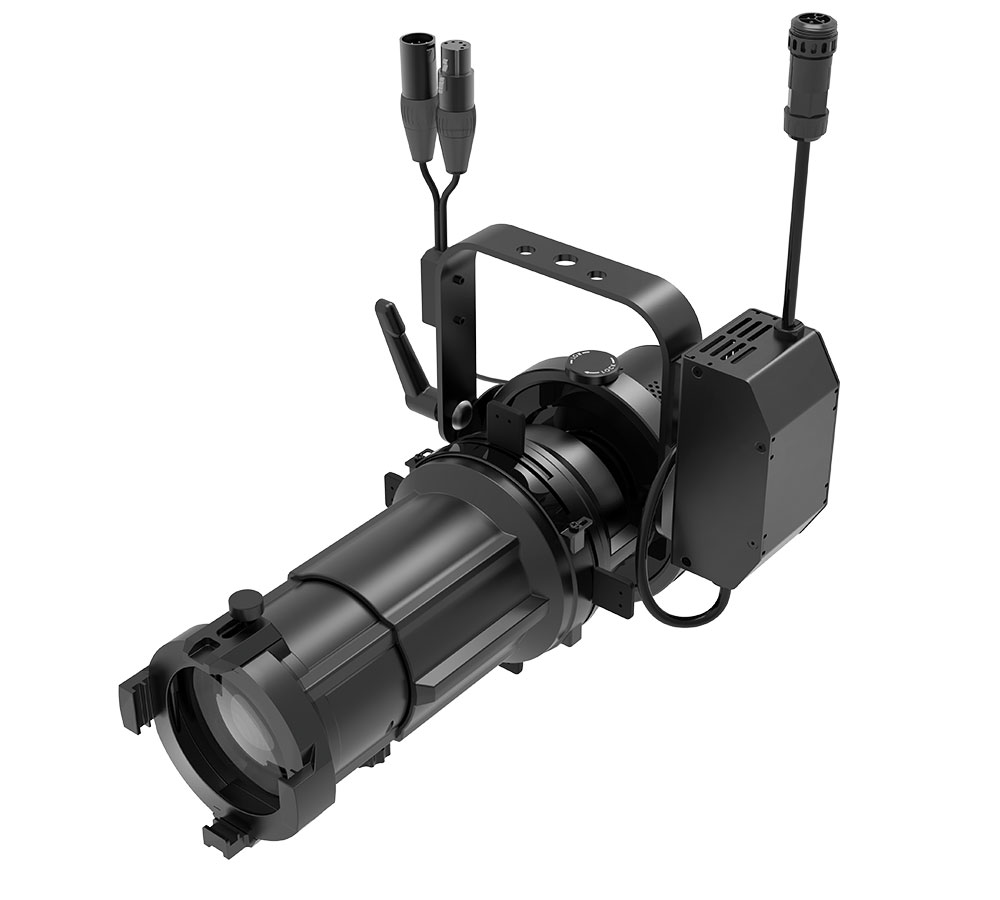

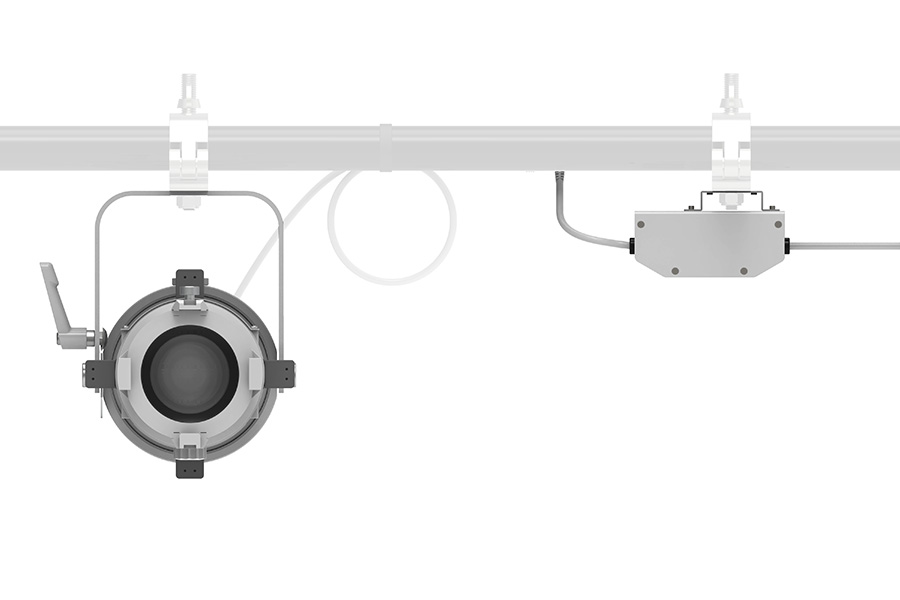

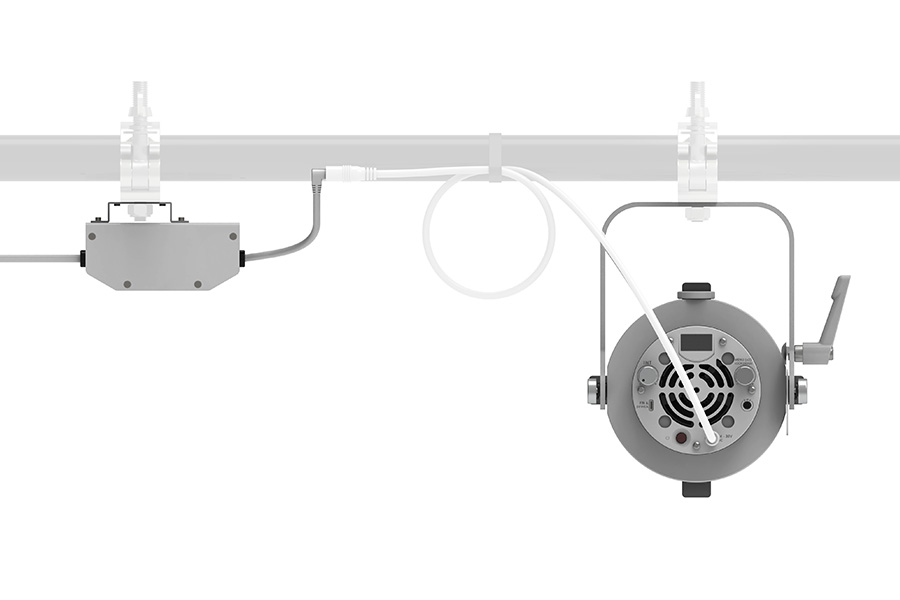

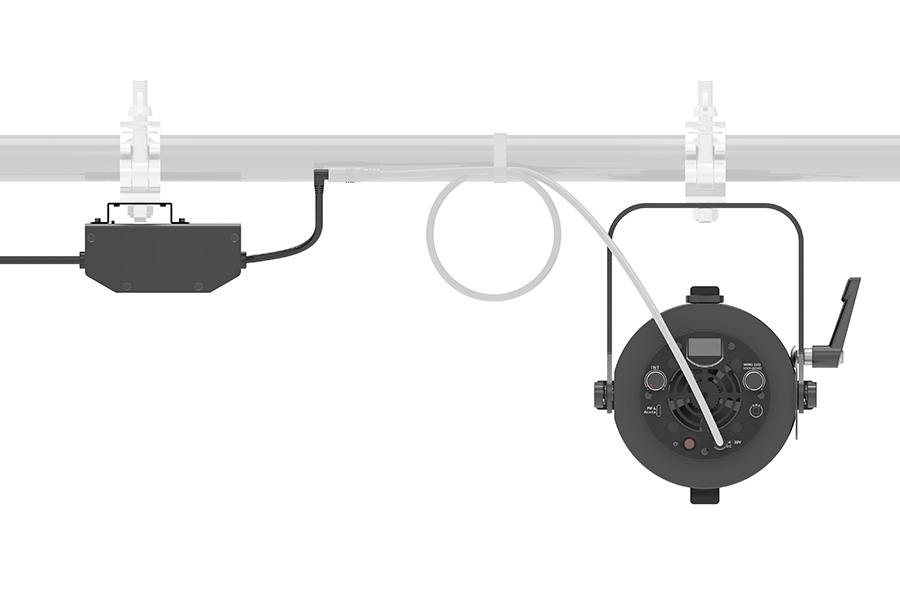

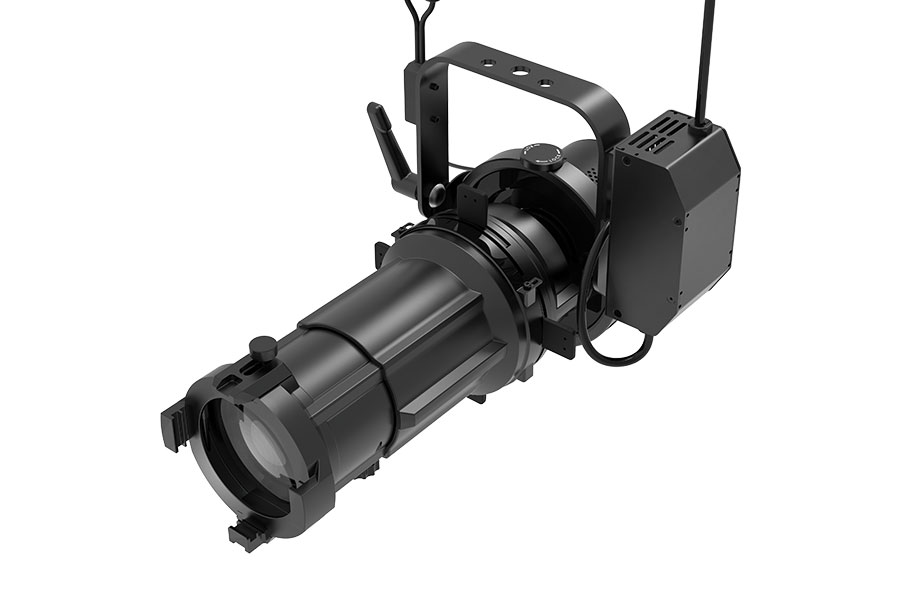

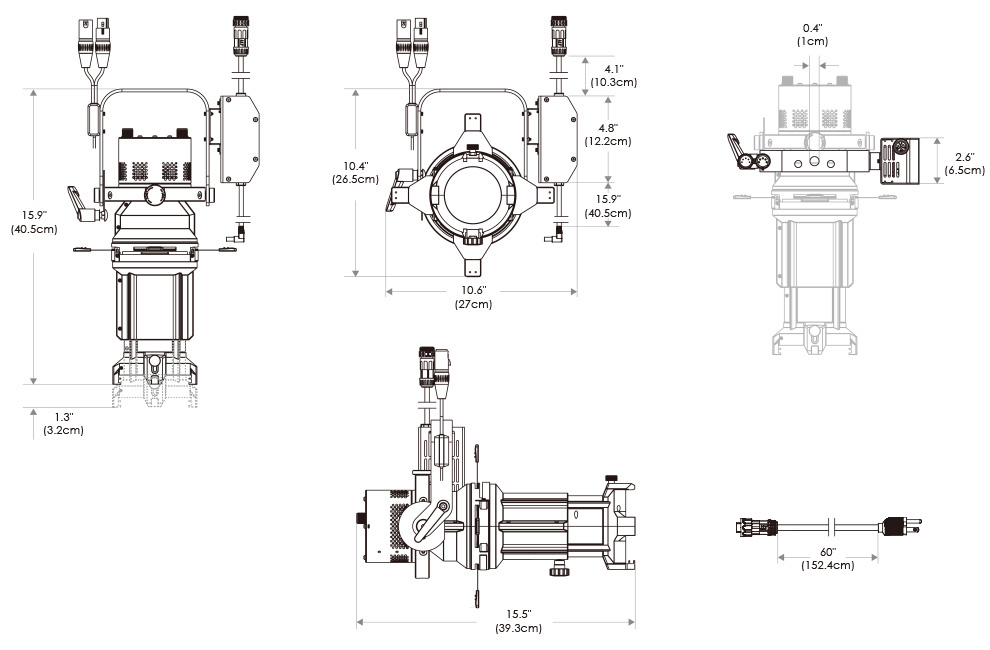

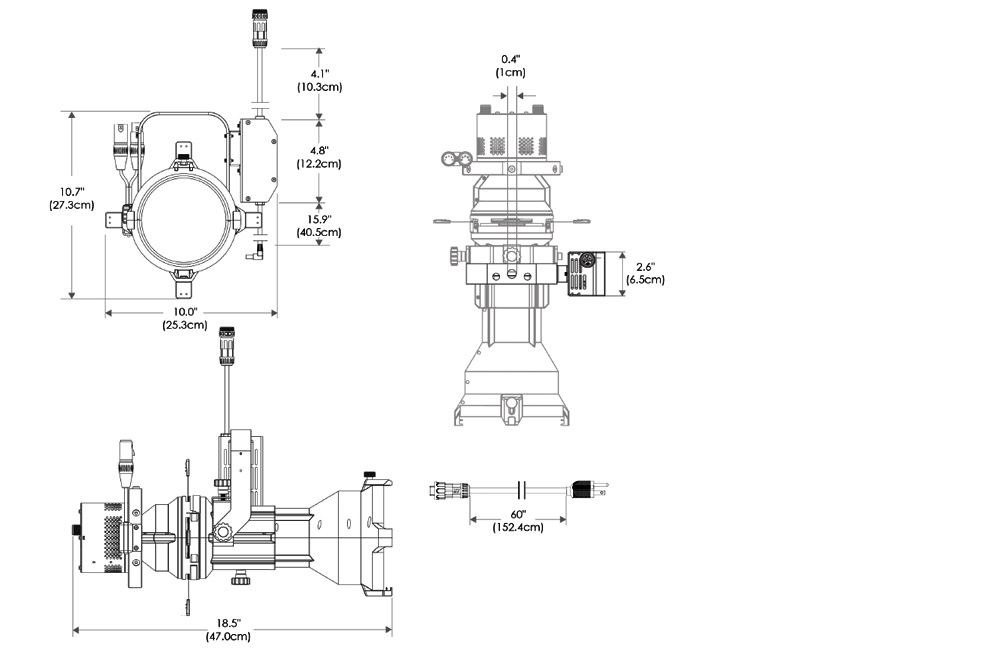

P3L (Clamp)

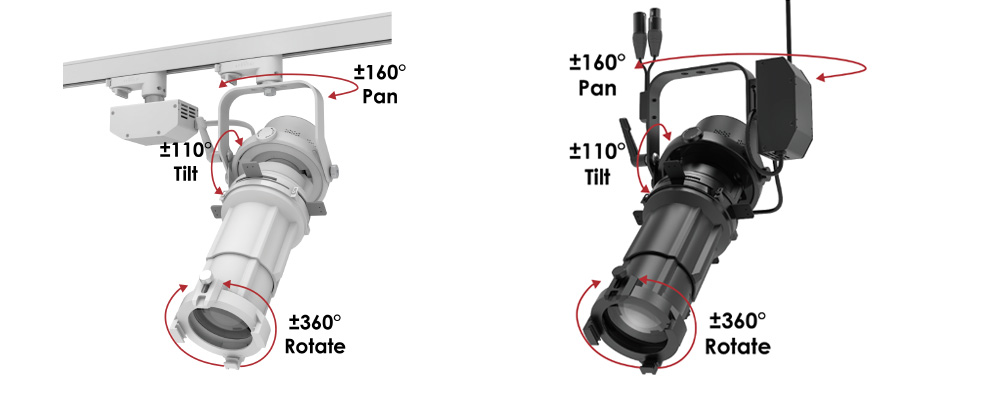

TILT/ROTATION

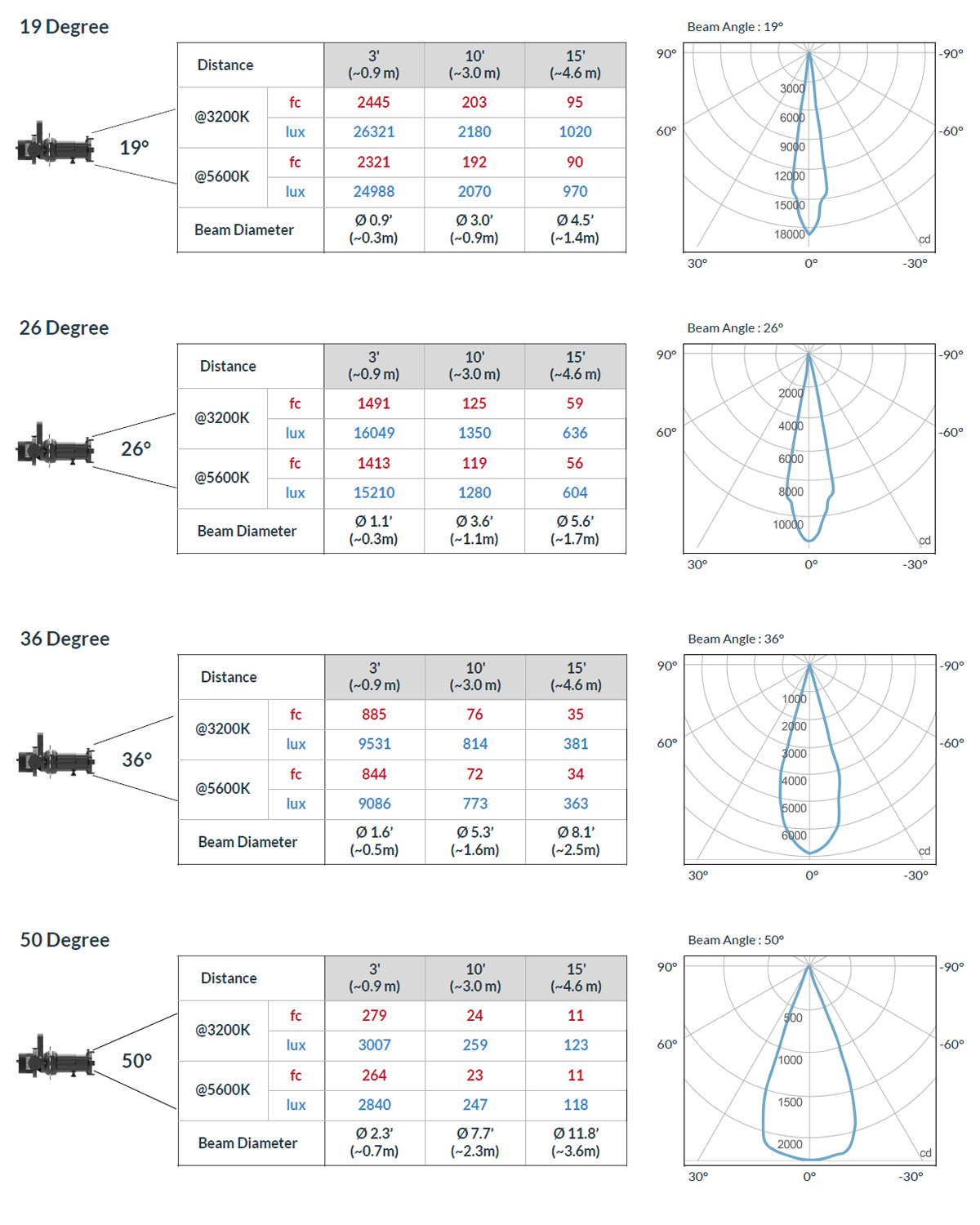

PHOTOMETRIC DATA

ITEMS INCLUDED

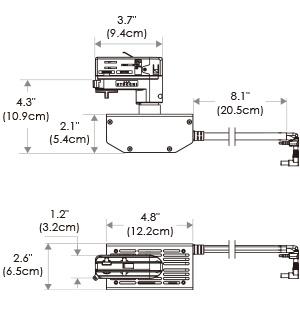

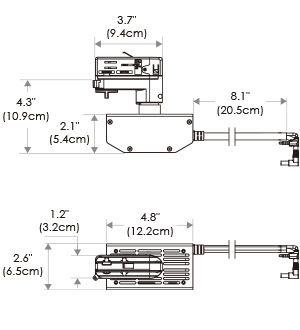

TRACK PARTS
