P3W Spot Light

90W LED / Wall Wash

Model No: CXP3W-

  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
  • Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light
Cielux P3W Spot Light

DOWNLOADS

Separator

SPECIFICATIONS

Beam Angle Wall Wash
CRI / TLCI 95/90 typical (in CCT Mode of 2800K-6500K)
Dimming 100% - 0% flicker free
Power Draw 90W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control DMX 512
Cooling Fan Cooled
Acoustic Noise23 dBA
Operating Temp. 32 - 104ºF (0 - 40ºC)
Weight
(Fixture + Power Supply)
3.0lb / 1.5kg (Track Type), 3.2lb / 1.6kg (Clamp Type)
Separator

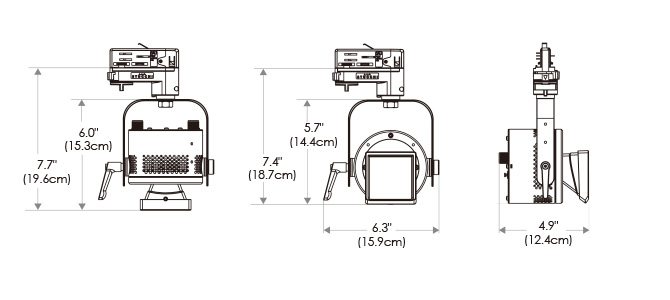

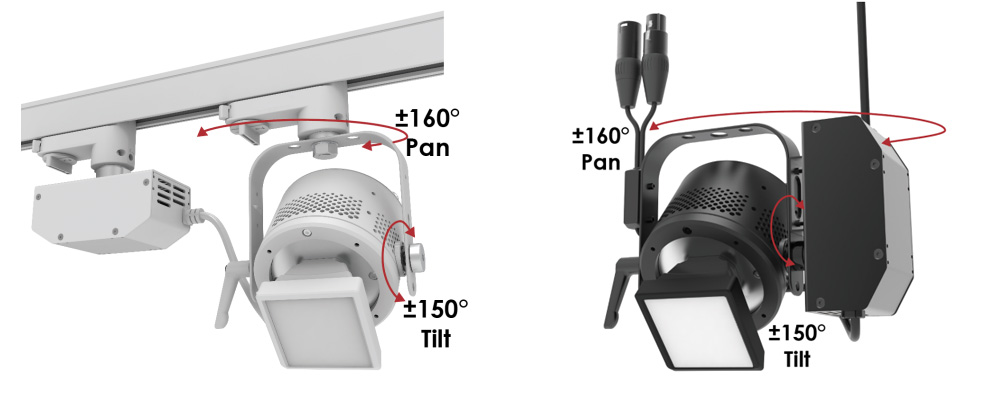

MECHANICAL FIGURES

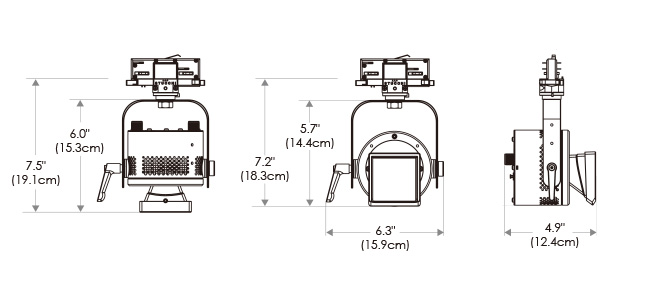

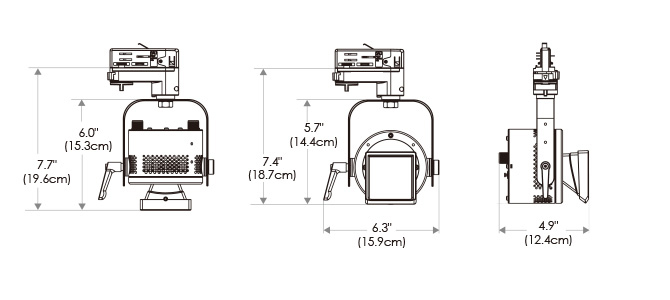

P3W (Track)

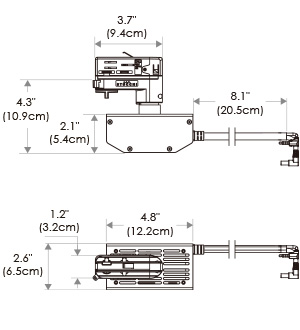

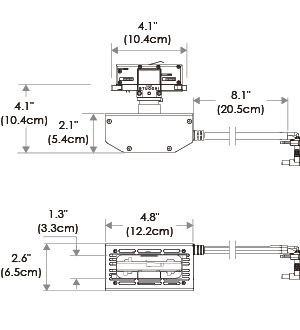

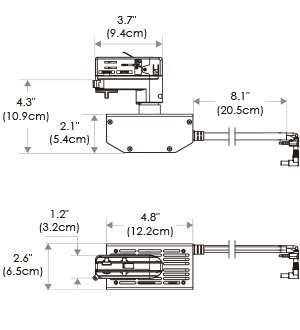

PSP

Cielux P3W Spot Light
Cielux P3W Spot Light

PSP

Cielux P3W Spot Light
Cielux P3W Spot Light

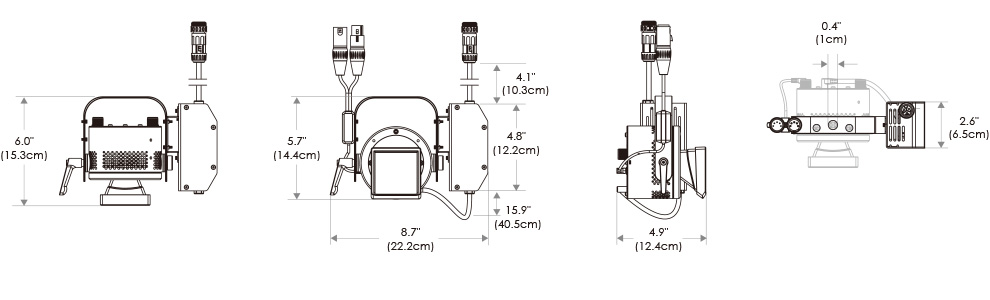

P3W (Clamp)

Cielux P3W Spot Light


Separator

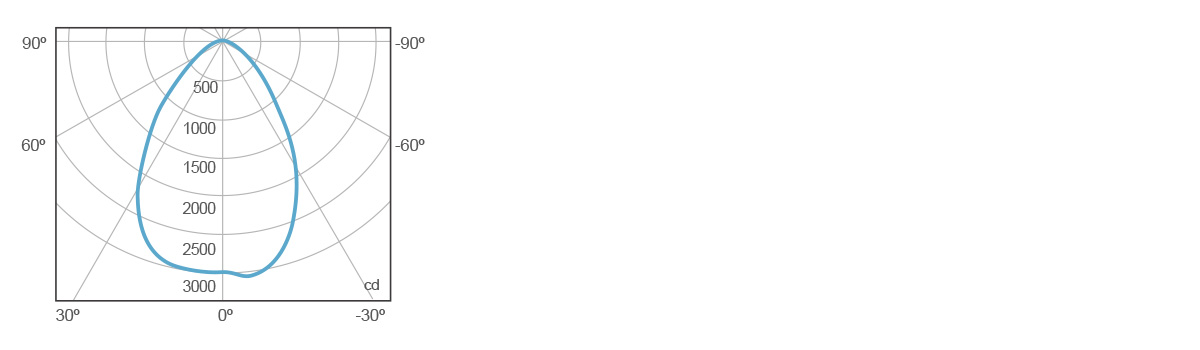

PHOTOMETRIC DATA

Cielux P3W Spot Light Photometric Data

Separator

ITEMS INCLUDED

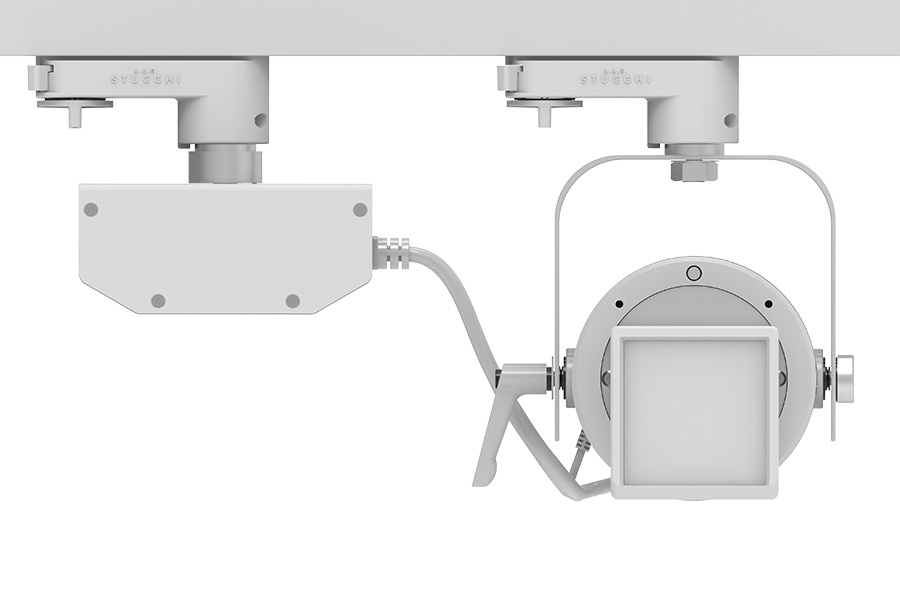

Track Type

Cielux P3W Spot Light

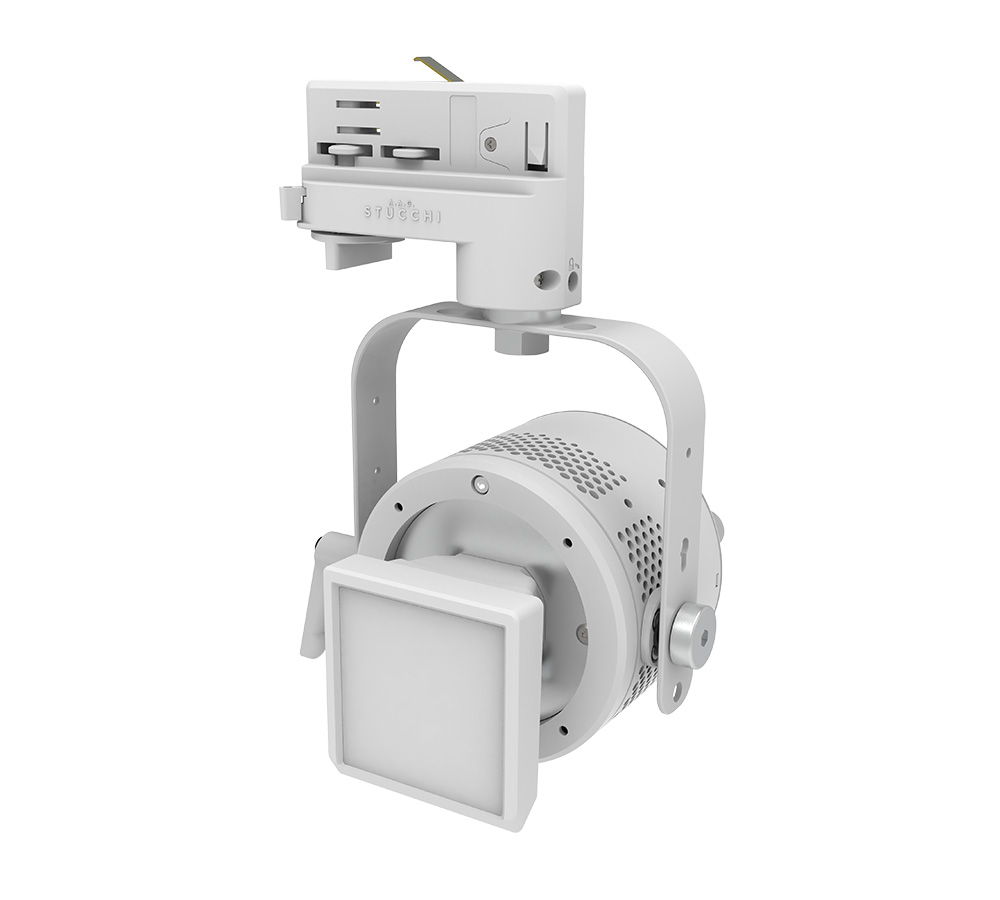

P3W (Track) fixture

Cielux P3W Spot Light

90W, 24V, TOX Track Mount PSU

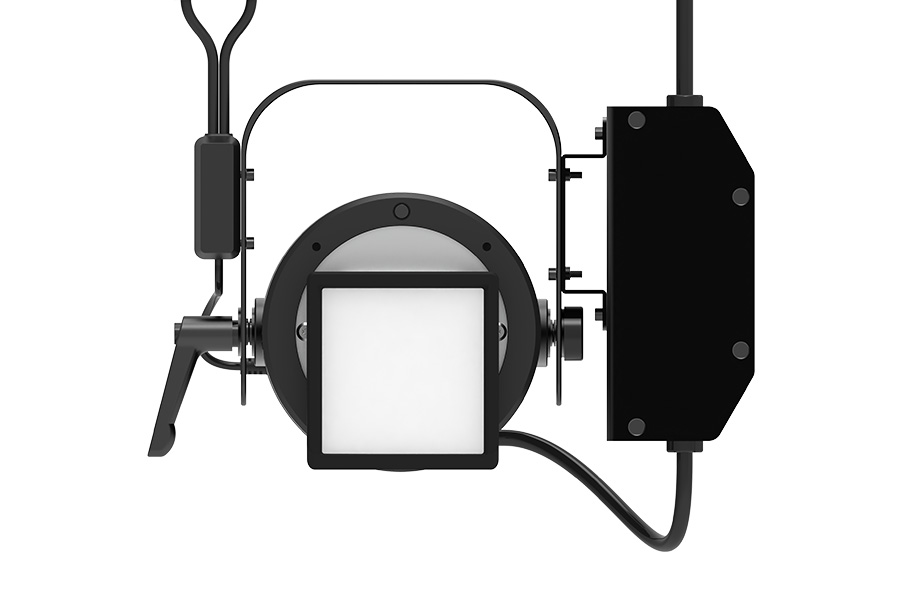

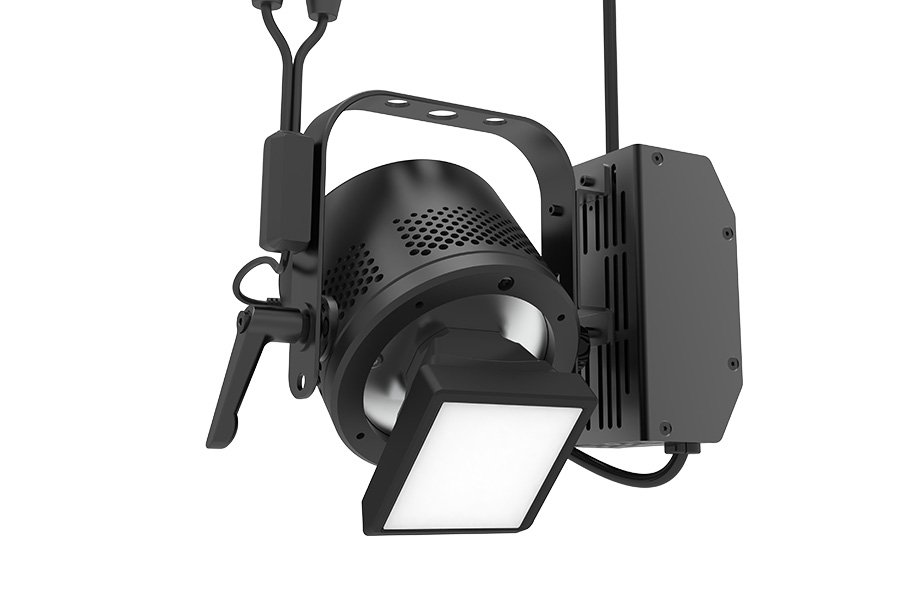

Clamp Type

Cielux P3W Spot Light

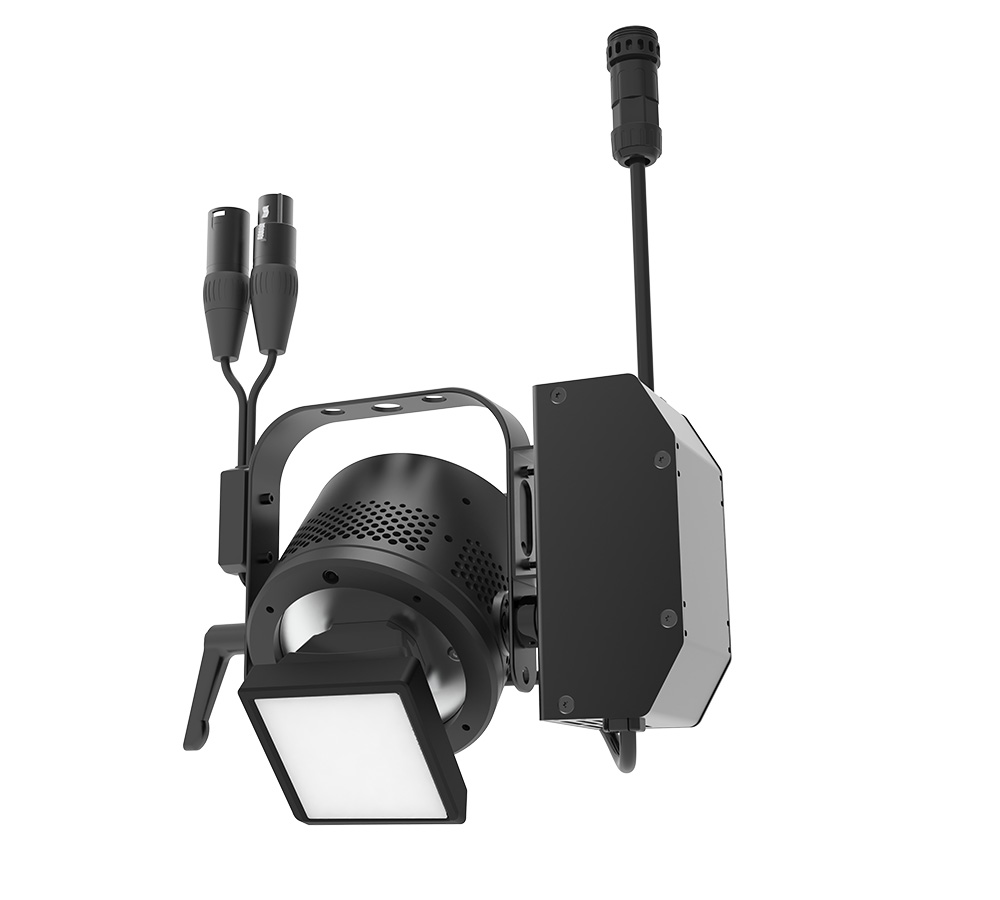

P3W (Clamp) fixture + PSU

Cielux P3W Spot Light

P3 PSU AC Jumper Cable 5ft

Separator

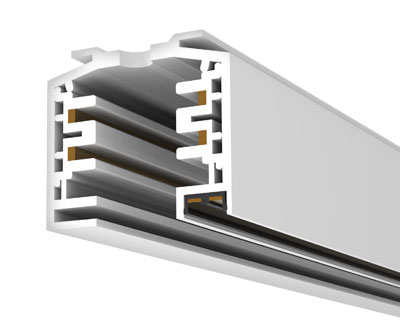

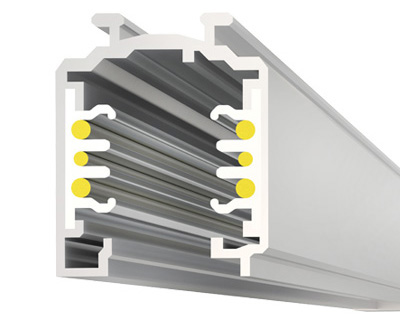

TRACK PARTS
