| Beam Angle | 55° |

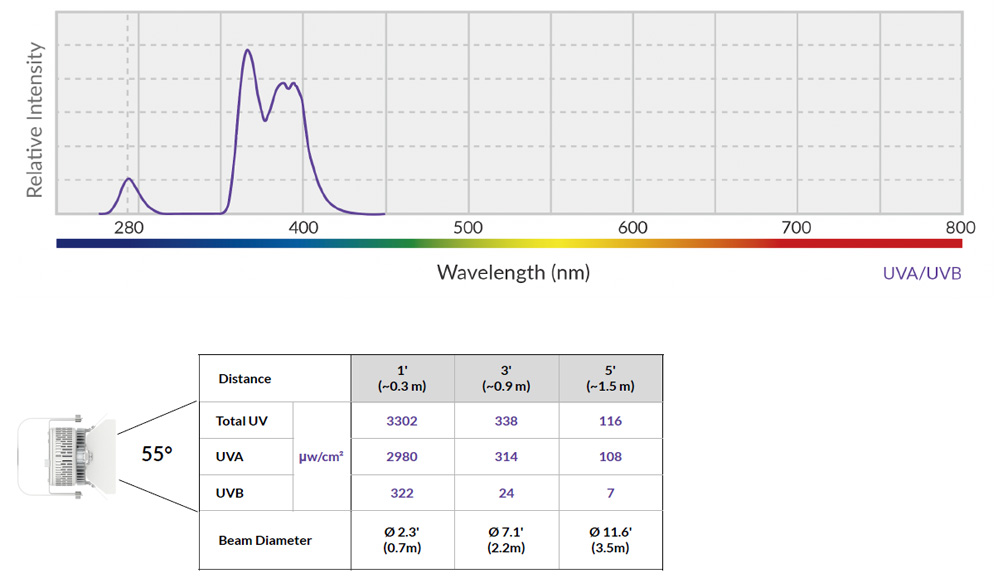

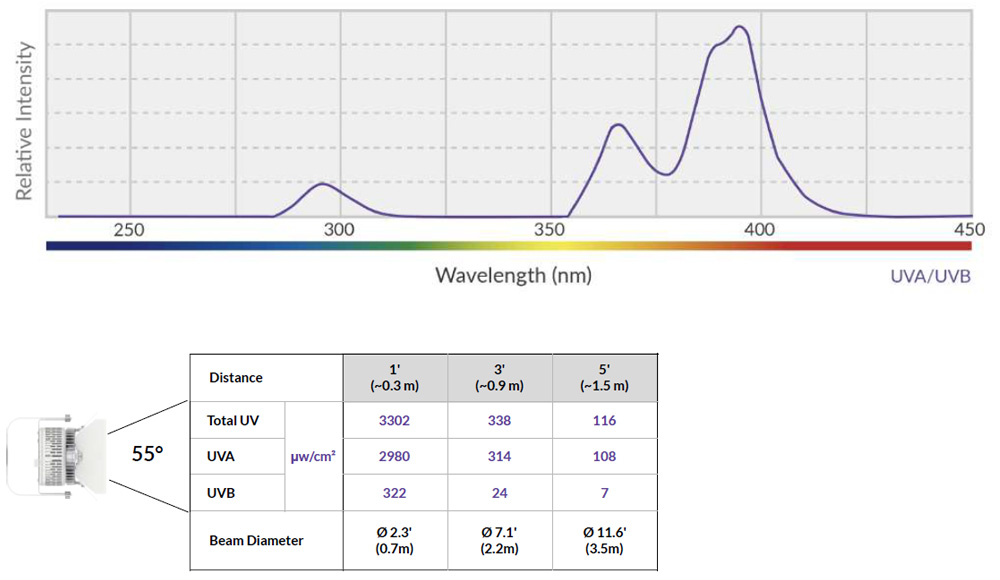

| Spectrum Type | UVBA |
| Control | Intensity (0%-100%) |
| LED Source | DiCon Dense Matrix LED |
| AC Power Draw | 30W max |
| AC Input Voltage | 100 - 240V AC, 60Hz |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.3lb / 0.6kg |
| Power Supply Weight | 1.0lb / 0.4kg |
| W360BD-TOX/TON | PS  | PSX |
 |
 |  |
| W360BD-TOX/TON | PS  | PSX |
 |
 |  |
| W360BD-CLP | PS |
|
 |
 | |
*All -CLP configuration models come with standard clamp pipe diameters that range from 1.8" to 2.0". |
||
| Mounting Bracket Dimensions ALL-CLP *All -CLP configuration models come with standard DC cables of 6 inches and AC cables of 10 ft. |
 |
|

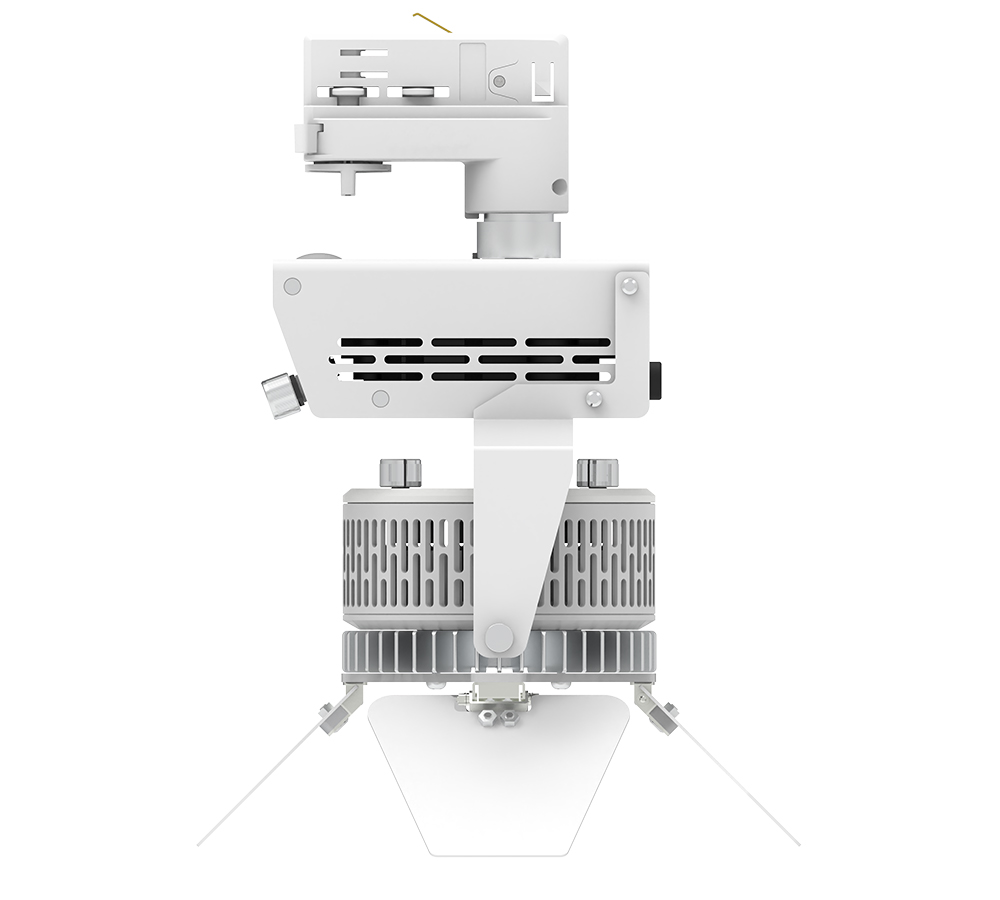

| W360BD-MPT | PSX | PSX |
 |
 |  |
| W360BD-TEX (legacy products) | PS | PSX |
 |
 |  |
| W360BD-TG (legacy products) | PS |
|
 |
 | |

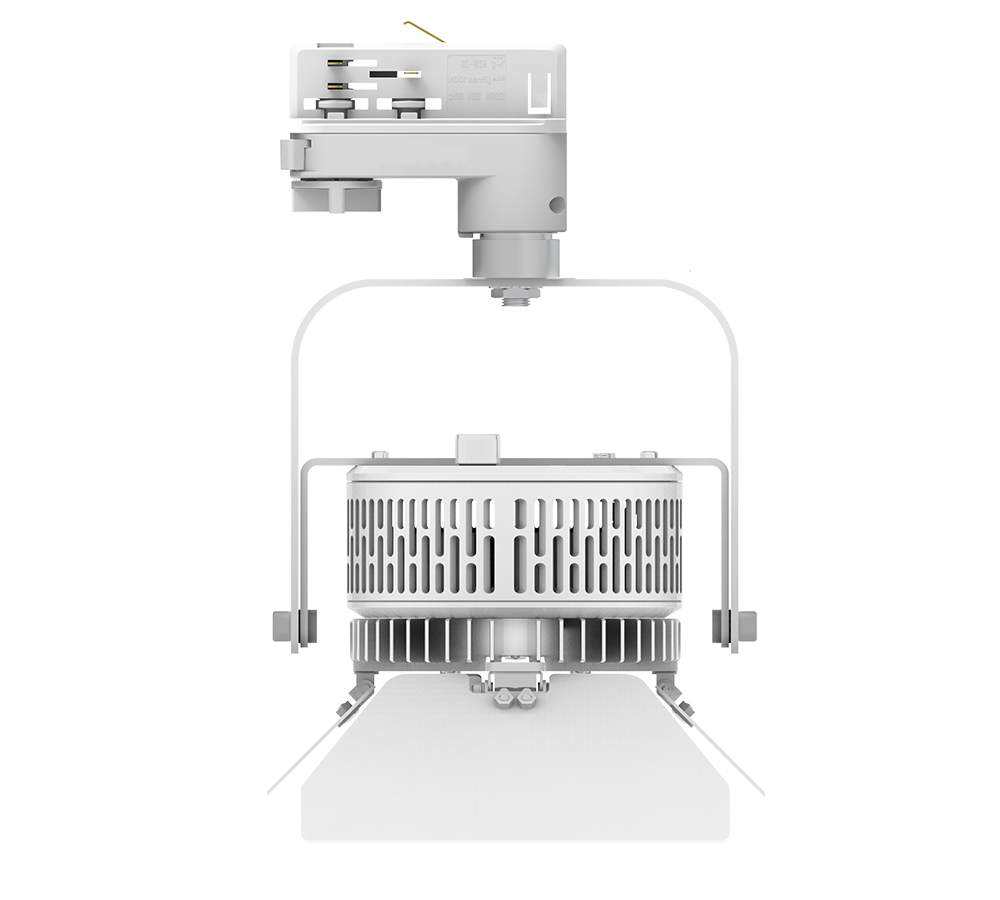

W360BD fixture

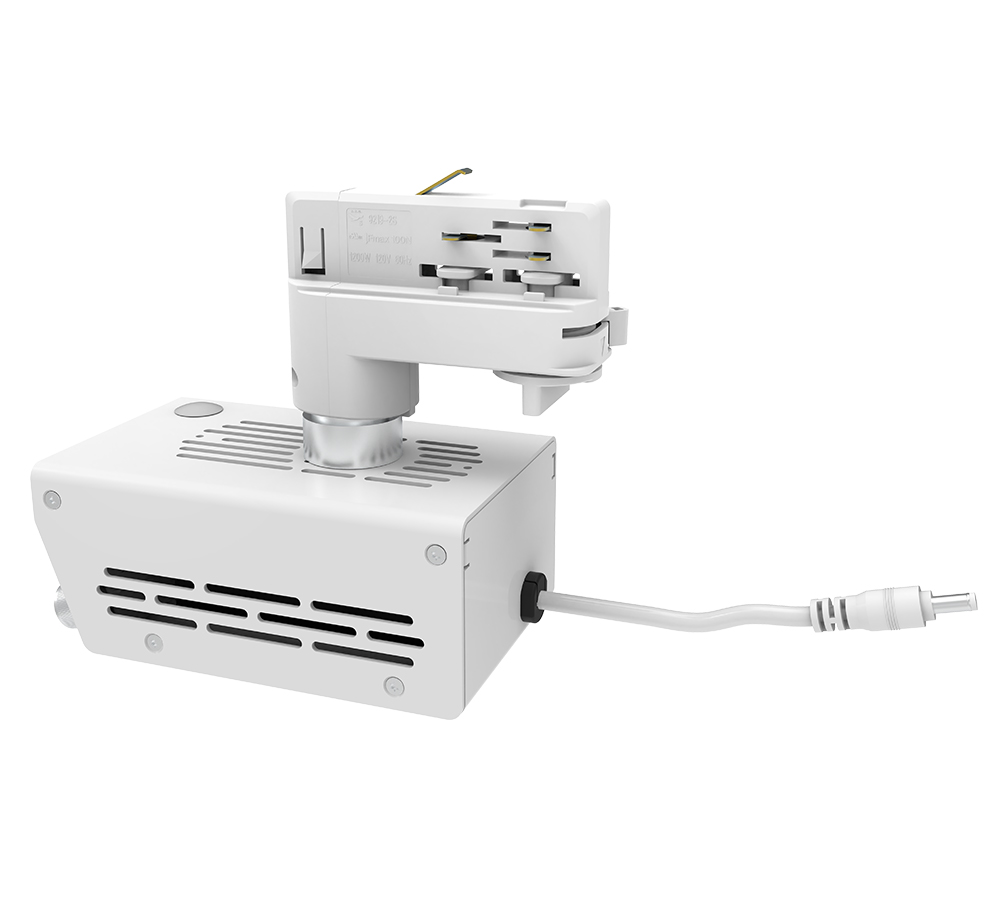

PSU
W360BD fixture + PSU
Monopoint Adapter
