| Beam Angle | 55° |

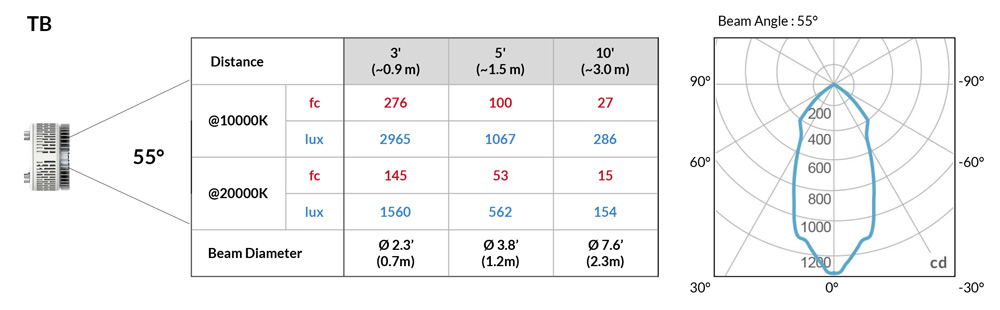

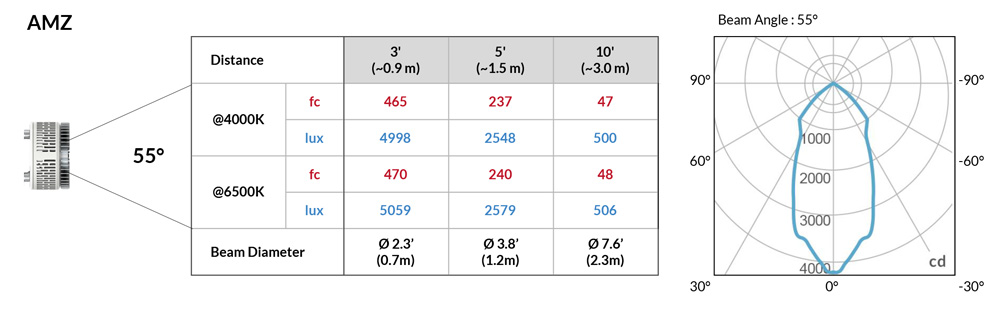

| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| Power Draw | 80W max |
| AC Input Voltage | 100 - 240V AC, 60Hz |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.1lb / 0.5kg |
| Power Supply Weight | 1.0lb / 0.4kg |

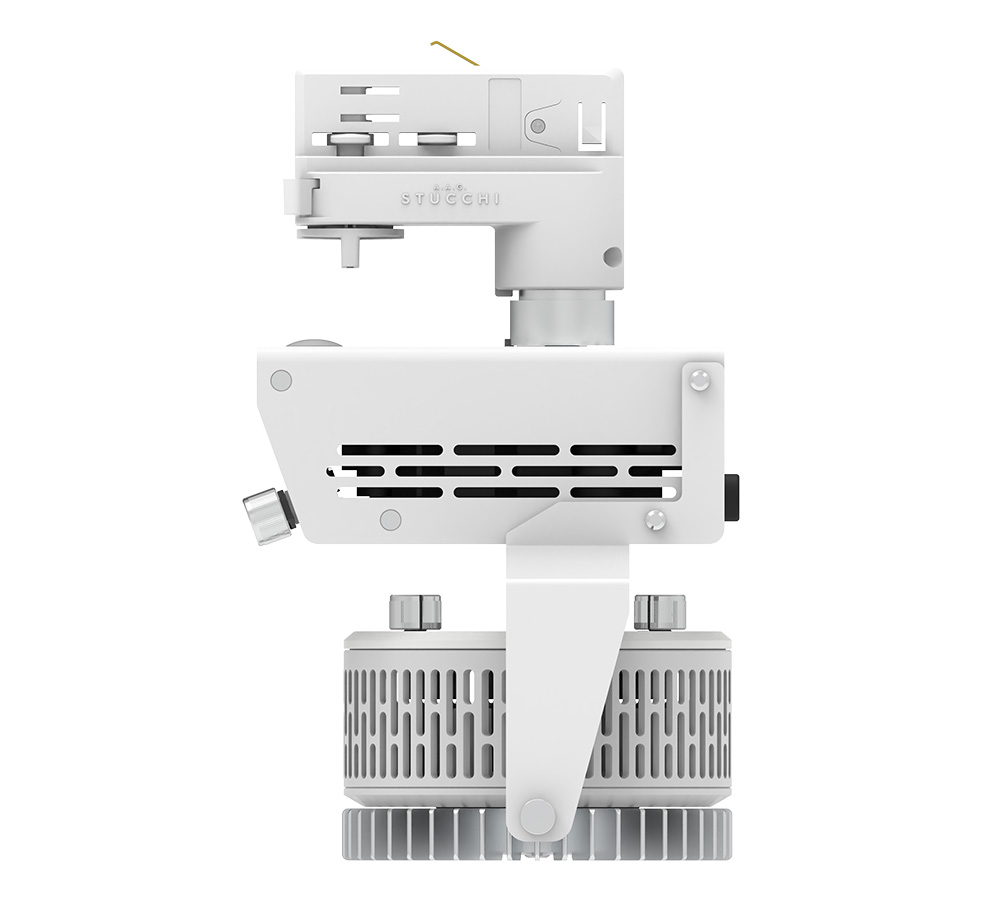

PS  | PSX |
|

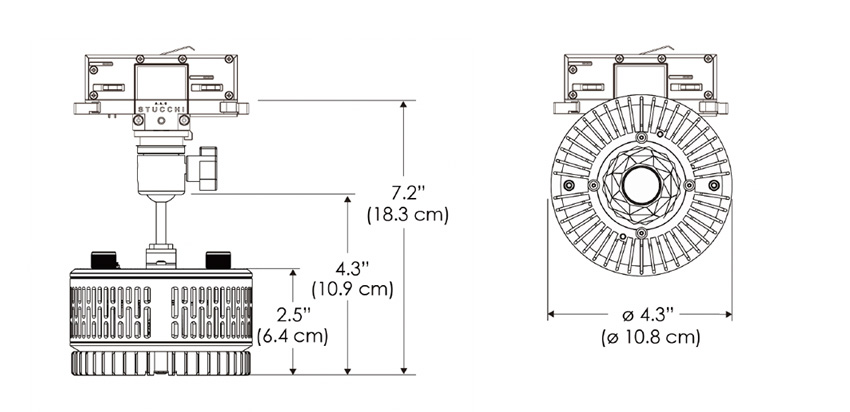

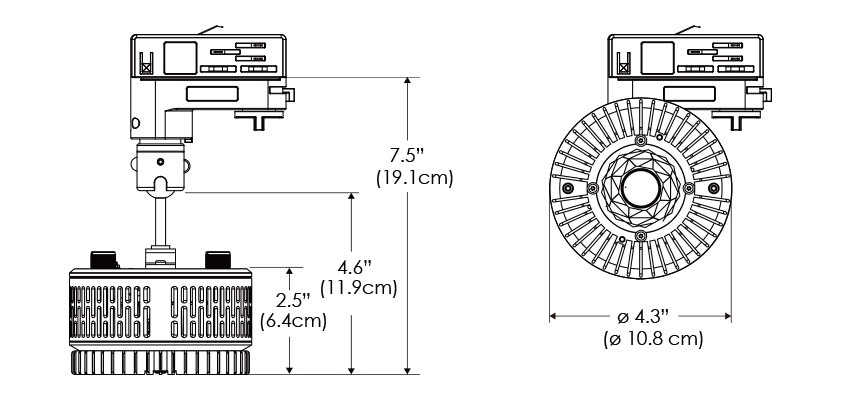

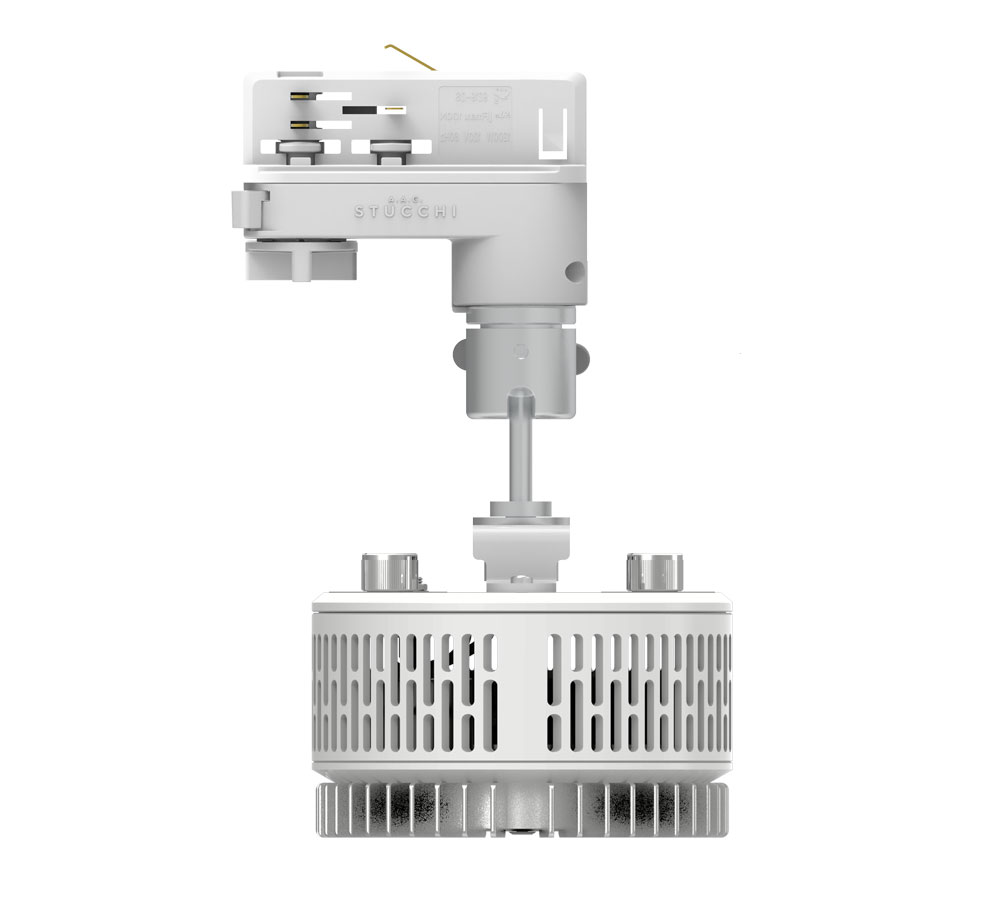

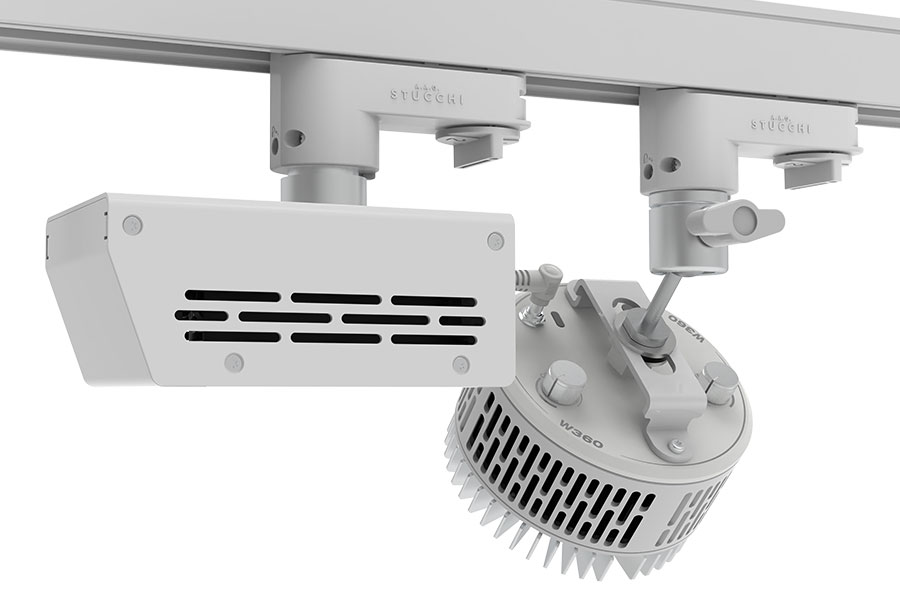

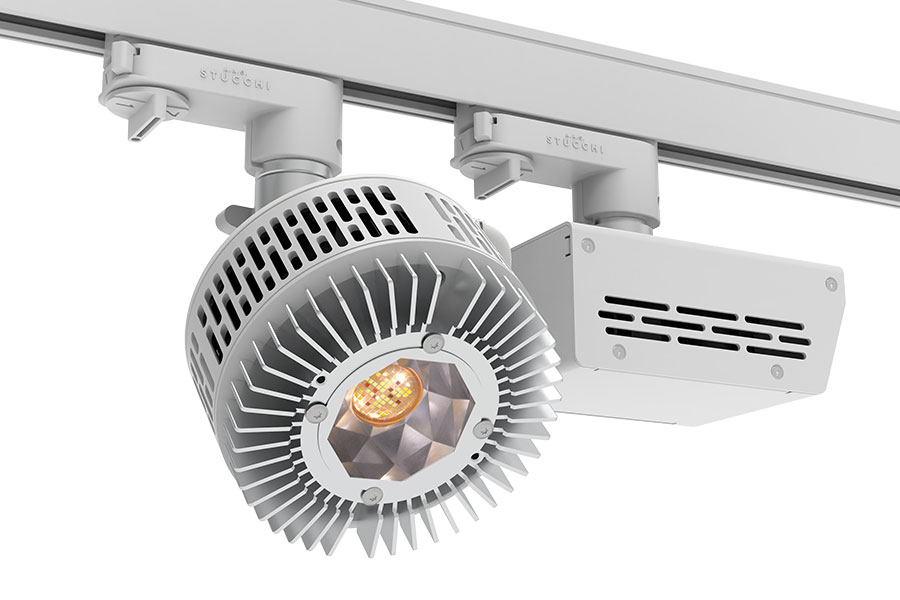

| W360B-TOX/TON | ||
 |
 |  |

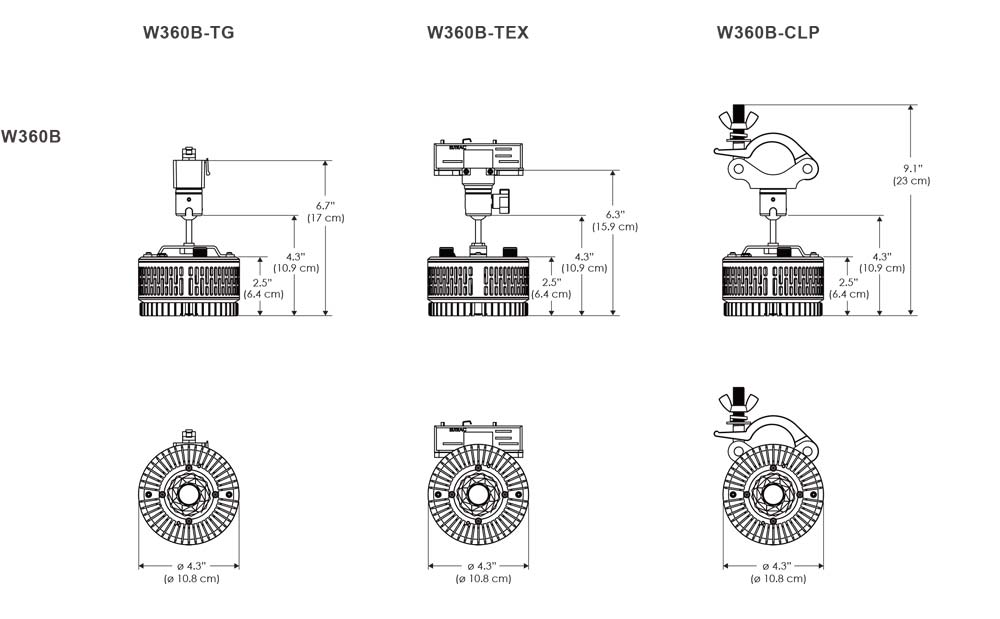

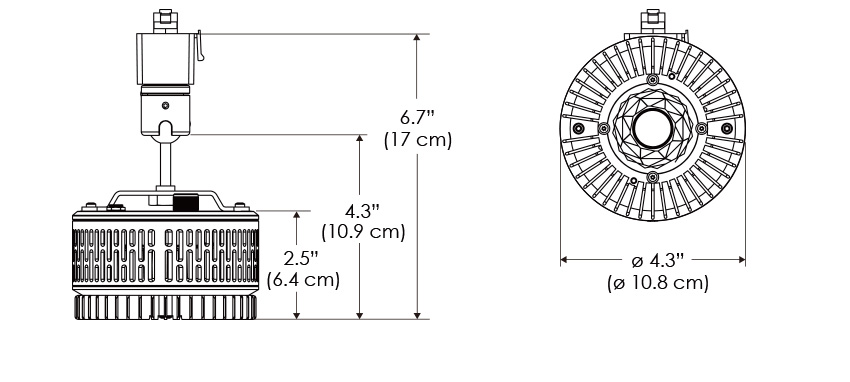

| W360B-TG | ||
 |
 | |

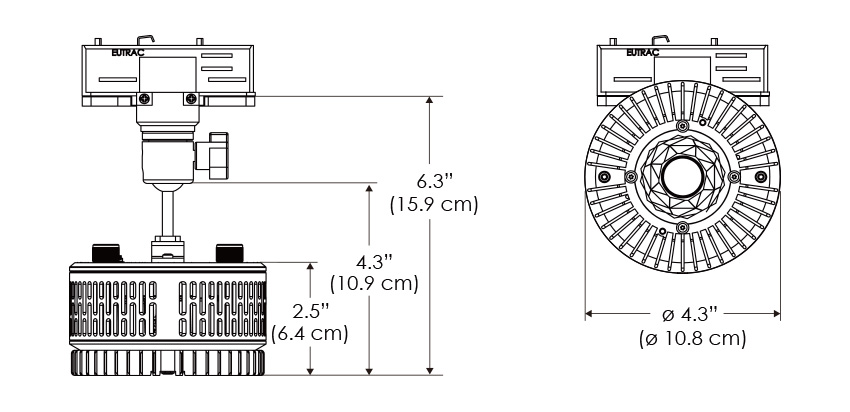

| W360B-TEX | ||
 |
 |  |

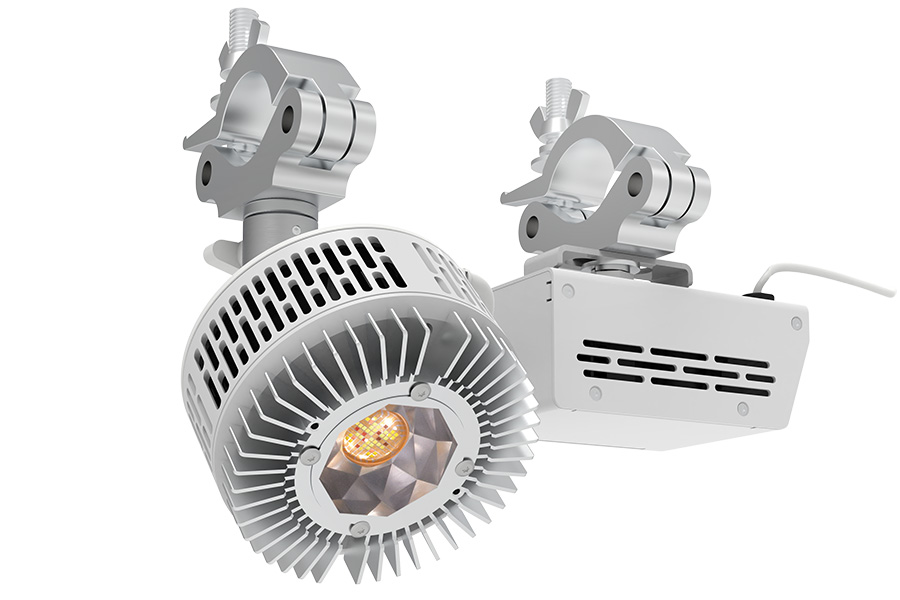

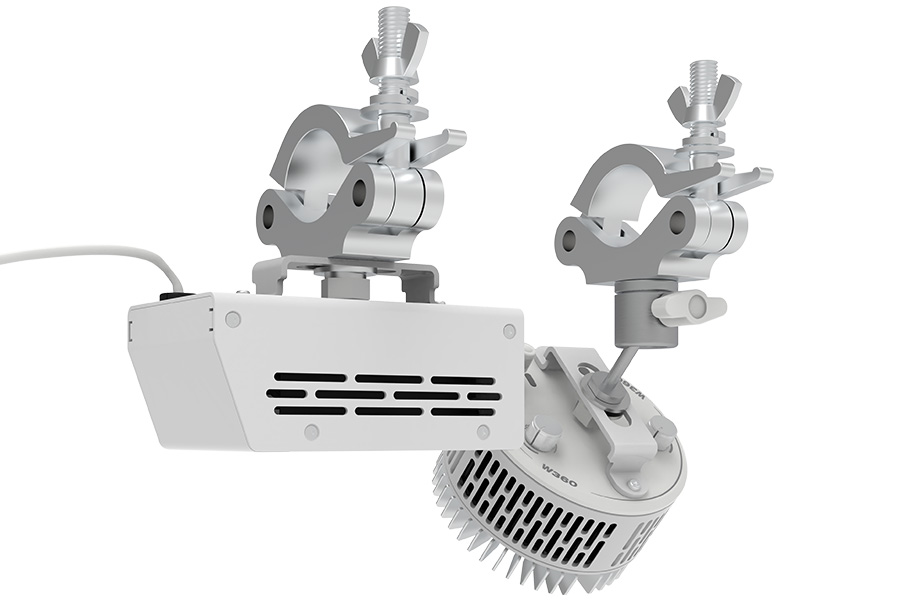

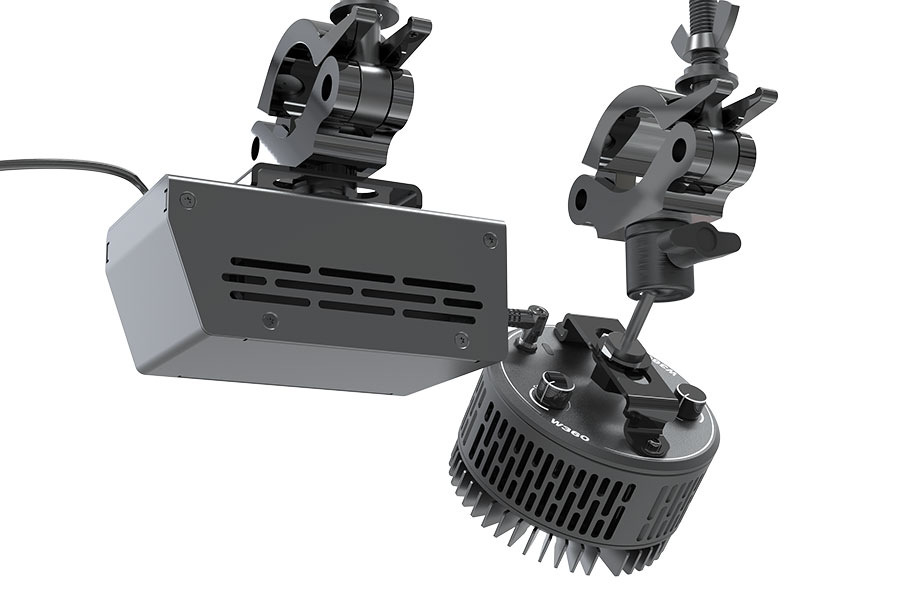

| W360B-CLP | ||
 |
 | |

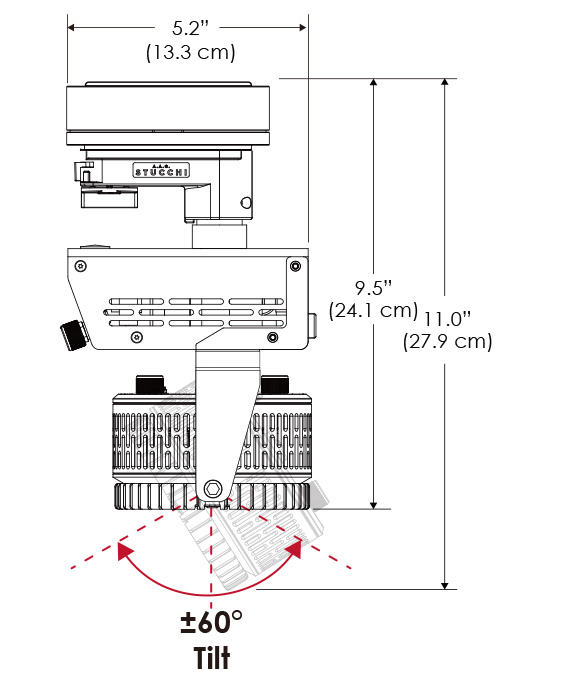

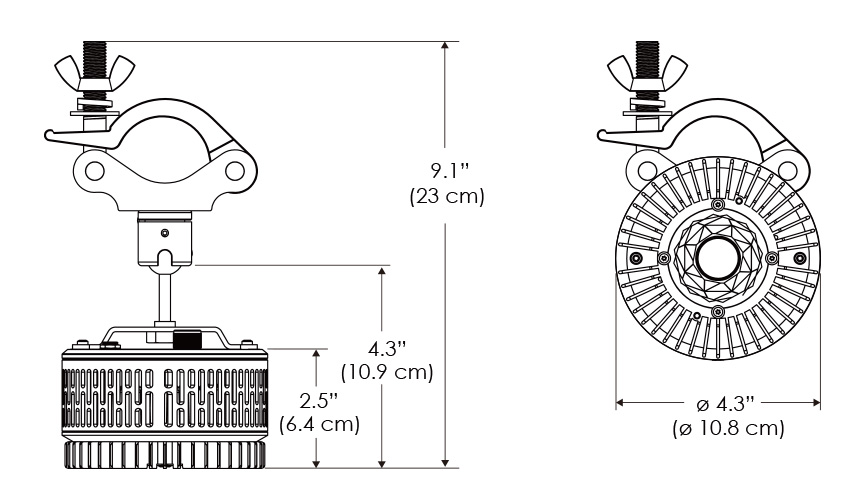

| Mounting Bracket Dimensions ALL-CLP |
 |
W360B fixture
PSU
O-Type Track
DMX
E-Type Track
DMX
(obsolete)
G-Type Track
Non - DMX
(obsolete)
Signal Converter
