Track Type: Surface Mounted Track (commercial grade)
Compatible Mounts: TOX, TON
Color Options: Black / White
Segment Length: 4ft / 8ft
Mounting Points: 0.47” x 0.16” (11mm x 4mm) Slot Per 1.64’ (500mm)

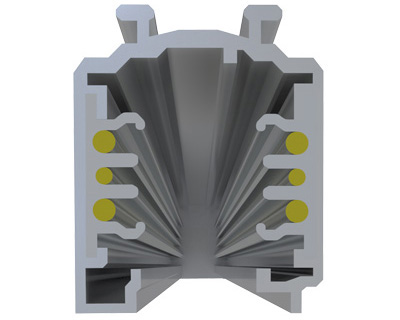

Conductors:
7 (2 Data, 2 Live, 2 Neutral, 1 Ground)
Circuits: 2 (20A max per circuit, 40A max per track)
Material: Aluminum / PVC / Polycarbonate / Copper conductors
Number of DMX Fixtures: 30 Max
Max Load: 50kg / 110lbs (per 1.5’ of track)

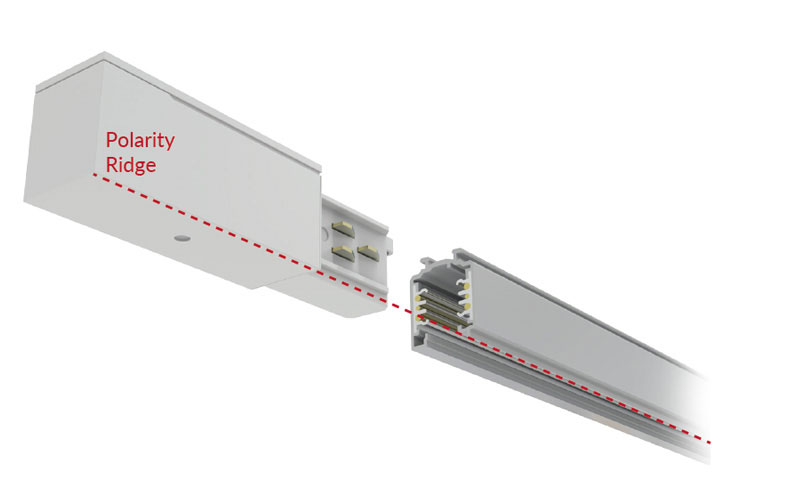

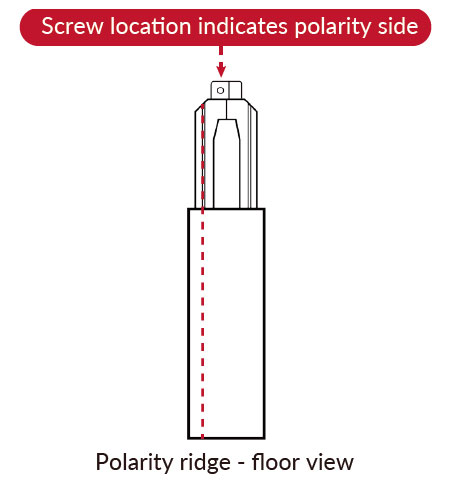

There a mechanical key on the track to guarantee the proper connection of multiple pieces of track. This key is present on all end-feeds and connecting components (see screw below-pictured). Care must be taken when ordering to select the correct components.
BLACK: 9002/B-2C
WHITE: 9002/W-2C
BLACK: 9001/B-2C
WHITE: 9001/W-2C
BLACK: 9010/B-2C
WHITE: 9010/W-2C
Can be oriented both sides
BLACK: 9012/B-2C
WHITE: 9012/W-2C
BLACK: 9011/B-2C
WHITE: 9011/W-2C
BLACK: 9018/B-2C
WHITE: 9018/W-2C
30° - 330° mobility range
Can be oriented both sides
BLACK: 9004/B
WHITE: 9004/W
Can be oriented both sides
BLACK : 9000-UL4/B-ST2-120
WHITE : 9000-UL4/W-ST2-120
BLACK : 9000-UL8/B-ST2-120
WHITE : 9000-UL8/W-ST2-120
