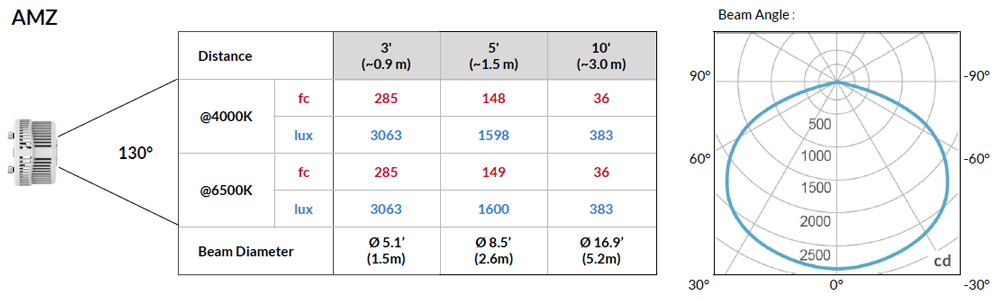

| Beam Angle | 130° |
| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| Power Draw | 175W max |
| AC Input Voltage | 100 - 240V AC, 60Hz 100 - 277V AC (only with CLP) |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.4lb / 0.6kg |
| Power Supply Weight | 1.6lb / 0.7kg |
PS   | PSX |
|

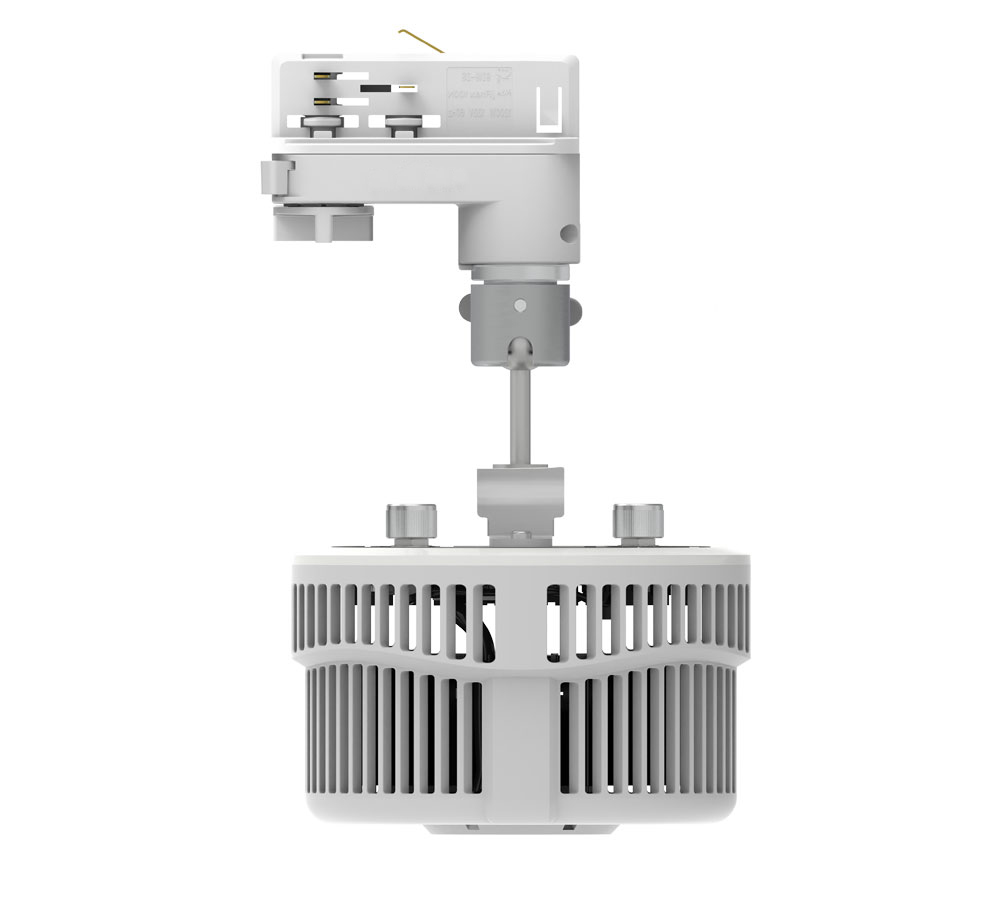

| W500X-TOX/TON | ||
 |
 |  |
| W500X-TG | ||
 |
 | |
| W500X-TEX | ||
 |
 |  |
| W500X-CLP | ||
 |
 |  |

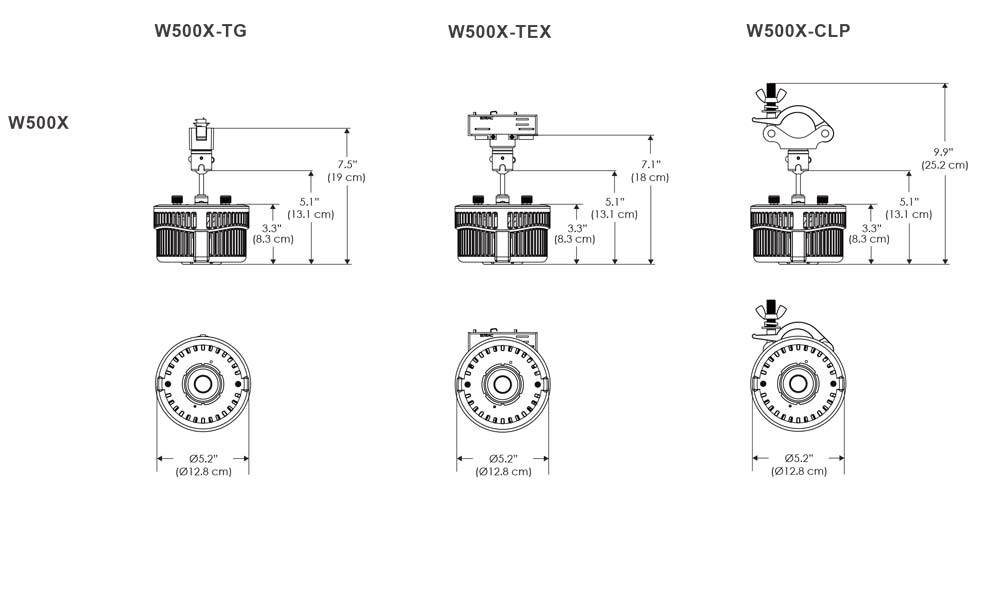

| Mounting Bracket Dimensions ALL-CLP |
 |
W500X fixture
PSU
O-Type Track
DMX
E-Type Track
DMX
(obsolete)
G-Type Track
Non - DMX
(obsolete)
Signal Converter
